Electronic Brake Control Module

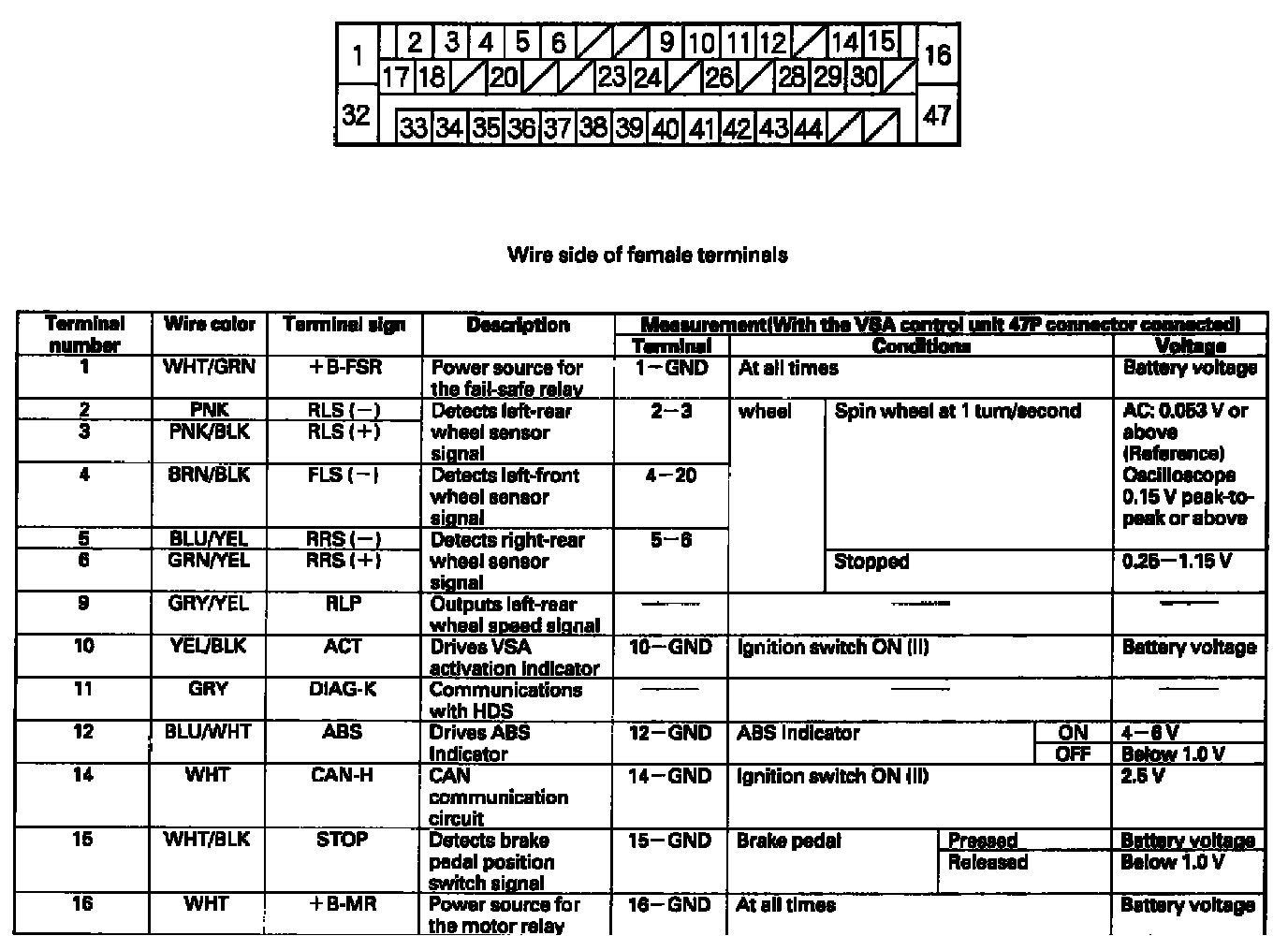

Part 1 Of 3:

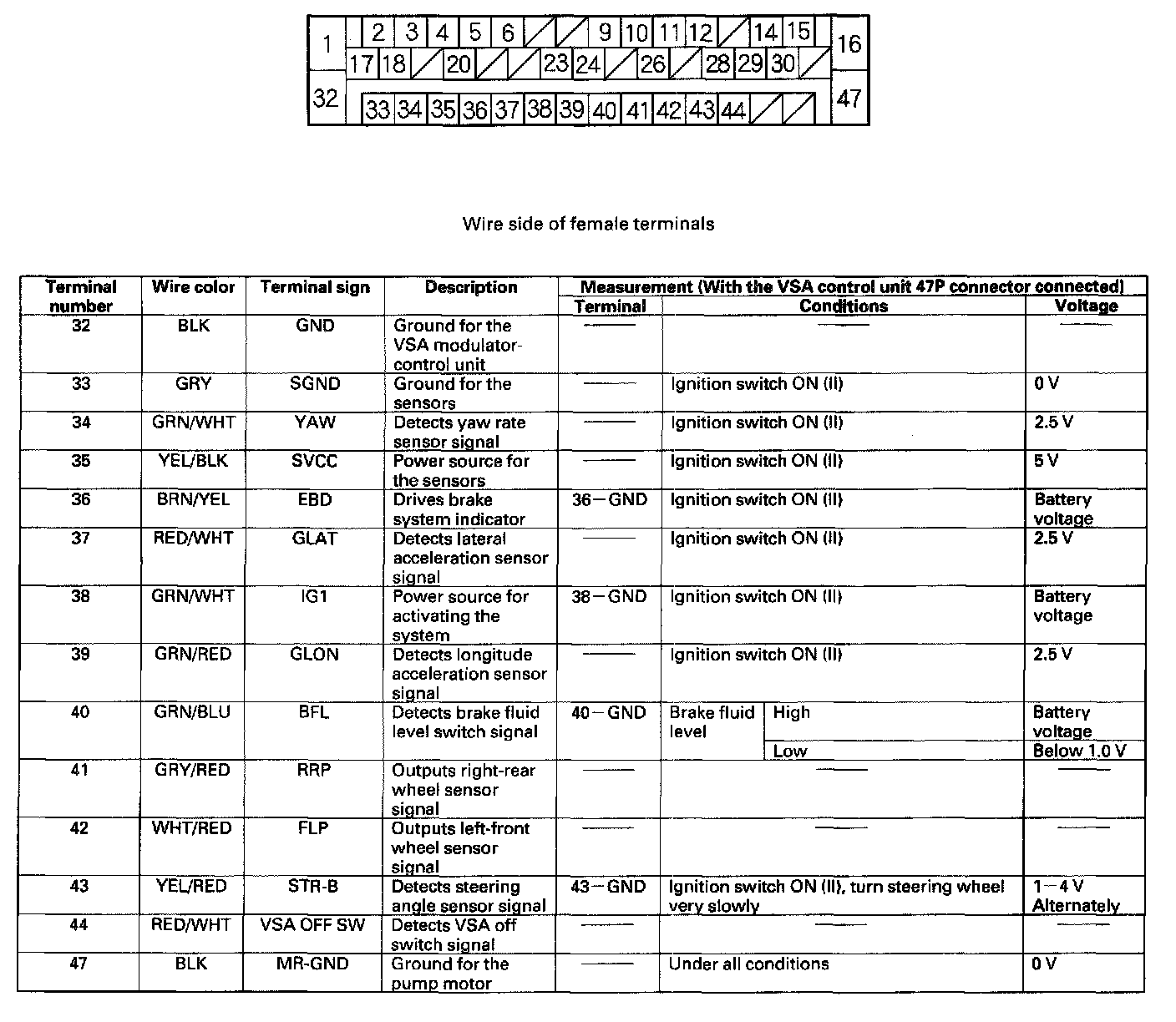

Part 2 Of 3:

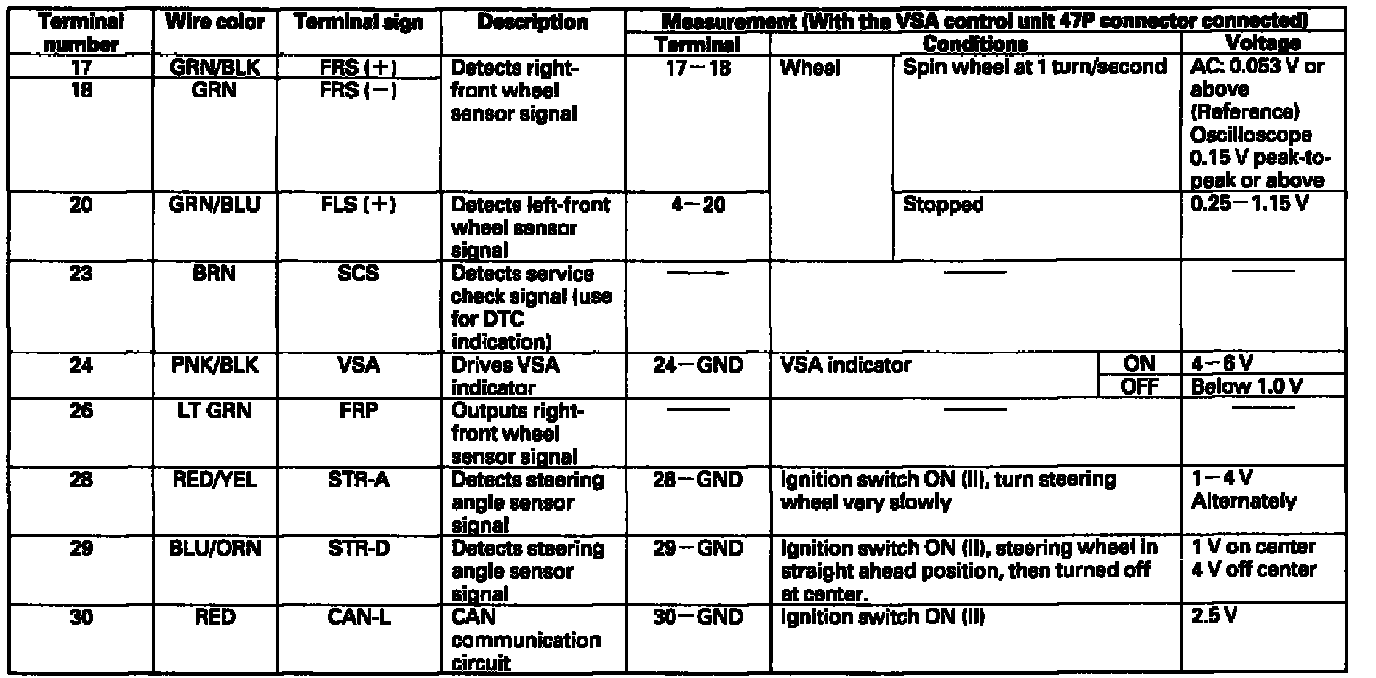

Part 3 Of 3:





VSA Control Unit Inputs and Outputs for 47P Connector
