Bolt Sequence

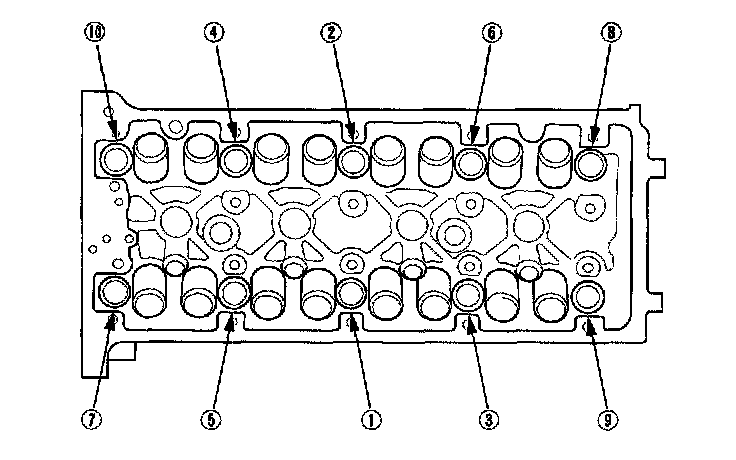

Torque Sequence:

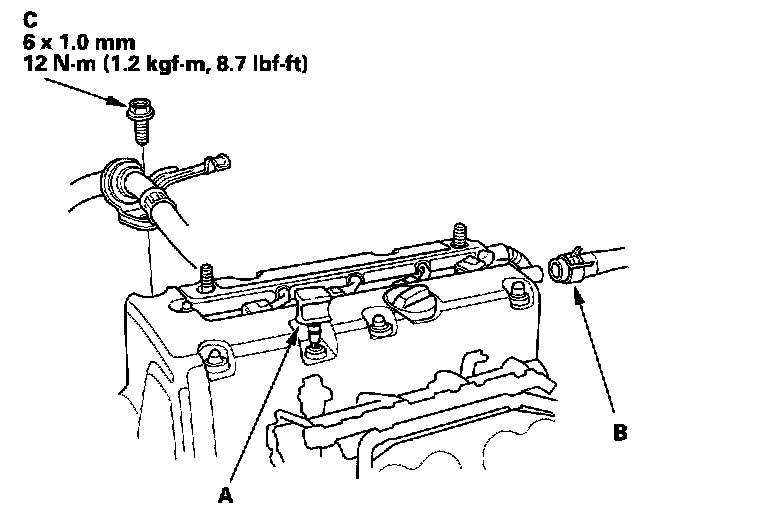

Cylinder Head Cover, (A) P/S Hose Bracket, (B) Oil Dipstick, (C) Breather Hose.:

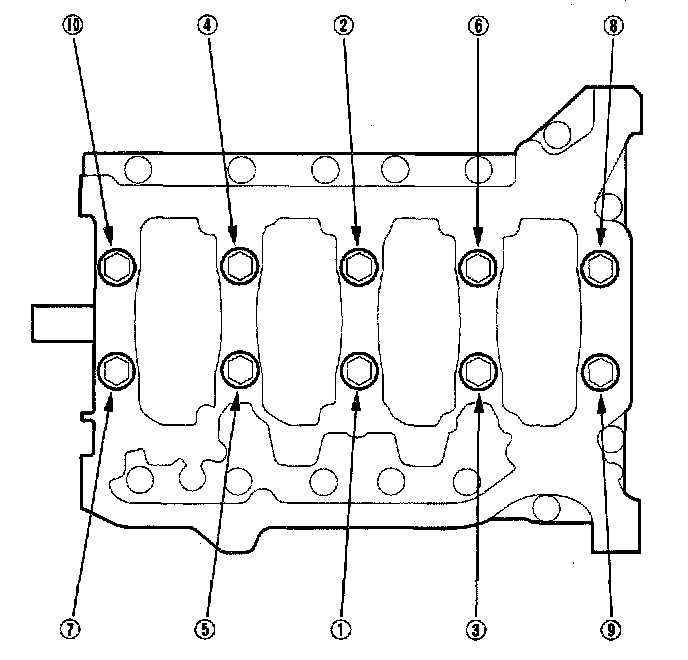

Bearing Cap Bolts:

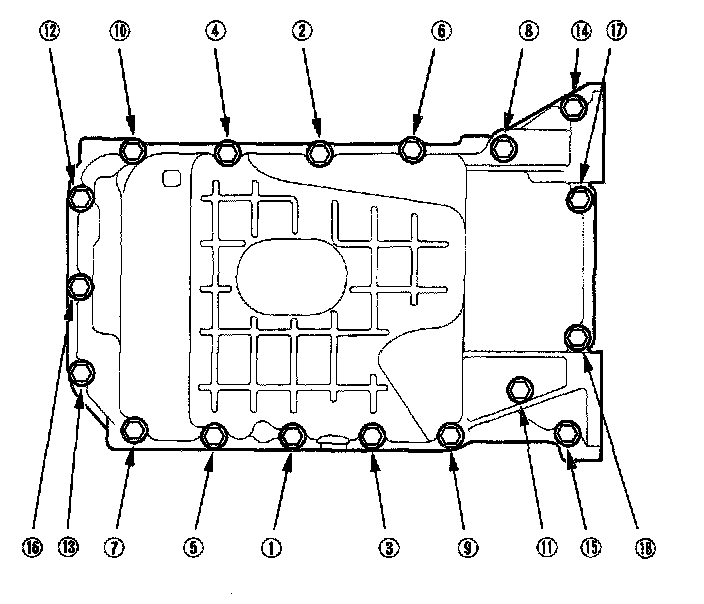

K20A3 Engine Oil Pan:

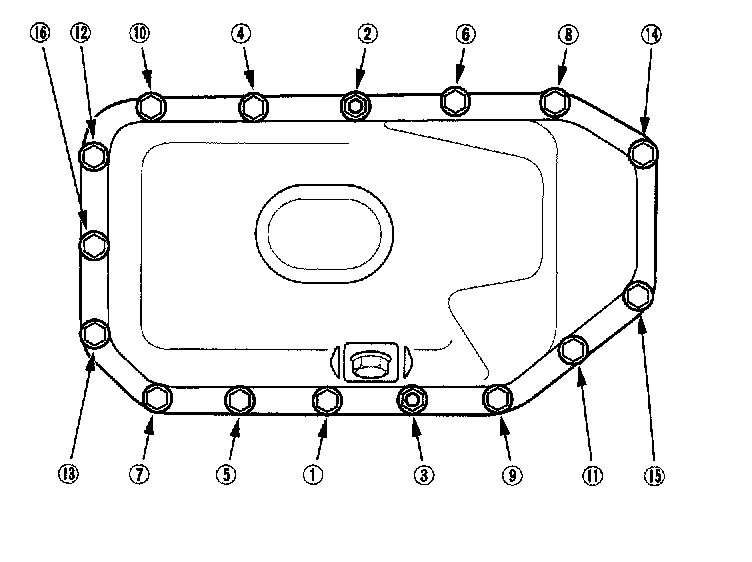

K20A2 Engine (Type-S) Oil Pan:
