Relay Box
Relay Box

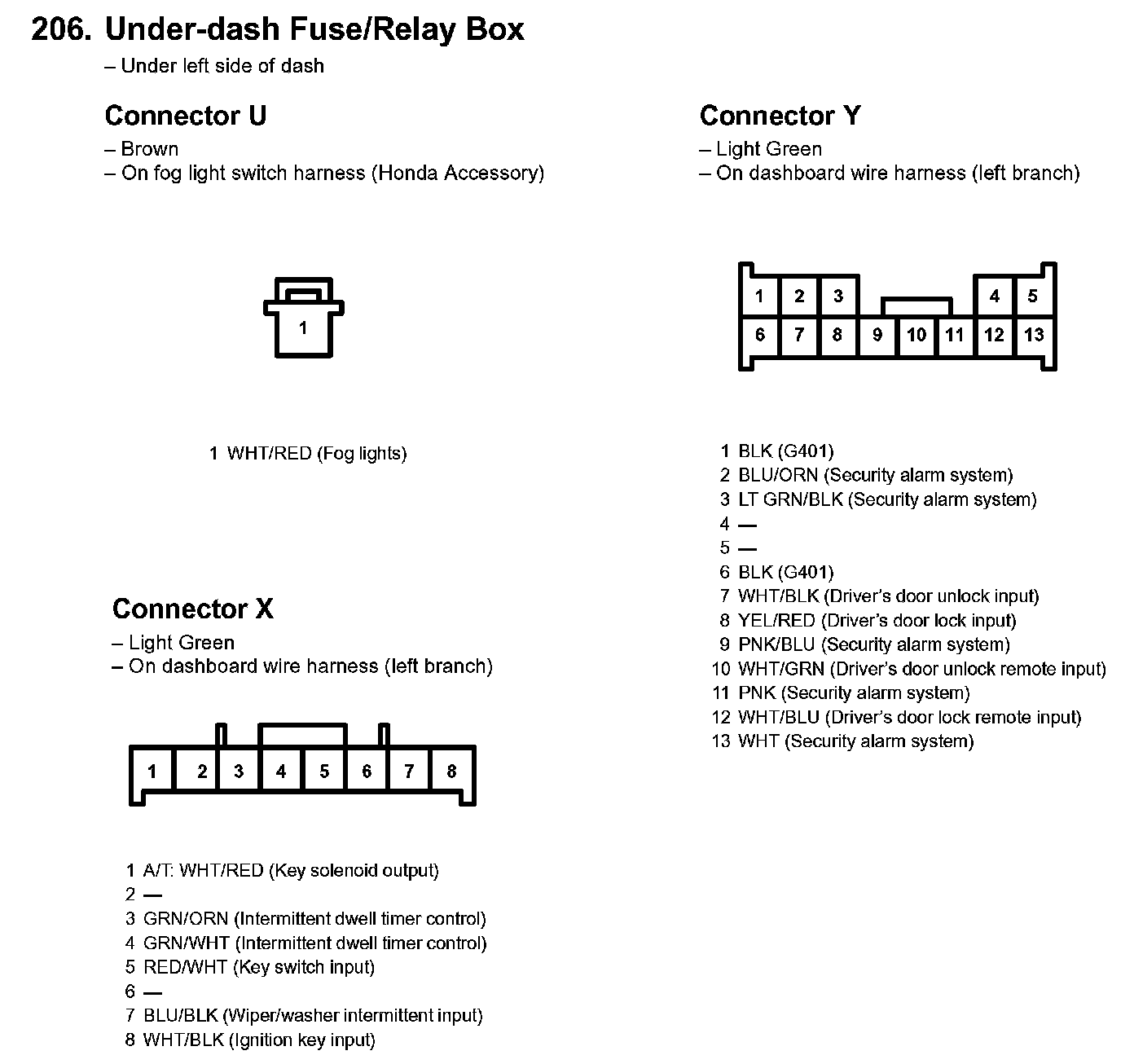

206. Under-dash Fuse/Relay Box:

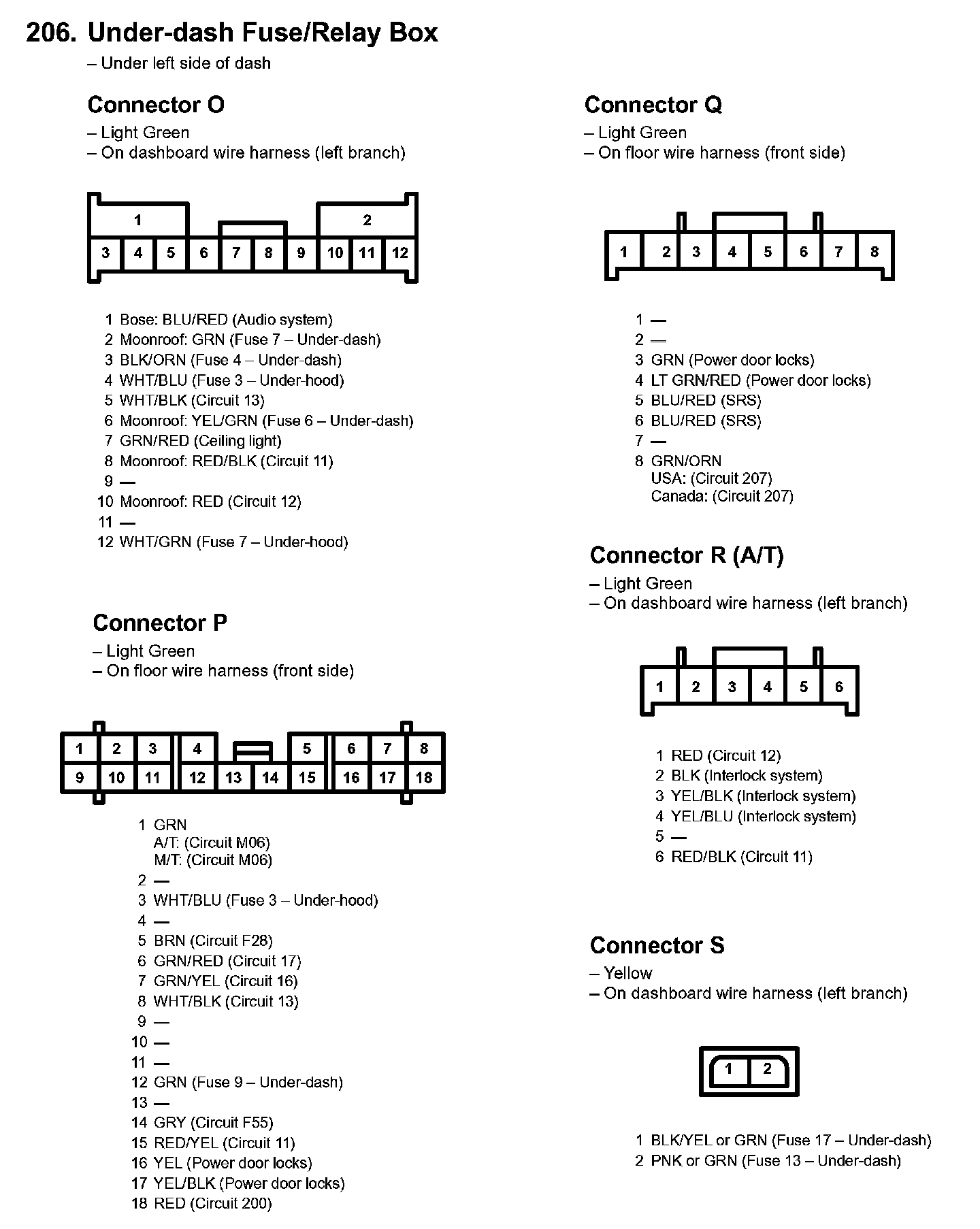

206. Under-dash Fuse/Relay Box:

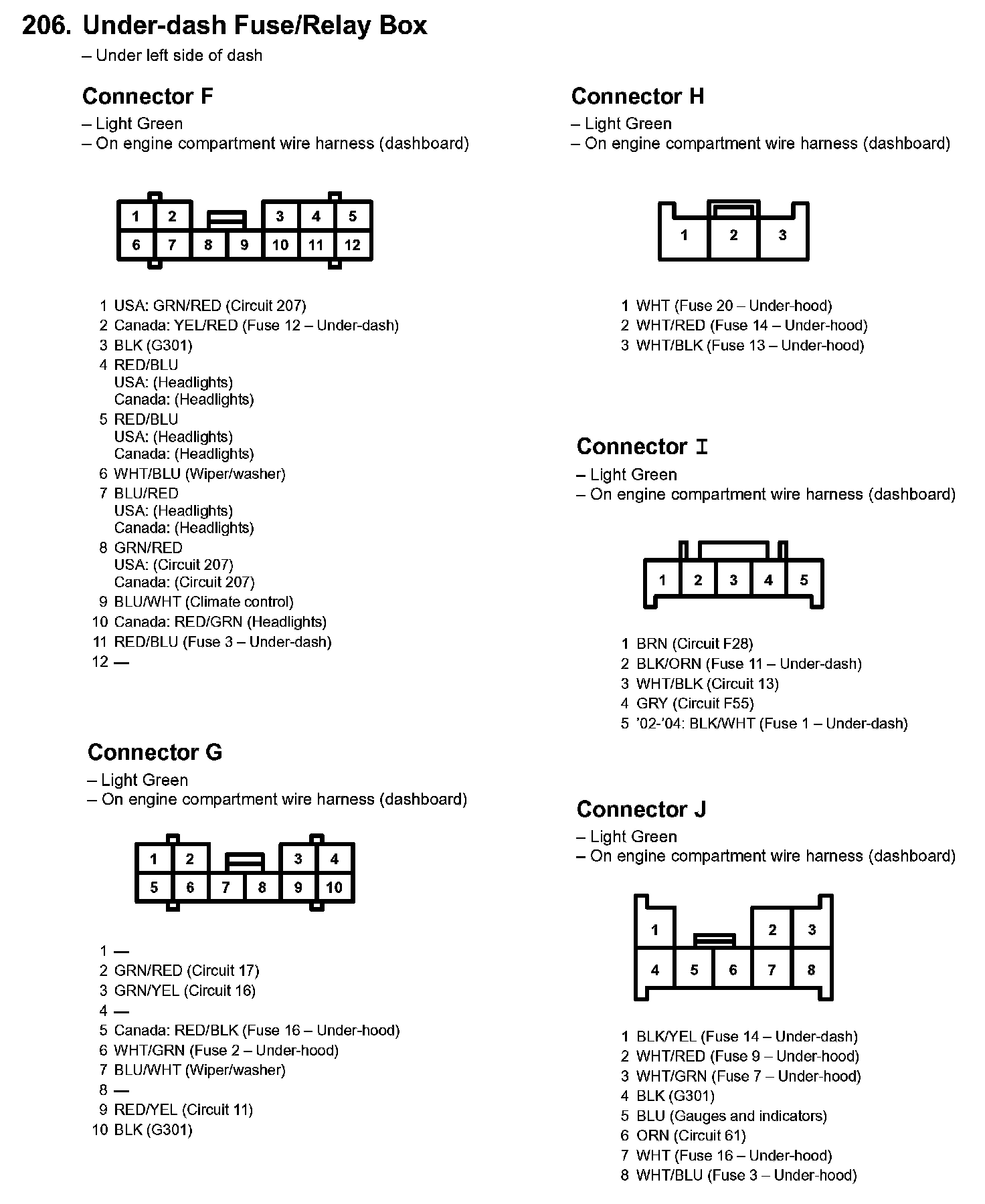

206. Under-dash Fuse/Relay Box:

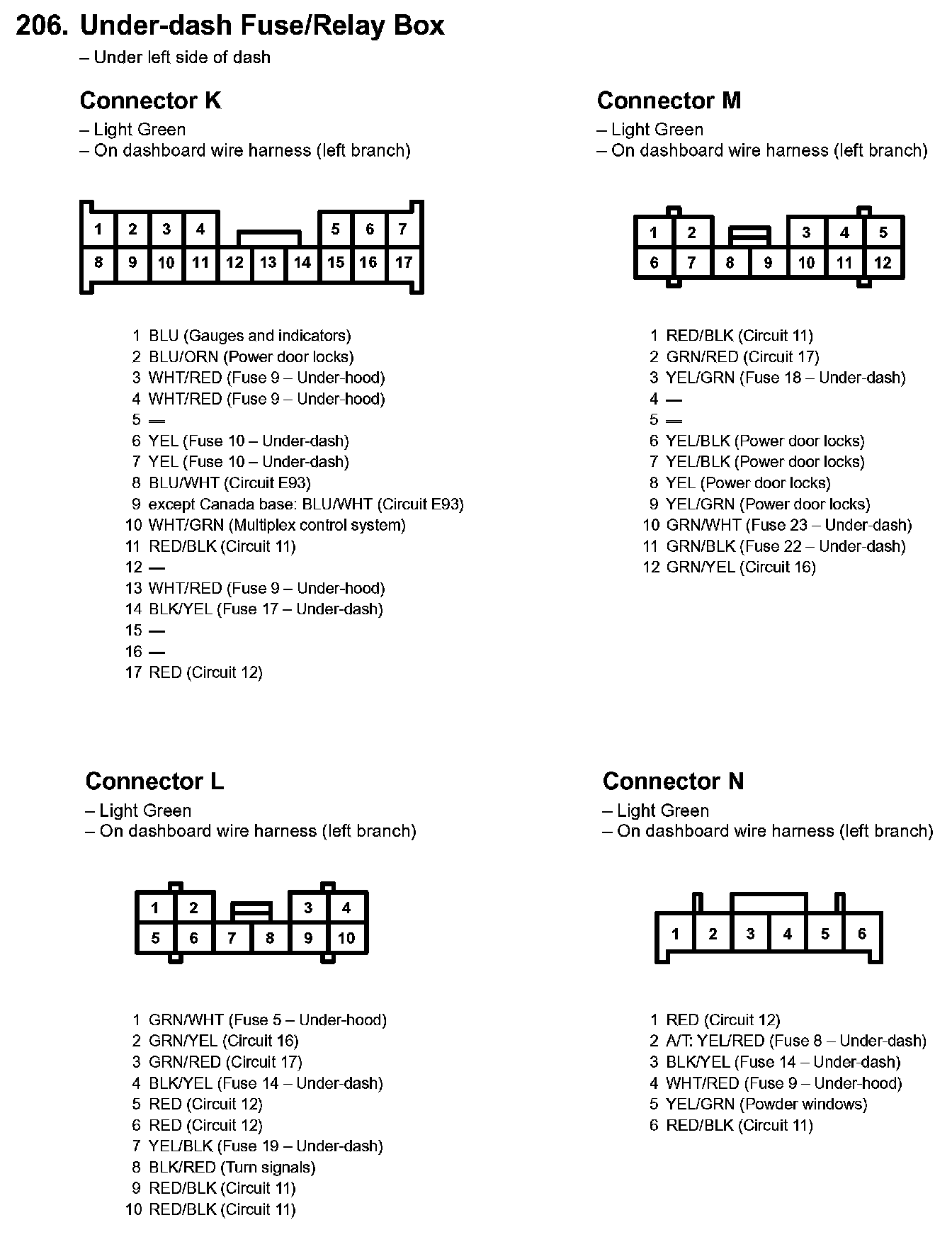

206. Under-dash Fuse/Relay Box:
206. Under-dash Fuse/Relay Box:

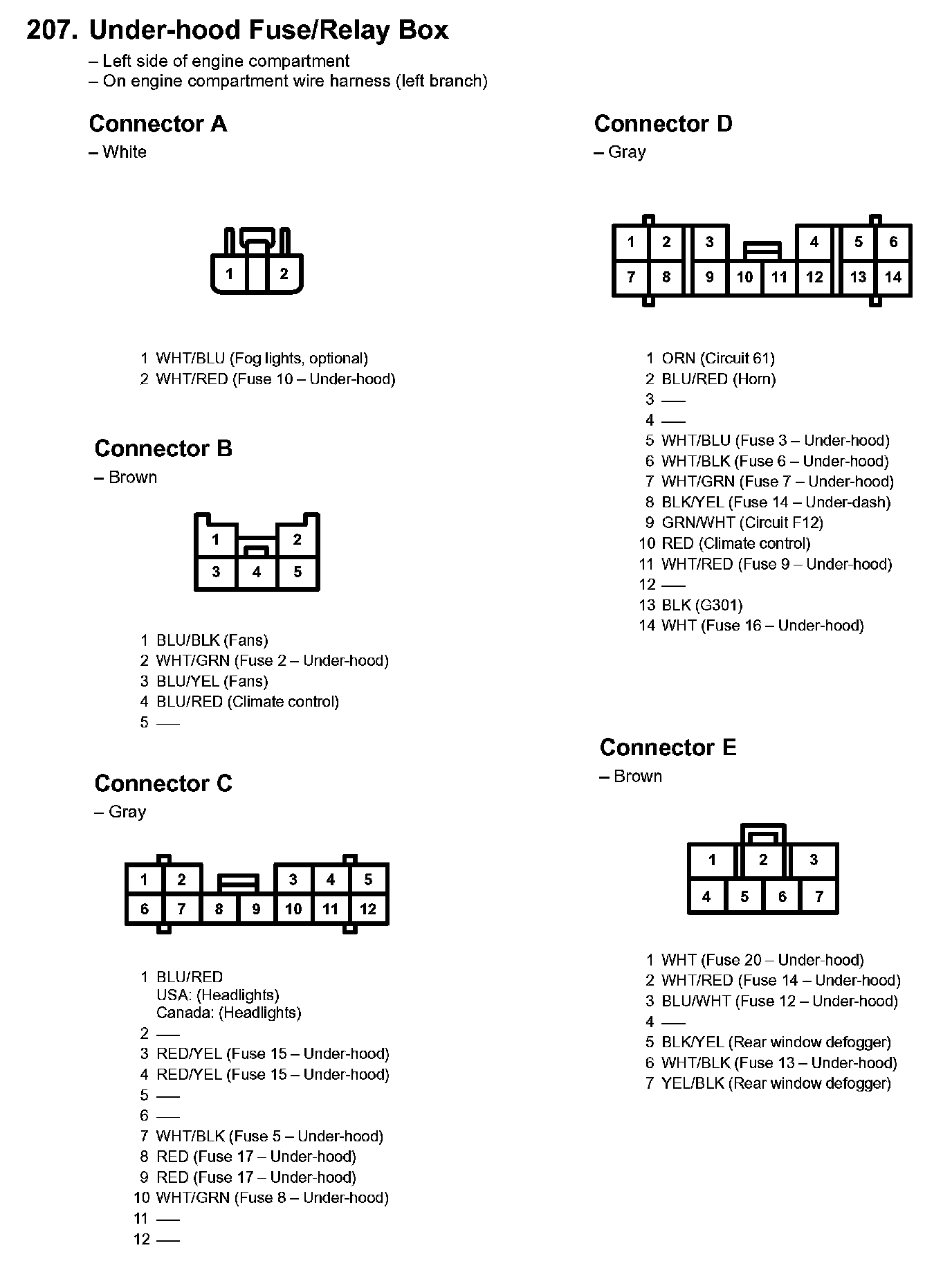

207. Under-hood Fuse/relay Box:
