Wiper Control Module: Locations

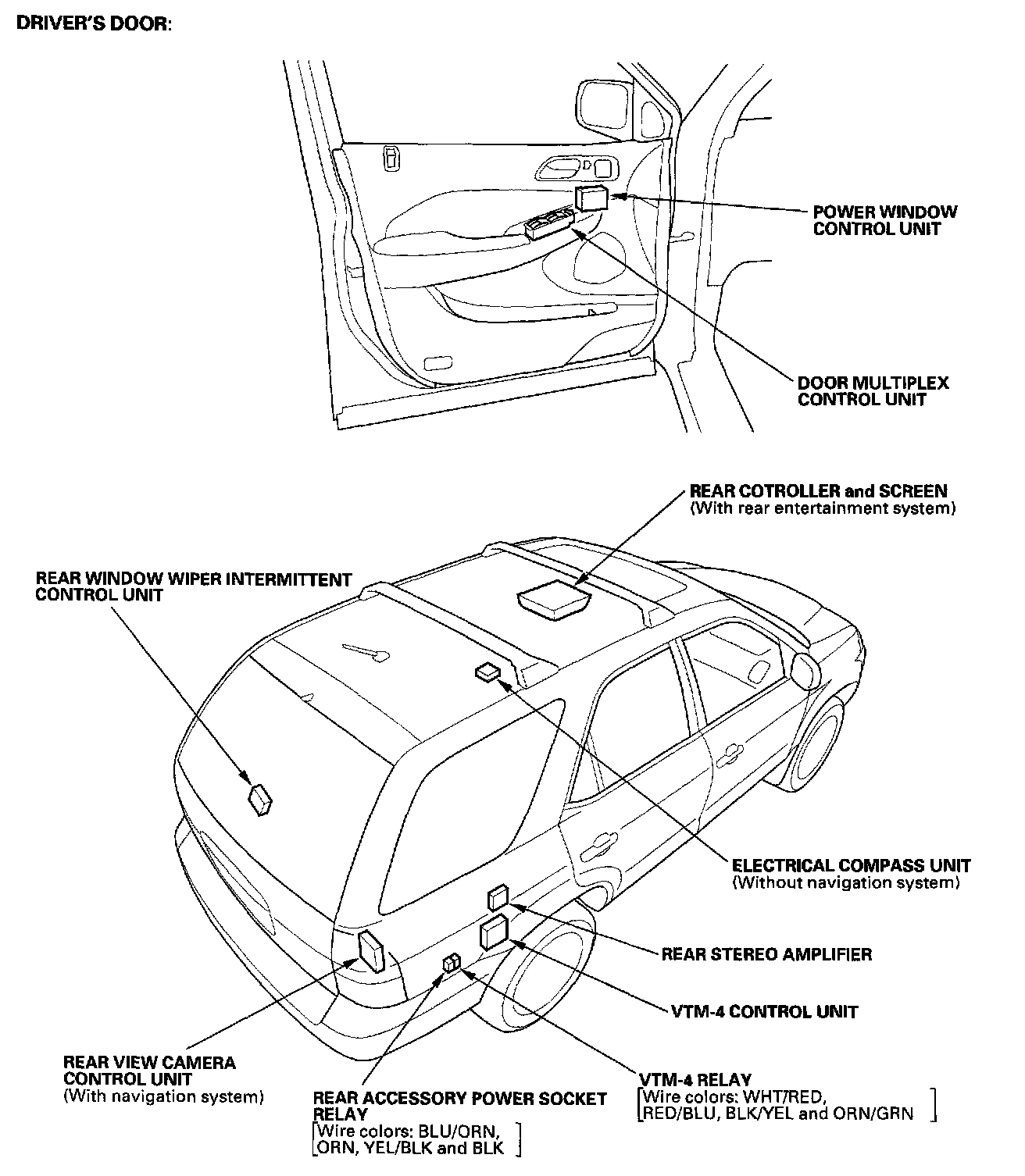

Door, Rear Side Trim And Roof - Relay And Control Unit Locations:

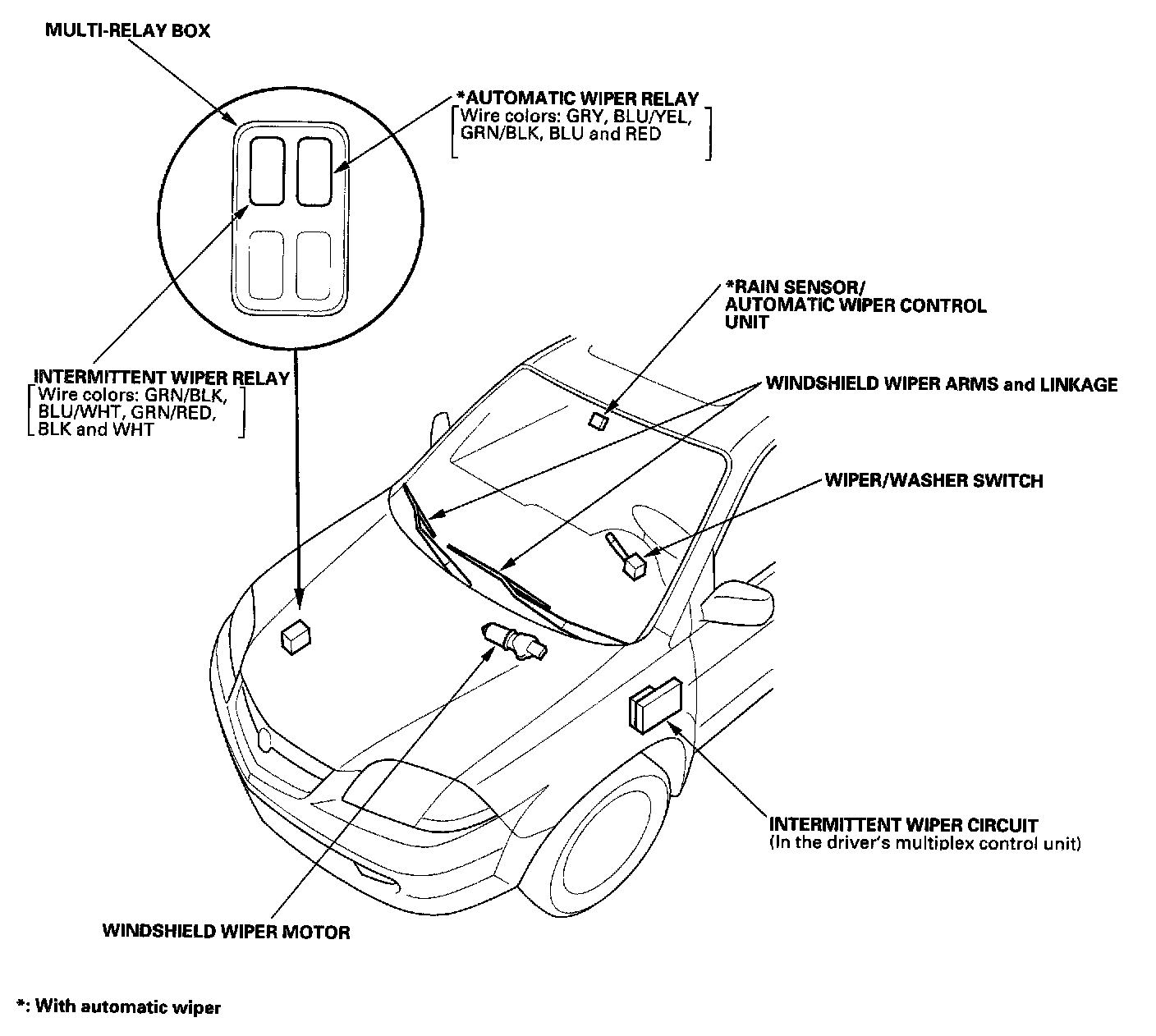

Wipers/Washers - Component Location Index:

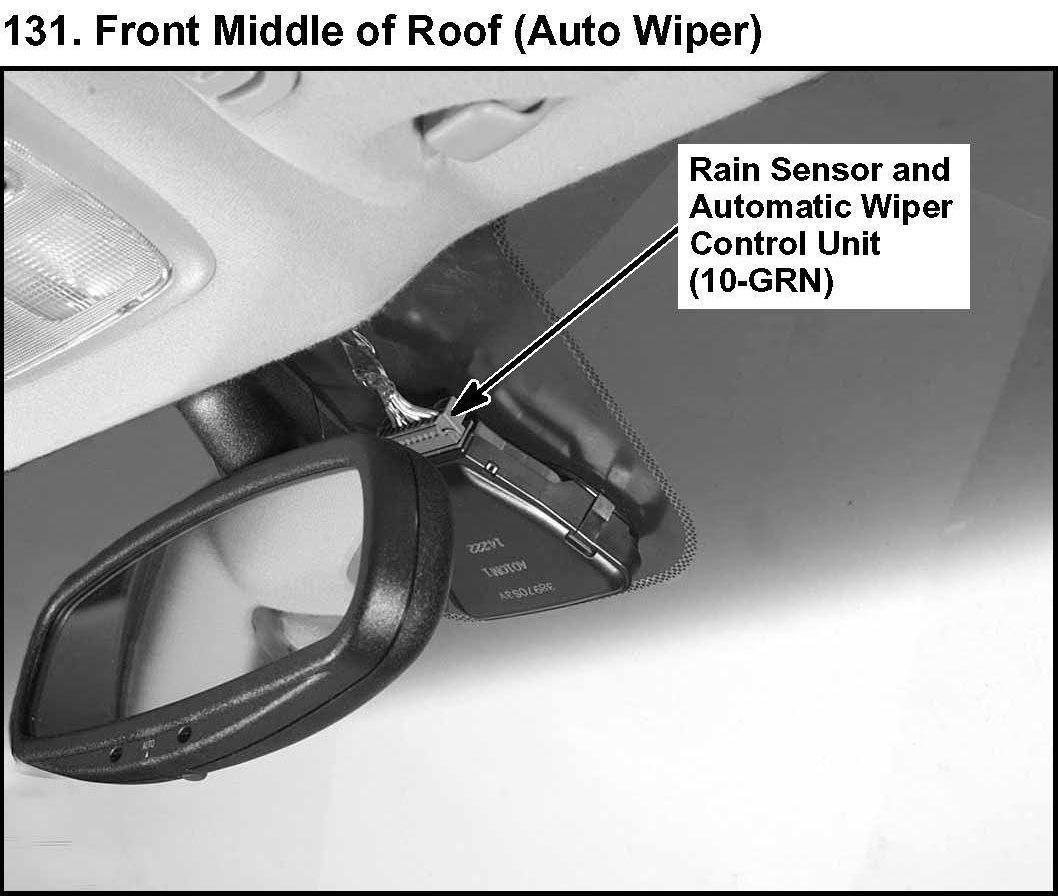

131. Front Middle of Roof (Auto Wiper):

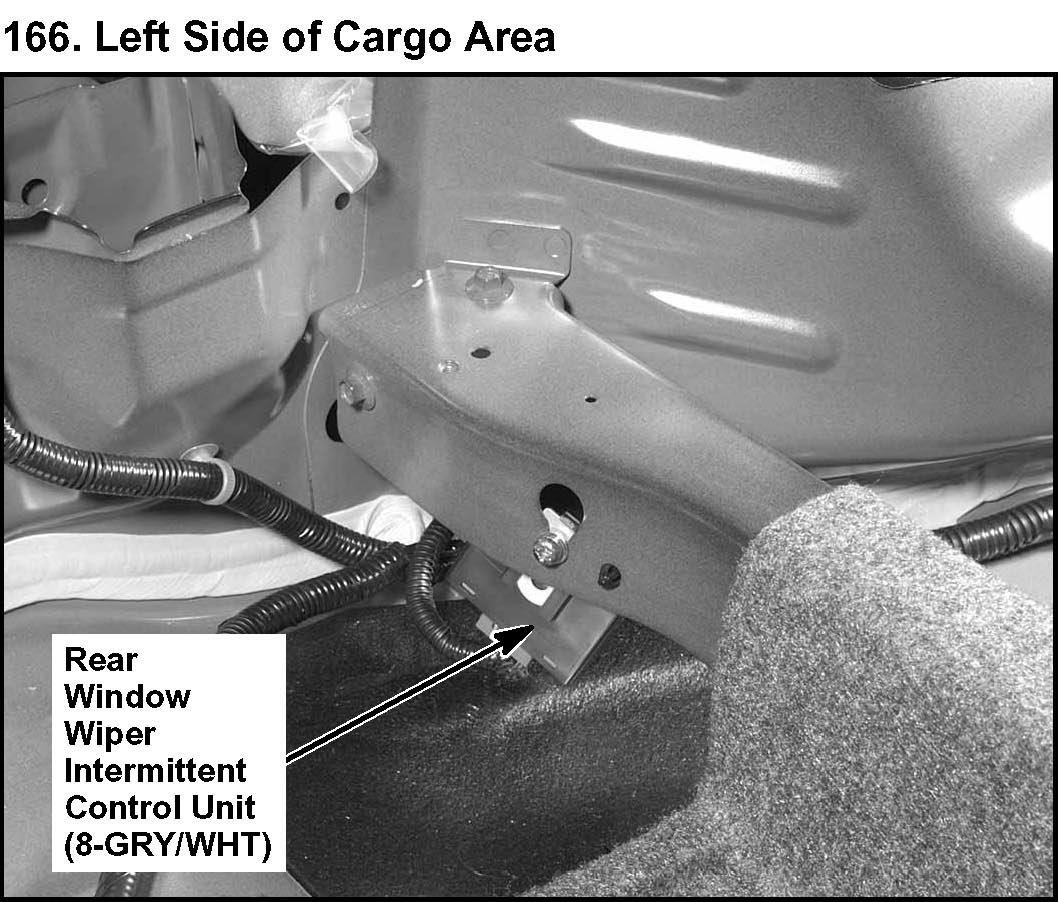

166. Left Side of Cargo Area:
