Pinout Values and Diagnostic Parameters

PCM Inputs And Outputs At Connector A:

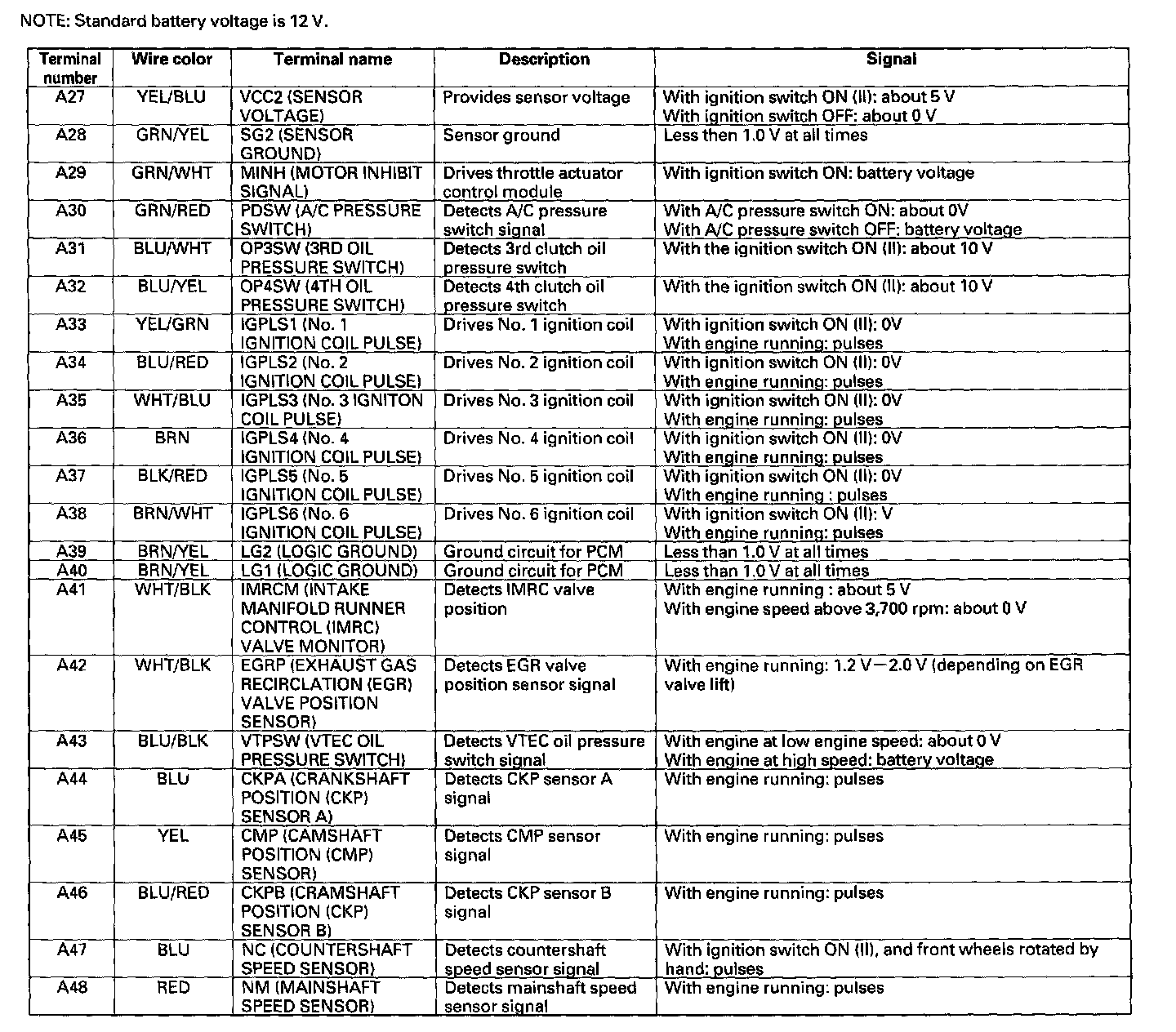

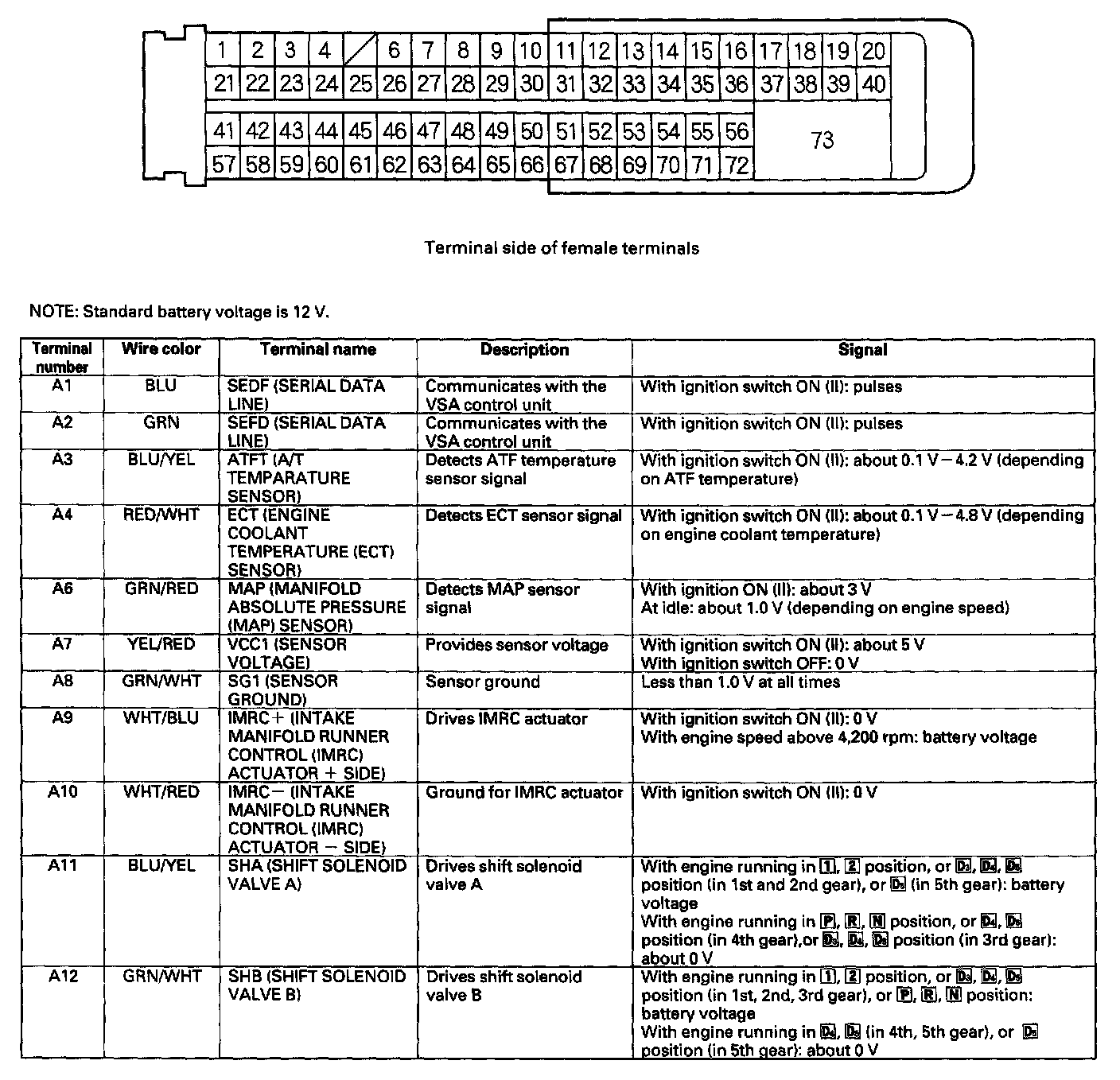

PCM Inputs And Outputs At Connector A (31P) Part 1:

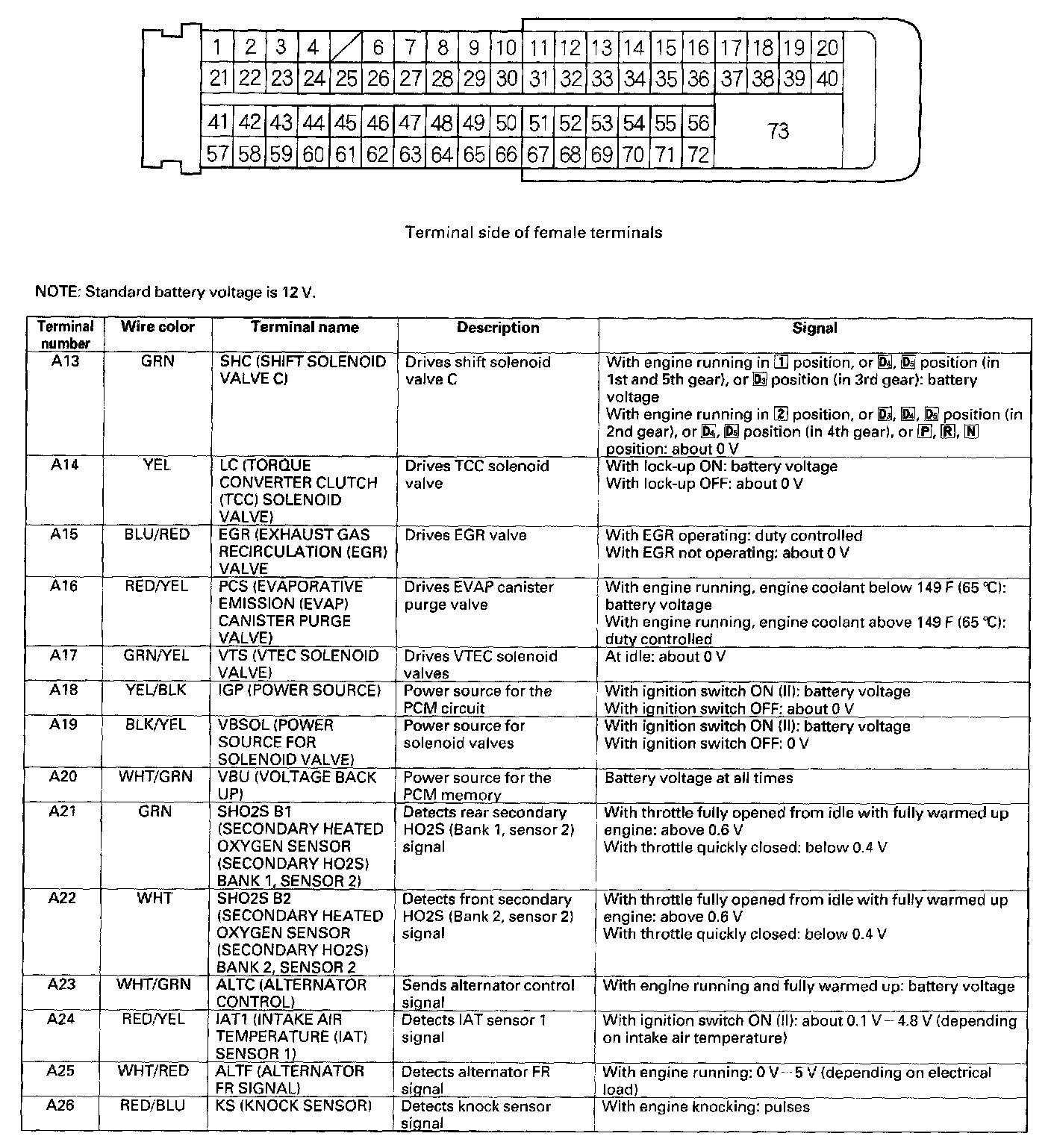

PCM Inputs And Outputs At Connector A (31P) Part 2:

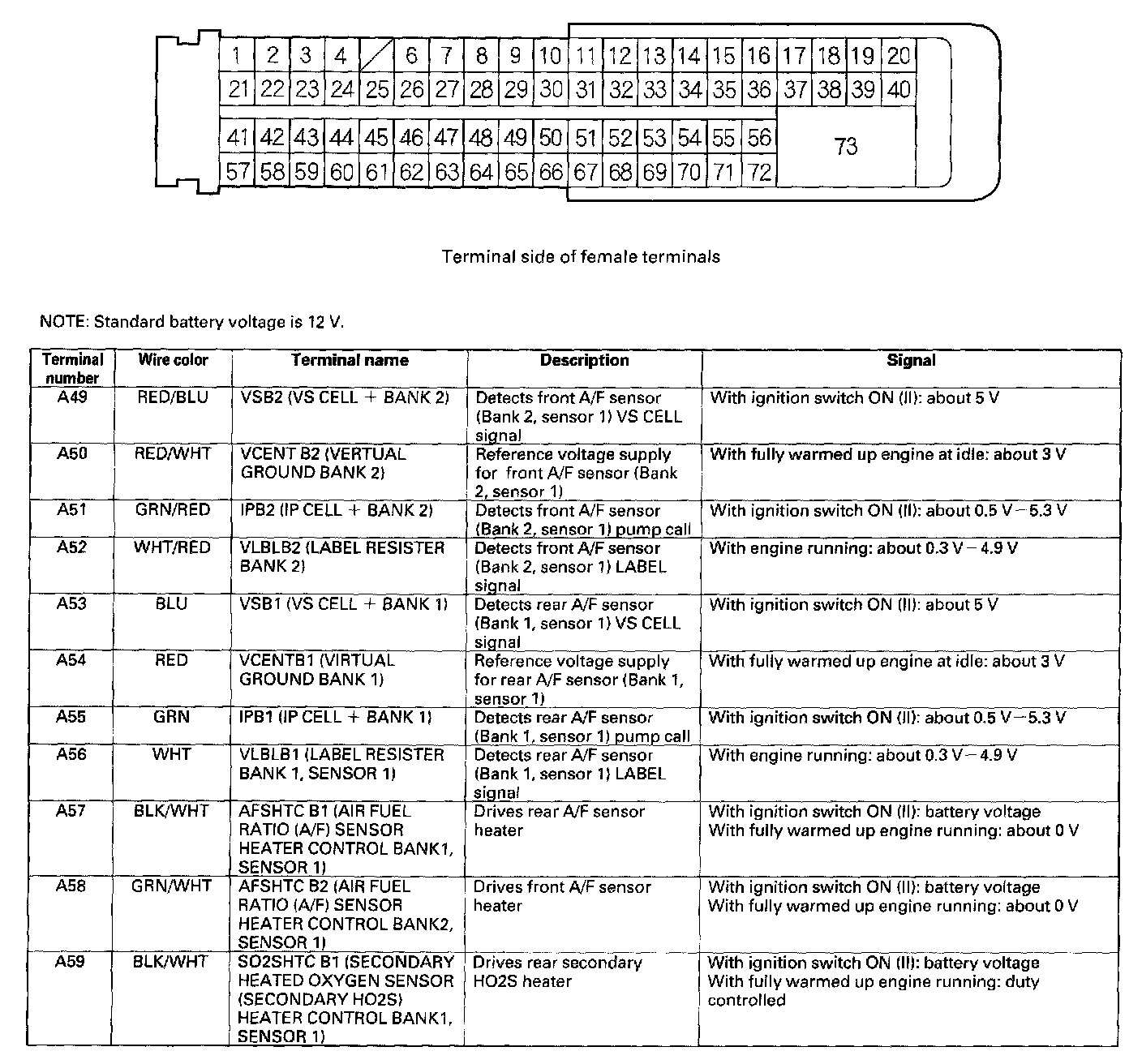

PCM Inputs And Outputs At Connector A Part 1:

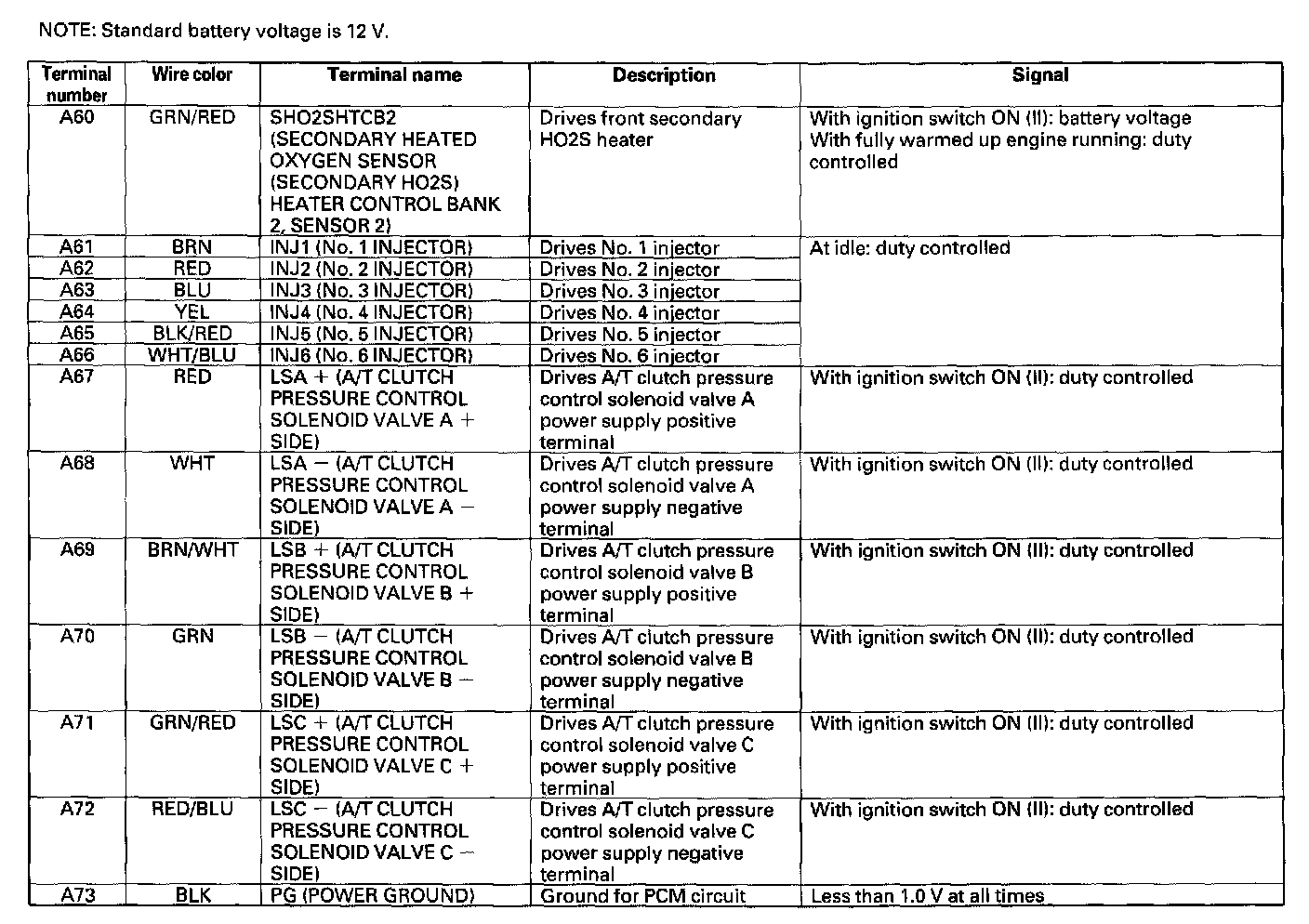

PCM Inputs And Outputs At Connector A Part2:

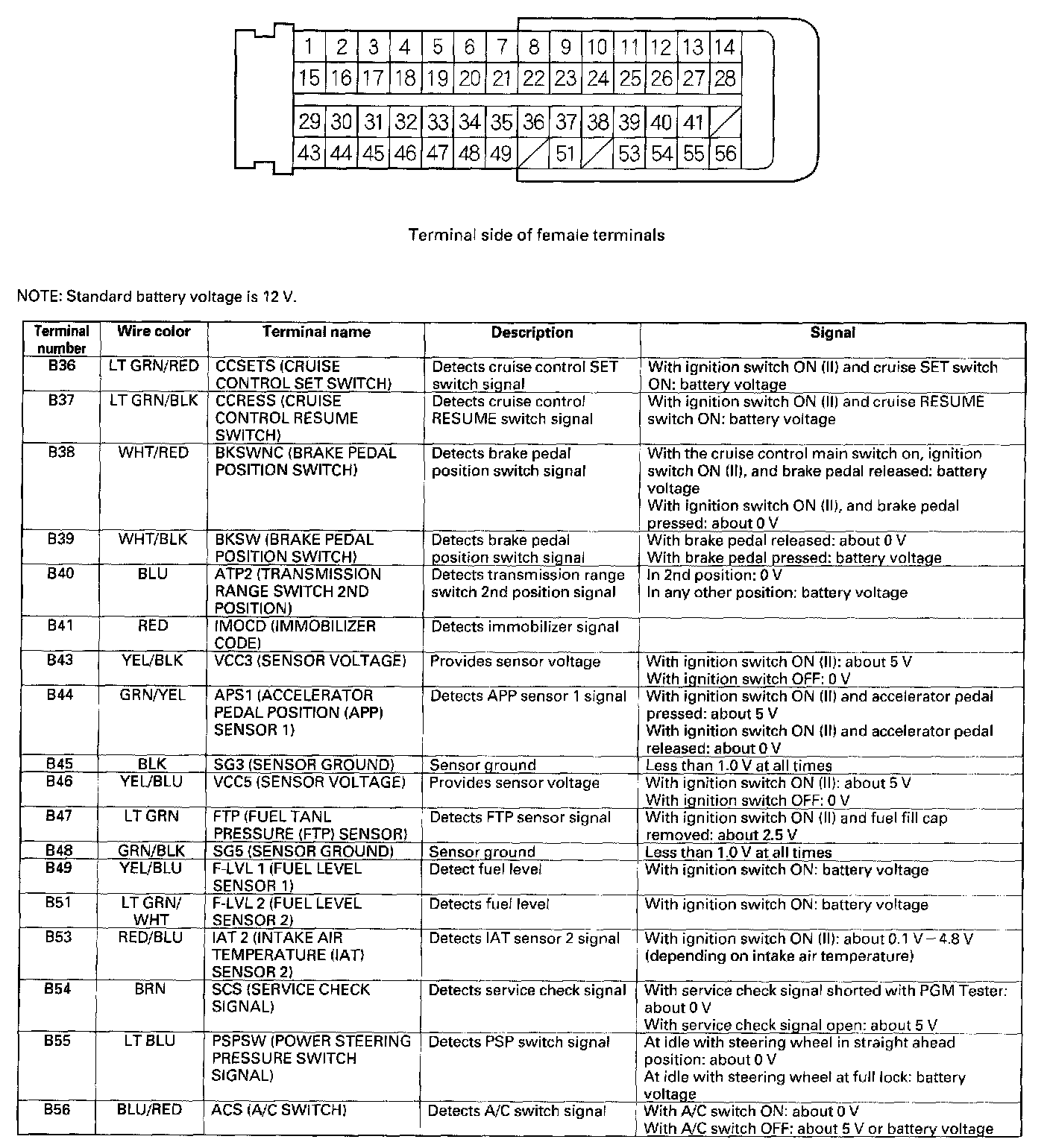

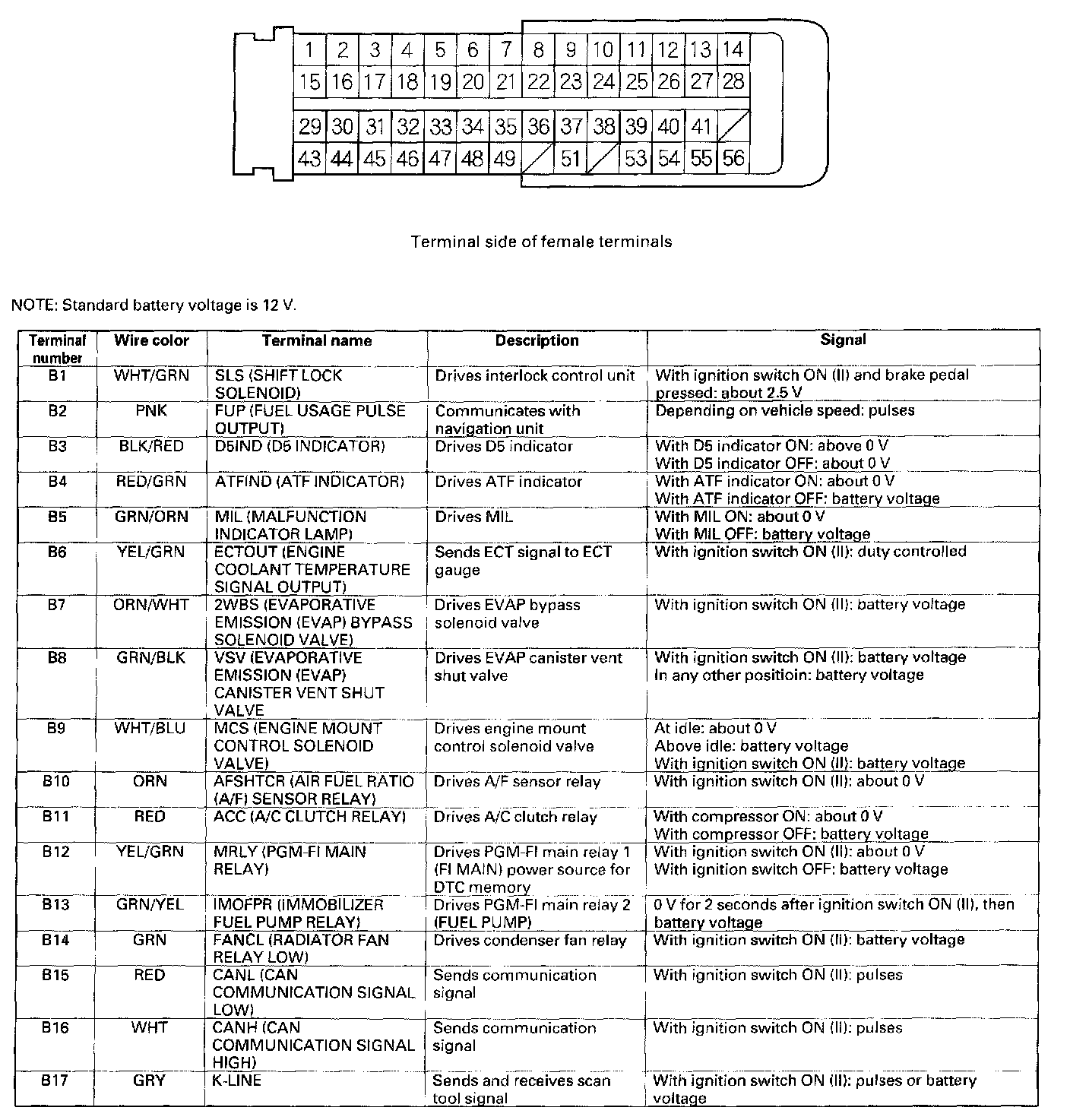

PCM Inputs And Outputs At Connector B Part 1:

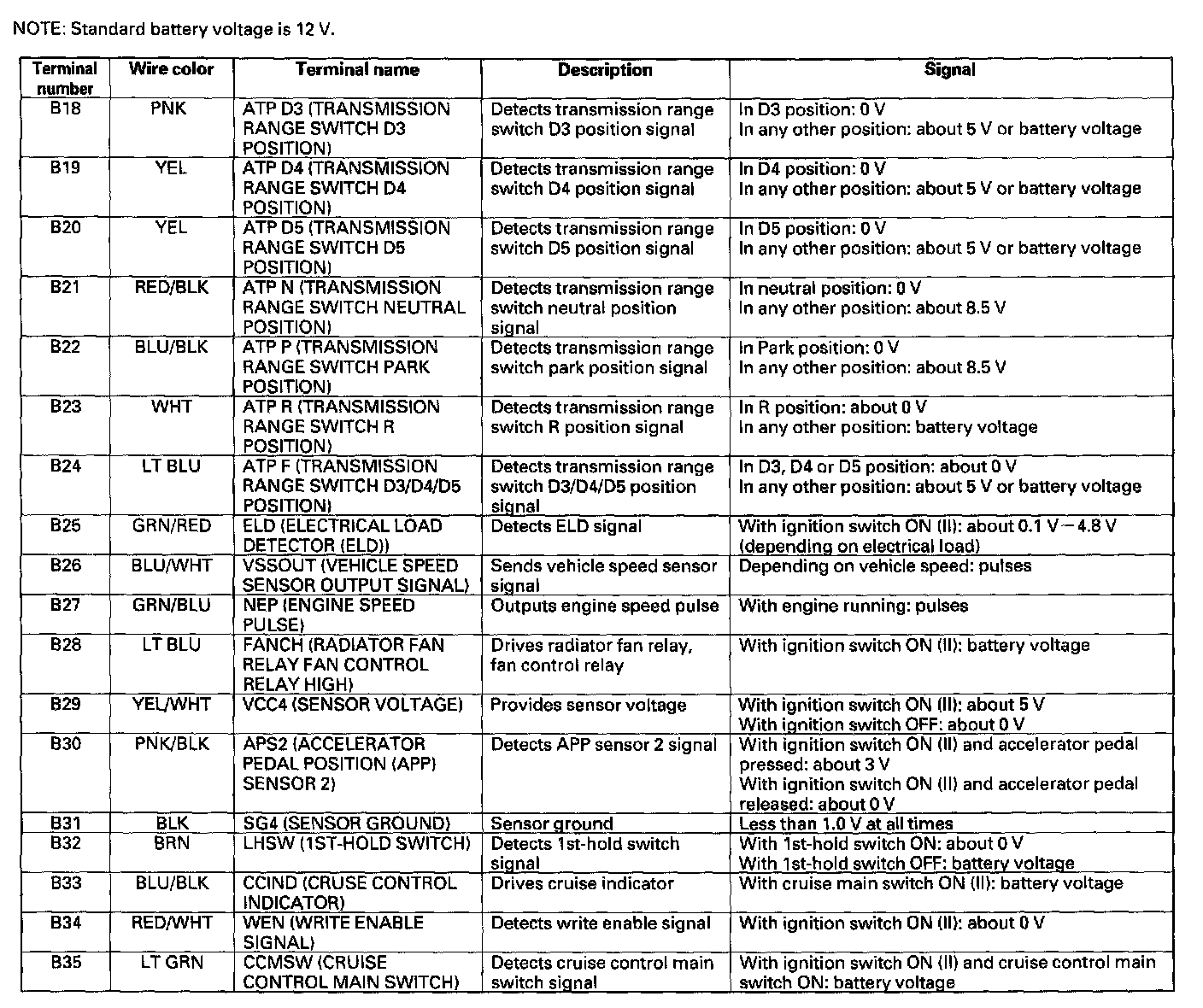

PCM Inputs And Outputs At Connector B Part 2:




PCM Inputs And Outputs At Connector B:
