Engine Control Module: Locations

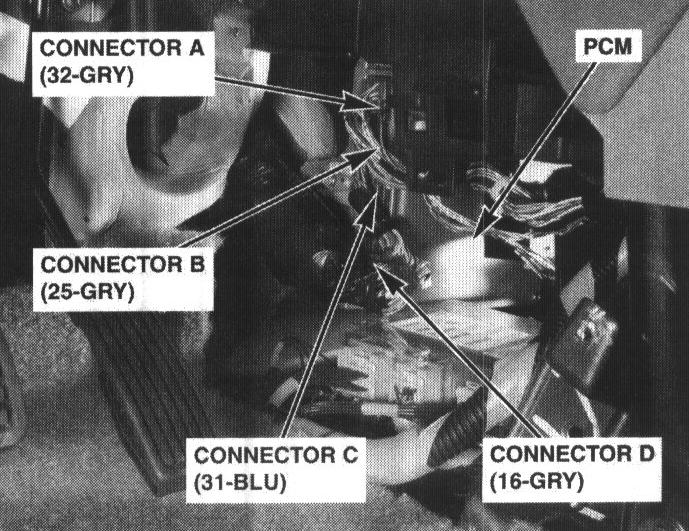

72. Under Middle Of Dash:

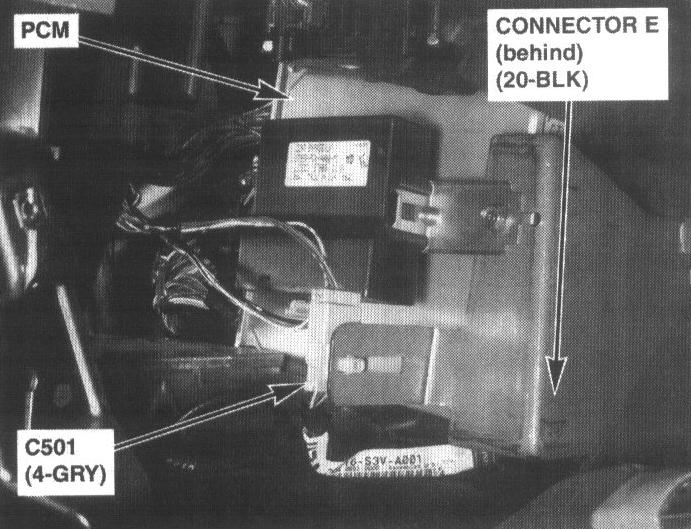

85. Under Middle Of Dash:

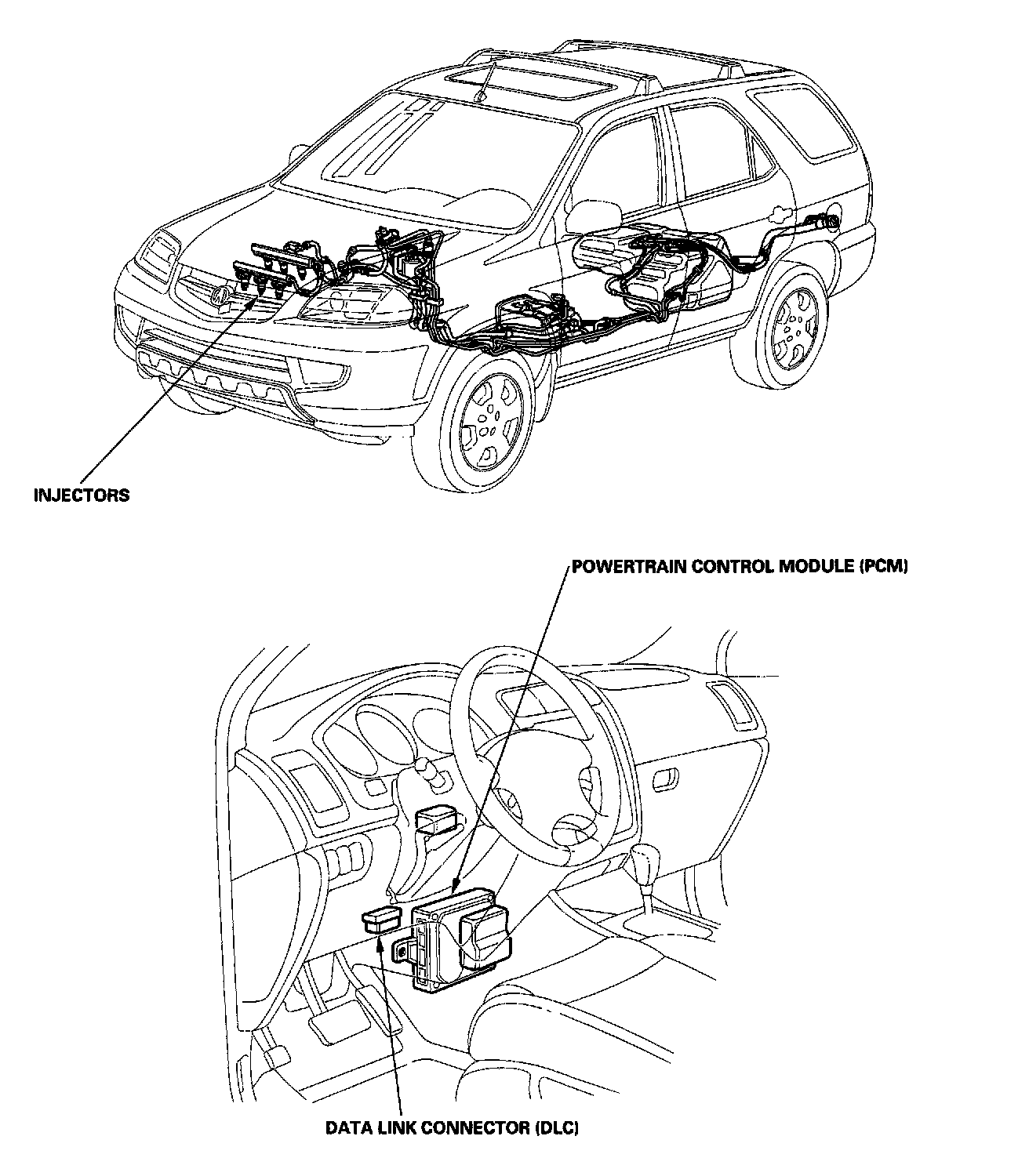

PGM-FI System Component Location Index Part 2:
