Home >> Acura >> 2002 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module

Power Seat Control Module

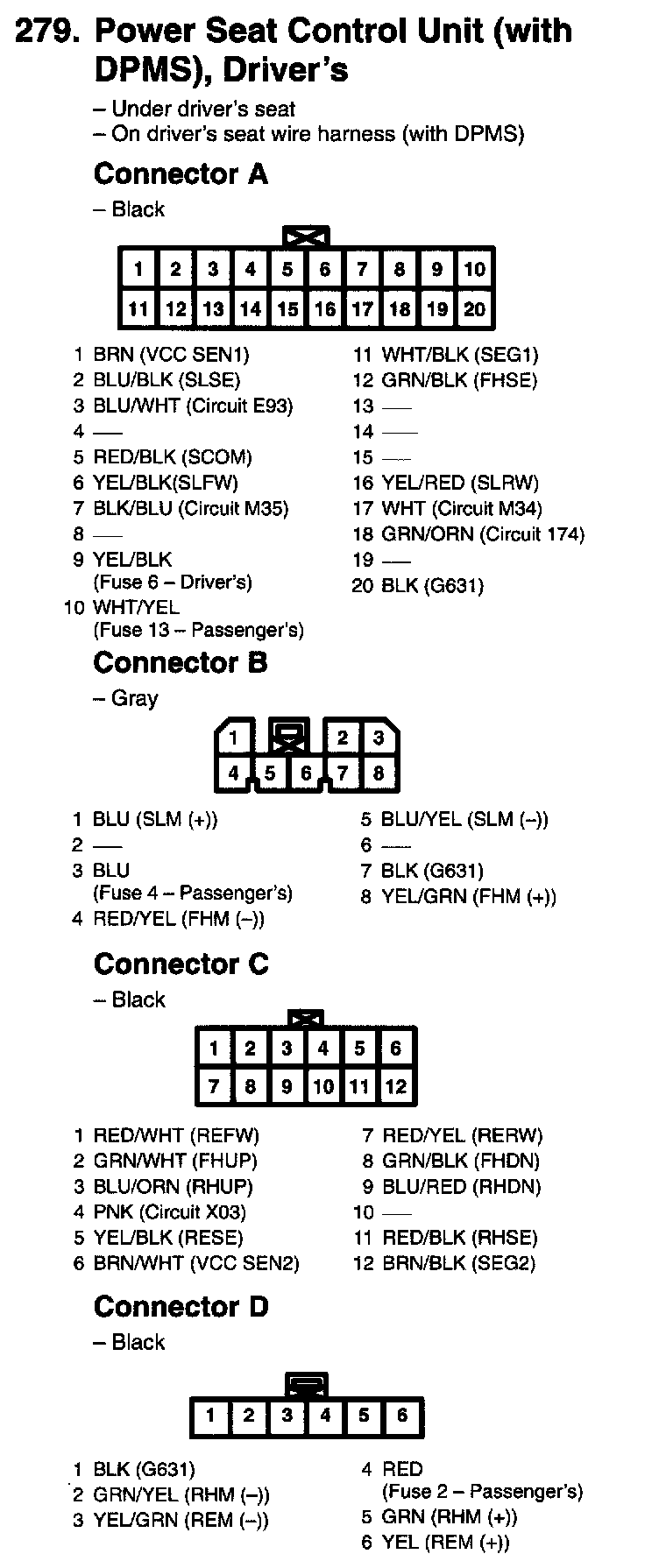

279. Power Seat Control Unit (With DPMS), Driver's (Connectors A - D):
