Acura
>>
2002
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Module
Navigation Module

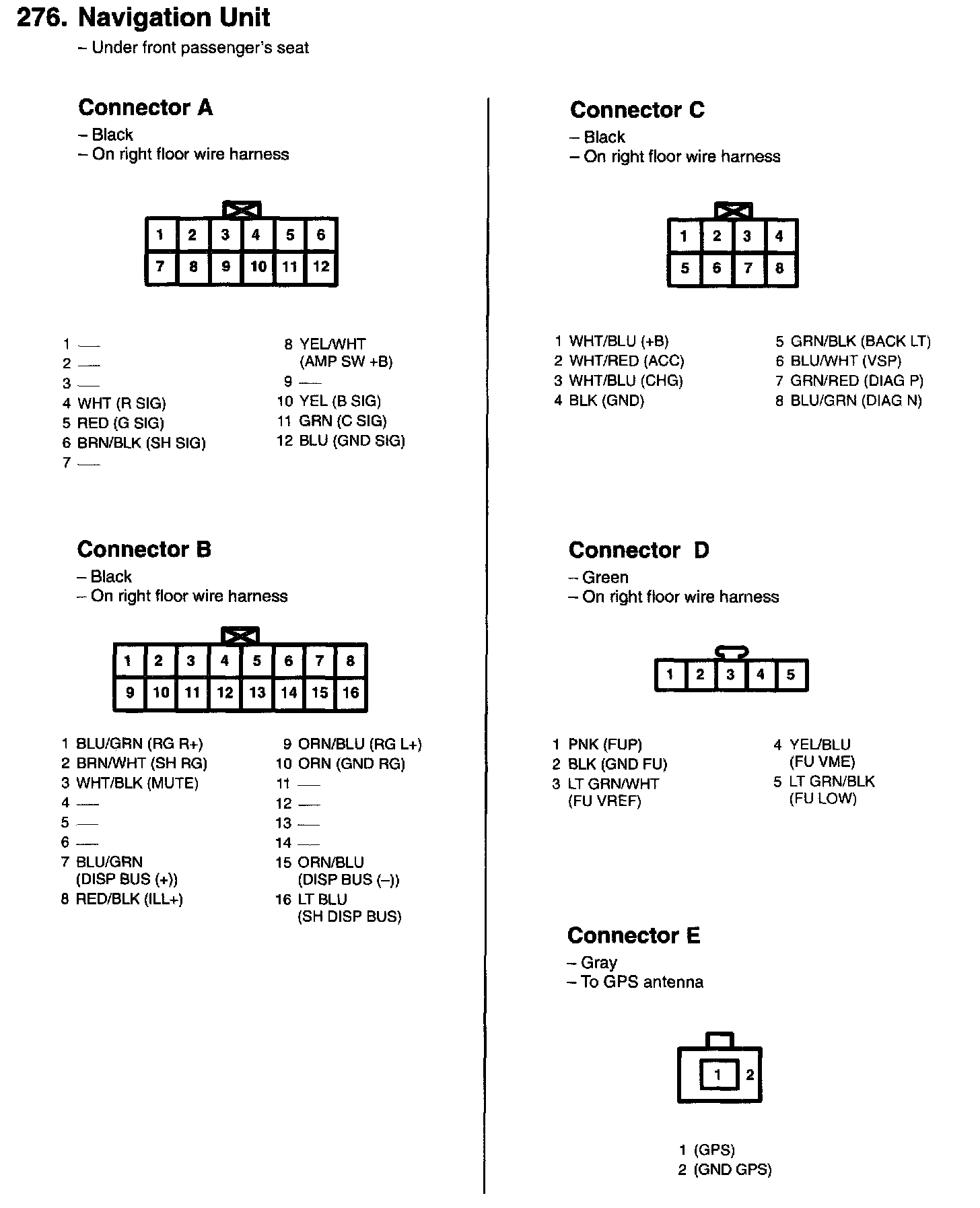

276. Navigation Unit (Connectors A - E):
