Home >> Acura >> 2002 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

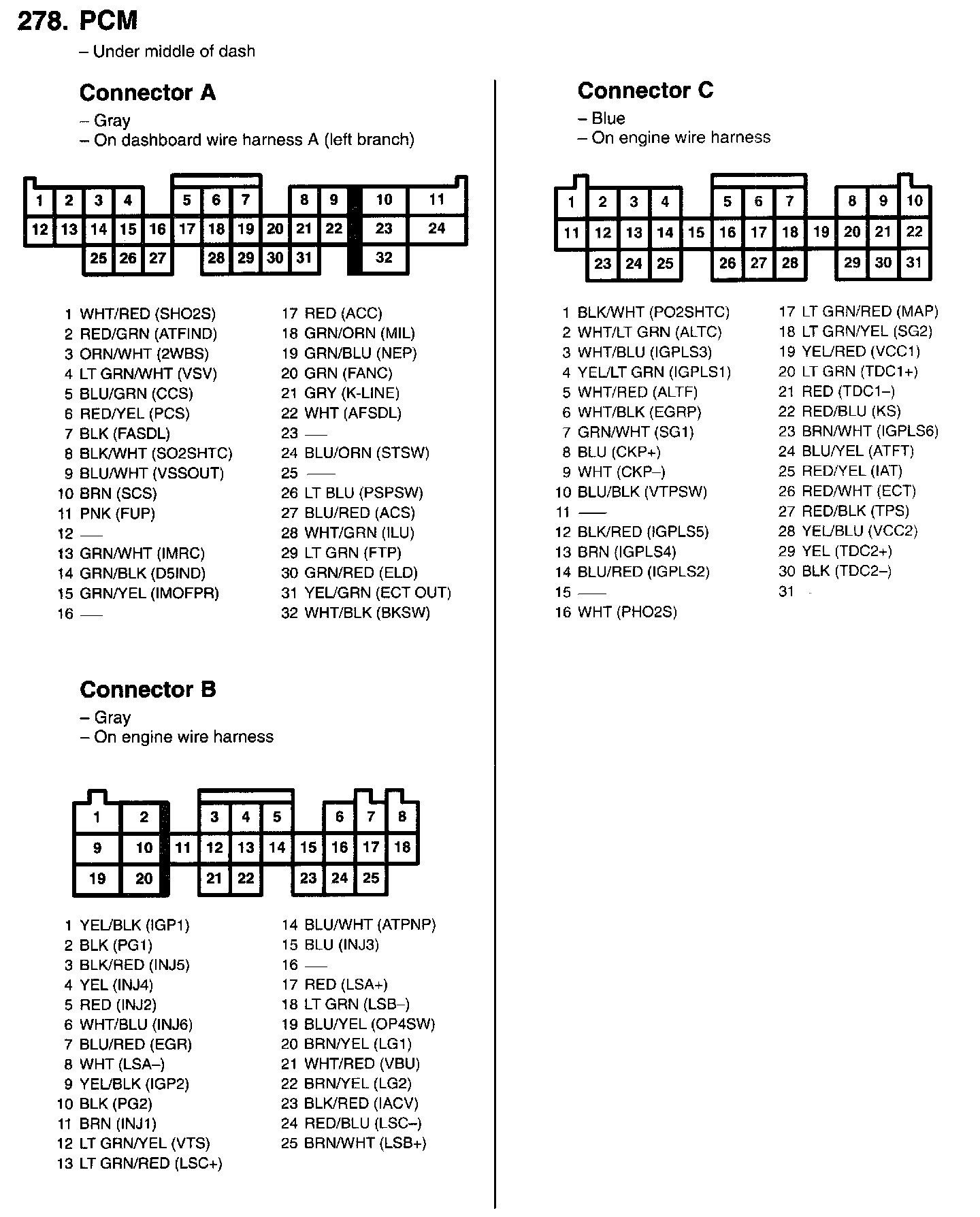

278. PCM (Connectors A - C):

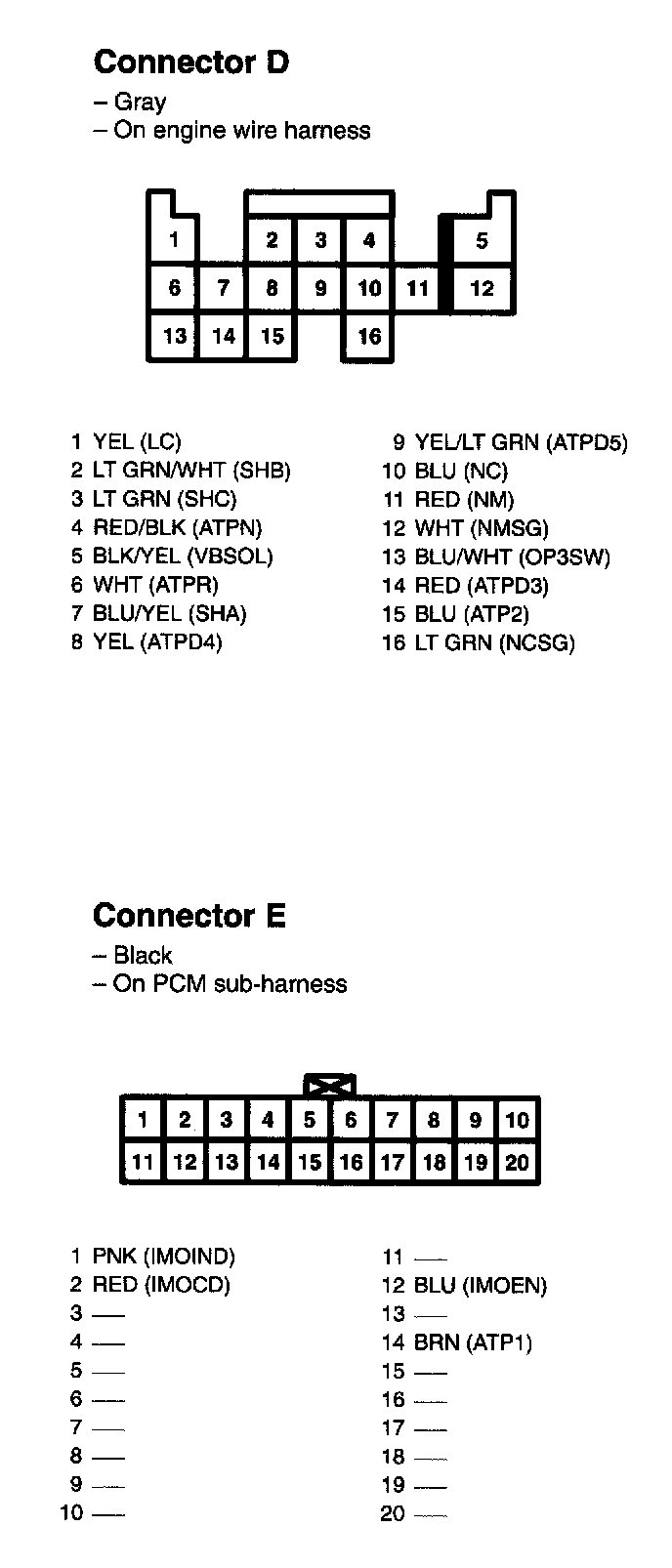

278. PCM (Connectors D, E):
