Home >> Acura >> 2002 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module

Steering Control Module

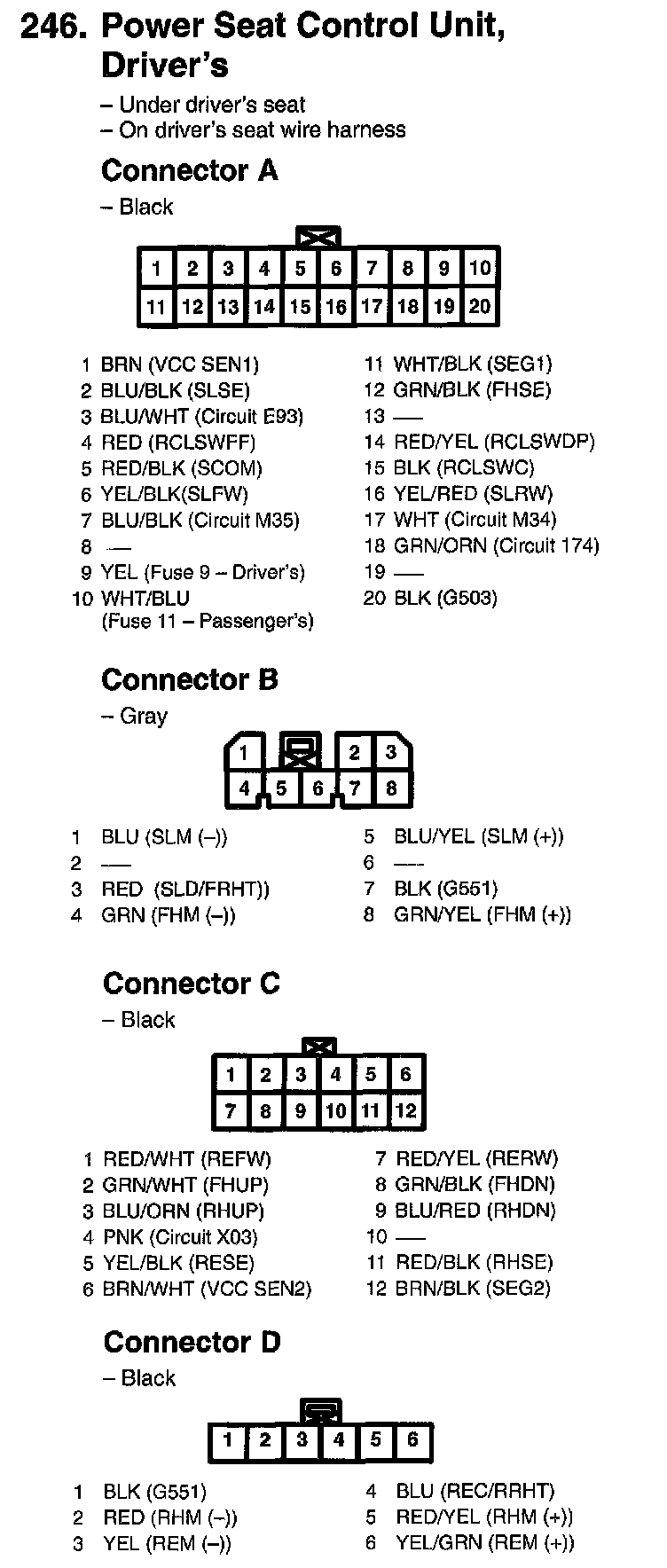

246. Power Seat Control Unit, Driver's:



246. Power Seat Control Unit, Passenger's (Connectors A And B):
