General Module

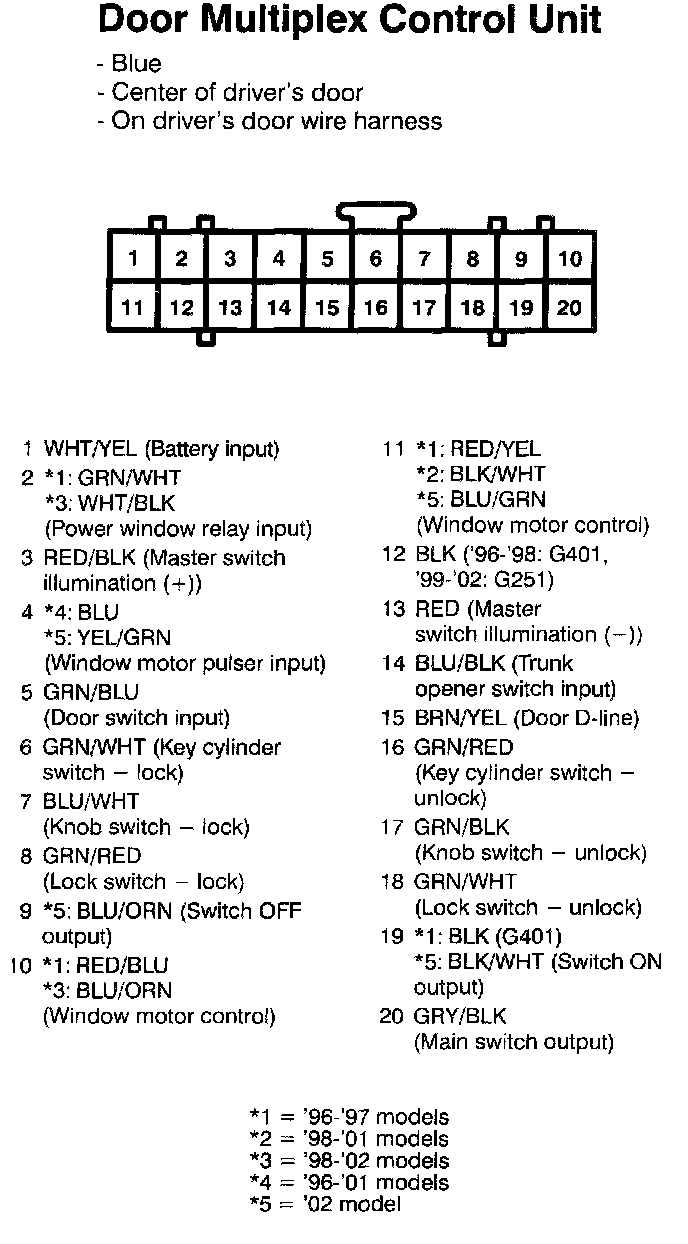

Door Multiplex Control Unit:
Passenger's Multiplex Control Unit Connectors A And B:

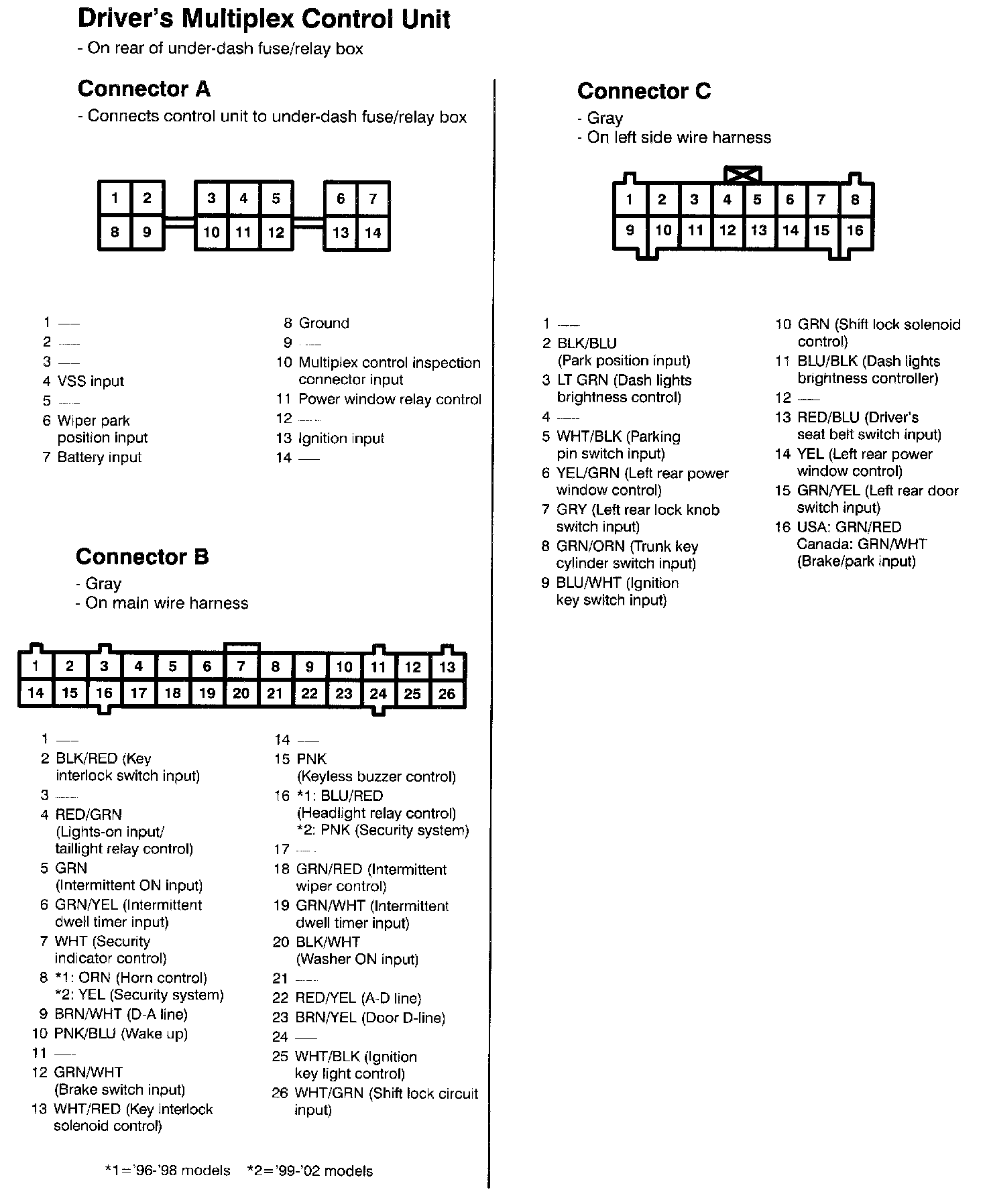

Driver's Multiplex Control Unit Connectors A - C:
