Home >> Acura >> 2002 >> 3.2TL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly

Cylinder Block Assembly

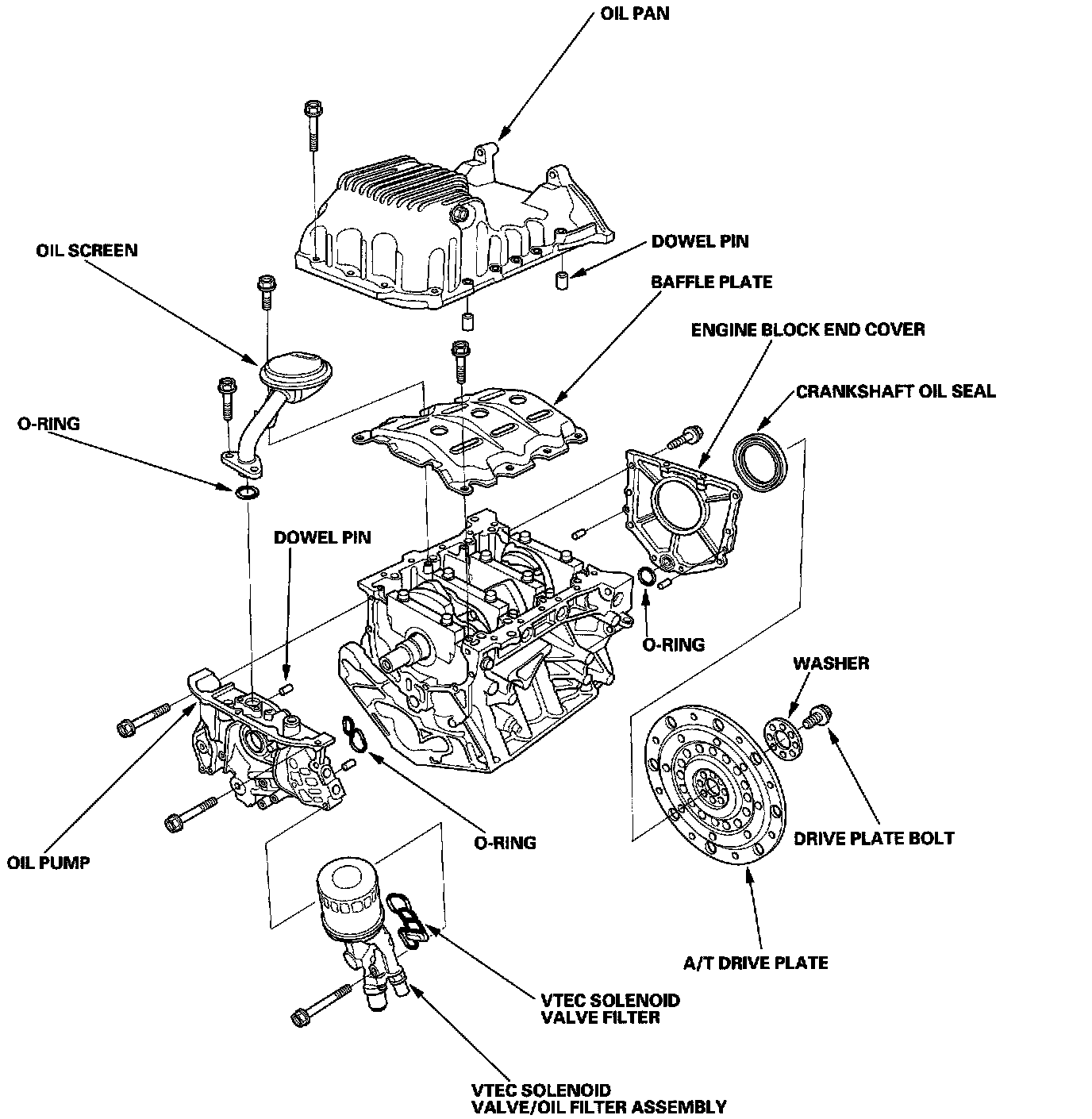

Part 1 Of 3:

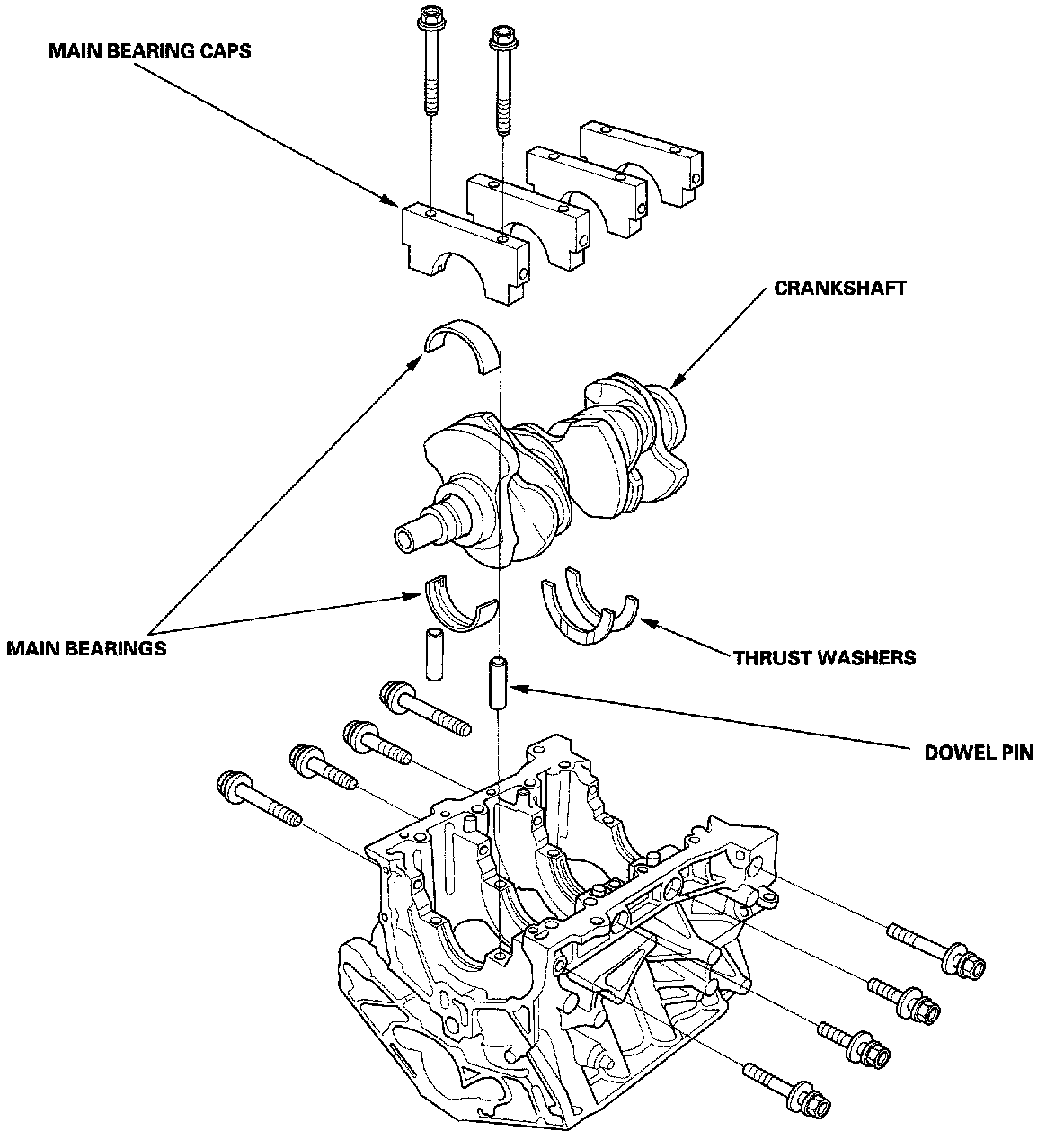

Part 2 Of 3:

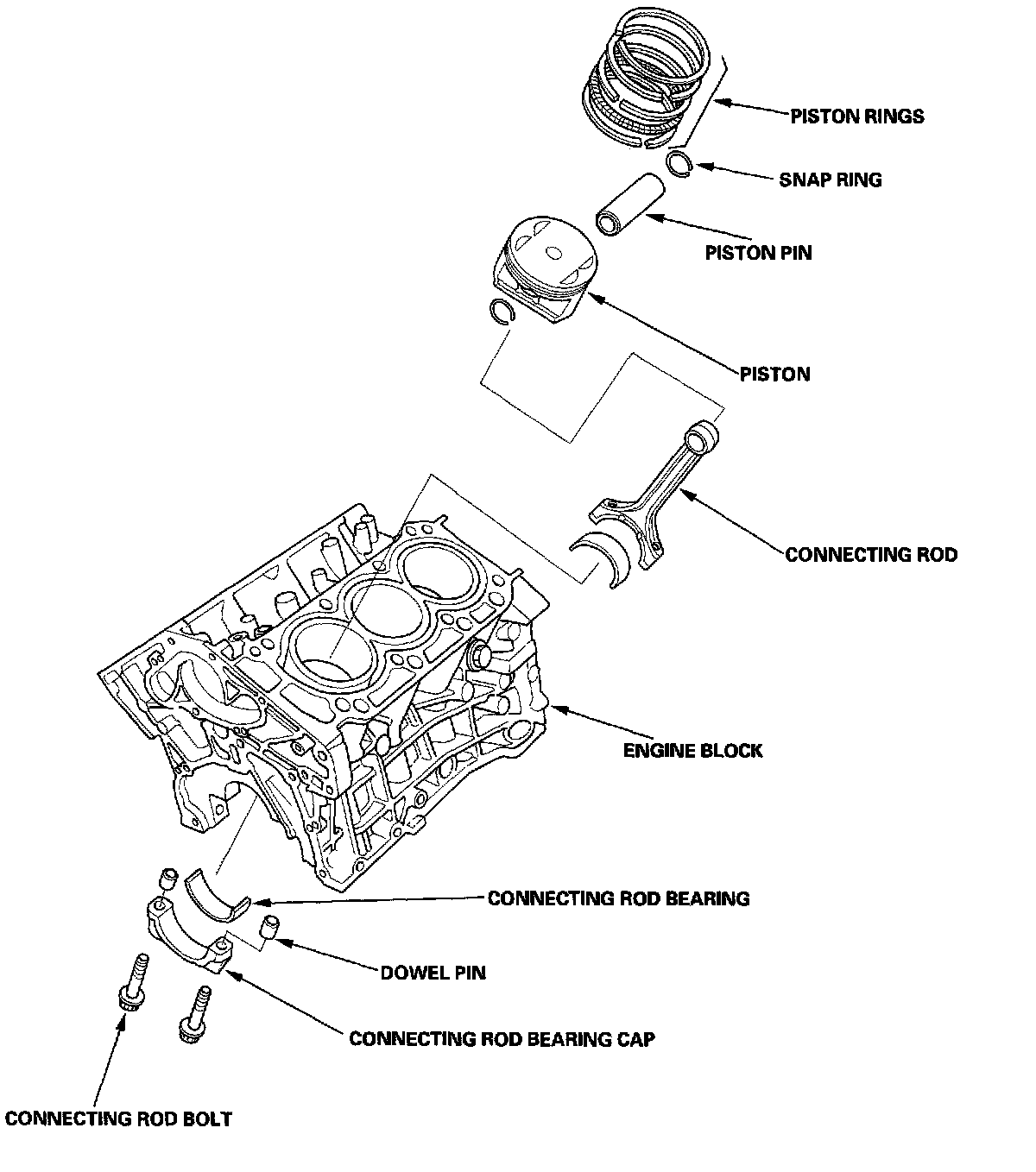

Part 3 Of 3:





Component Location Index
