Acura
>>
2002
>>
3.2TL V6-3.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Traction Control Module
Traction Control Module

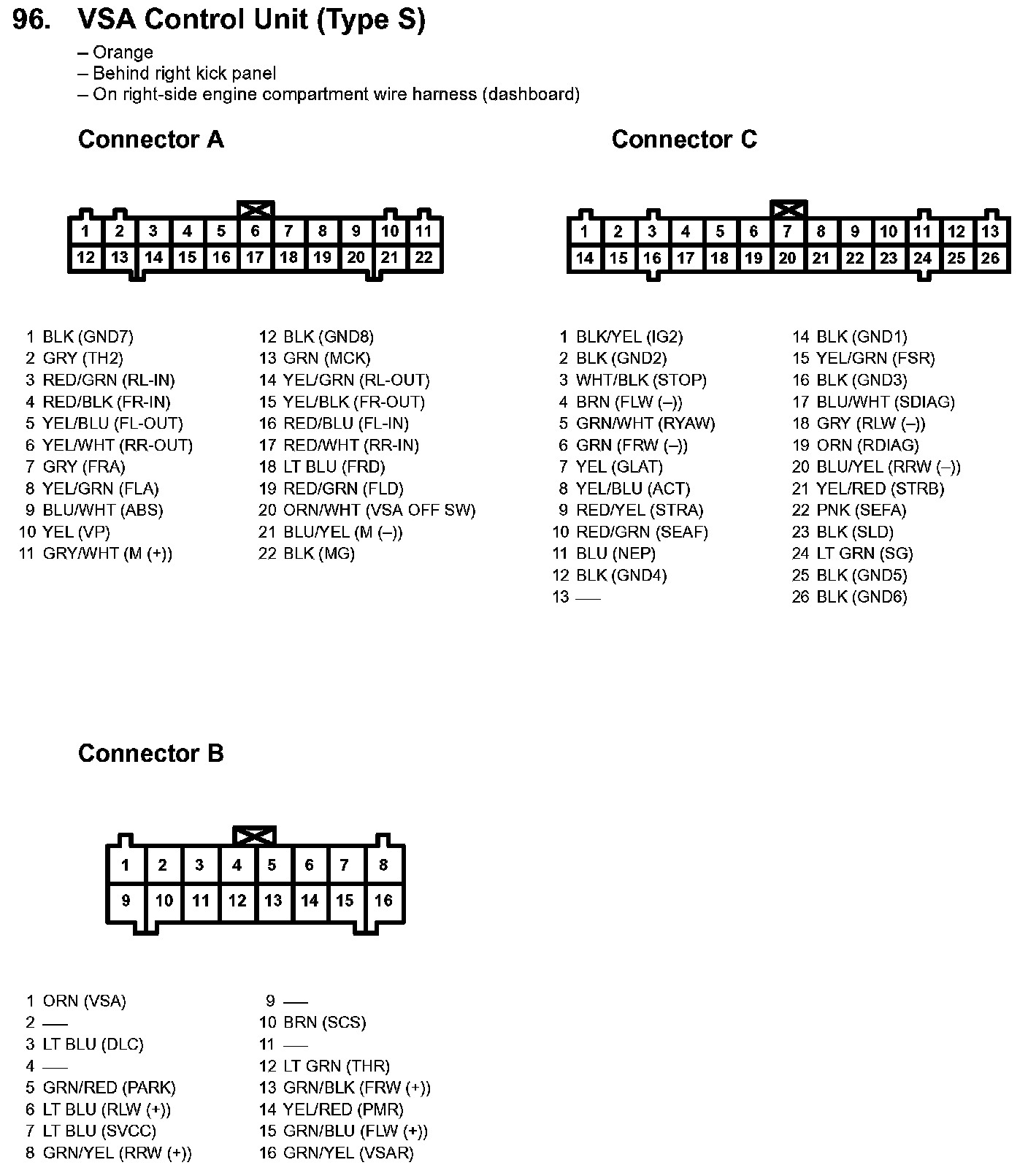

96. VSA Control Unit (Type S):

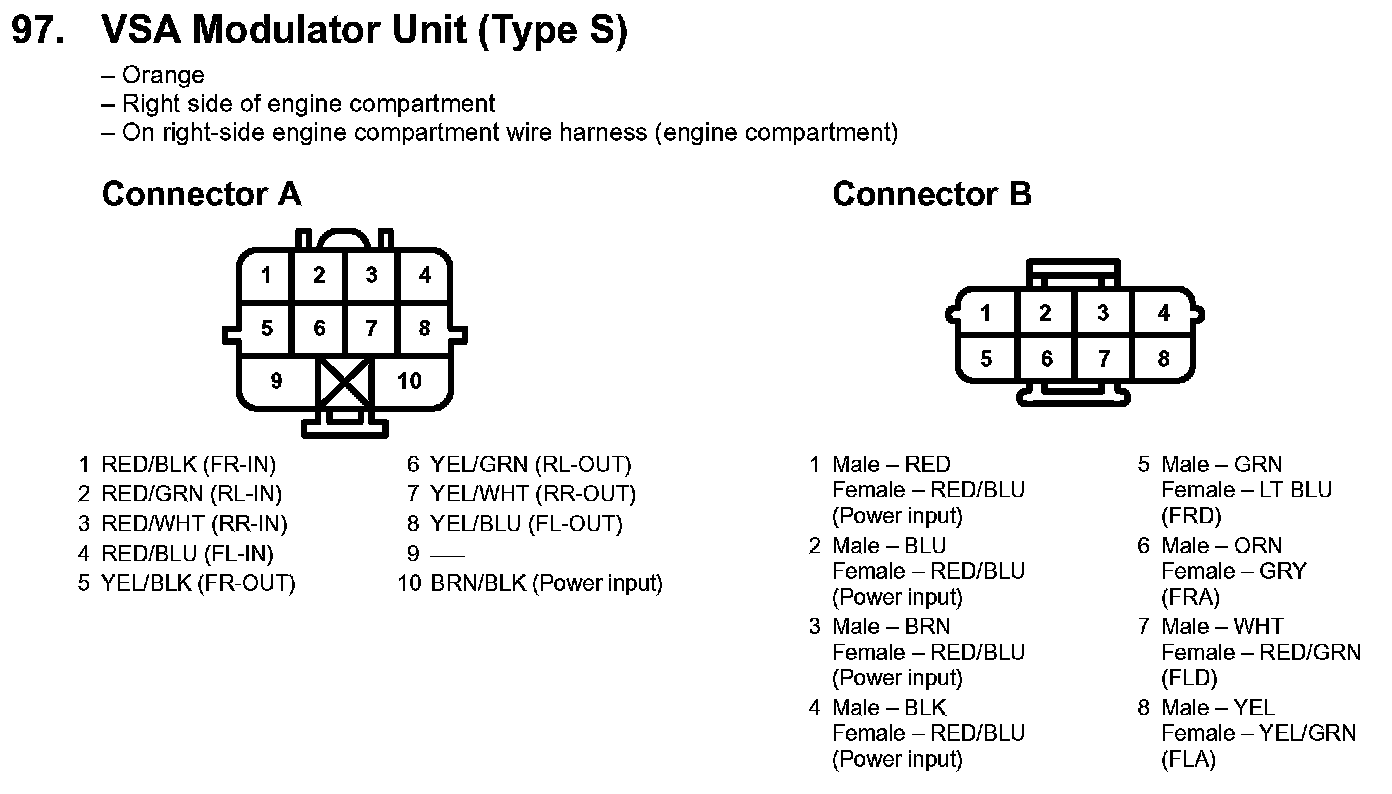

97. VSA Modulator Unit (Type S):
