Acura
>>
2002
>>
3.2TL V6-3.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

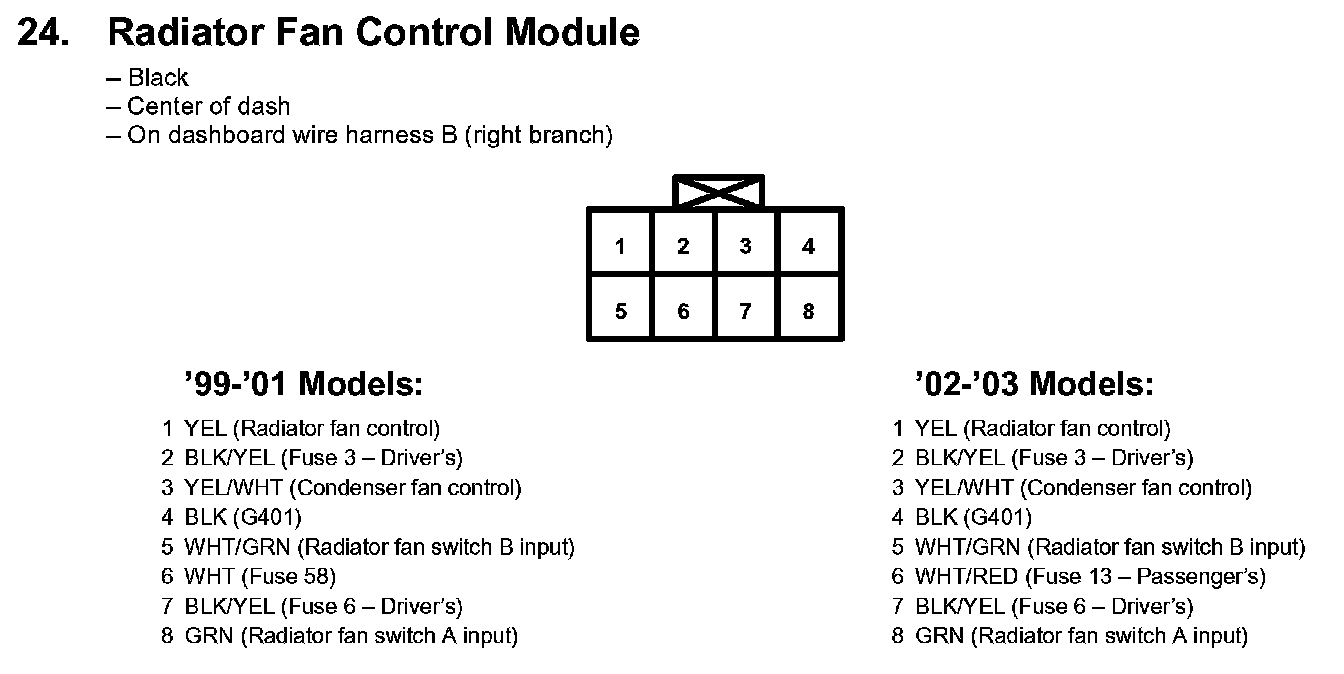

24. Radiator Fan Control Module:
