Home >> Acura >> 2001 >> MDX V6-3471cc 3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

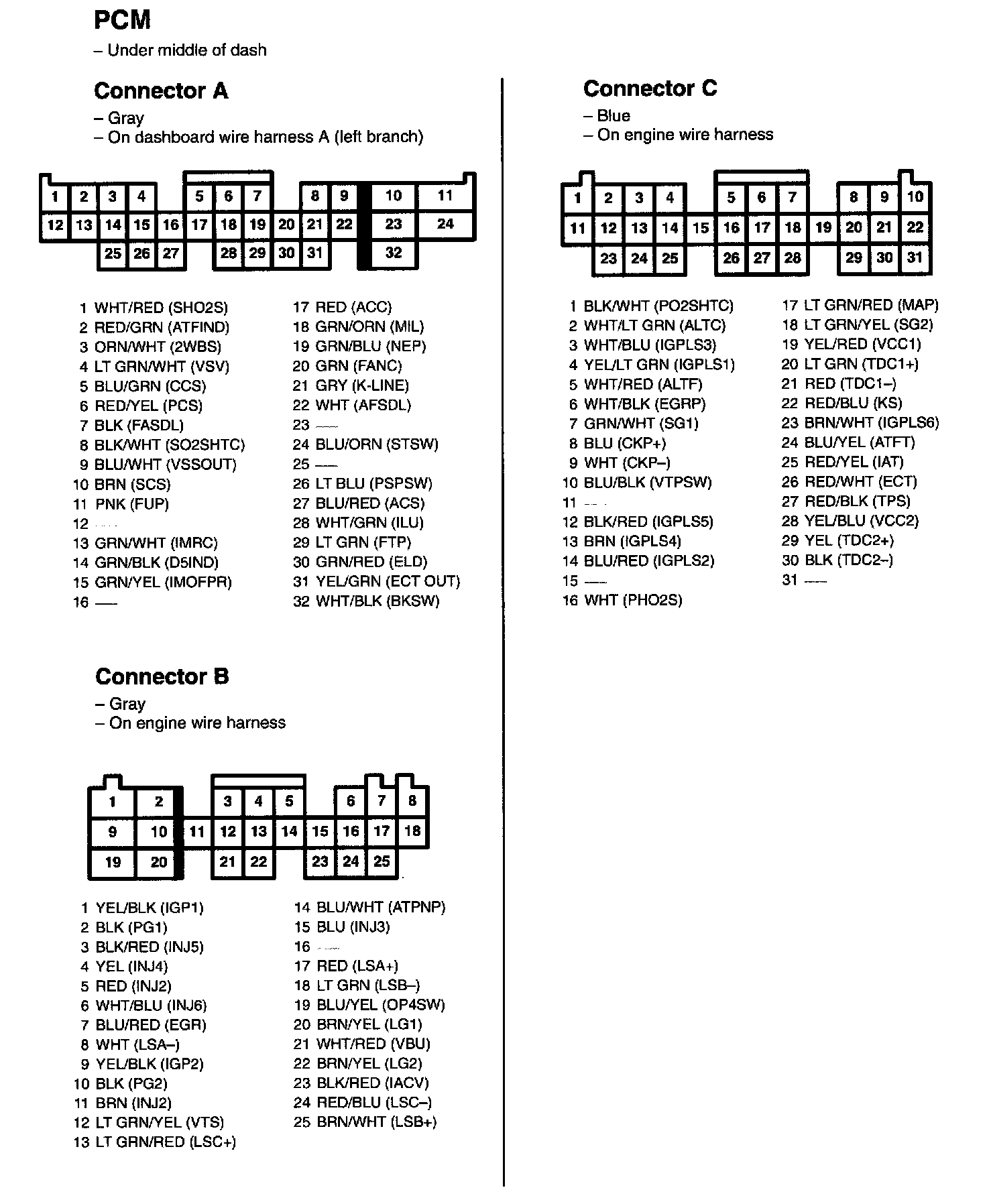

PCM (Part 1):

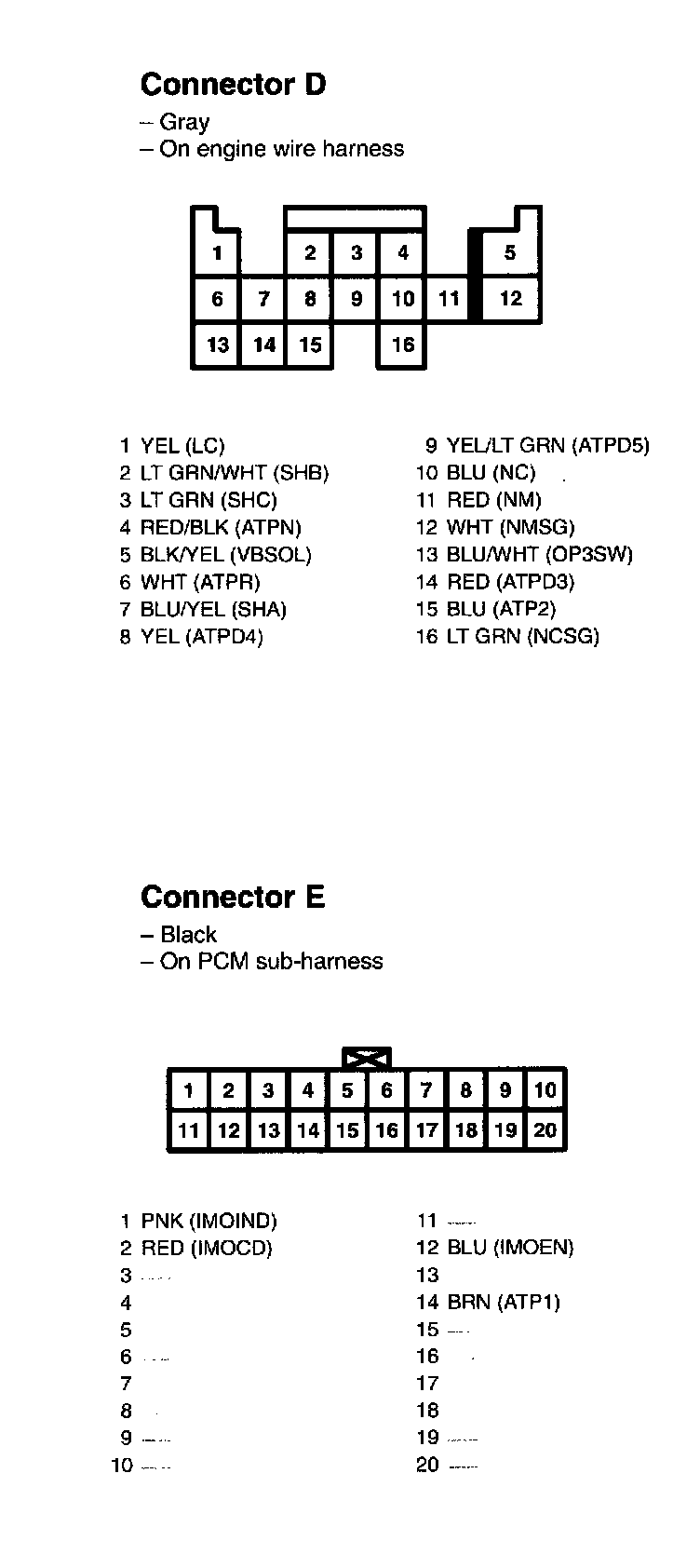

PCM (Part2):
