Home >> Acura >> 2001 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

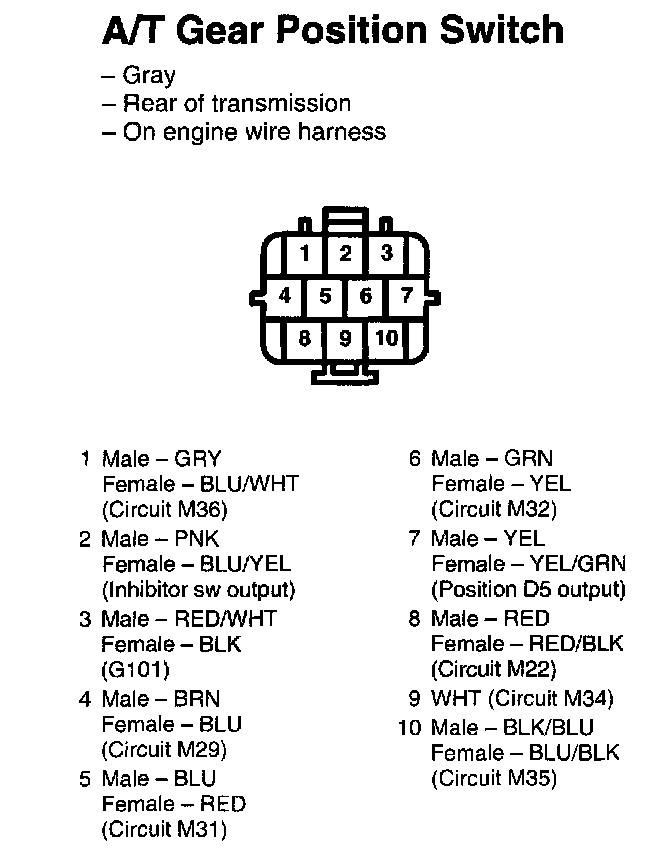

A/T Gear Position Switch:
