Home >> Acura >> 2001 >> CL V6-3.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module

General Module

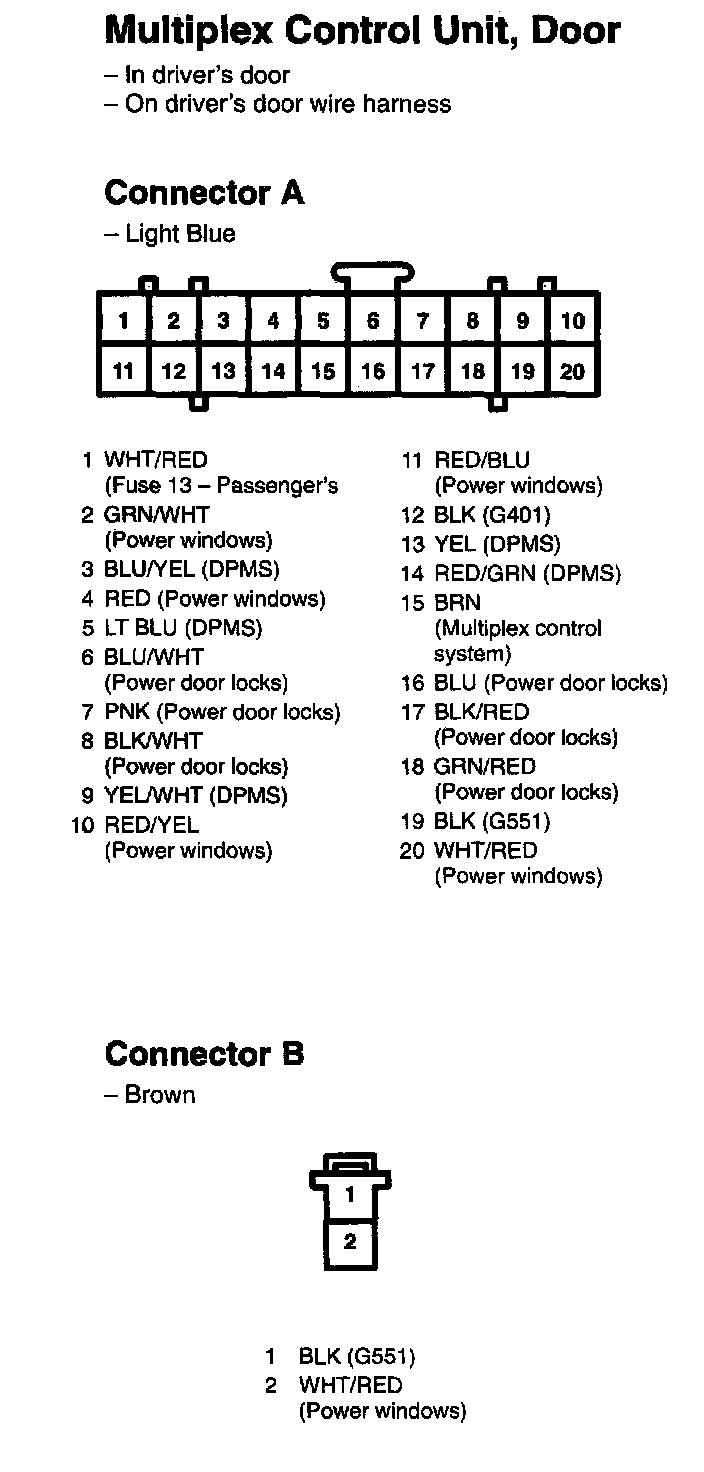

Multiplex Control Unit, Door:

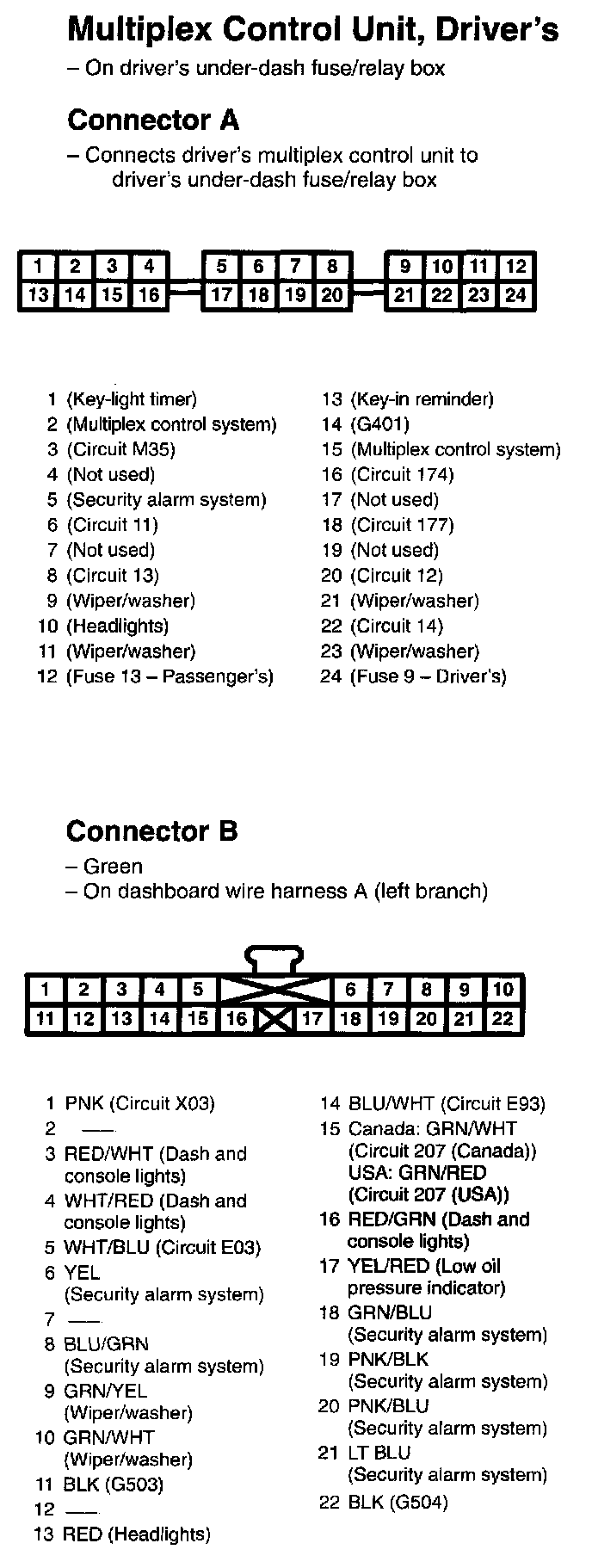

Multiplex Control Unit, Driver's:

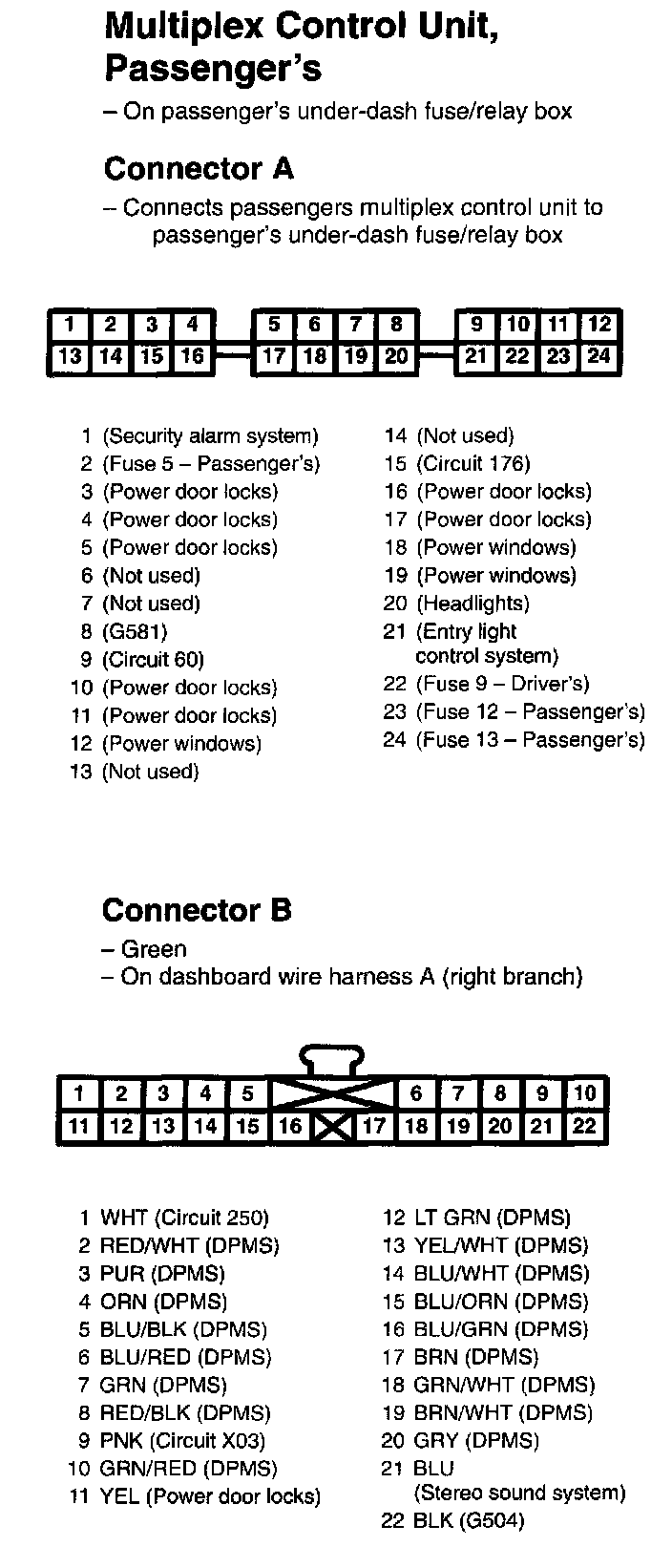

Multiplex Control Unit, Passenger's:
