Timing Belt

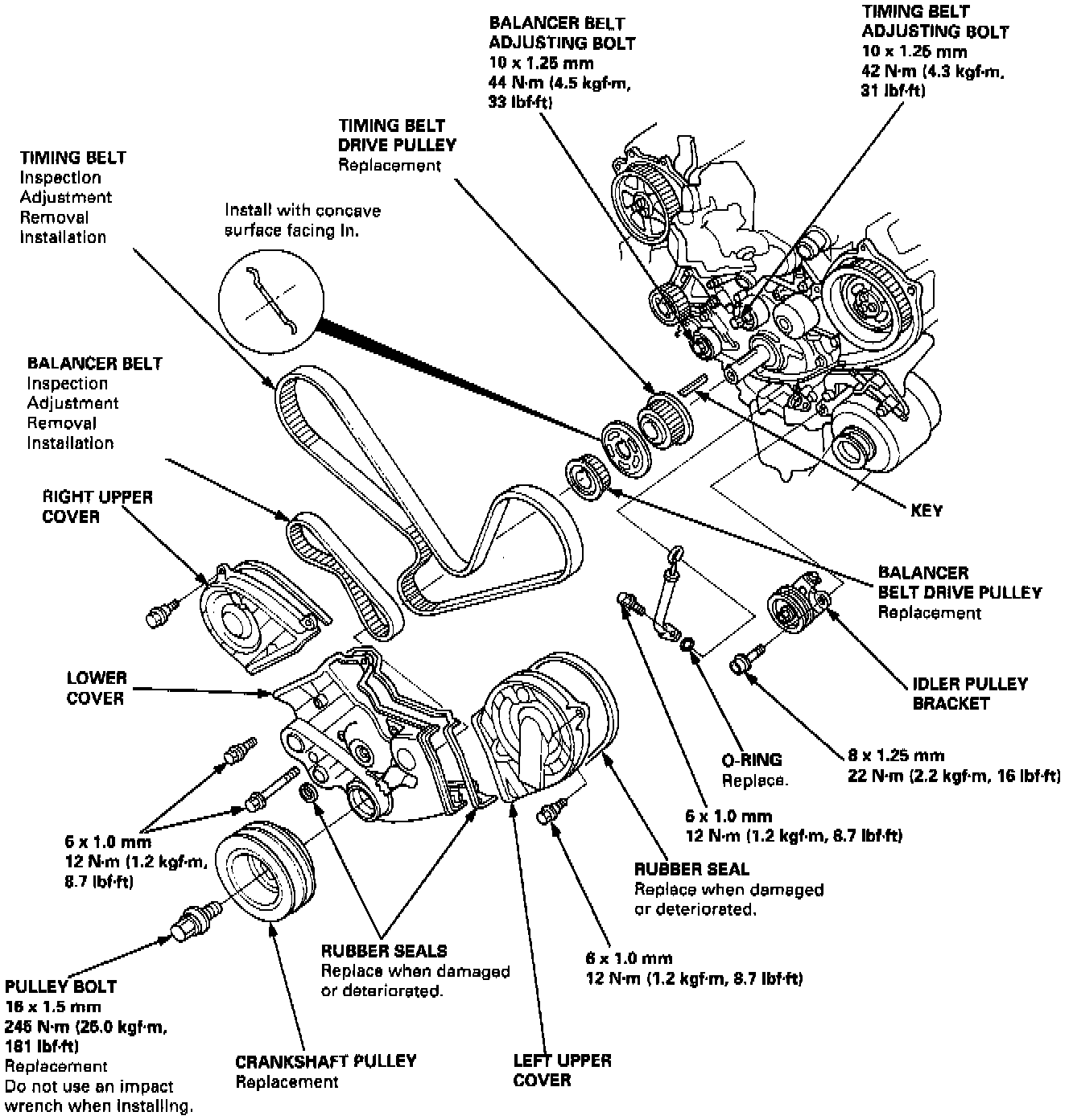

Timing Components:

NOTE:
- Refer to Service and Repair / Removal and Installation for procedure on how to position the crankshaft and pulley before installing the belt.
- Mark the direction of rotation on the belt before removing it.
- Do not use the upper covers and lower cover to store removed items.
- Clean the upper covers and lower cover before installing them.
- Replace the camshaft seals and crankshaft seals if there is oil leakage.
