Home >> Suzuki >> 2012 >> Equator 2WD L4-2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Service and Repair >> Component

Component




Refrigeration System: Component

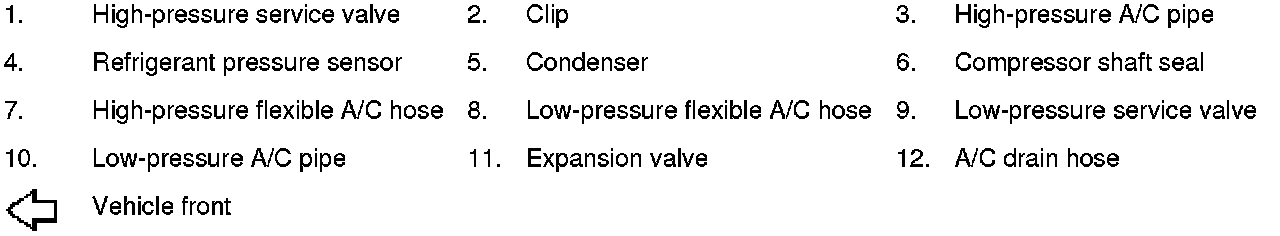

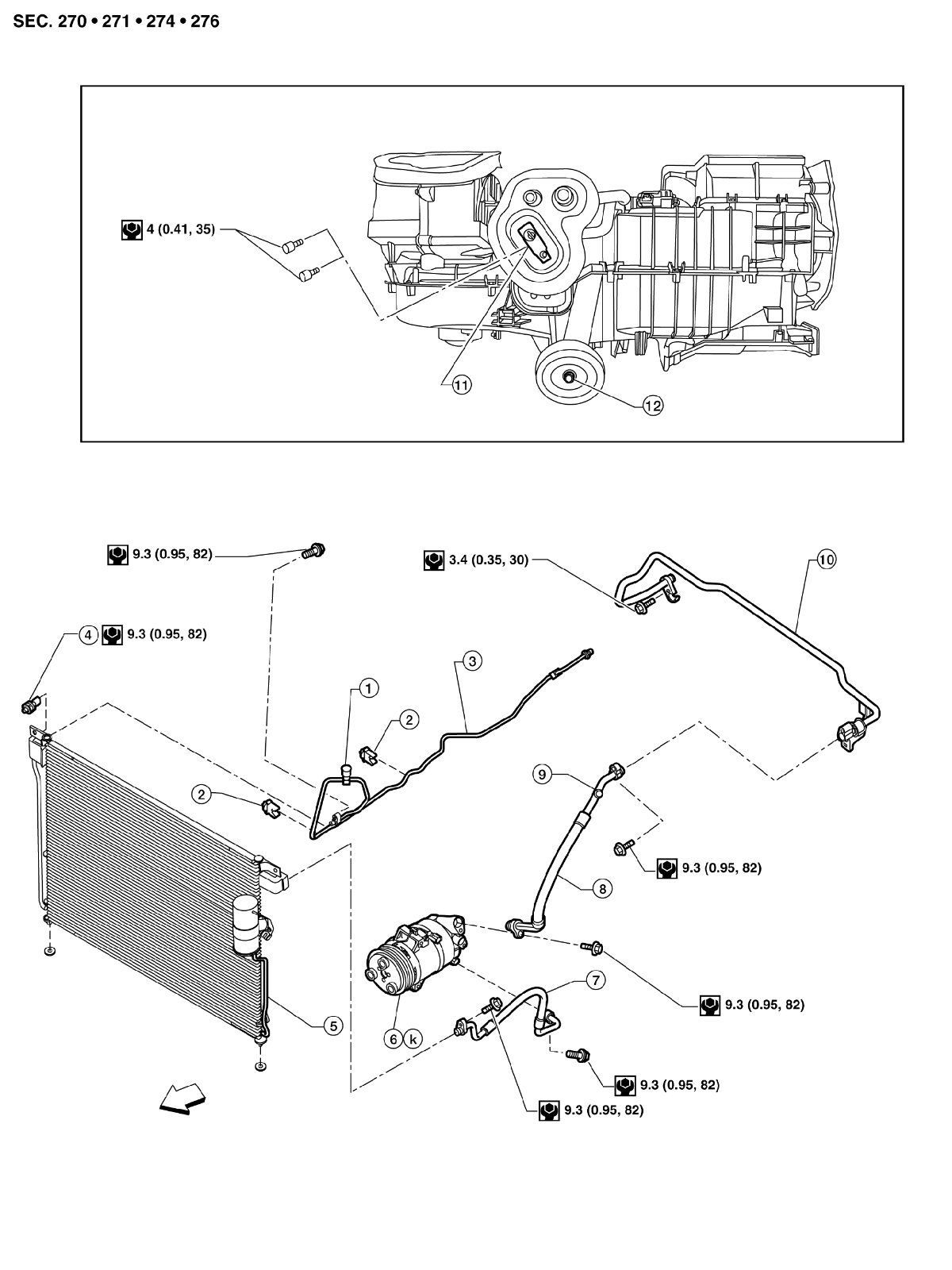

A/C Compressor and Condenser










NOTE:

Refer to [Precaution for Refrigerant Connection] Precaution for Refrigerant Connection.
