lemon-mirror
:
Home
>>
Suzuki
>>
2012
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

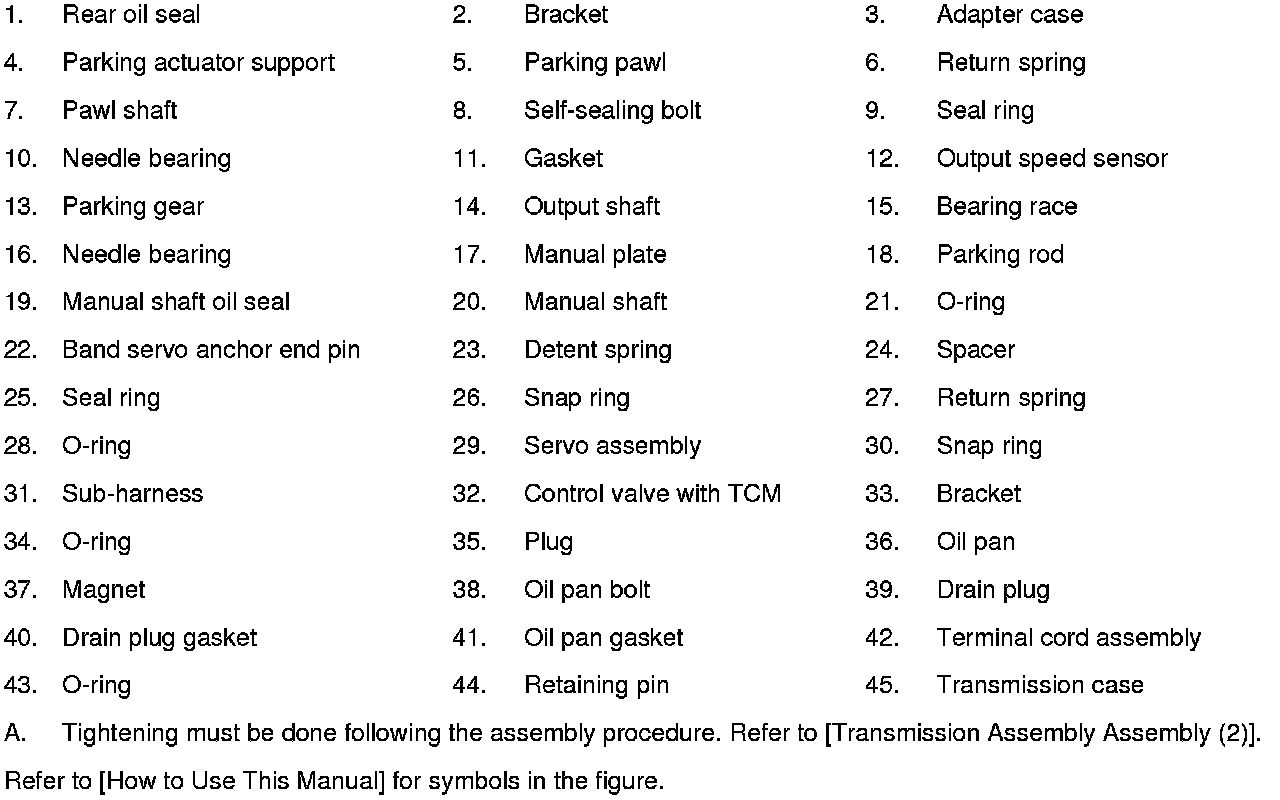

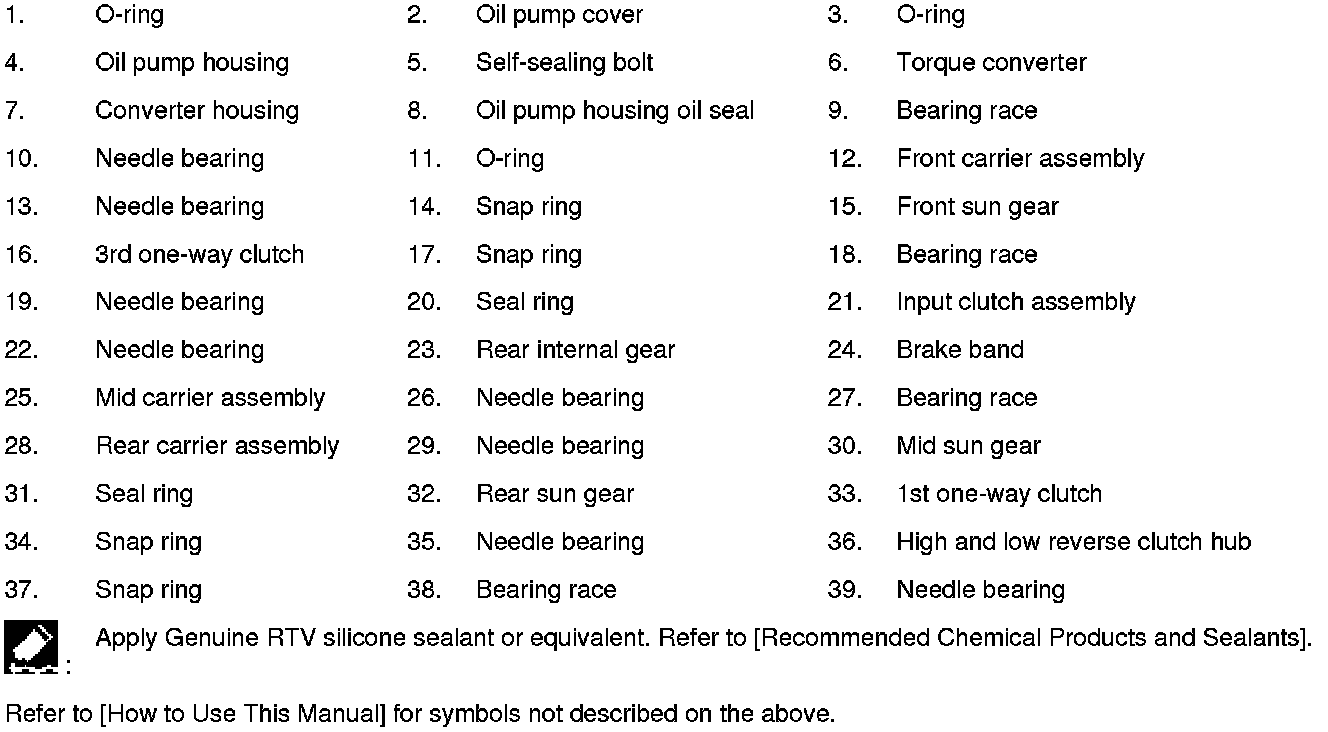

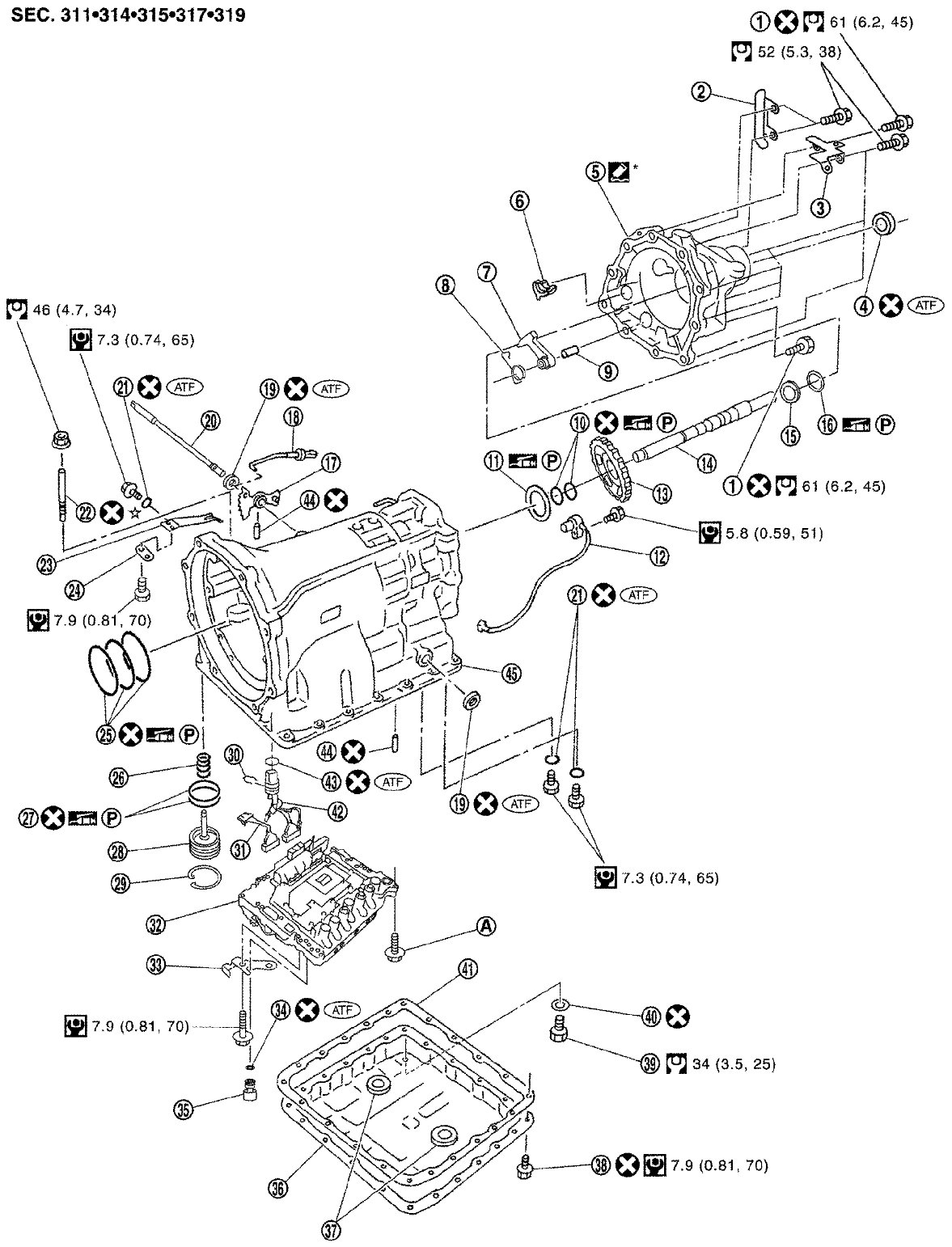

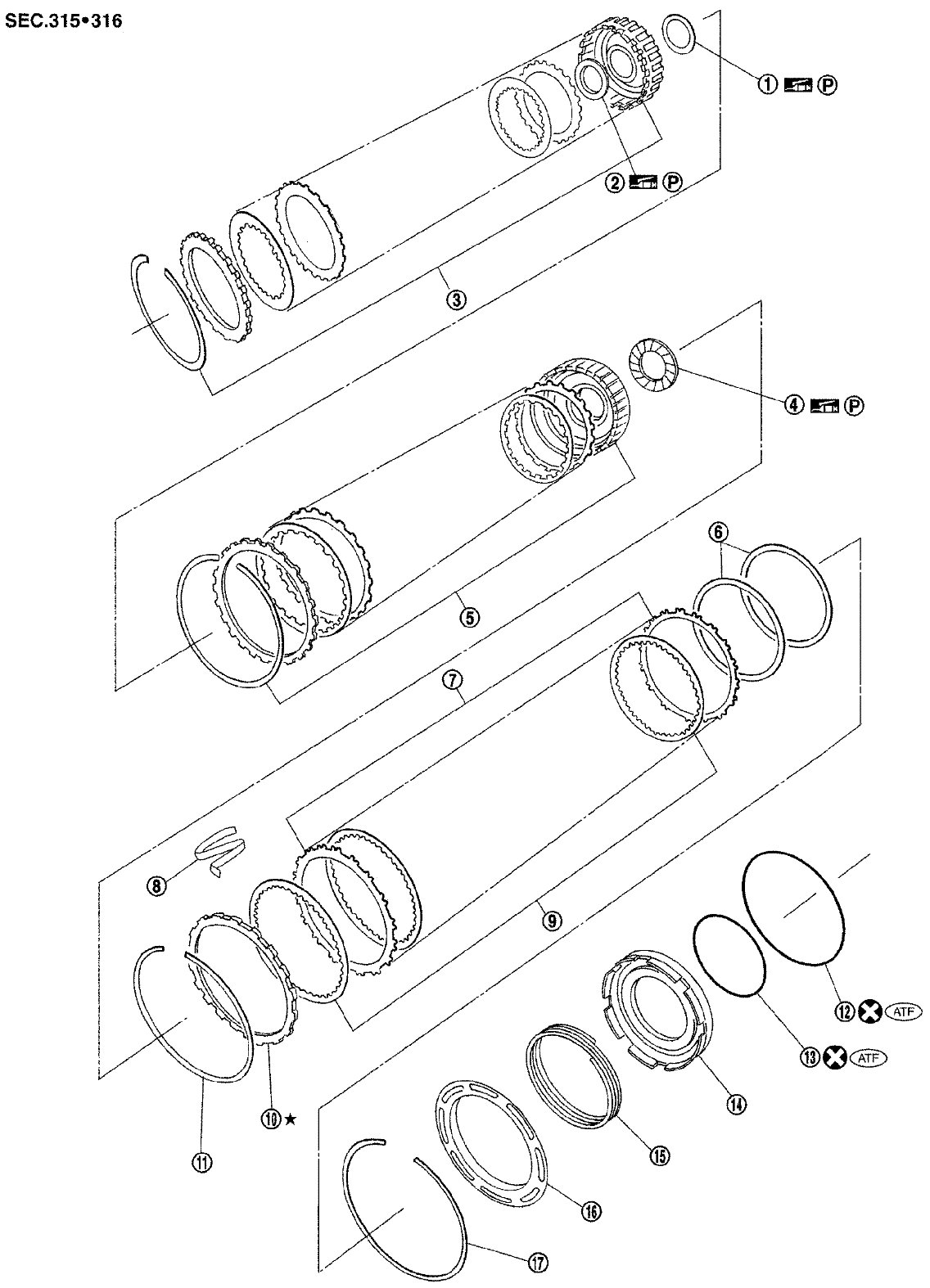

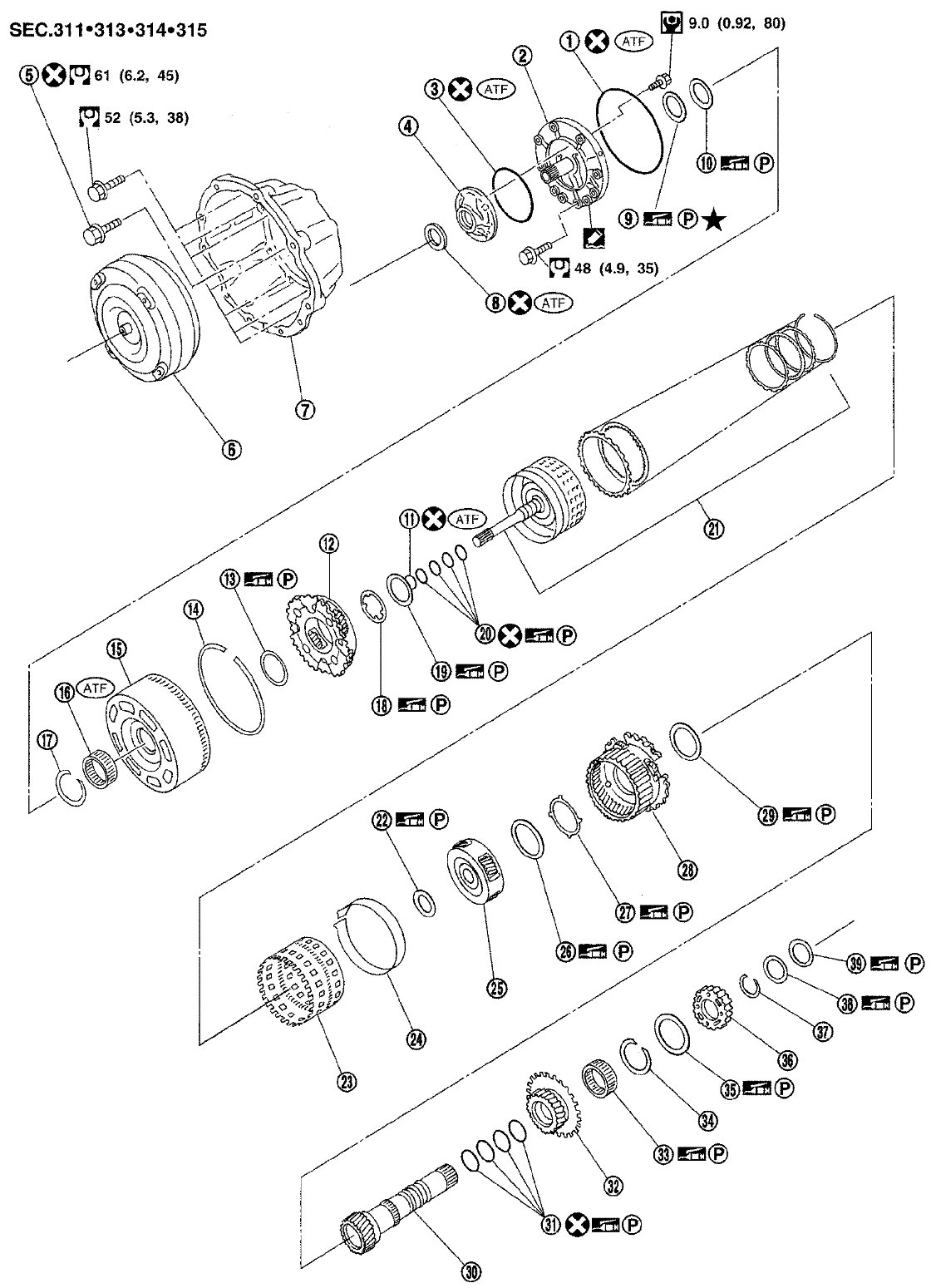

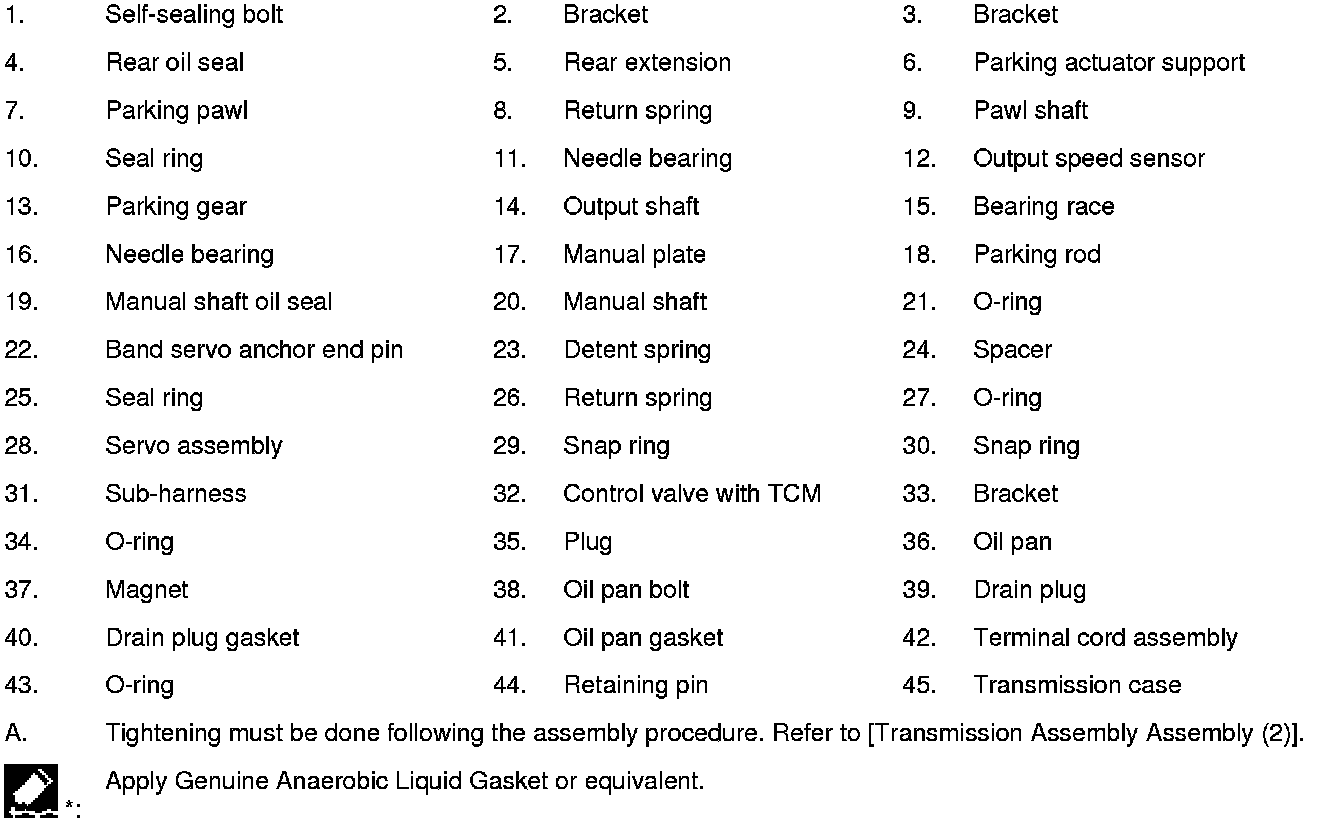

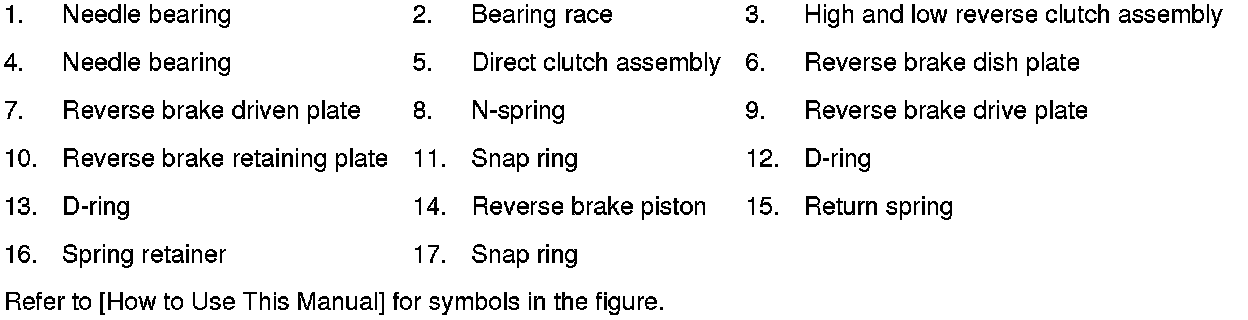

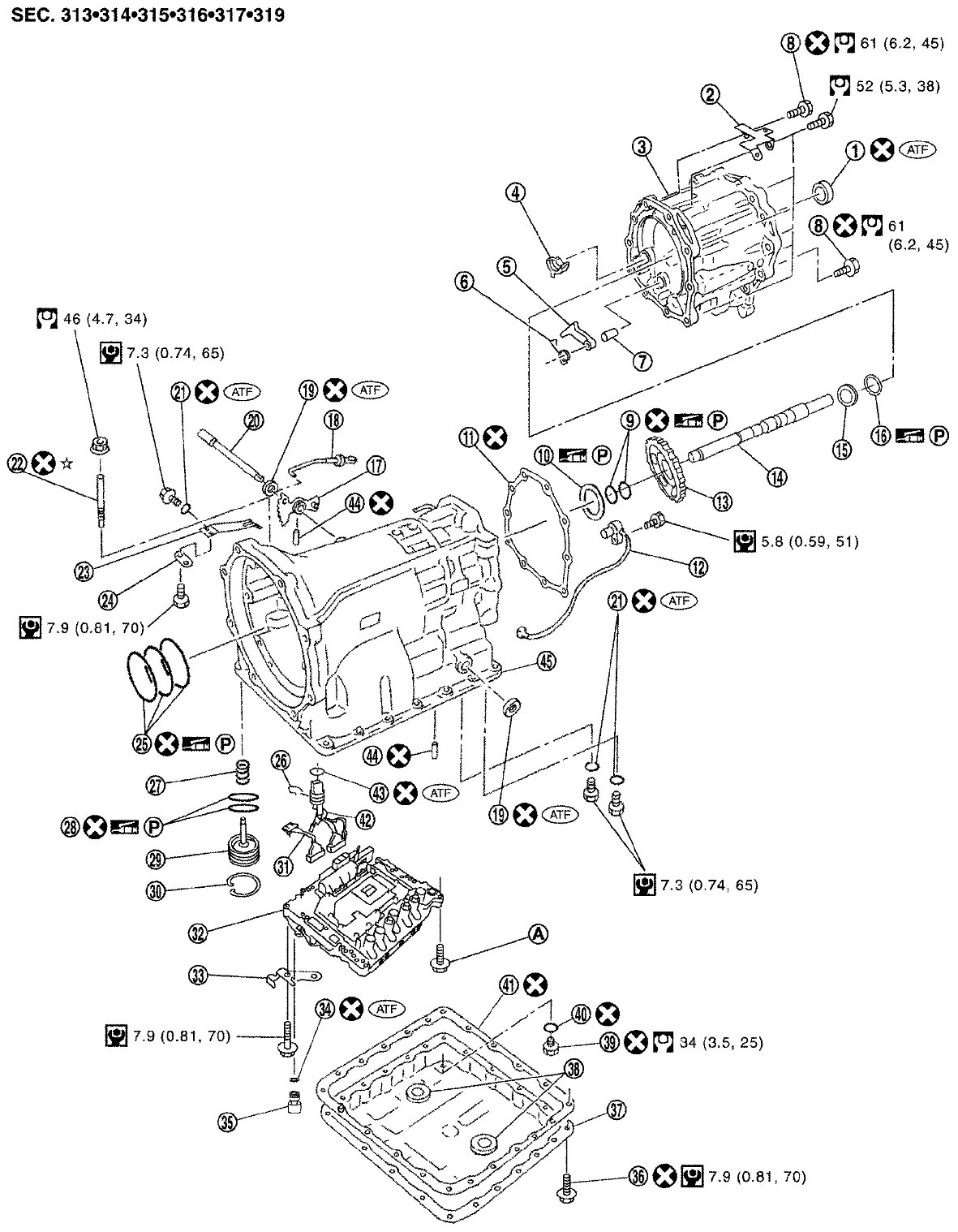

Transmission Assembly: Exploded View
2WD Models
4WD Models
