Engine Control Harness

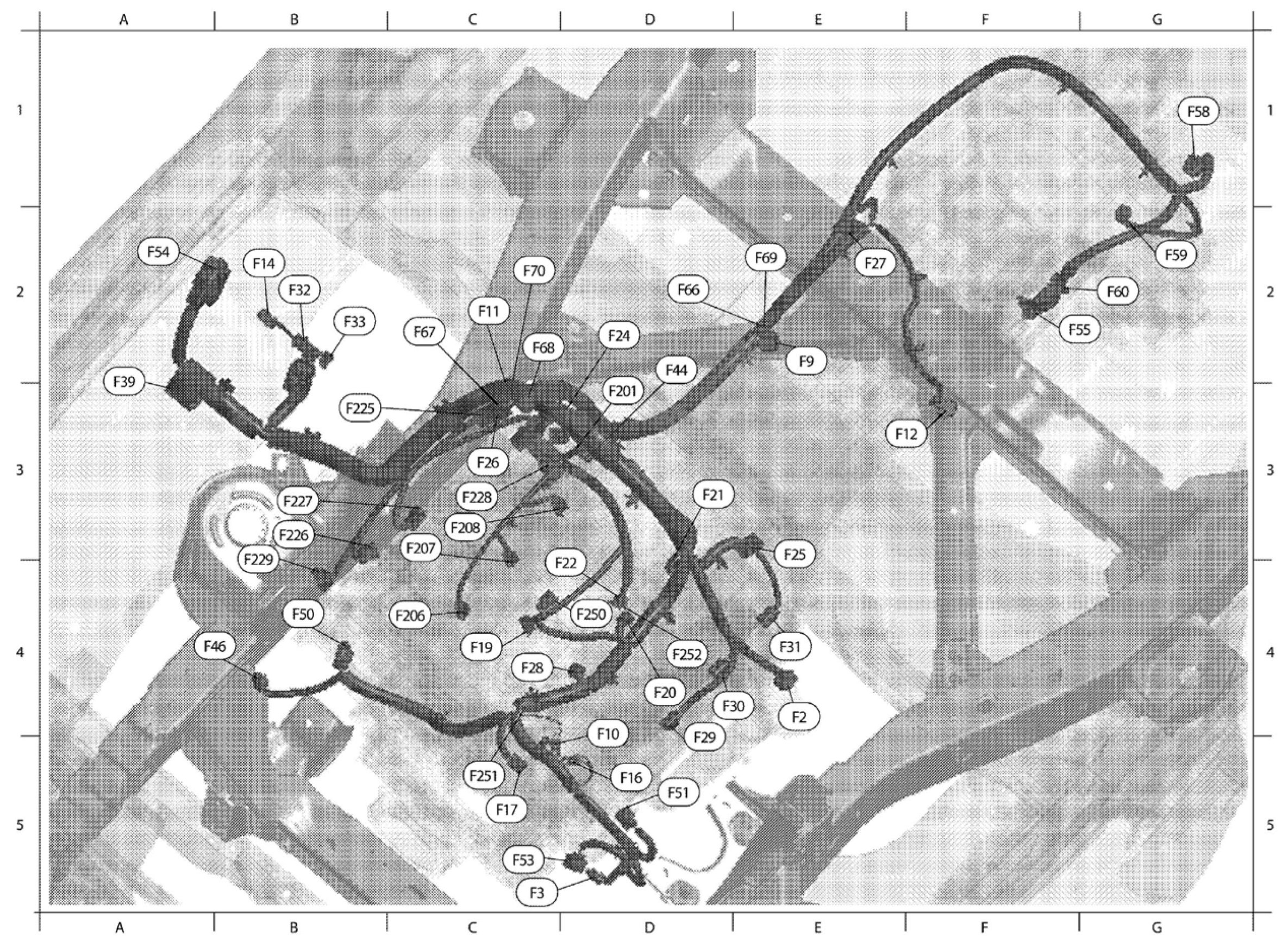

ENGINE CONTROL HARNESS (VQ40DE MODELS)


Engine Control Harness View:

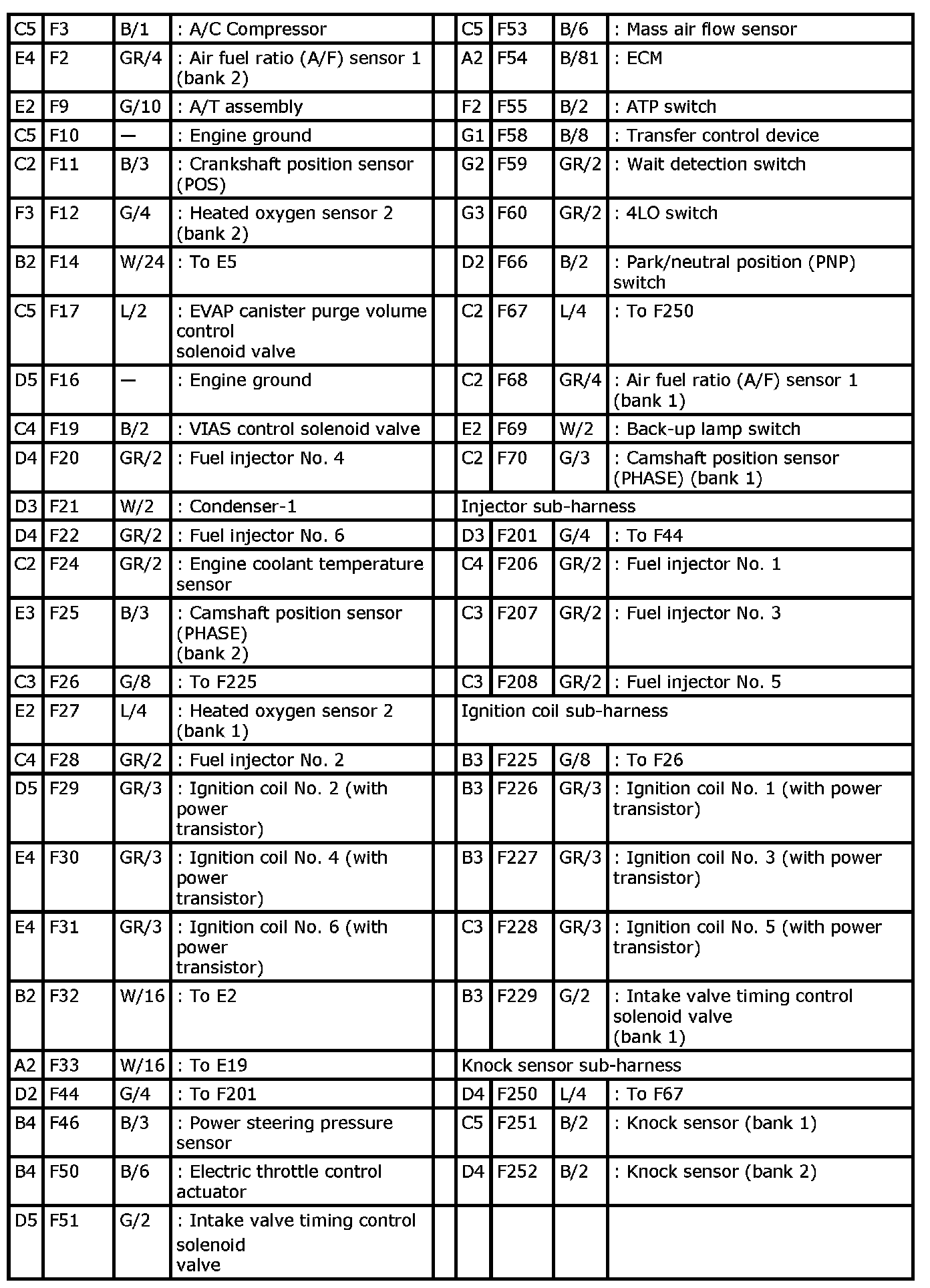

ENGINE CONTROL HARNESS (VQ40DE MODELS) INDEX

Engine Control Harness Index:
