Suzuki
>>
2008
>>
SX4 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

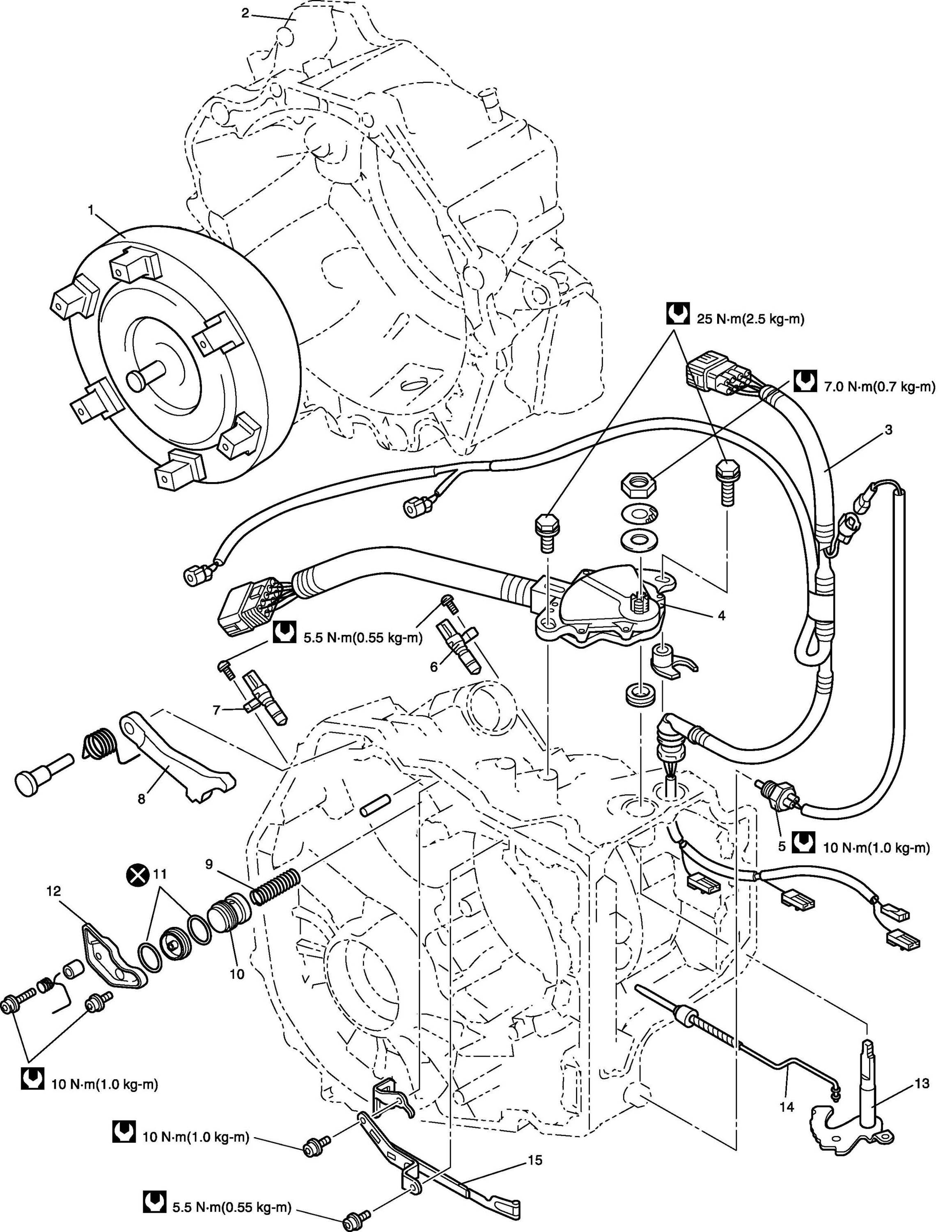

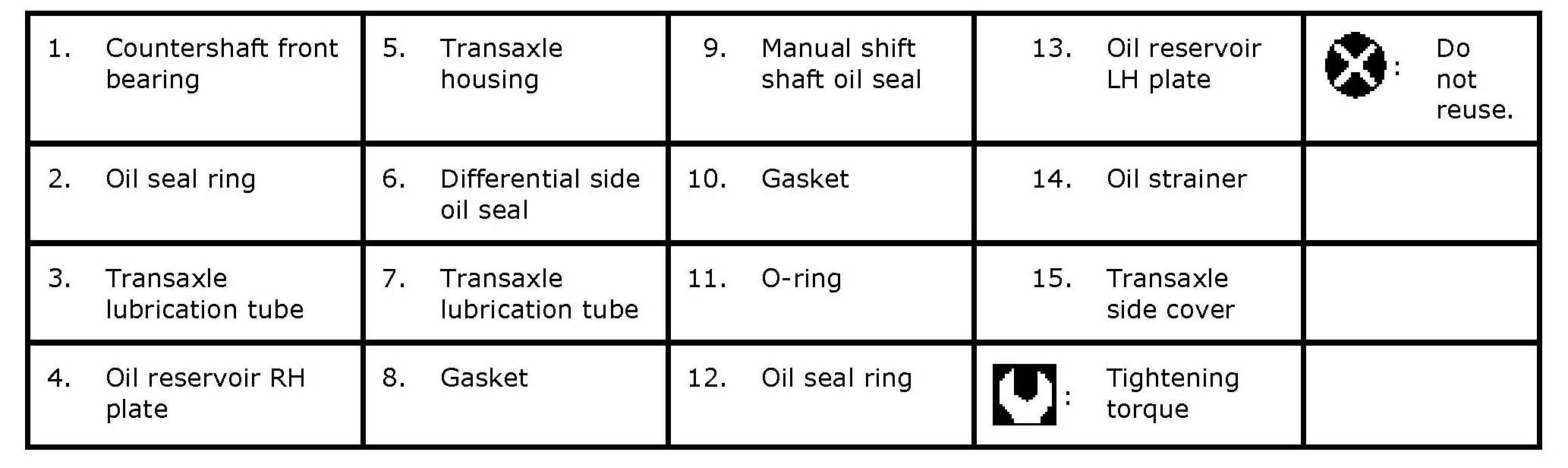

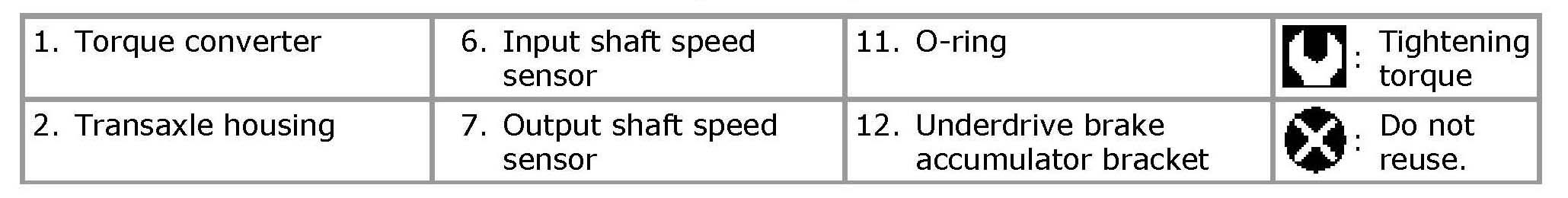

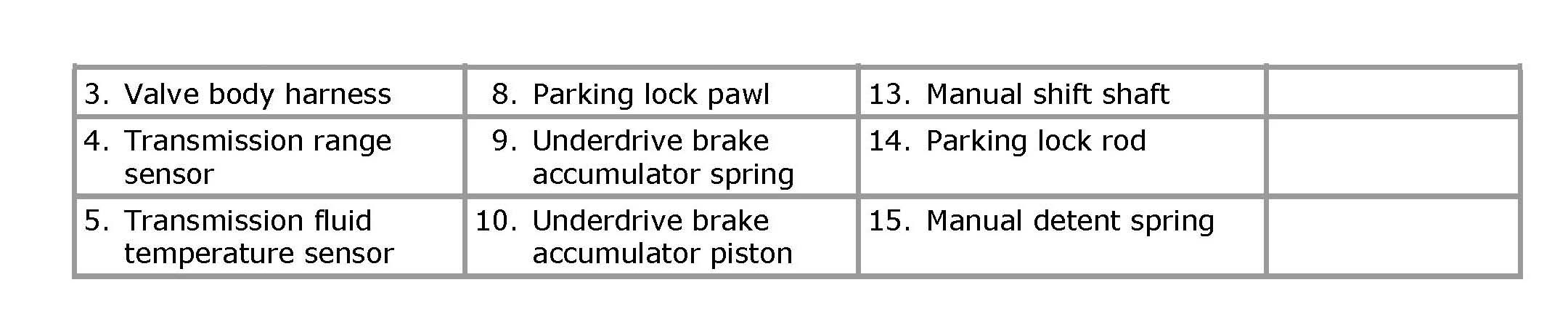

Automatic Transaxle Assembly Components

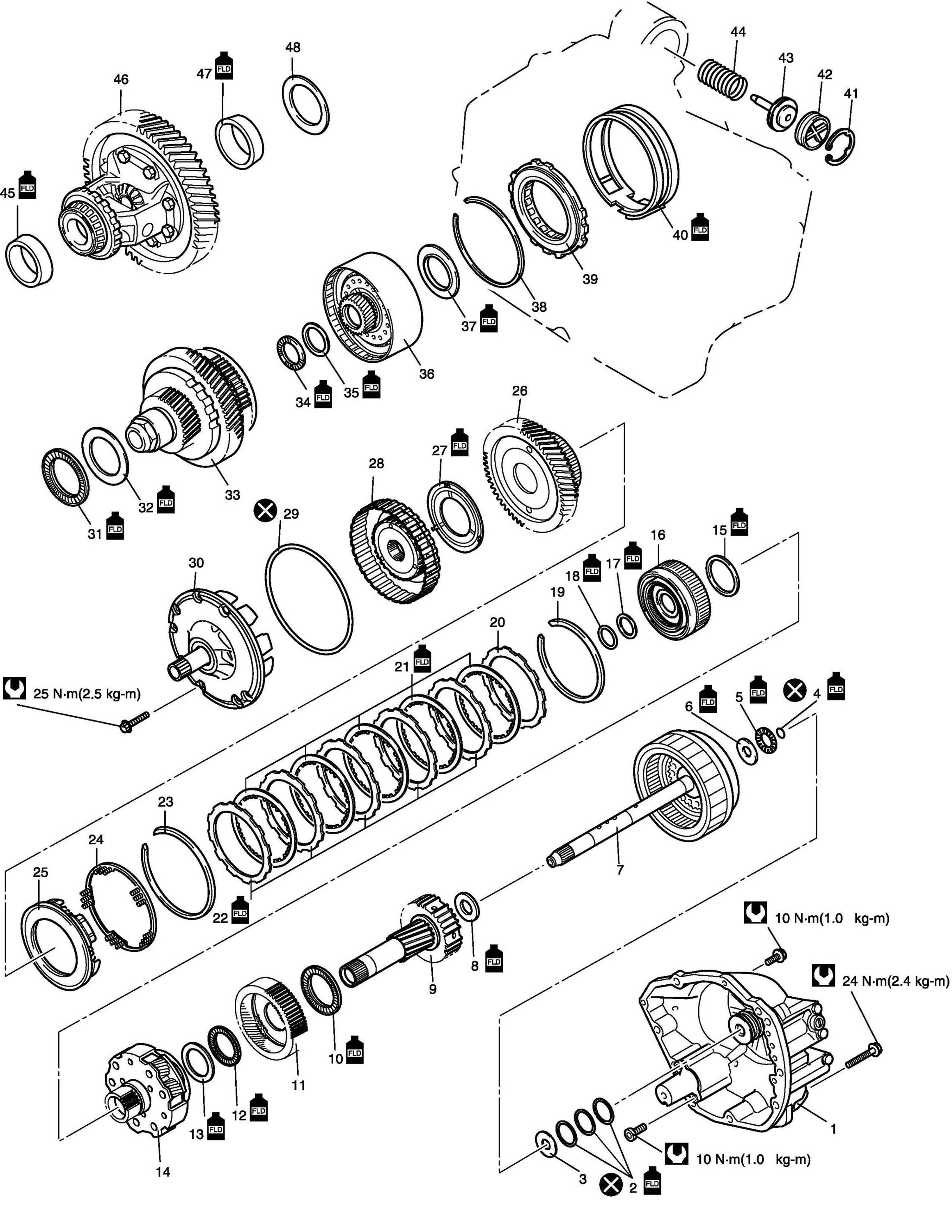

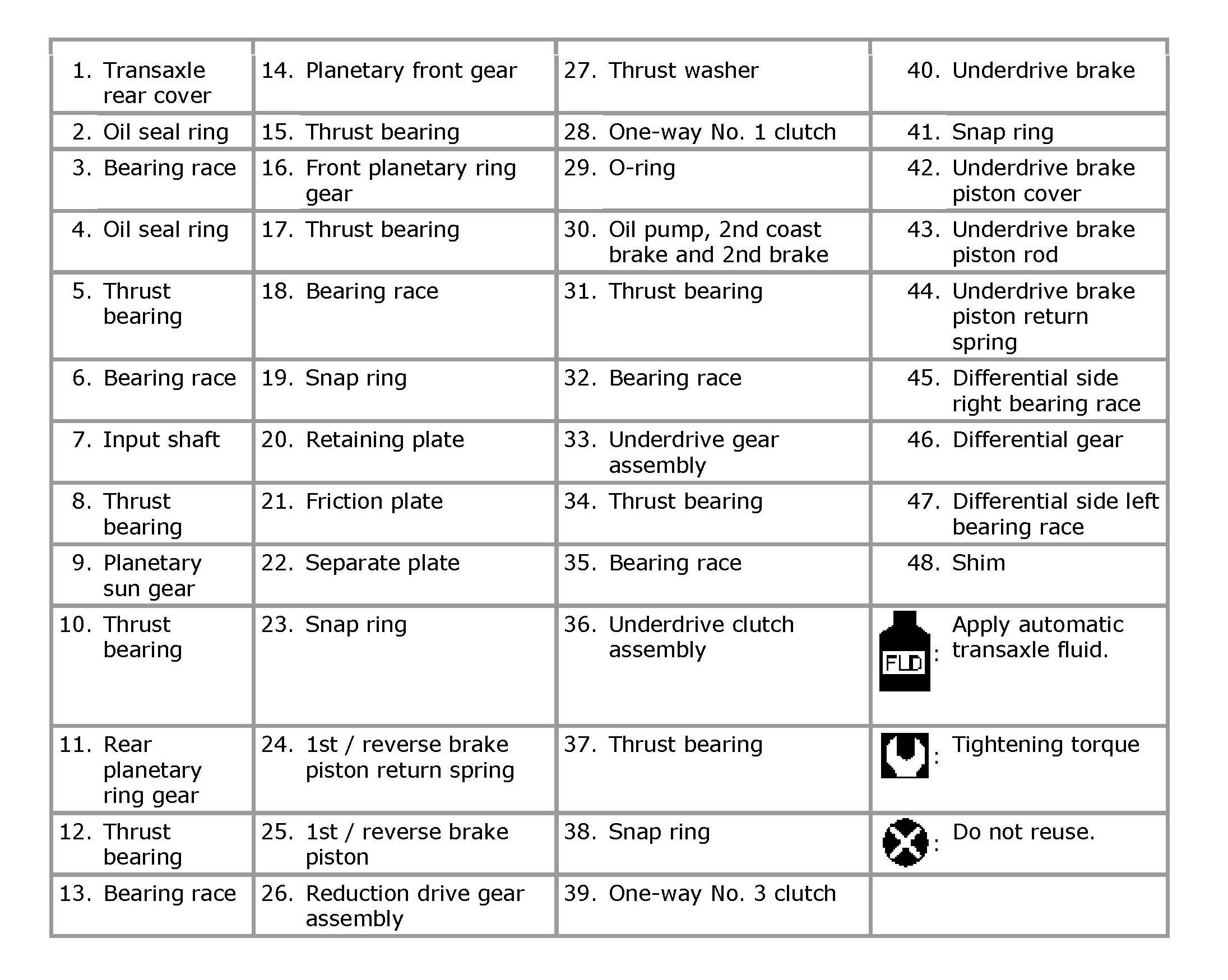

Automatic Transaxle Assembly Components

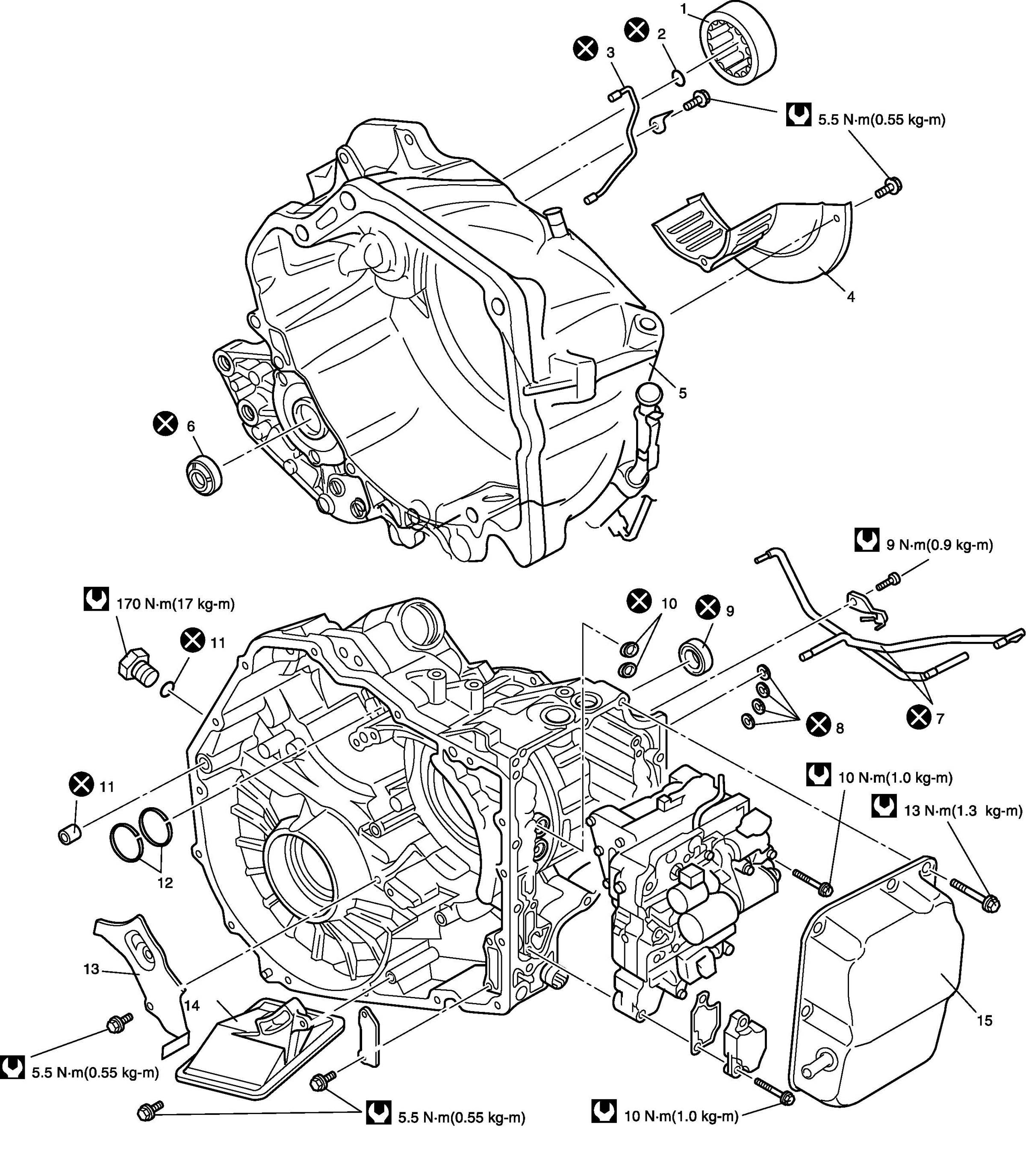

Automatic Transaxle Assembly Components
