Fuse Block
Fuse Block

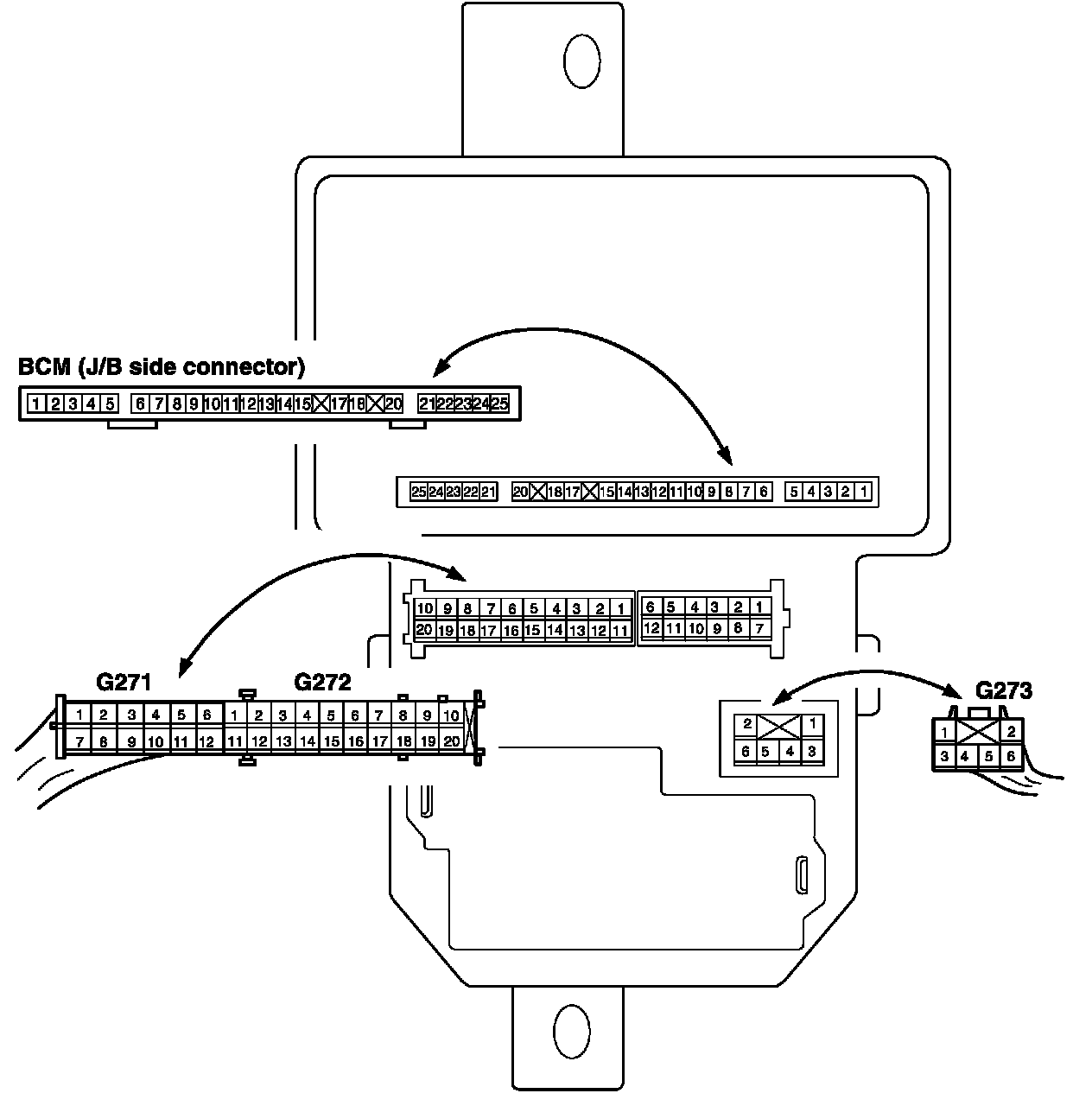

Junction Block (J/B) Connector / Fuse Layout BCM Side:

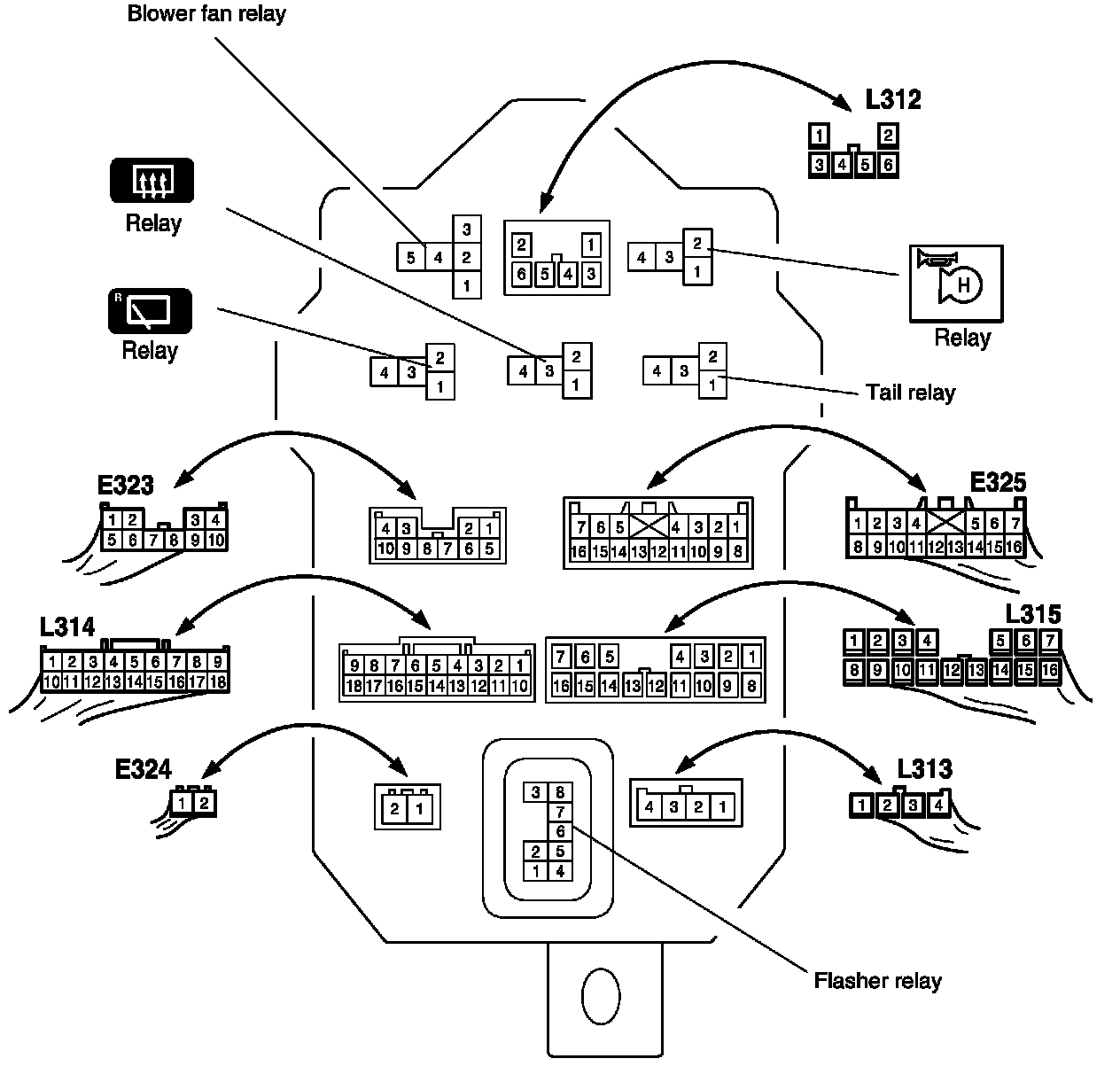

Junction Block (J/B) Connector / Fuse Layout Relay Side:
