Keyless Start Control Module Power and Ground Circuit Check
Keyless Start Control Module Power and Ground Circuit Check
Keyless Start Control Module
Power and Ground Circuit Check

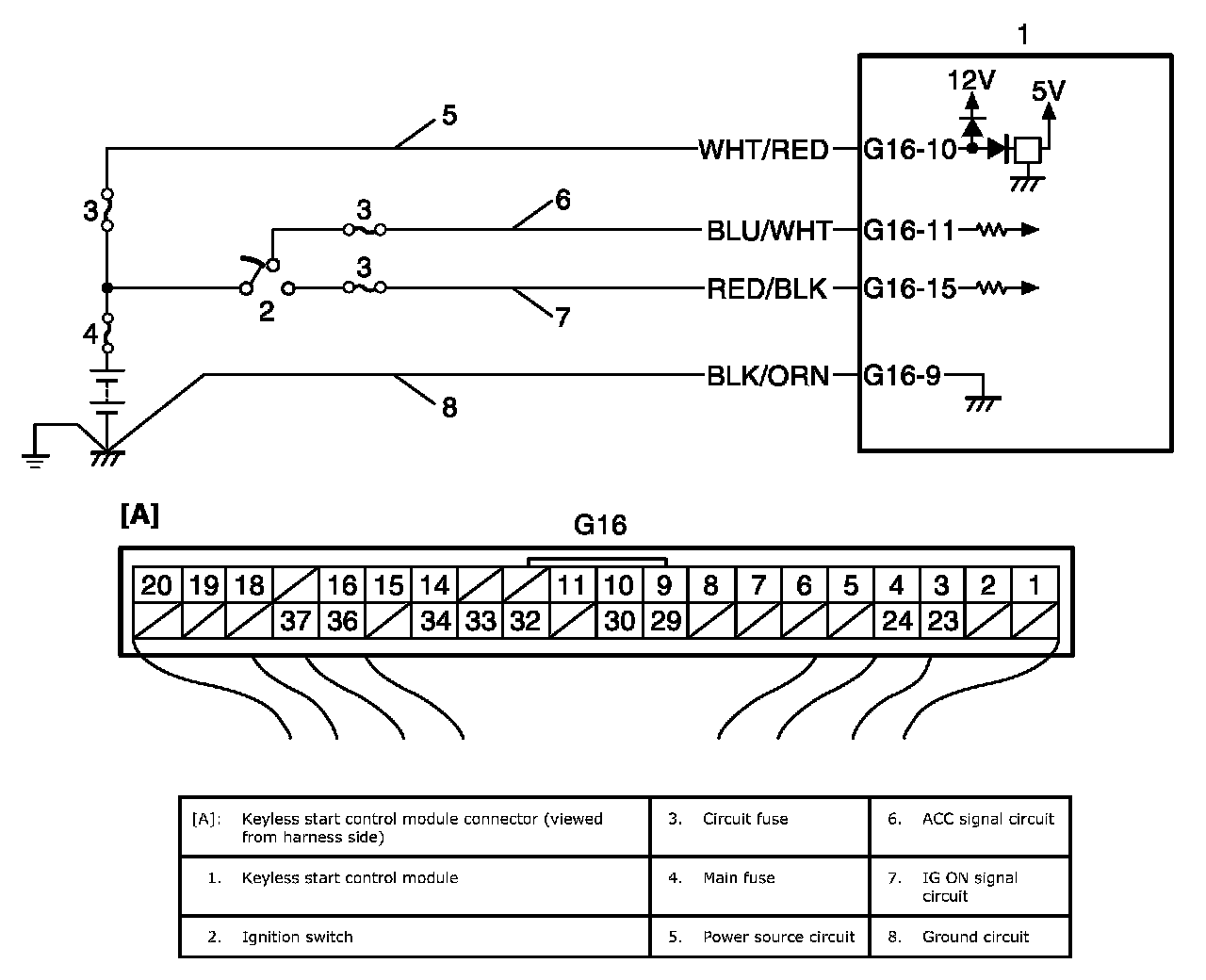

Wiring Diagram
Wiring Diagram:

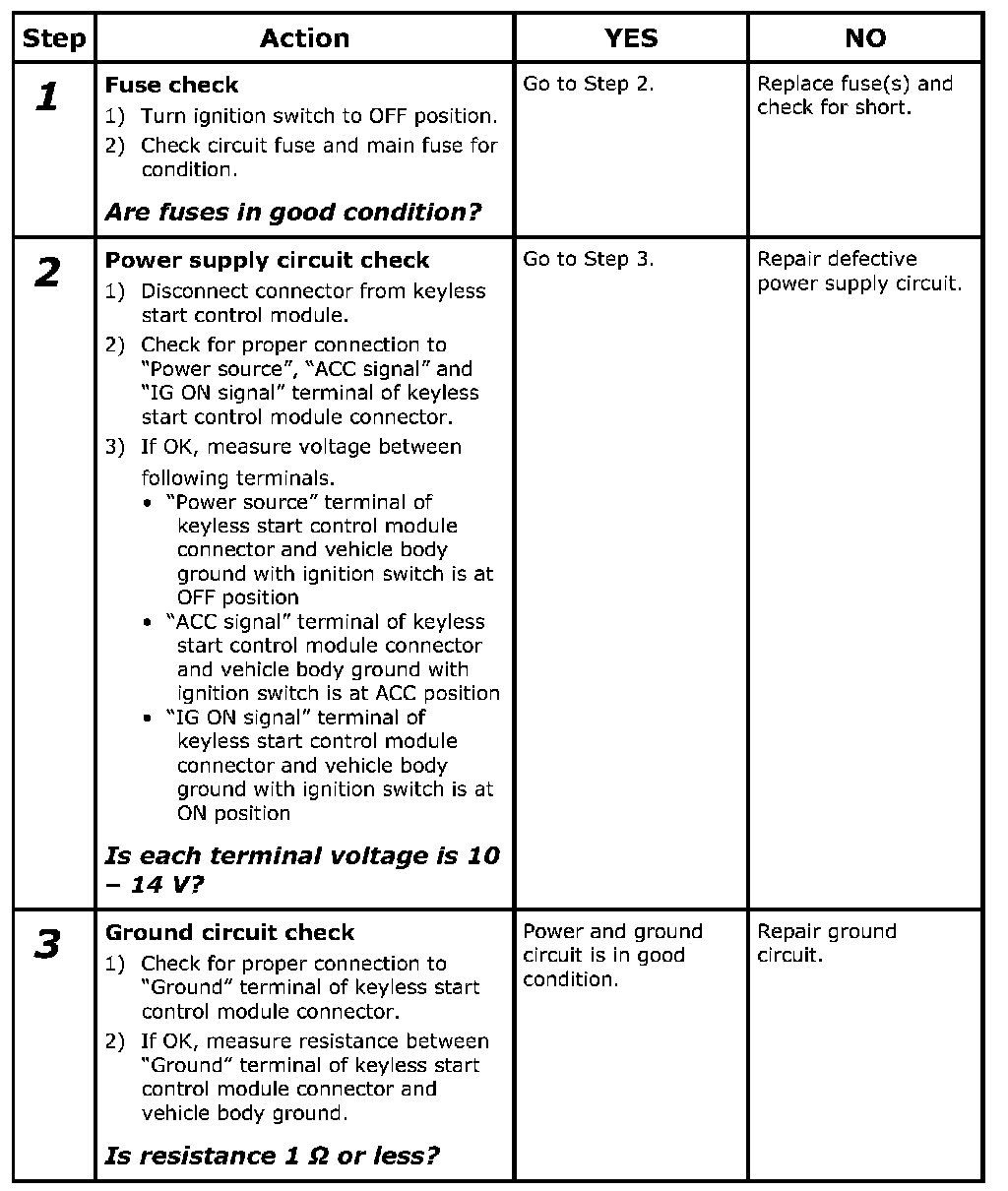

Troubleshooting
Step 1-3:
