Home >> Suzuki >> 2003 >> Vitara 4WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams

Ignition System: Diagrams

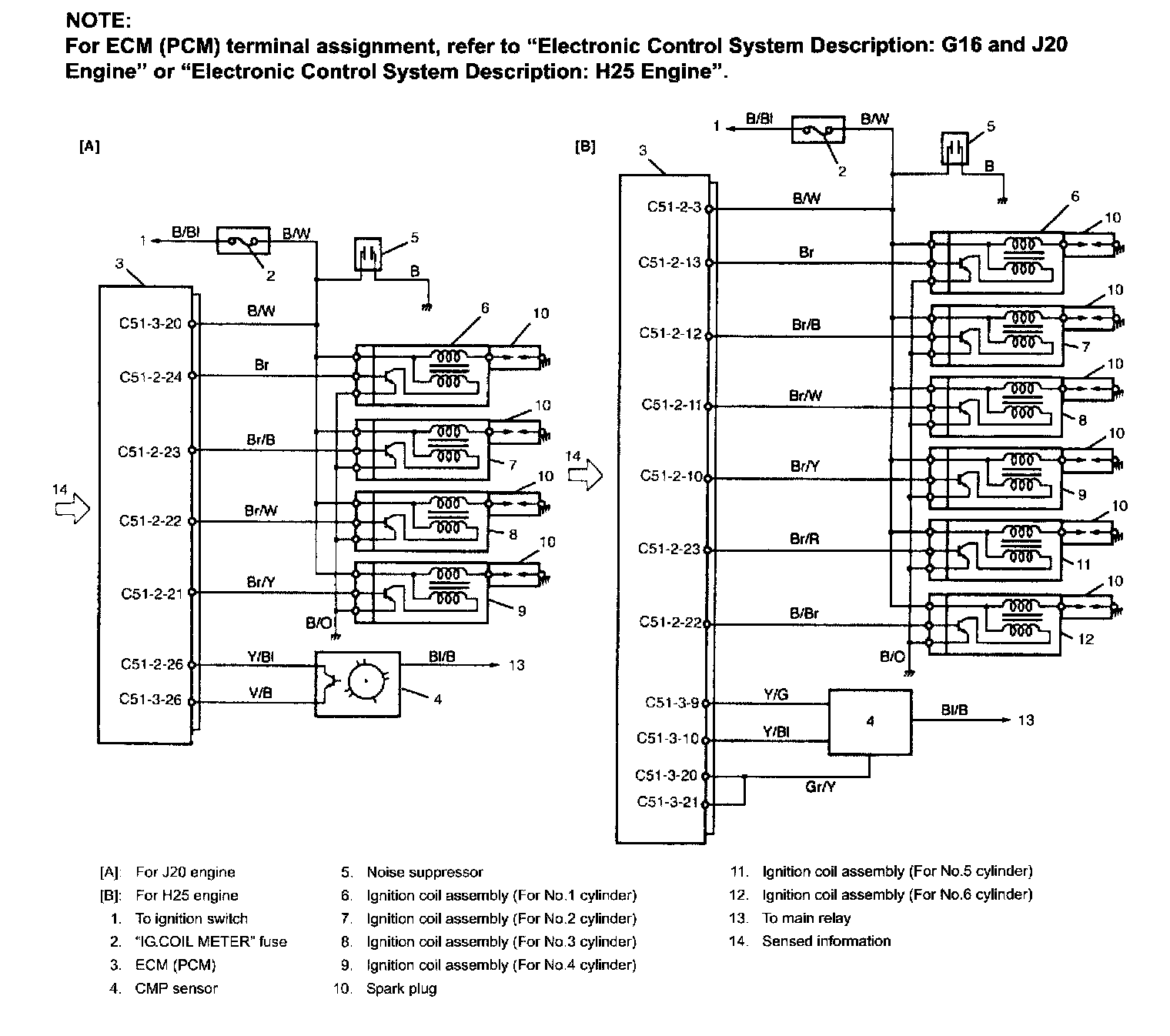

Schematic And Routing Diagram (Ignition System Wiring):
