Home >> Suzuki >> 2003 >> Vitara 4WD L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Exploded Views >> A/C System

A/C System

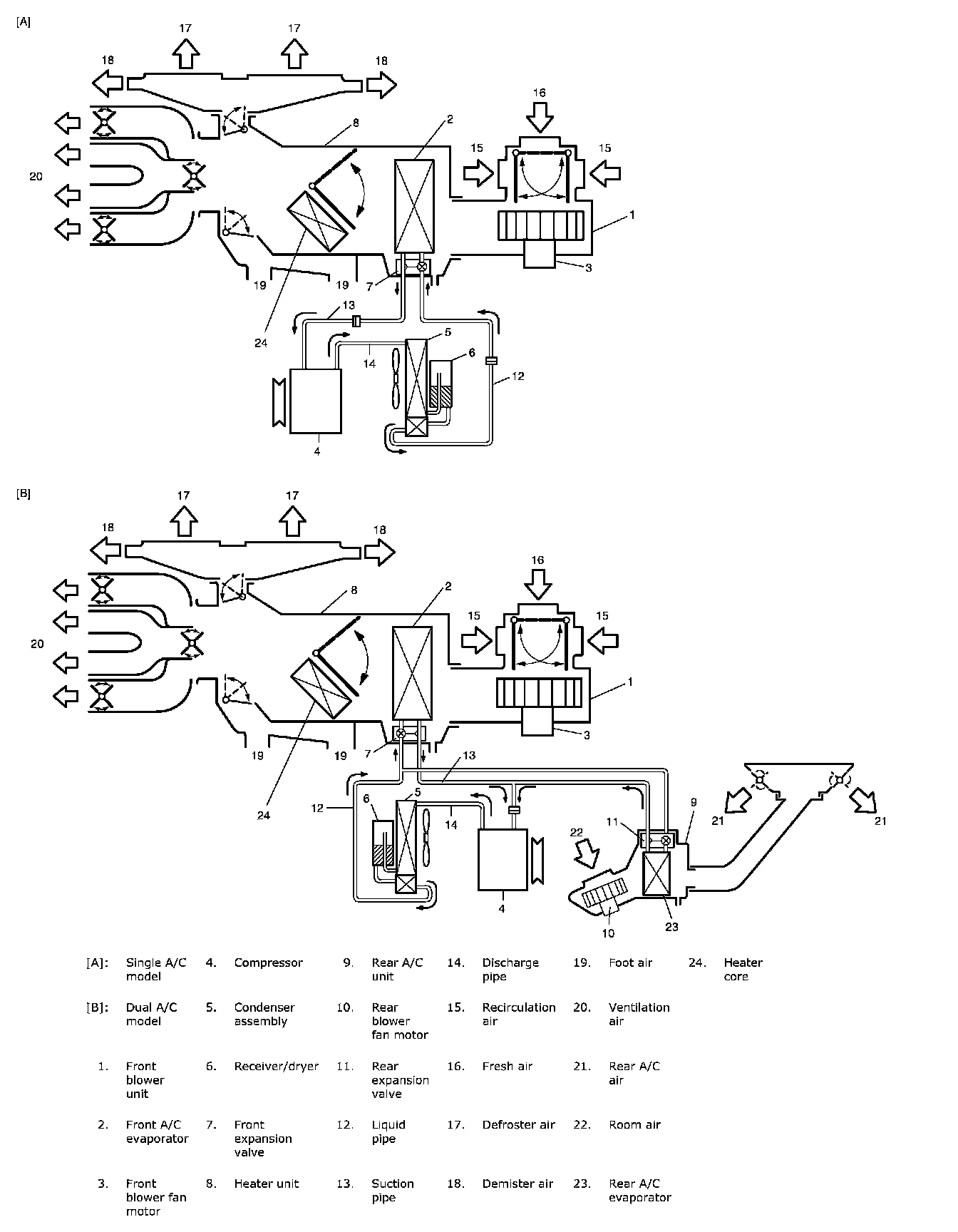

Major Components Of A/C System:
