Home >> Suzuki >> 2003 >> Vitara 4WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Power Locks

Power Locks

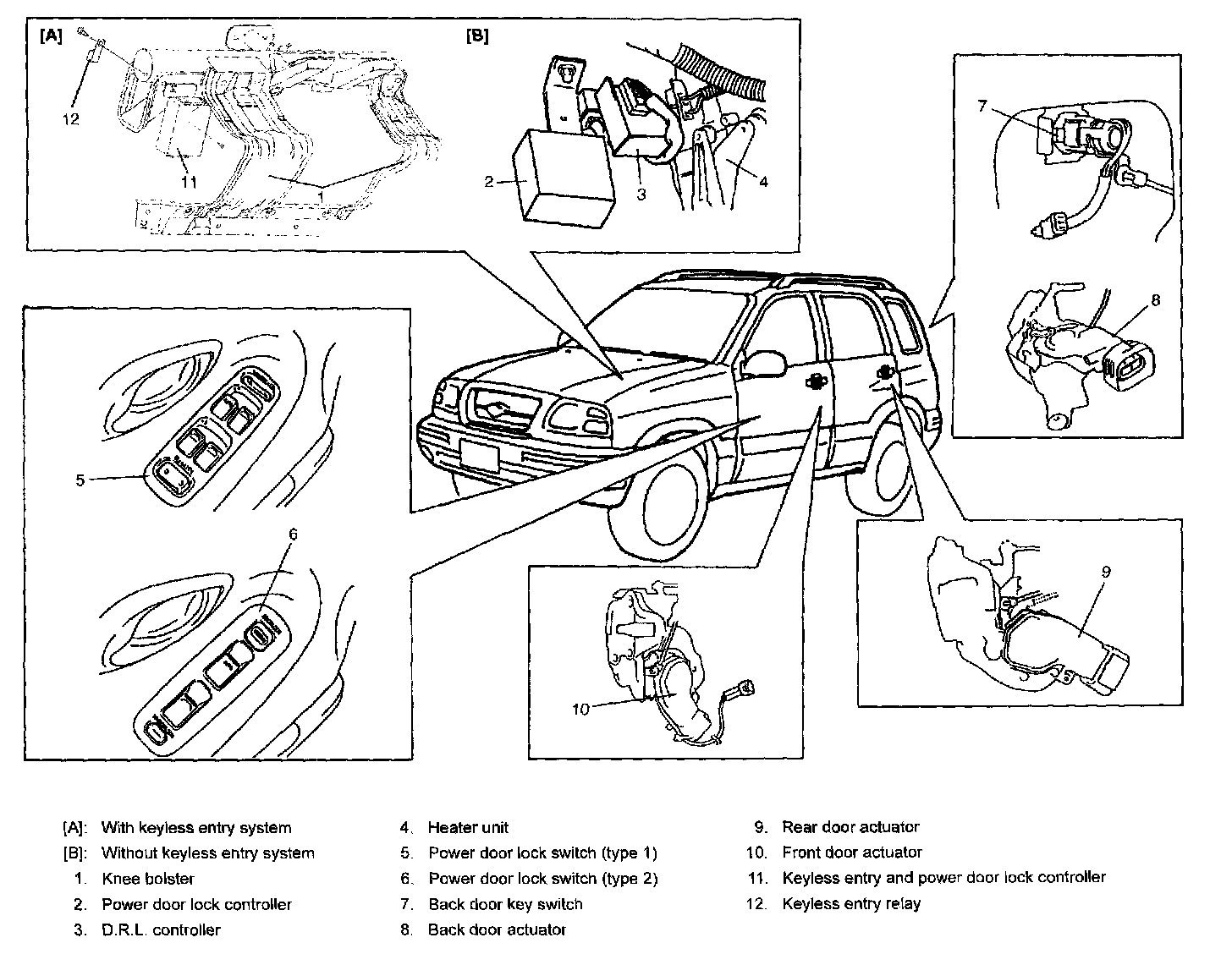

Power Door Lock System Locator:

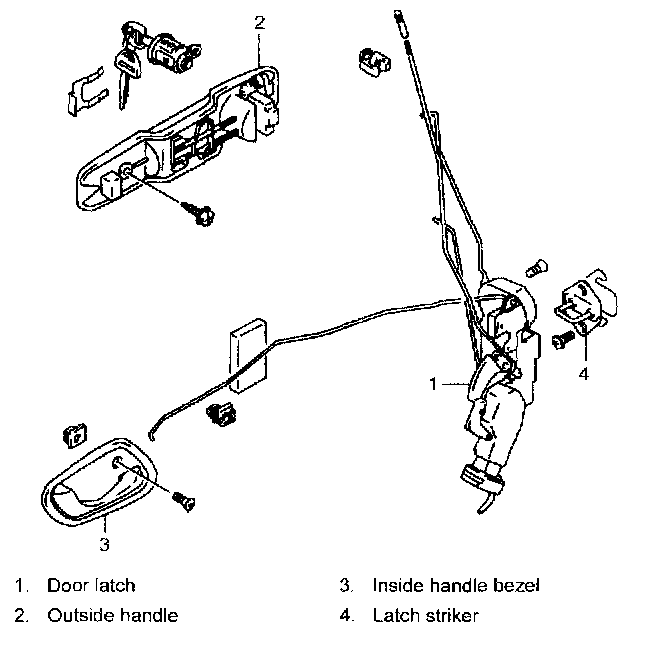

Front Door Lock Assembly Components:

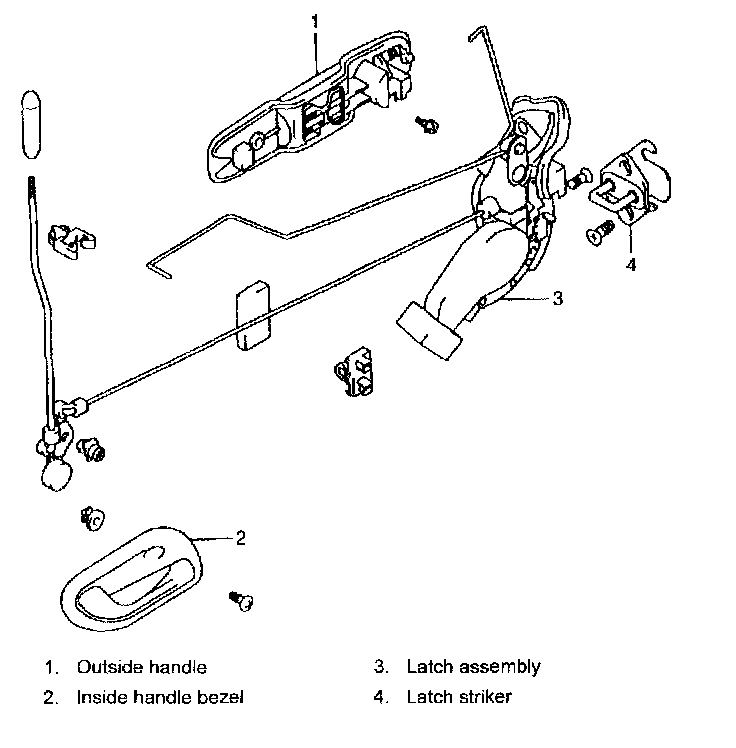

Rear Door Lock Assembly Components:
