Engine Control Module

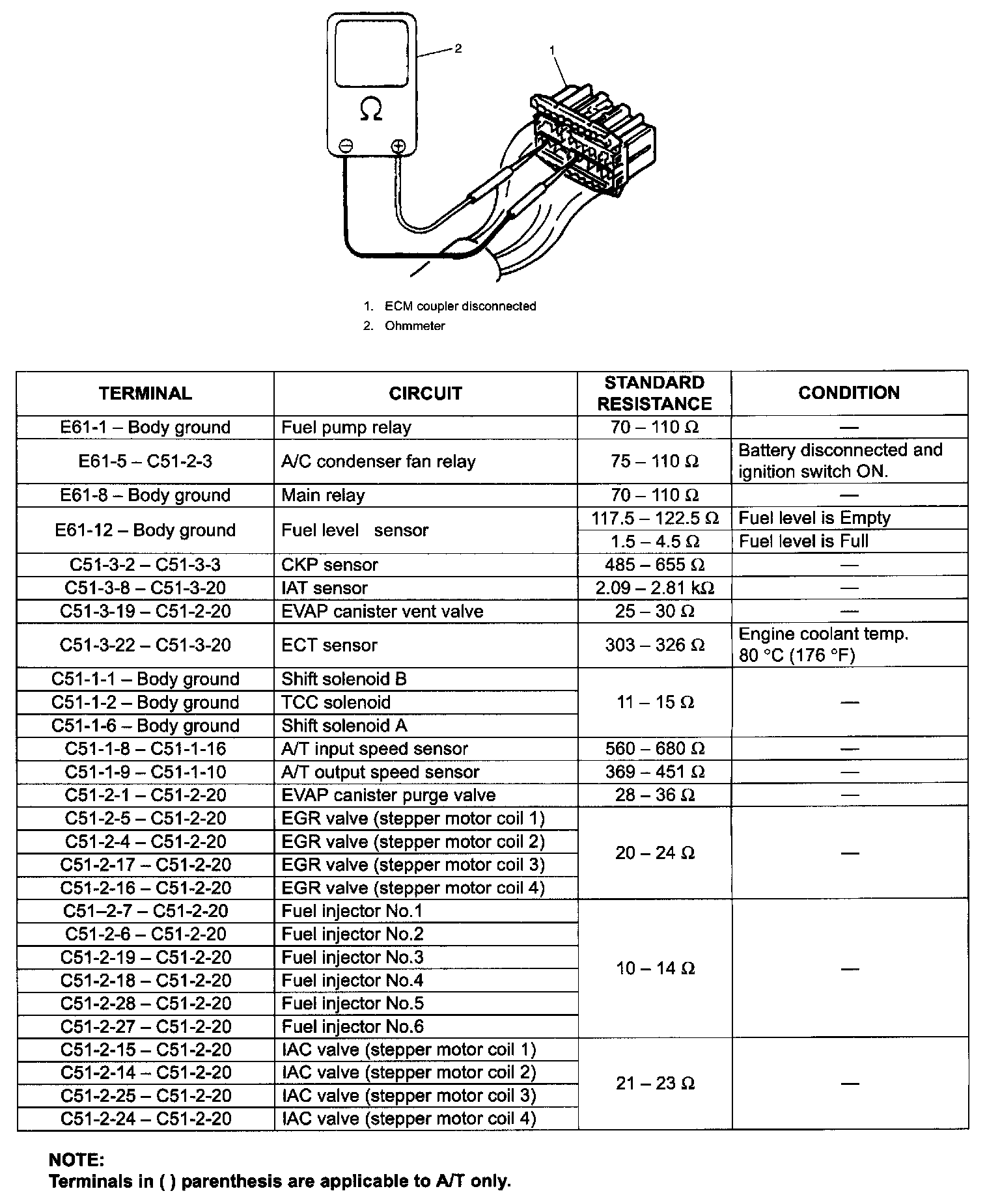

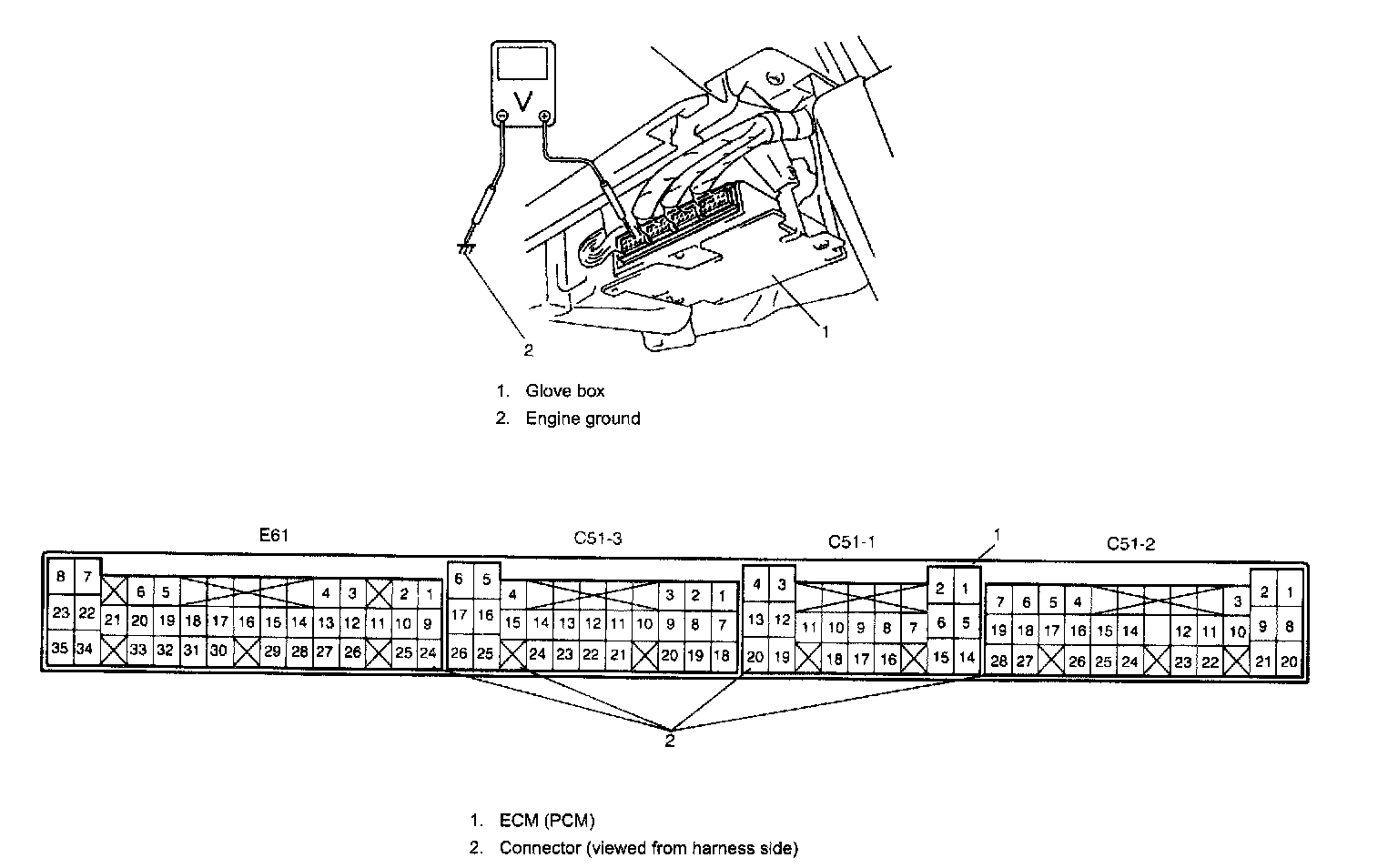

ECM / PCM Connector:

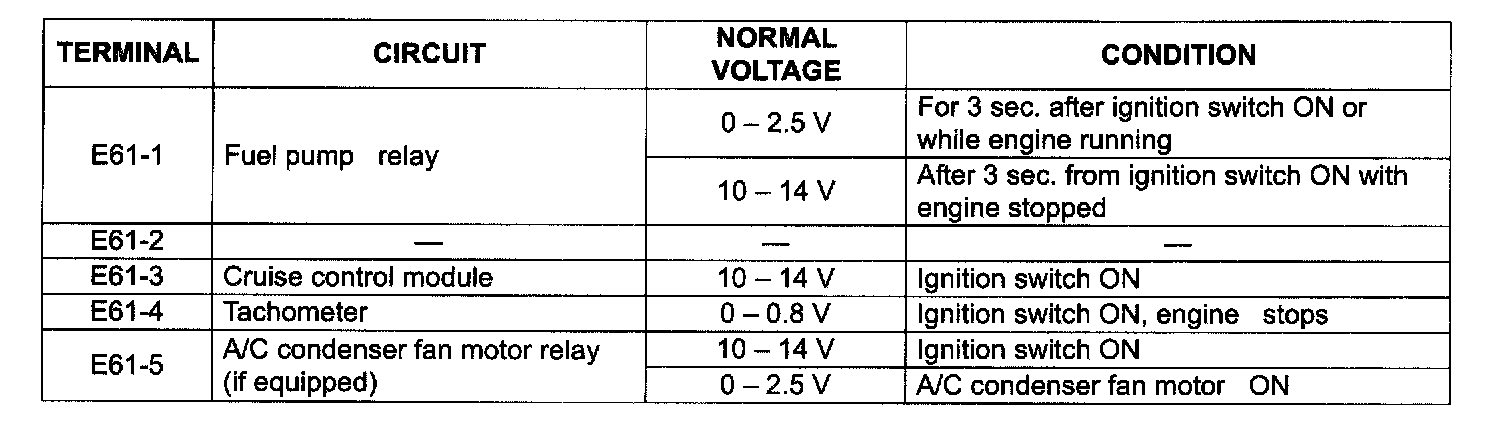

Terminal E61-1 - E61-5:

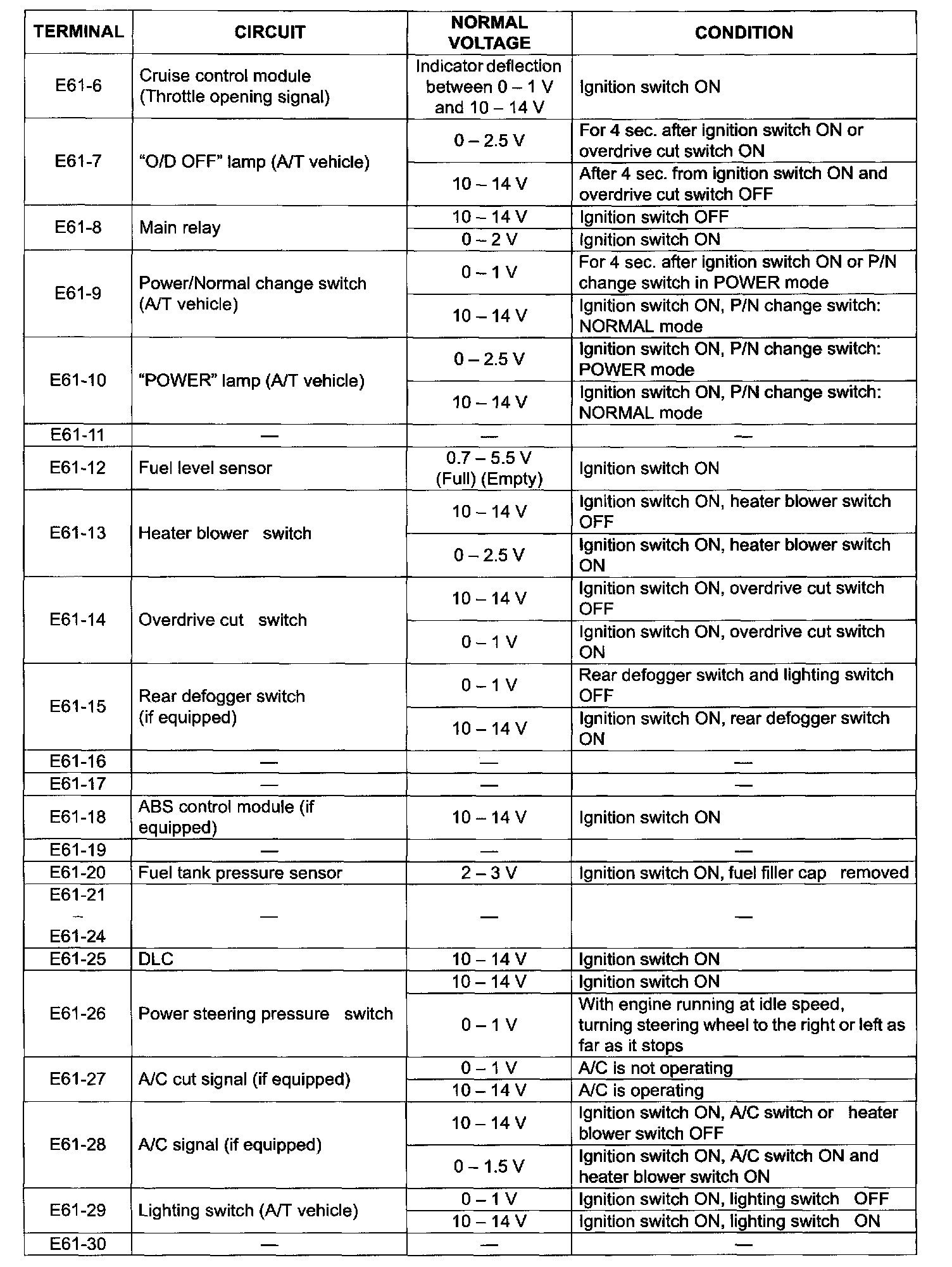

Terminal E61-6 - E61-30:

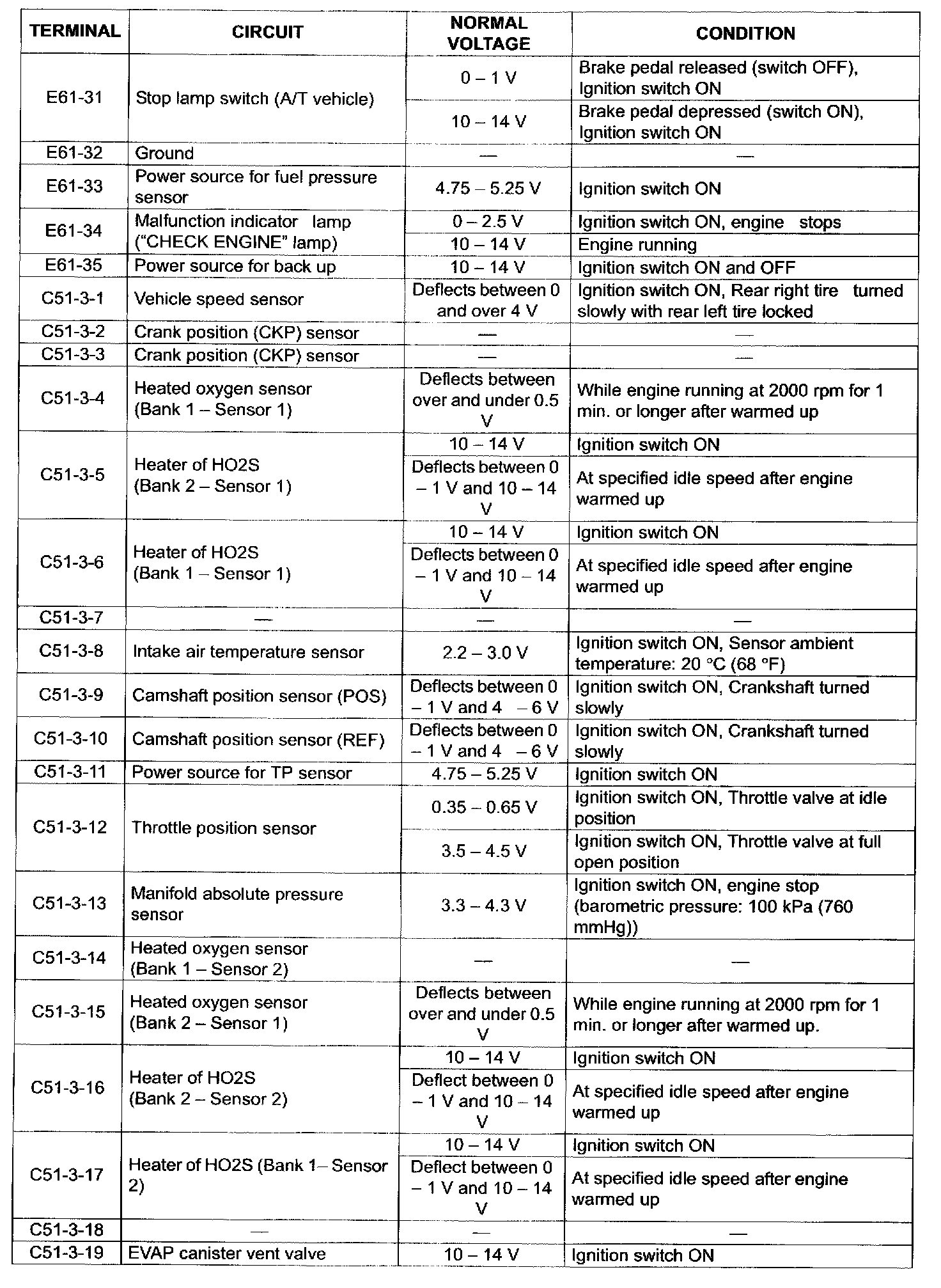

Terminal E61-31 - C51-3-19:

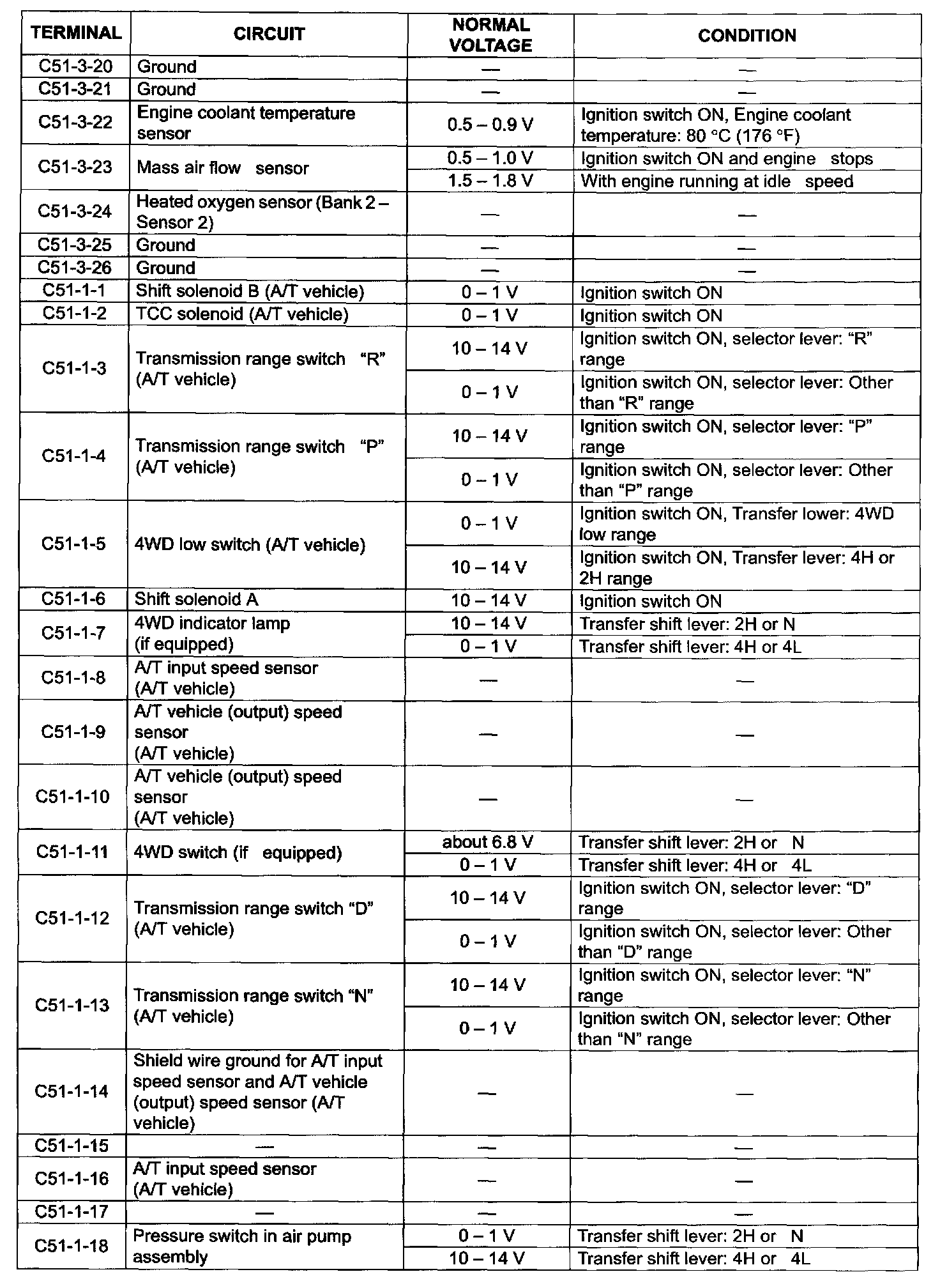

Terminal C51-3-20 - C51-1-18:

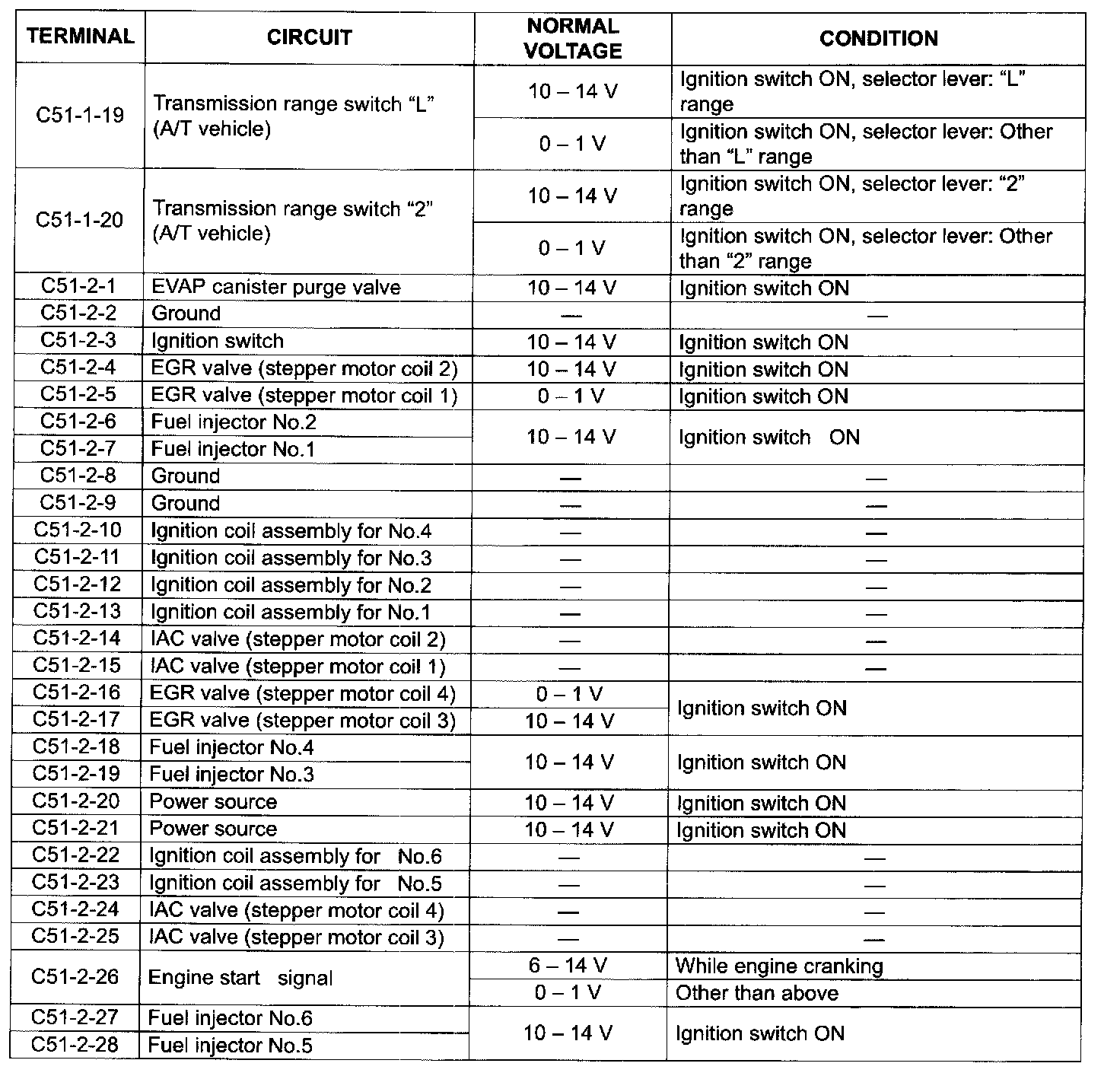

Terminal C51-1-19 - C51-2-28:
