Home >> Suzuki >> 2001 >> XL-7 Plus 4WD V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations

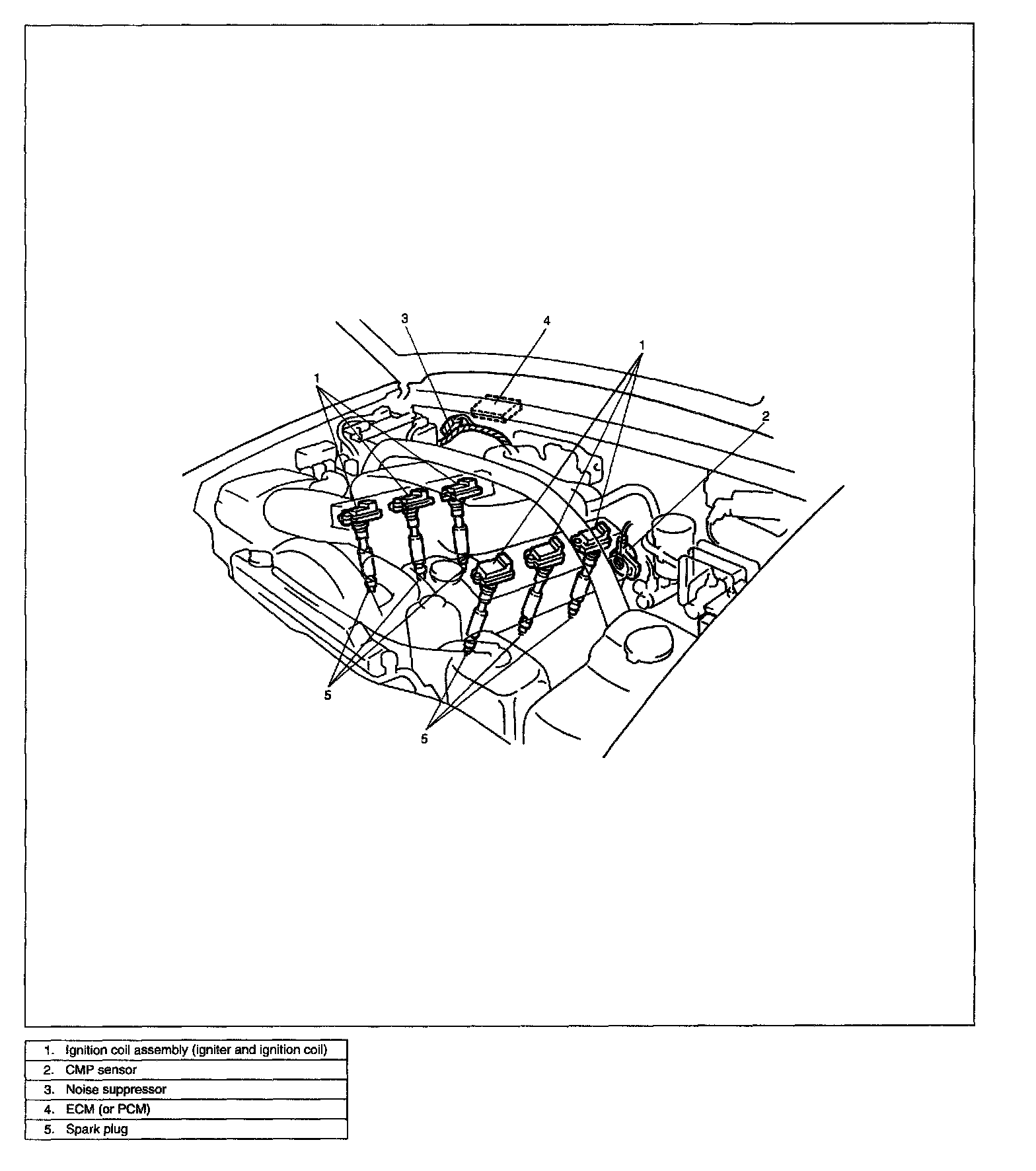

Ignition System: Locations

NOTE: For other components not found in this figure, refer to "Engine and Emission Control System".
