Ignition Lock: Service and Repair

Ignition Key Lock

REPLACEMENT
1. Disconnect the ground cable from battery.
2. Remove the steering column.

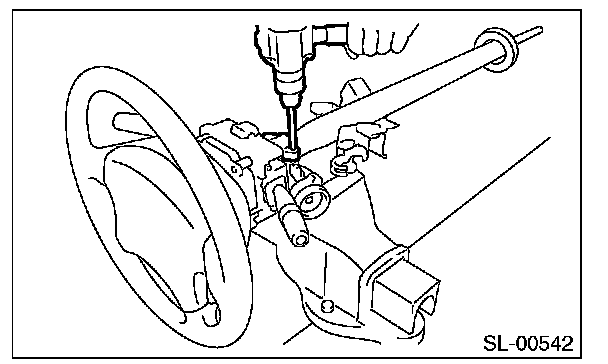

3. Secure the steering column in a vise. Remove the bolt with a drill.

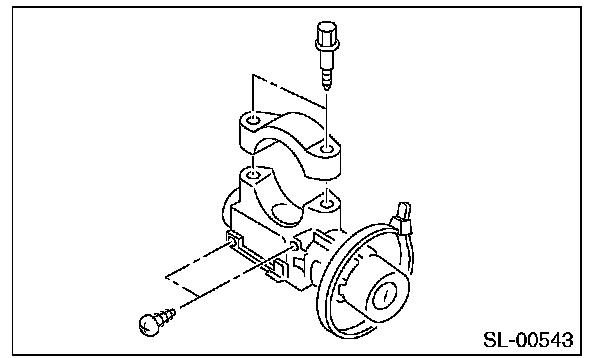

4. Remove the ignition key lock.
5. Using a new bolt, tighten the bolts (until the bolt head is wrenched off).
