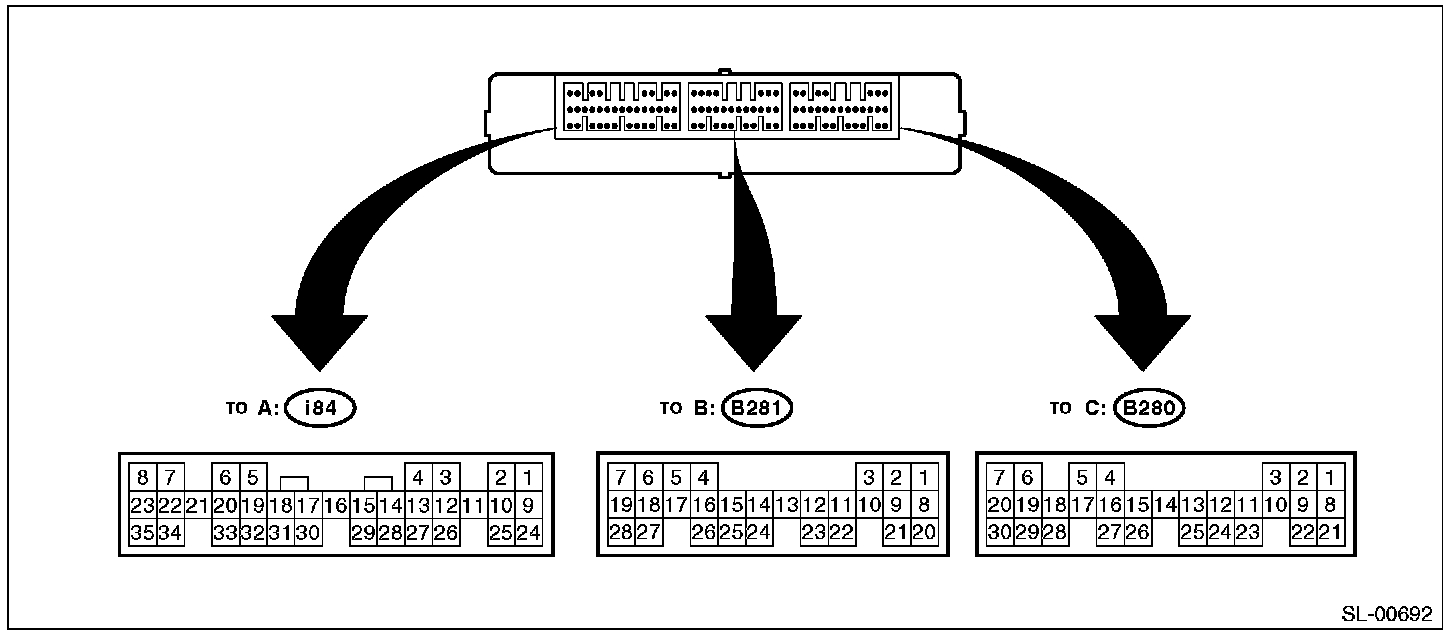

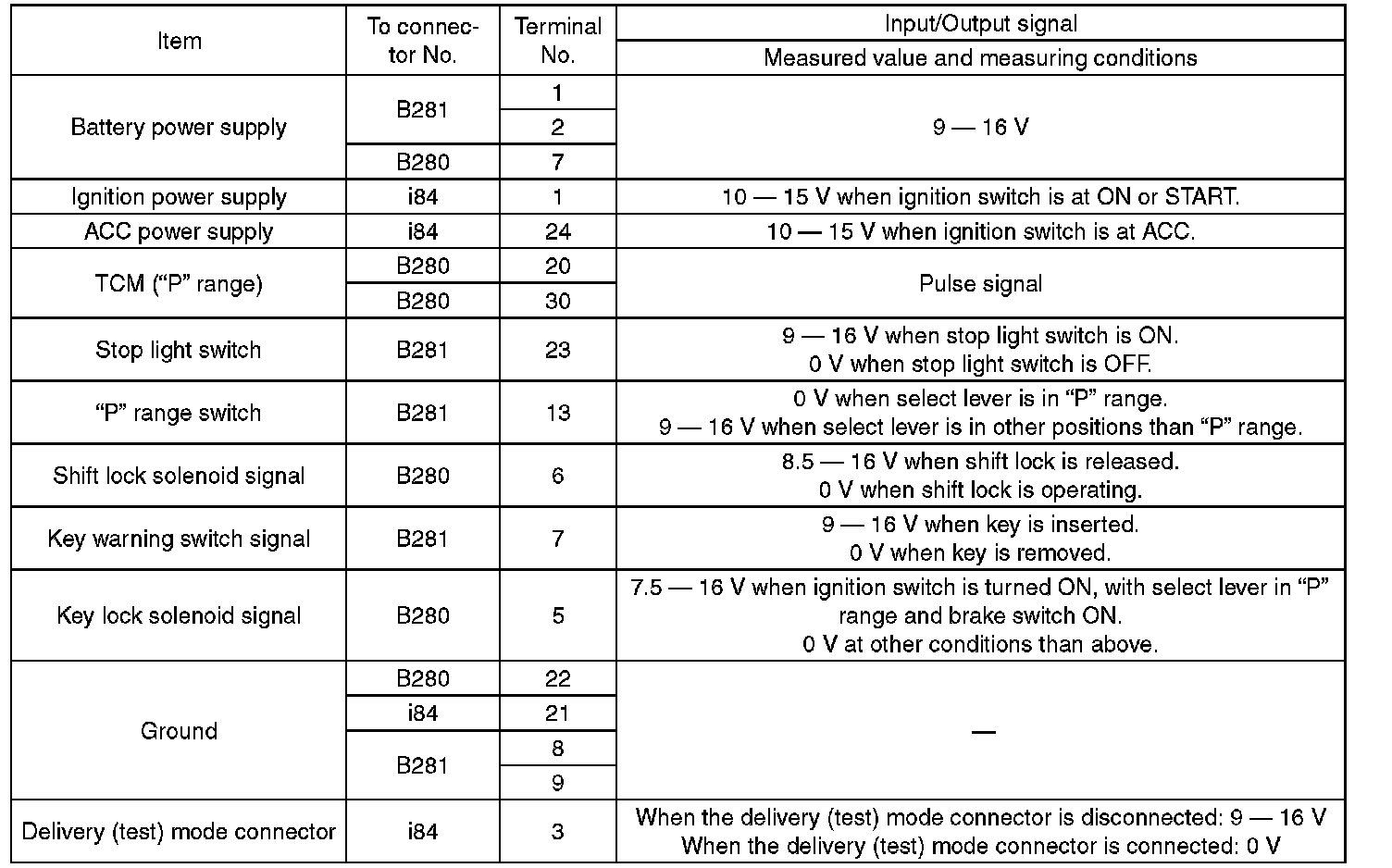

Home >> Subaru >> 2012 >> Tribeca F6-3.6L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Control Module Pinout Values
