Exploded Views

General Description

COMPONENT

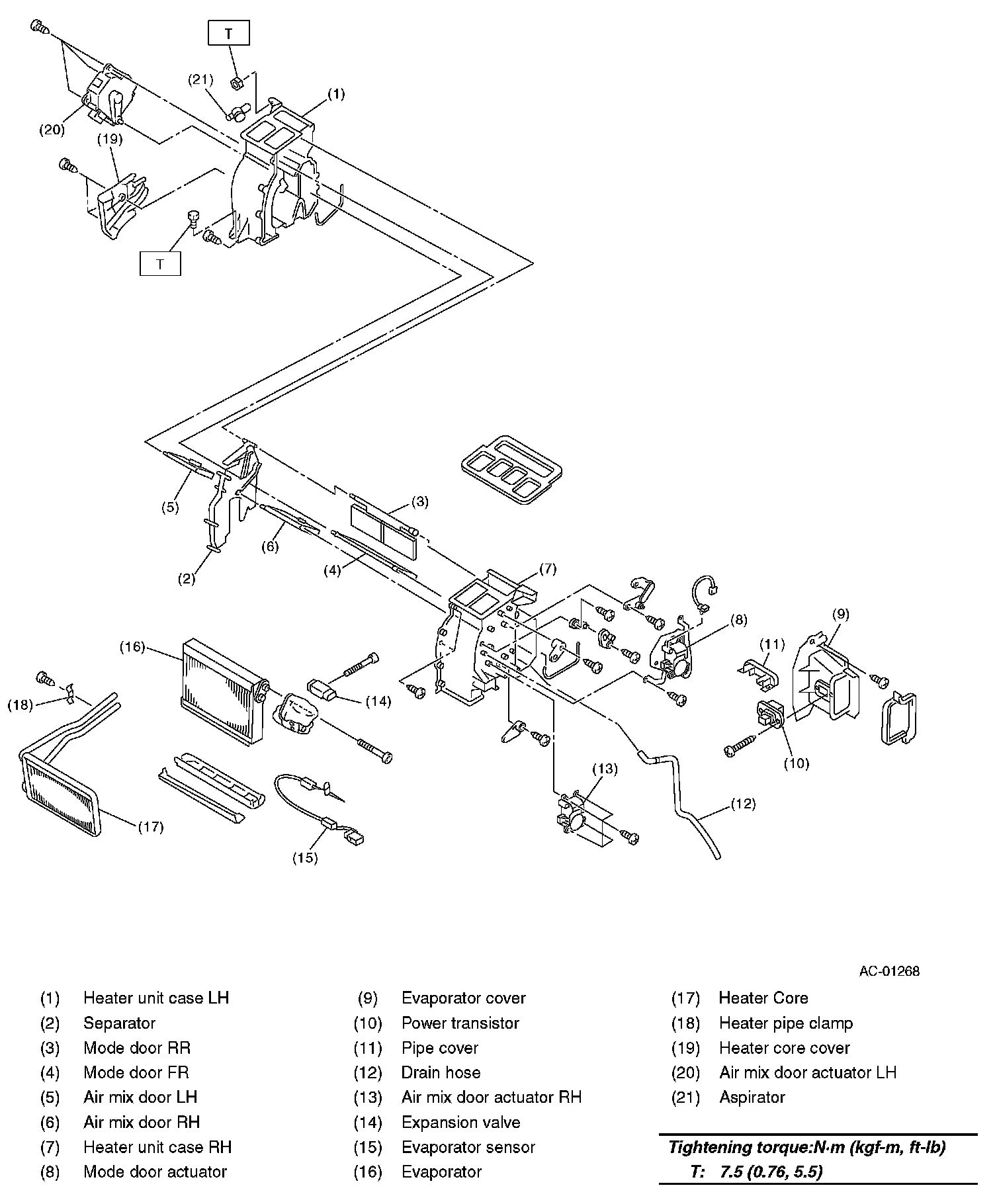

1. HEATER COOLING UNIT

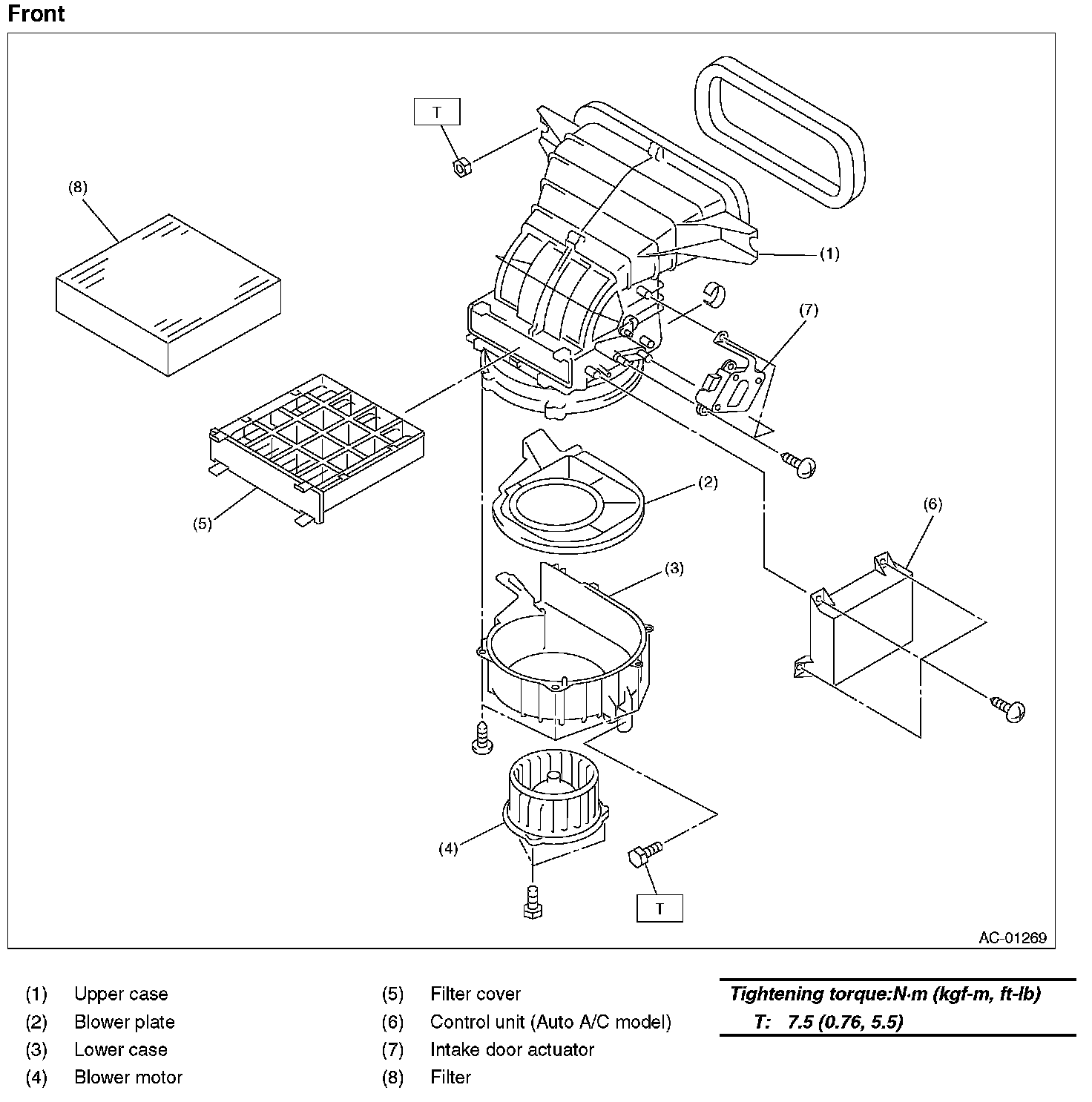

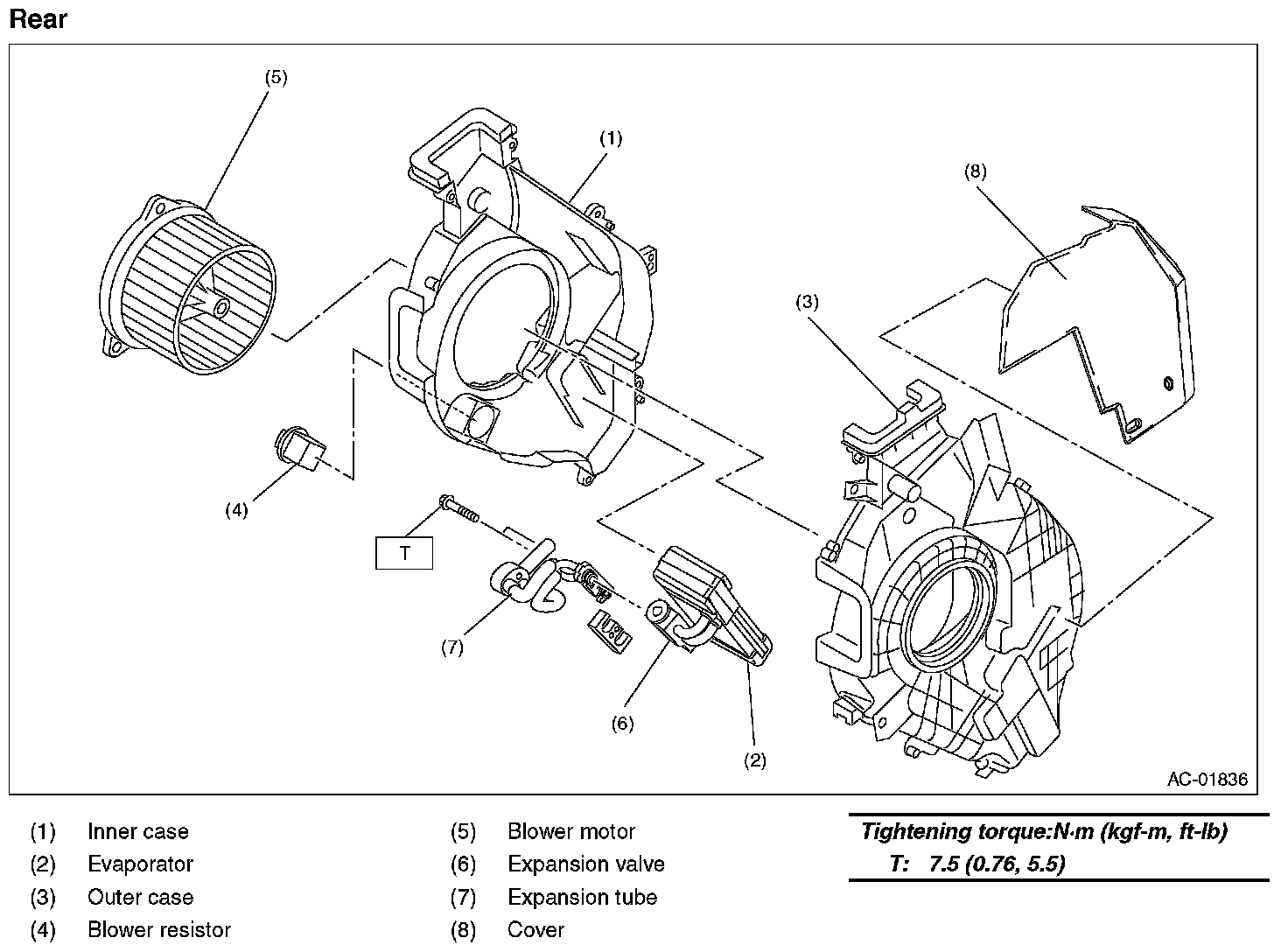

2. BLOWER MOTOR UNIT

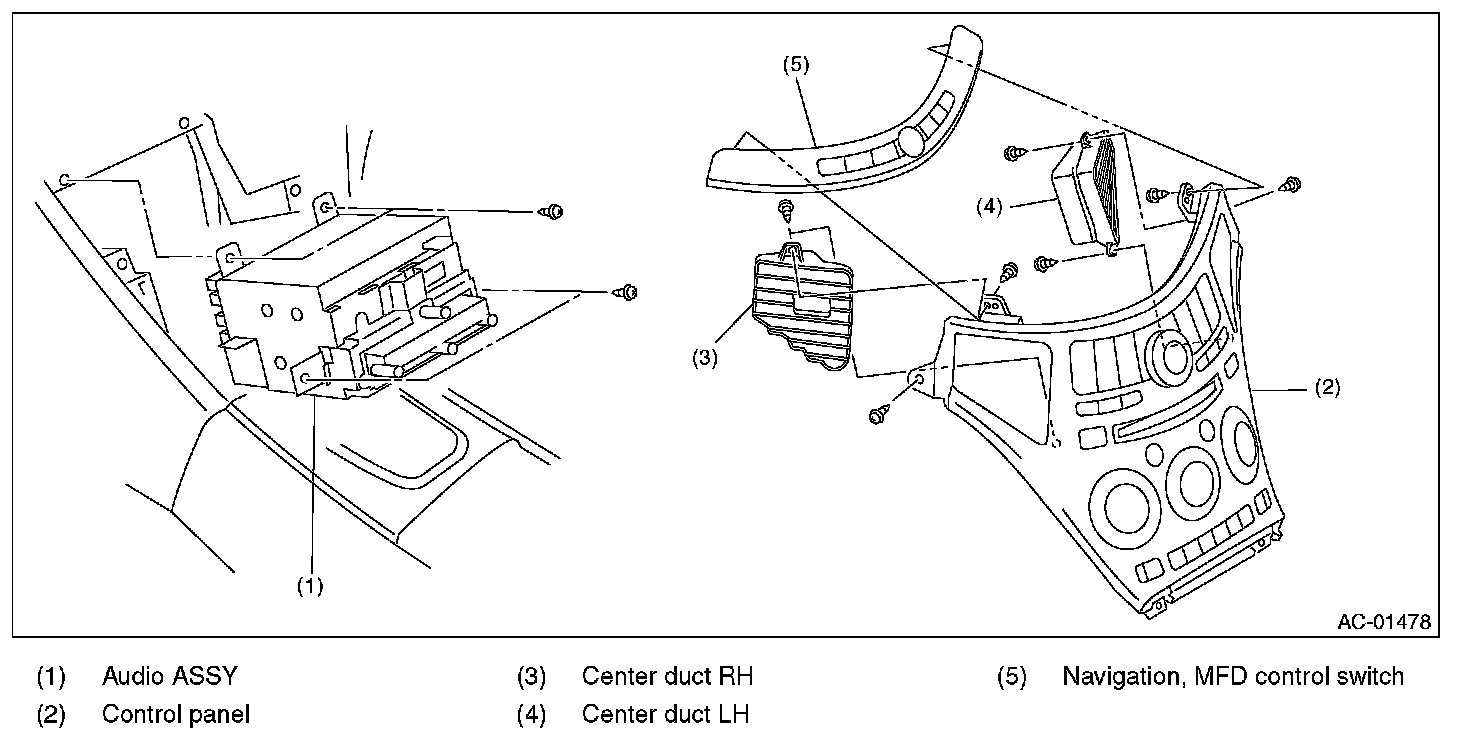

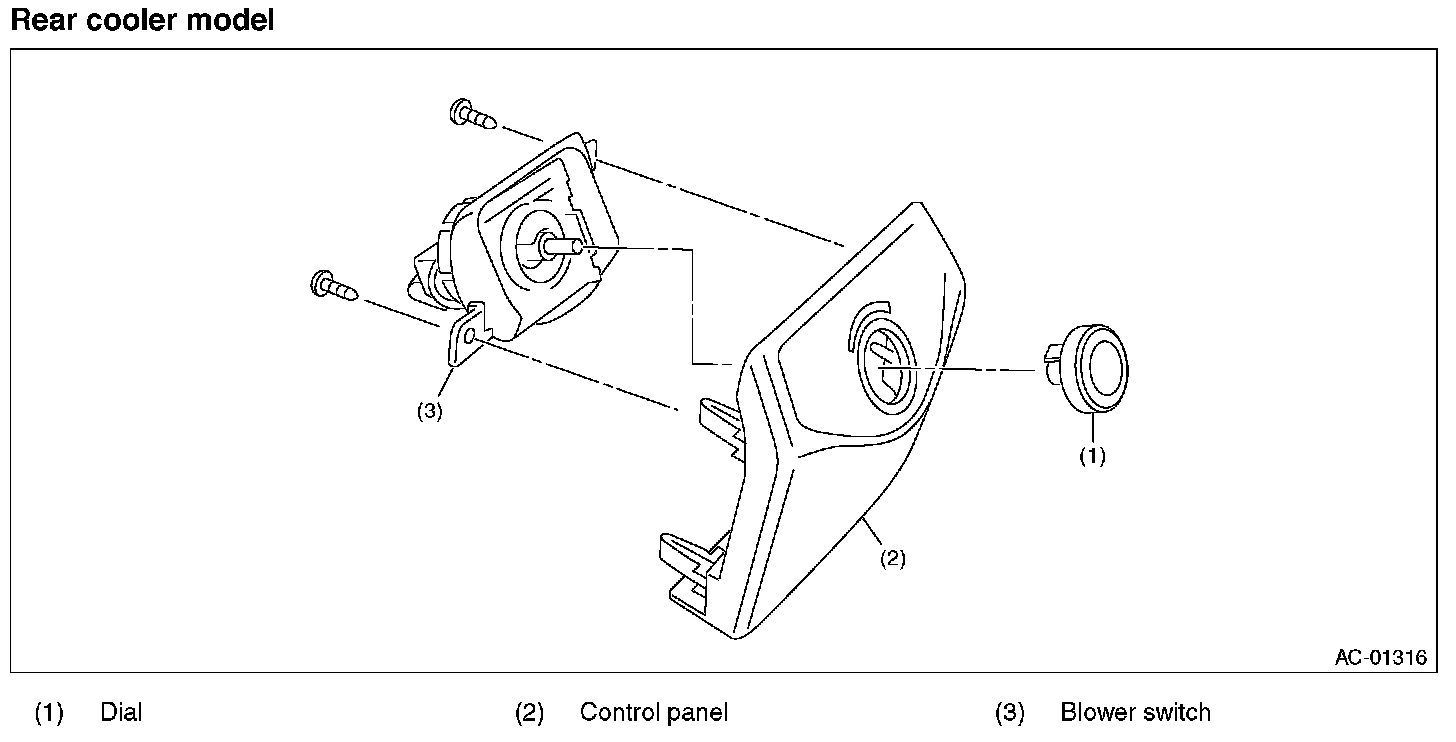

3. CONTROL PANEL

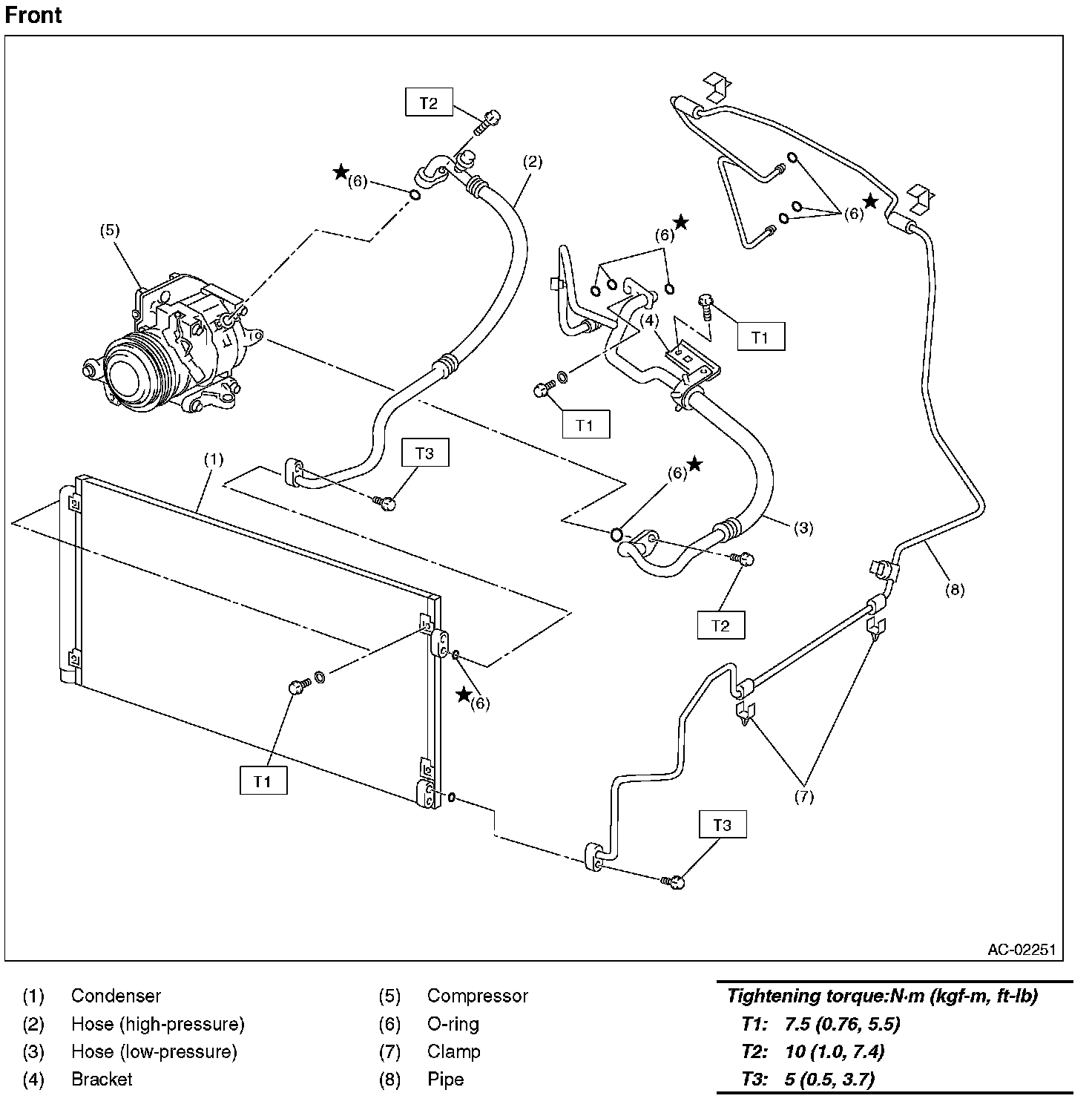

4. AIR CONDITIONING UNIT

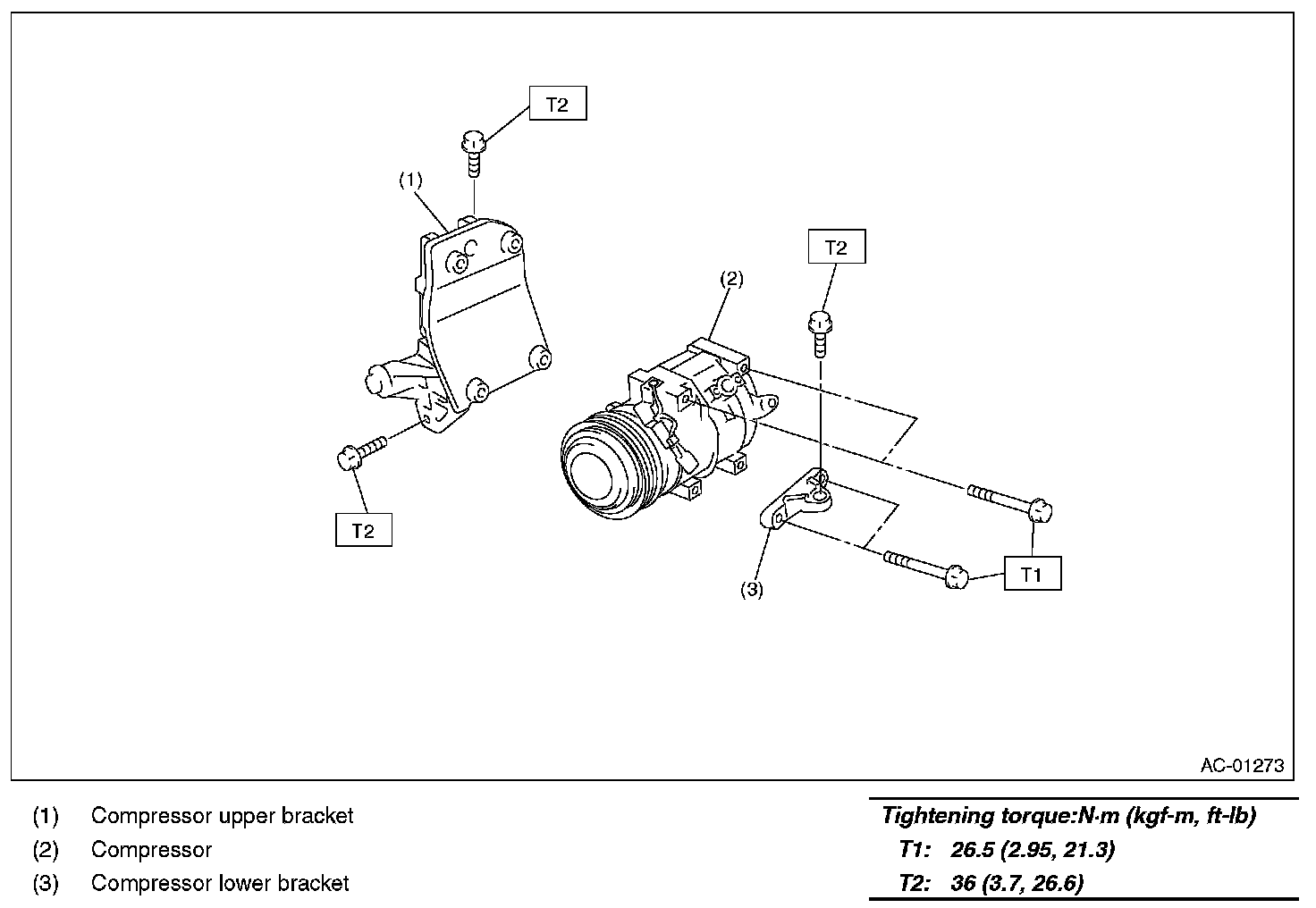

5. COMPRESSOR

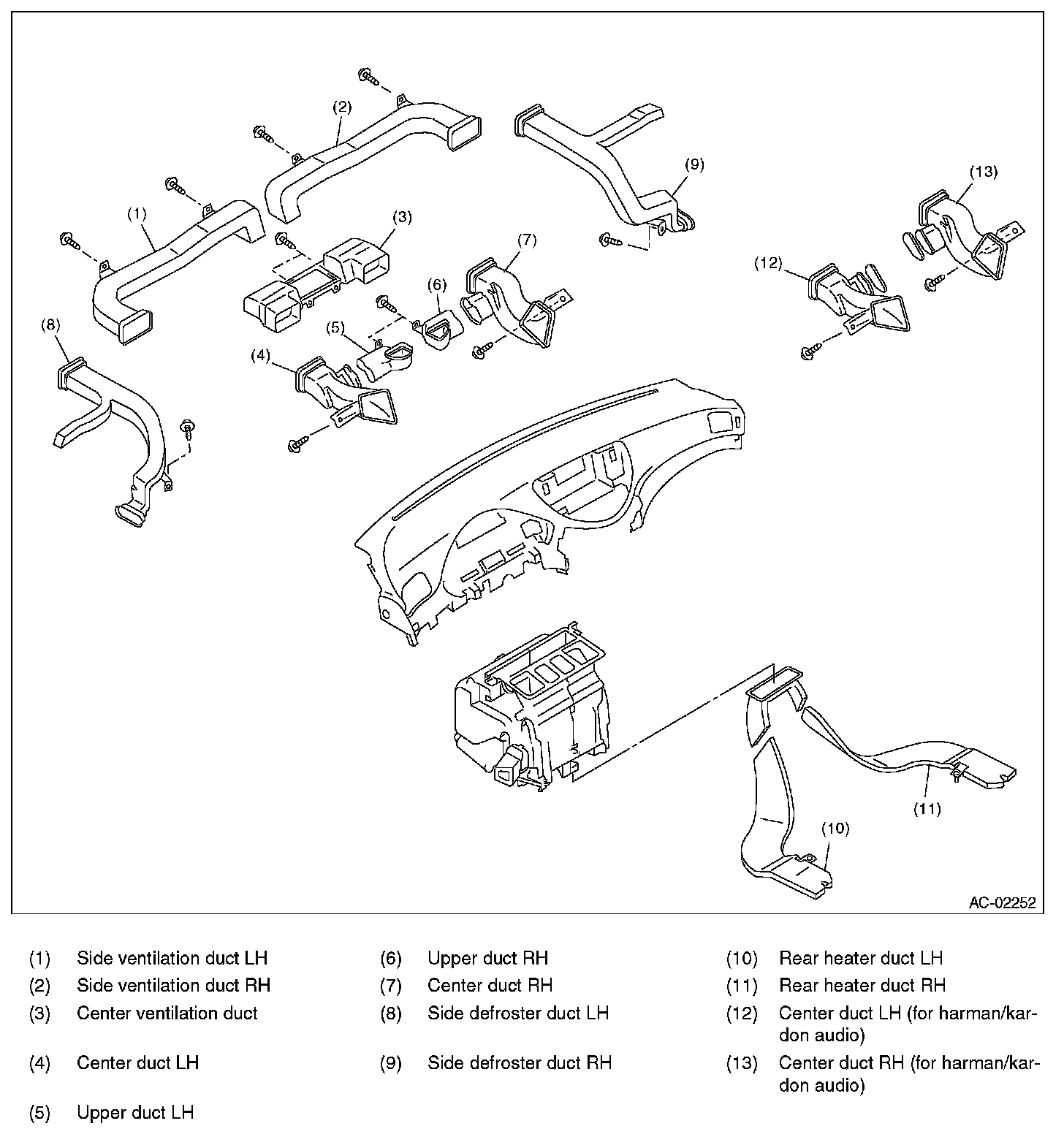

6. HEATER DUCT
