Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

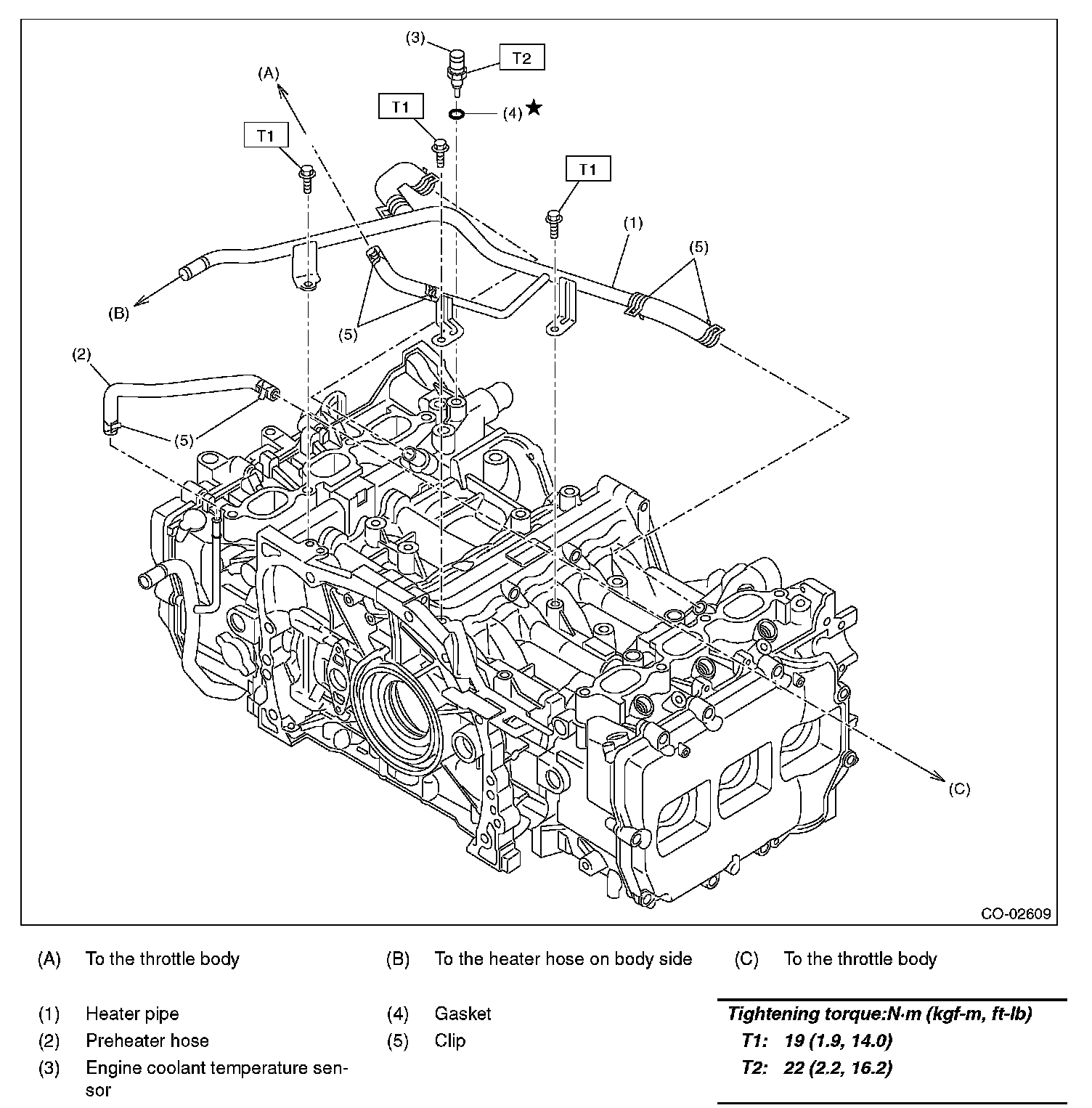

ENGINE COOLANT TEMPERATURE SENSOR & HEATER HOSE
