lemon-mirror
:
Home
>>
Subaru
>>
2012
>>
Tribeca F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Diagrams
>>
Exploded Views
Exploded Views
COMPONENT
1.

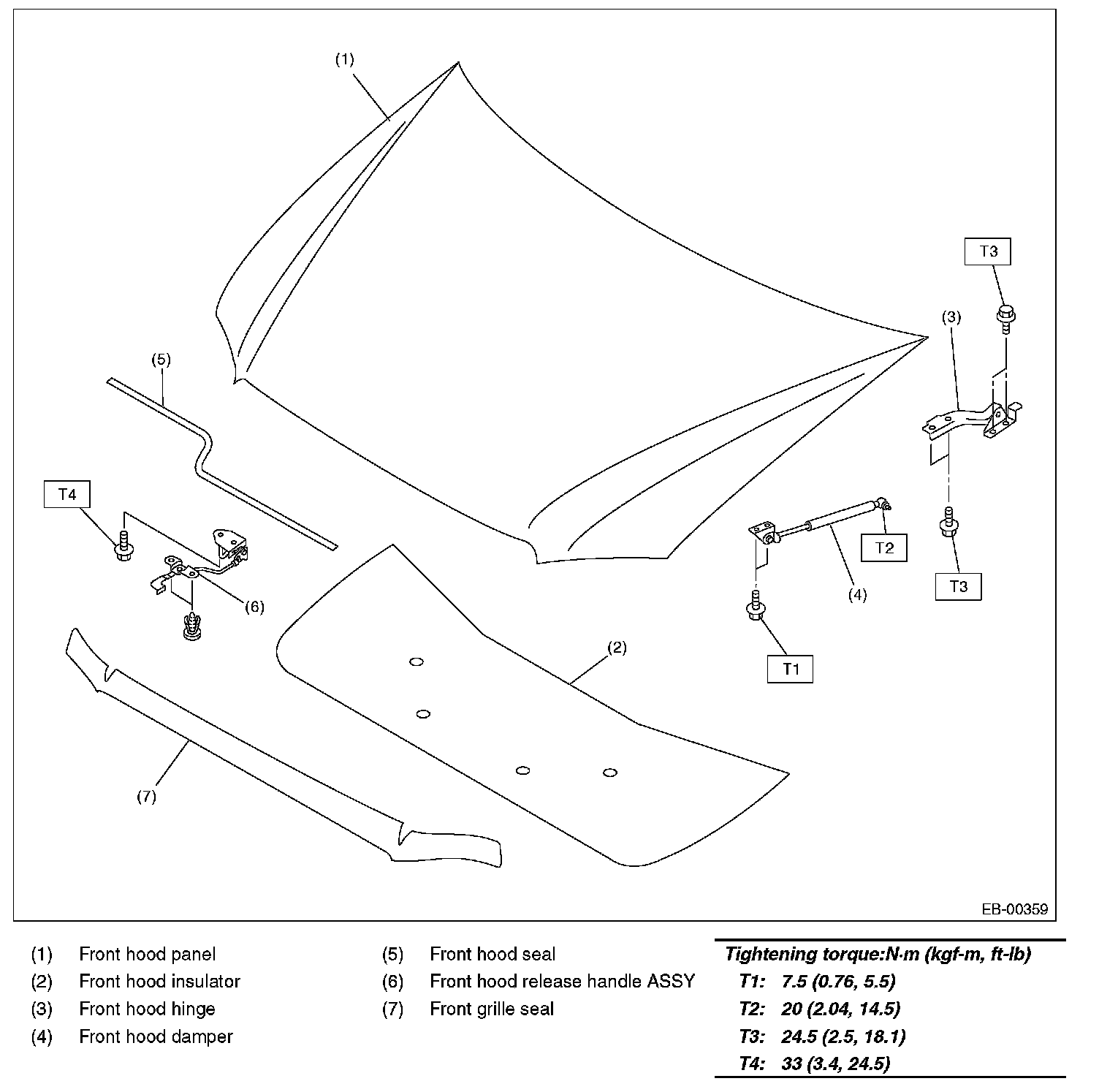

FRONT
HOOD

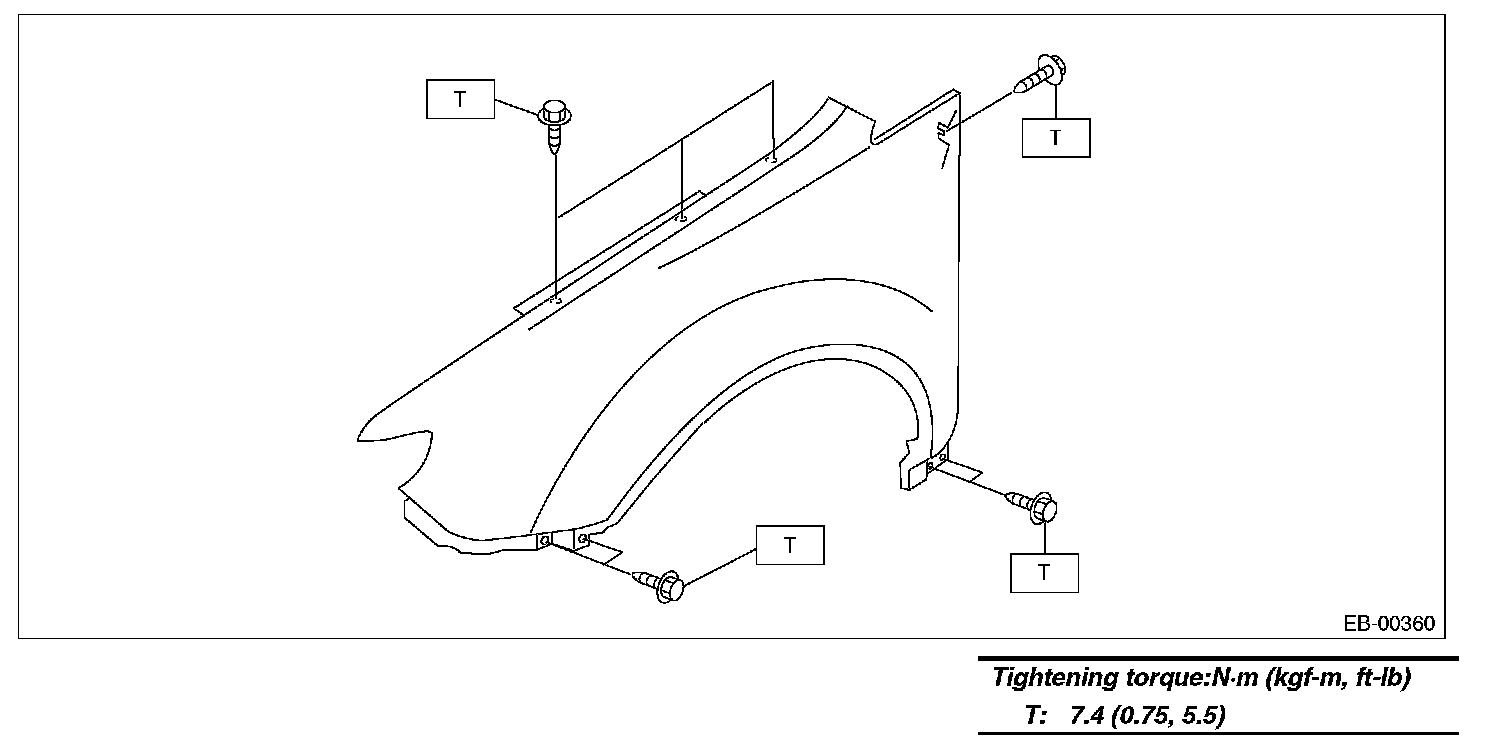

2.
FRONT
FENDER
PANEL

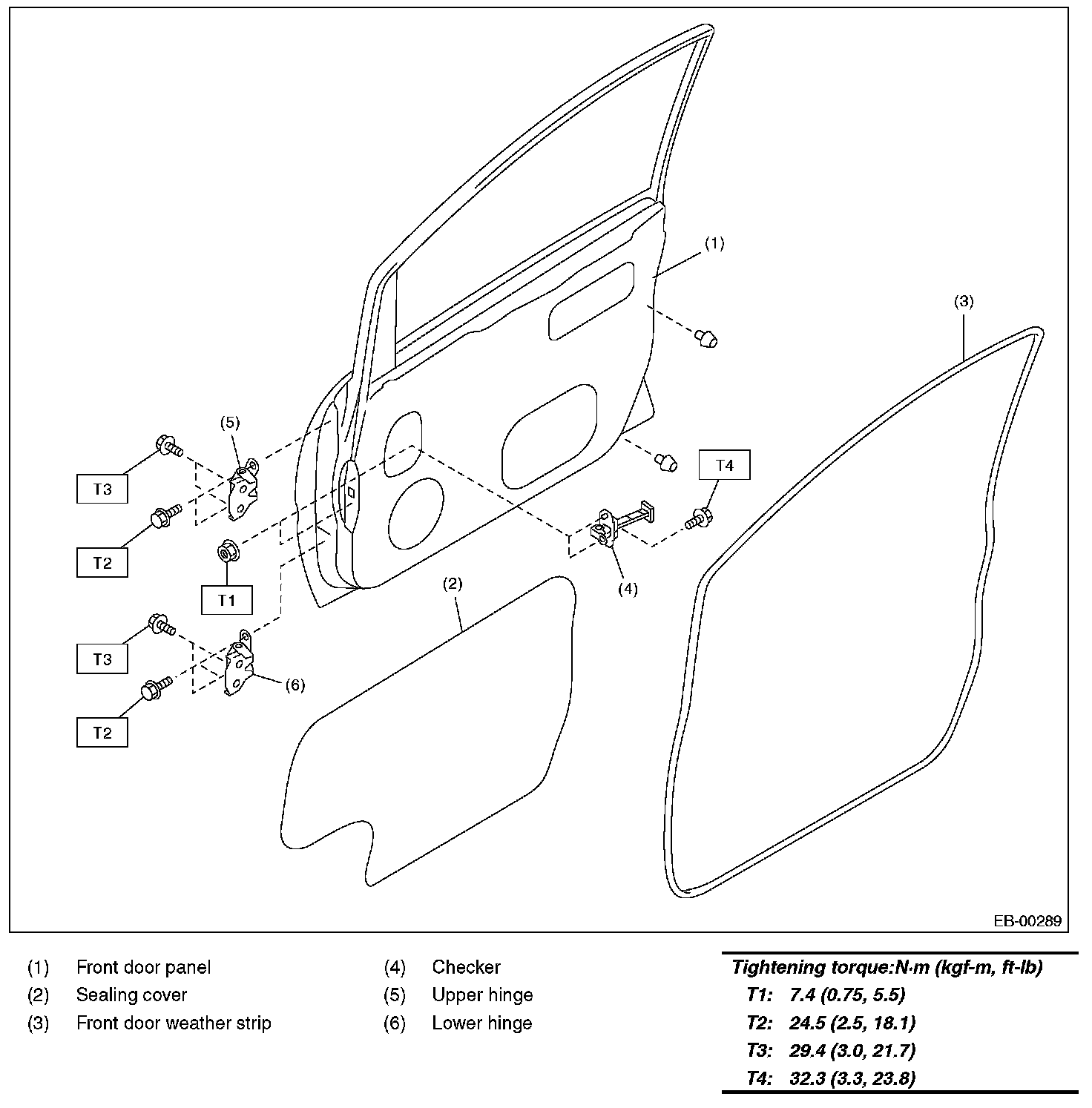

3.
FRONT DOOR PANEL

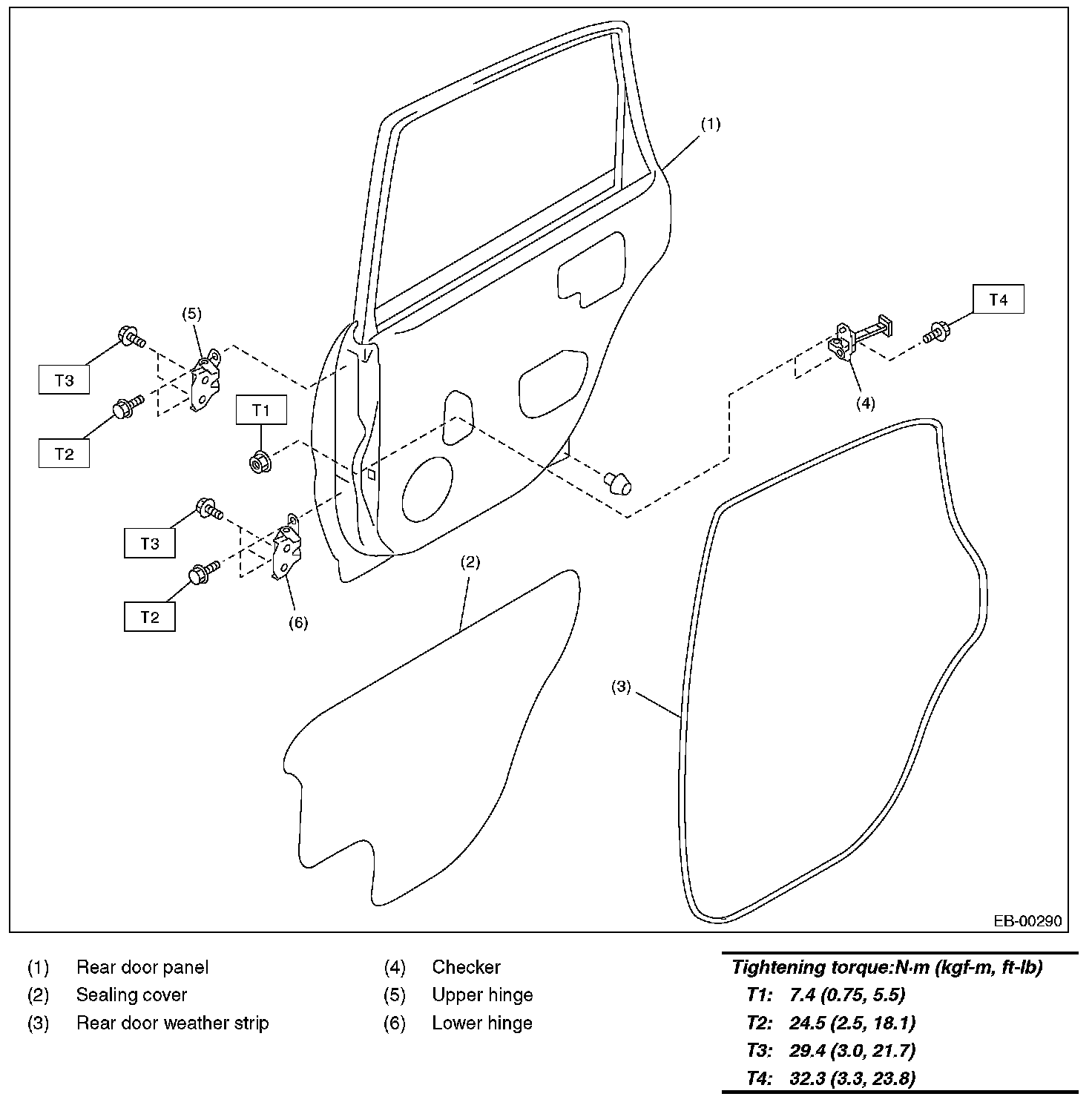

4.
REAR DOOR PANEL

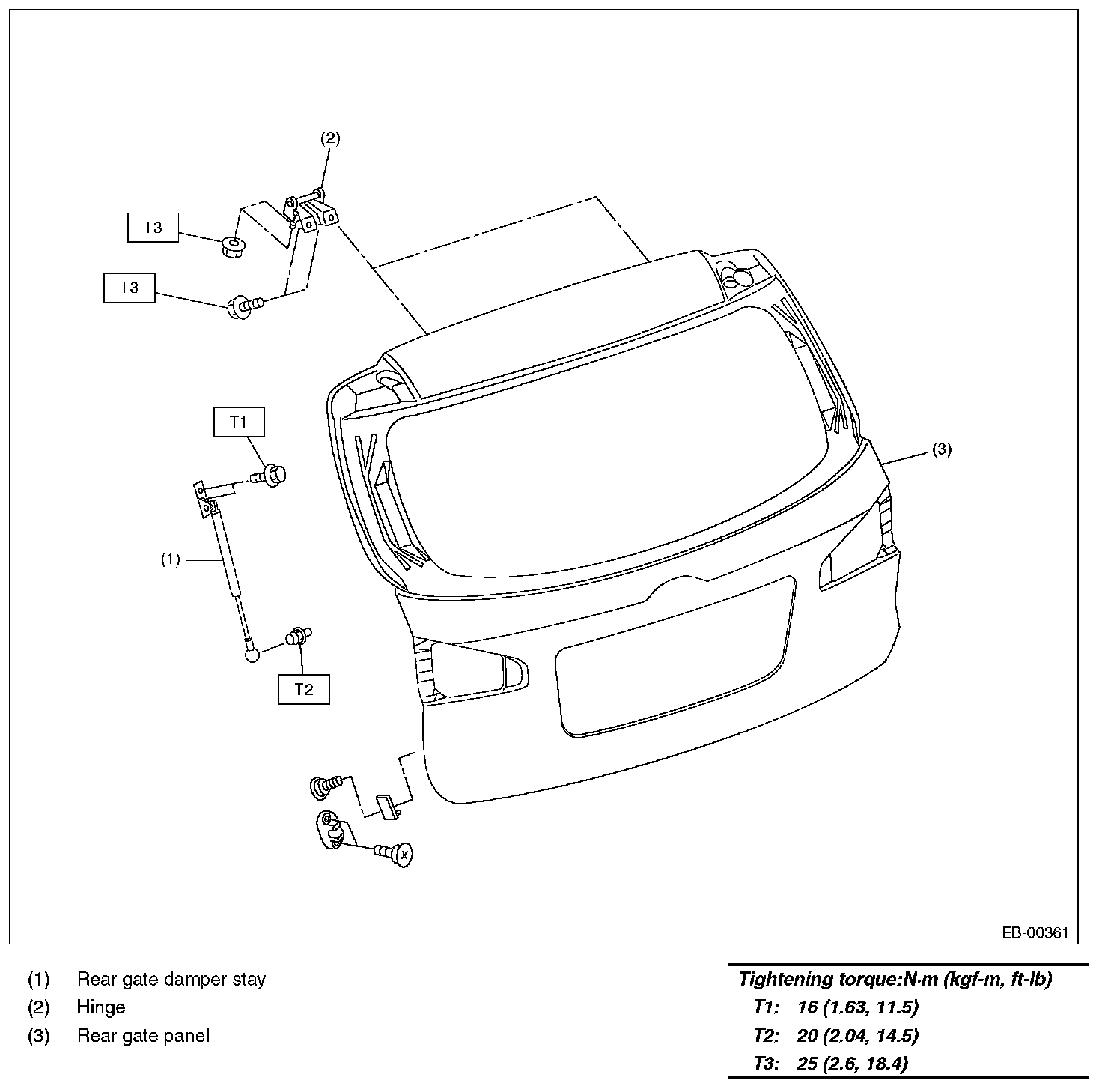

5.
REAR GATE PANEL
