Engine Control Module: Locations

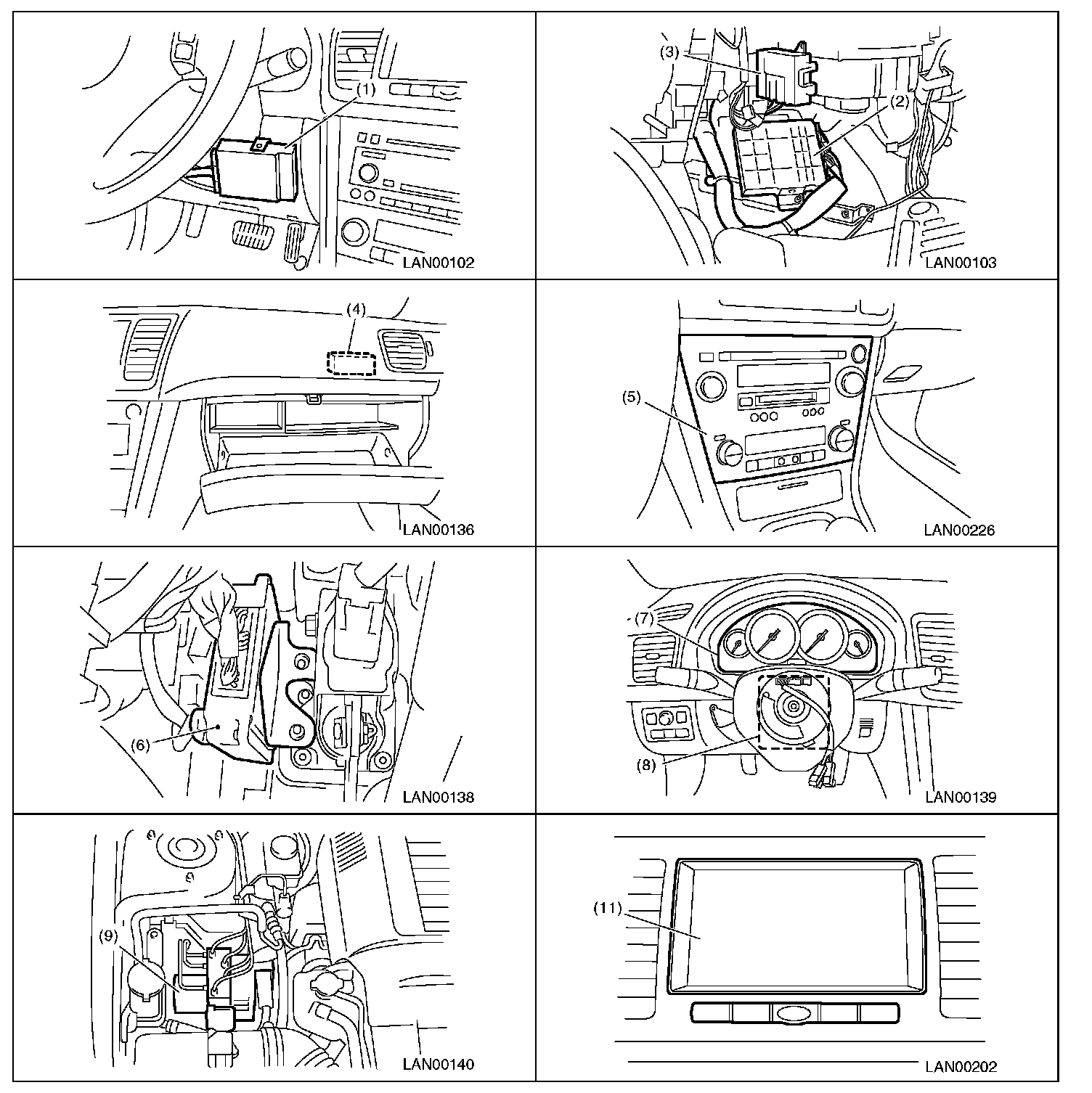

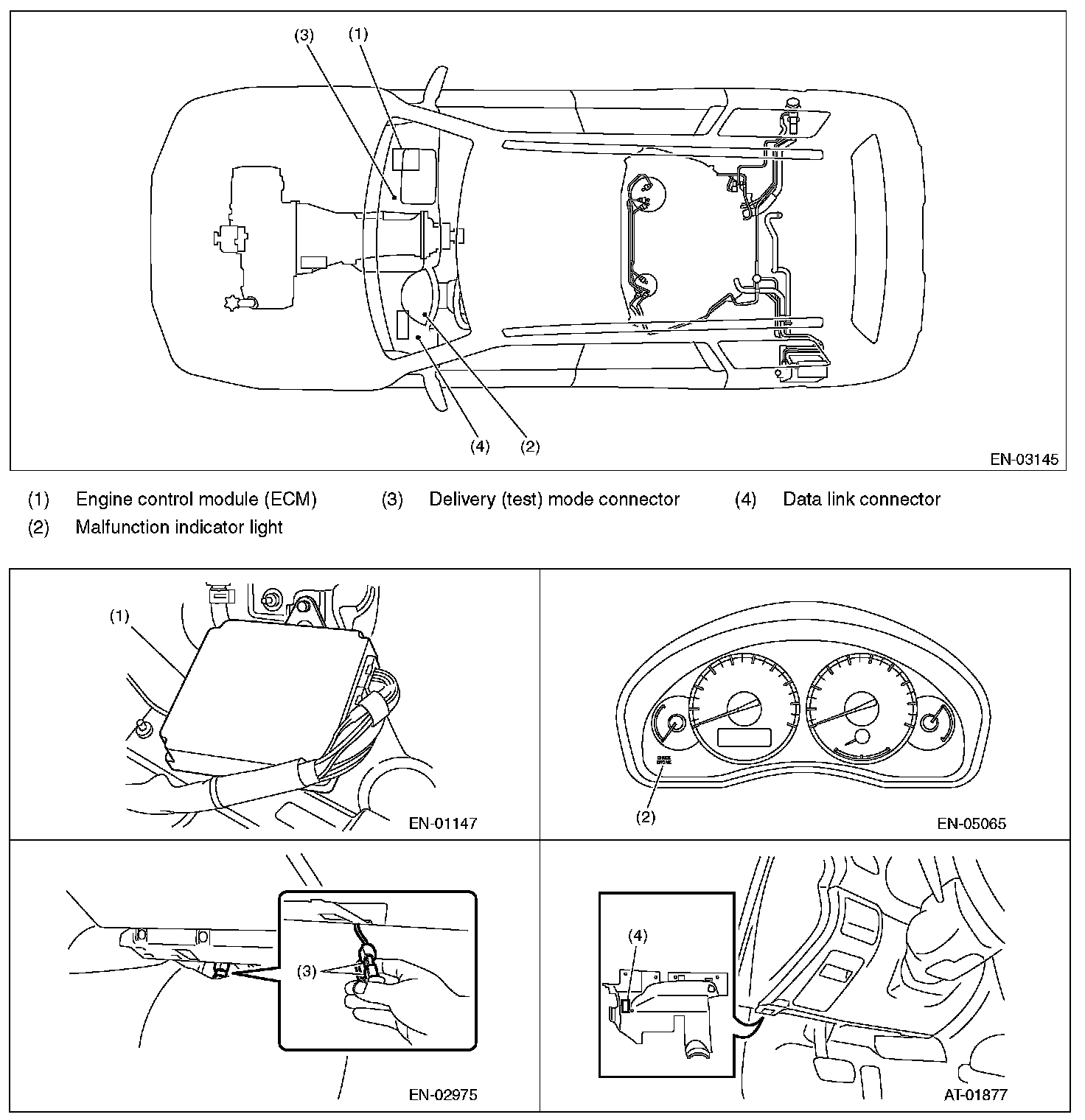

Control Module:

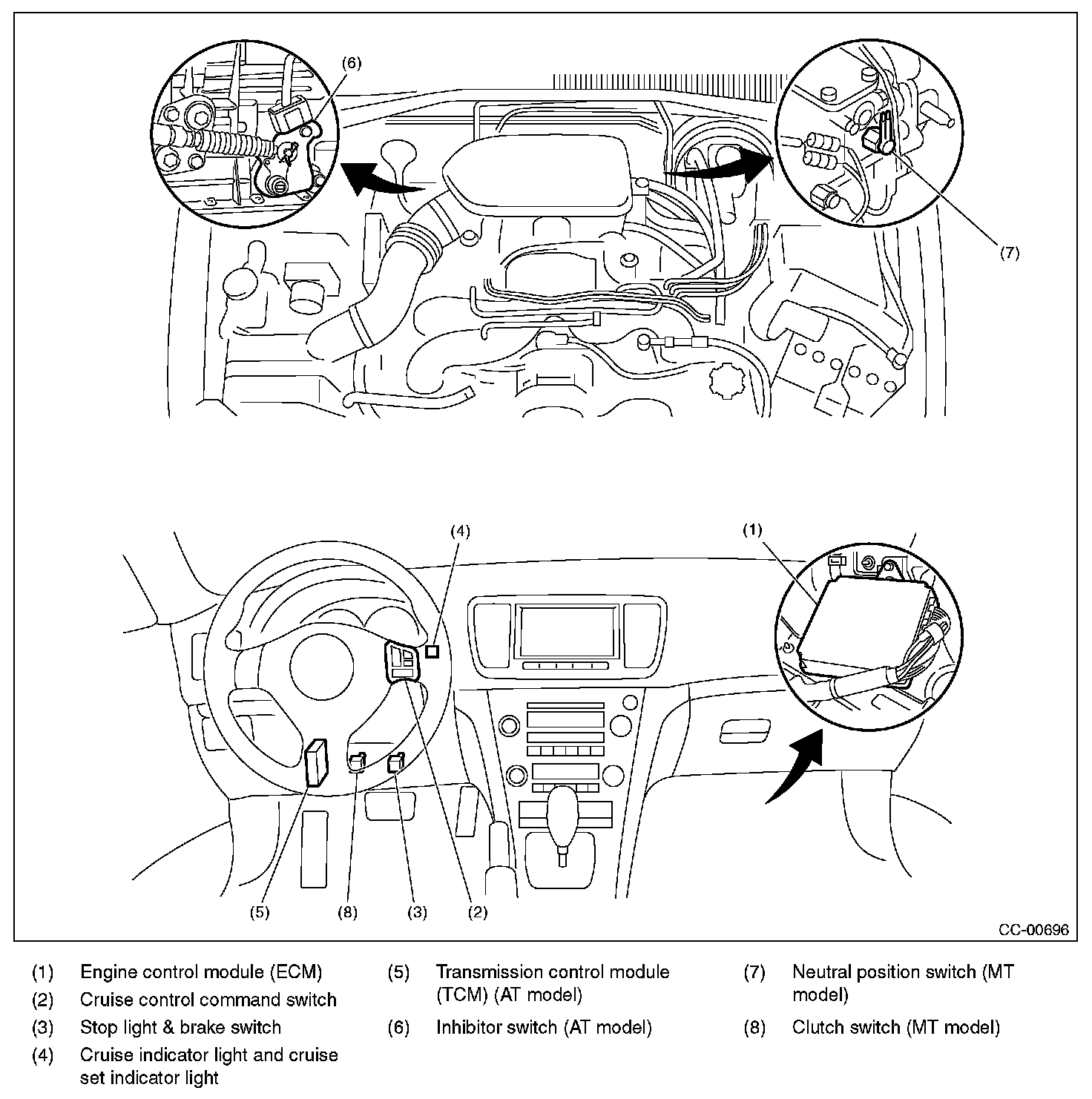

Electrical Component Location (Part 1):

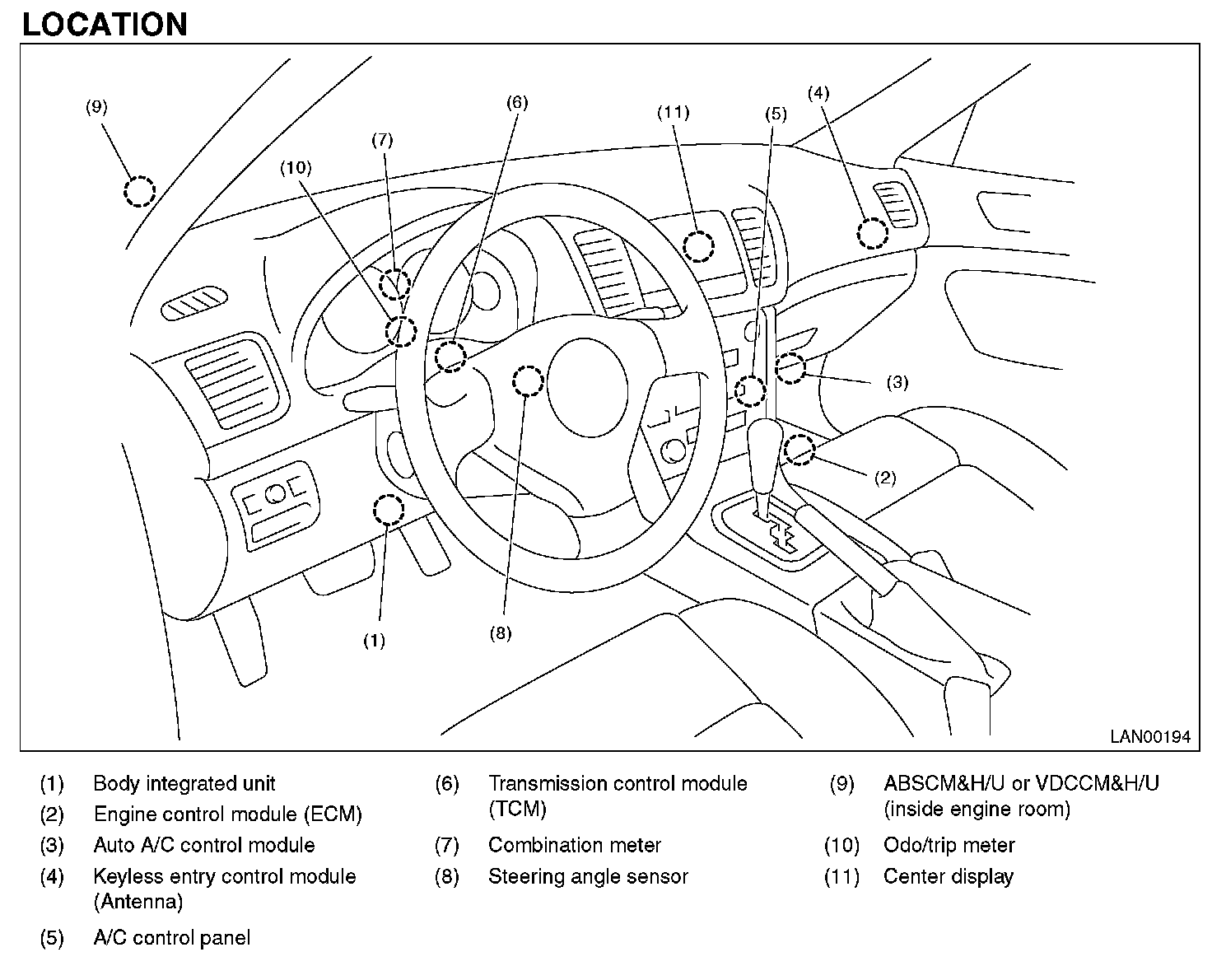

Electrical Component Location (Part 2):
