Home >> Subaru >> 2009 >> Outback F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold

Intake Manifold

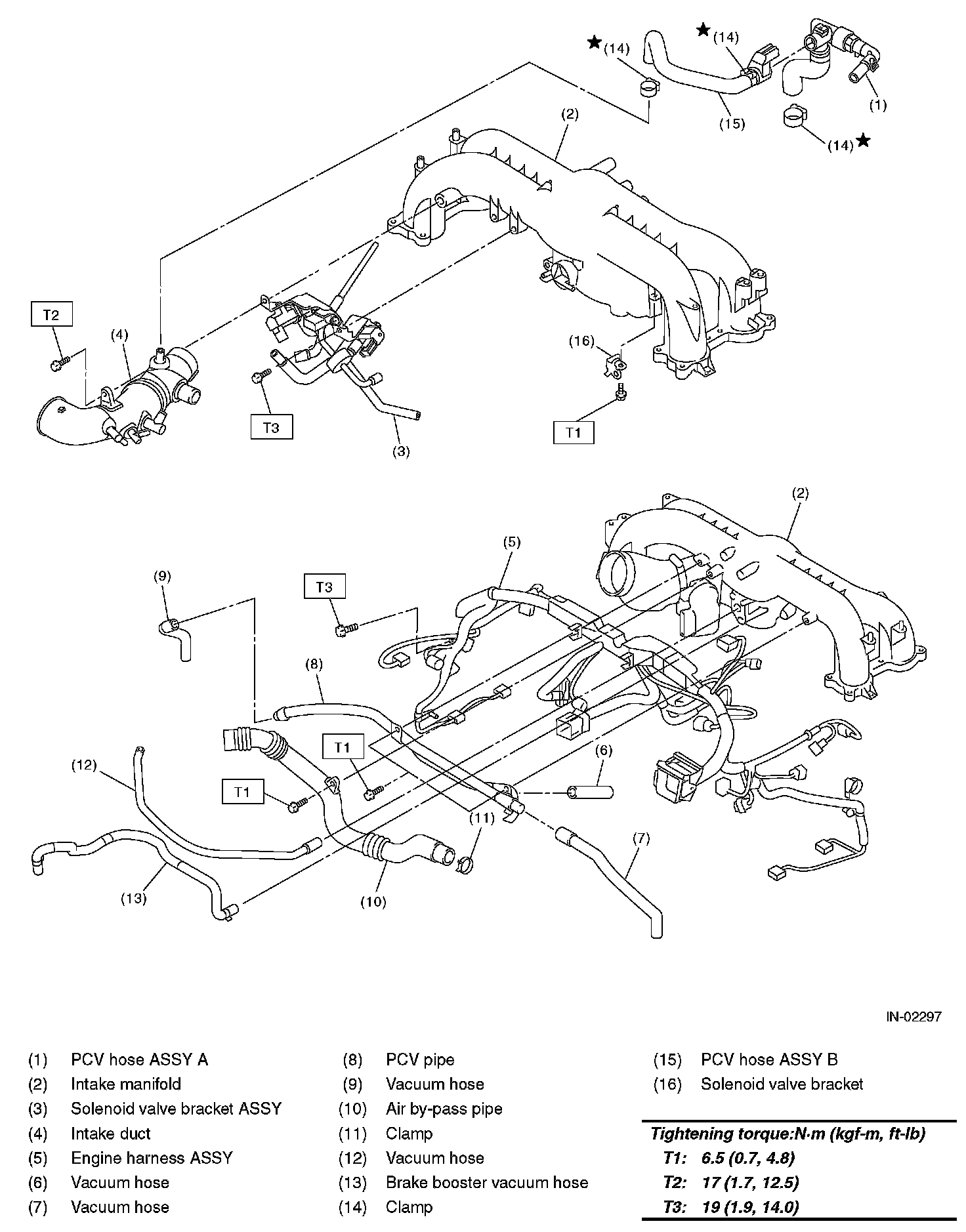

Intake Duct:

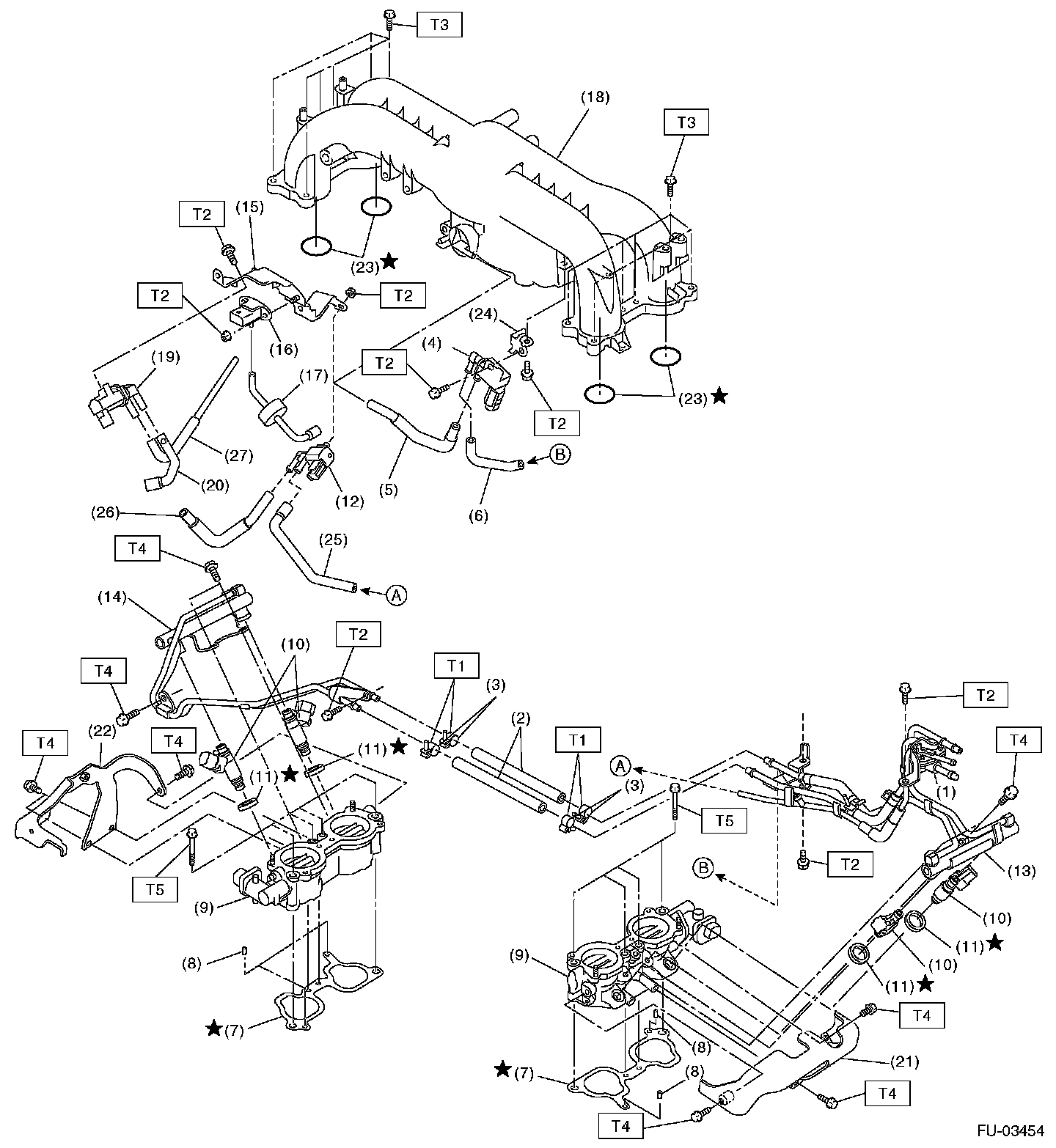

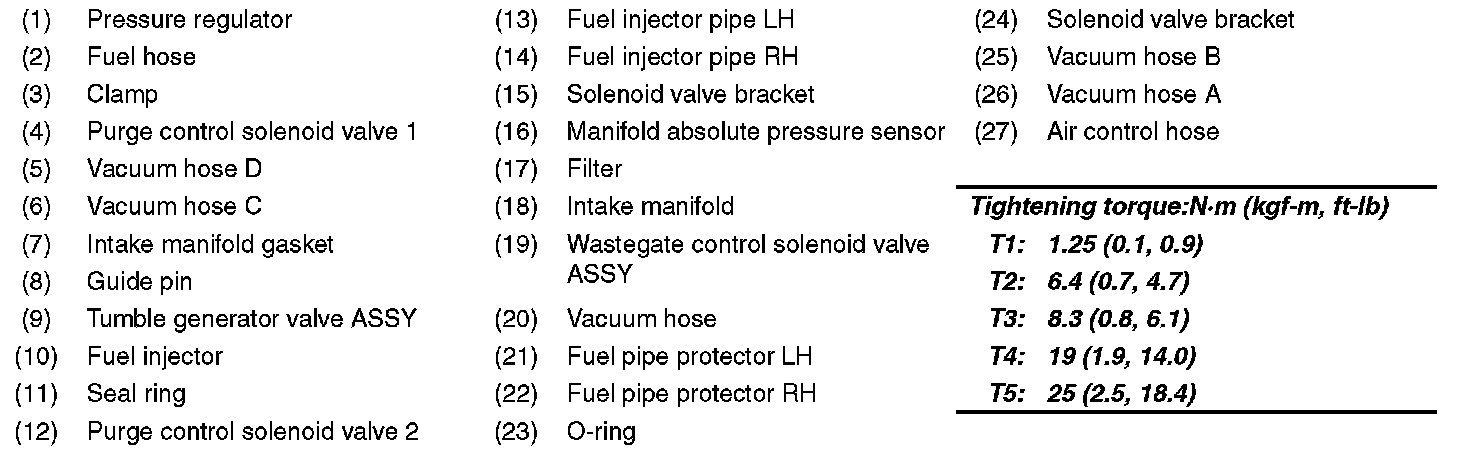

Intake Manifold (Part 1):



Intake Manifold (Part 2):
