Classification

CLASSIFICATION

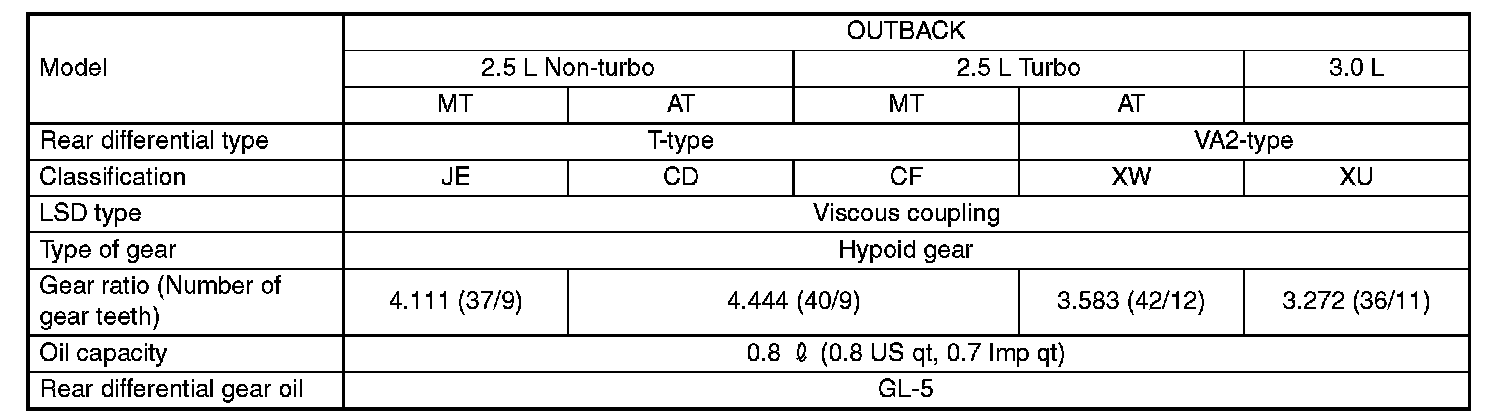

Identification label positions are shown in the following figures. For details concerning identification, refer to ID.

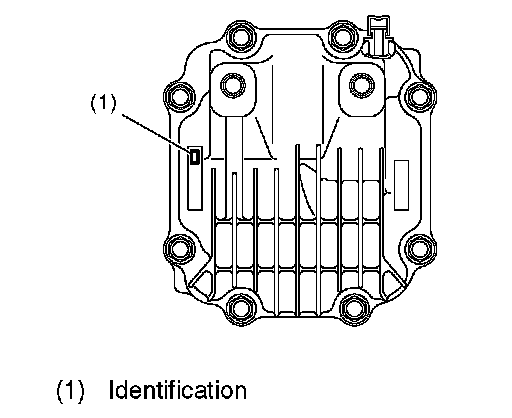

^ T-type

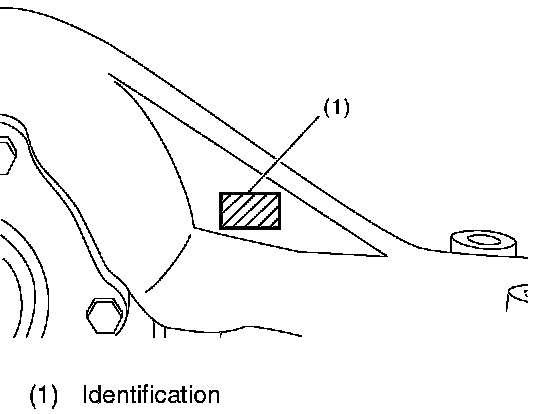

^ VA1-type





^ VA2-type
