Control Module Pinout Values
The content of this article/image reflects the changes Identified inTSB # 18-97-06
as of 01/04/06
and applies to 2005 Legacy and Baja models

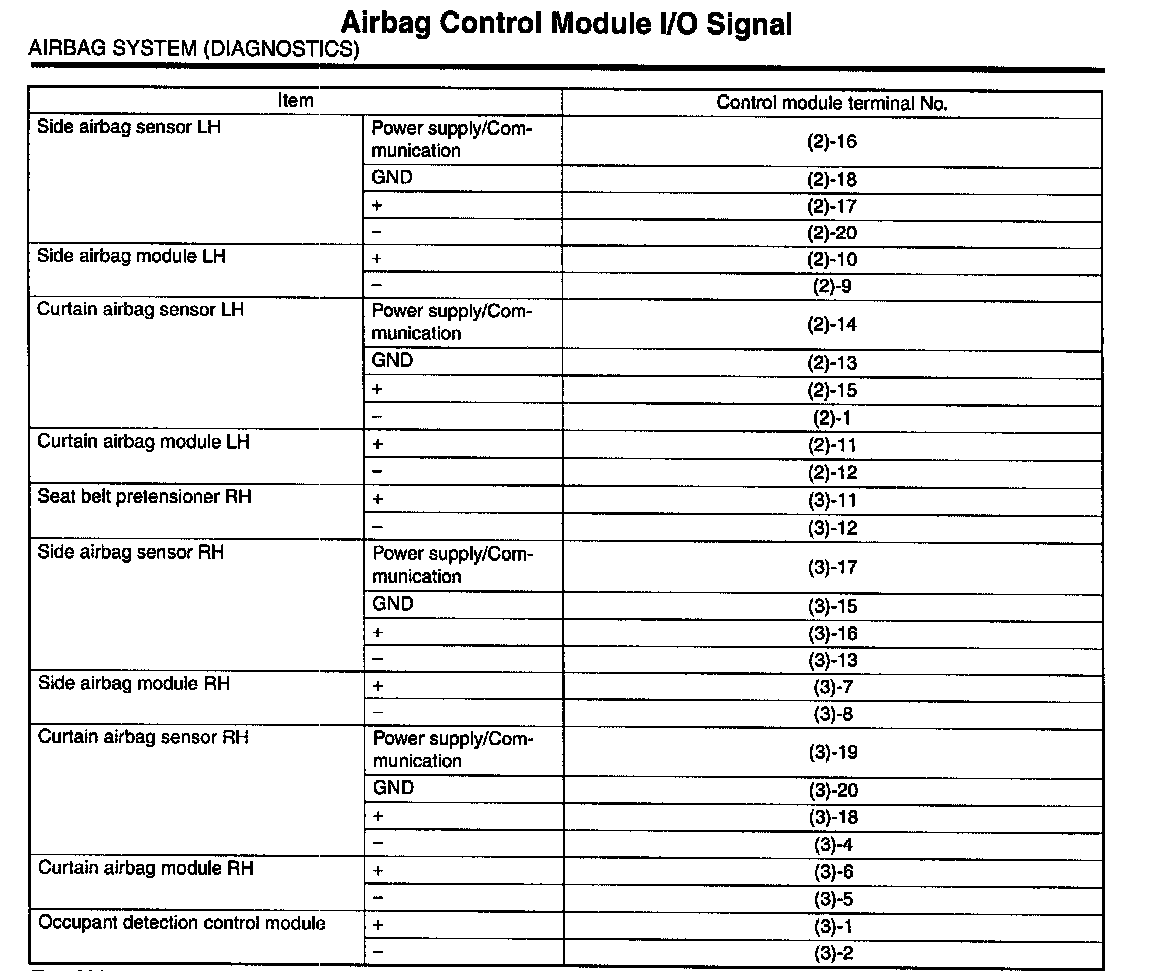

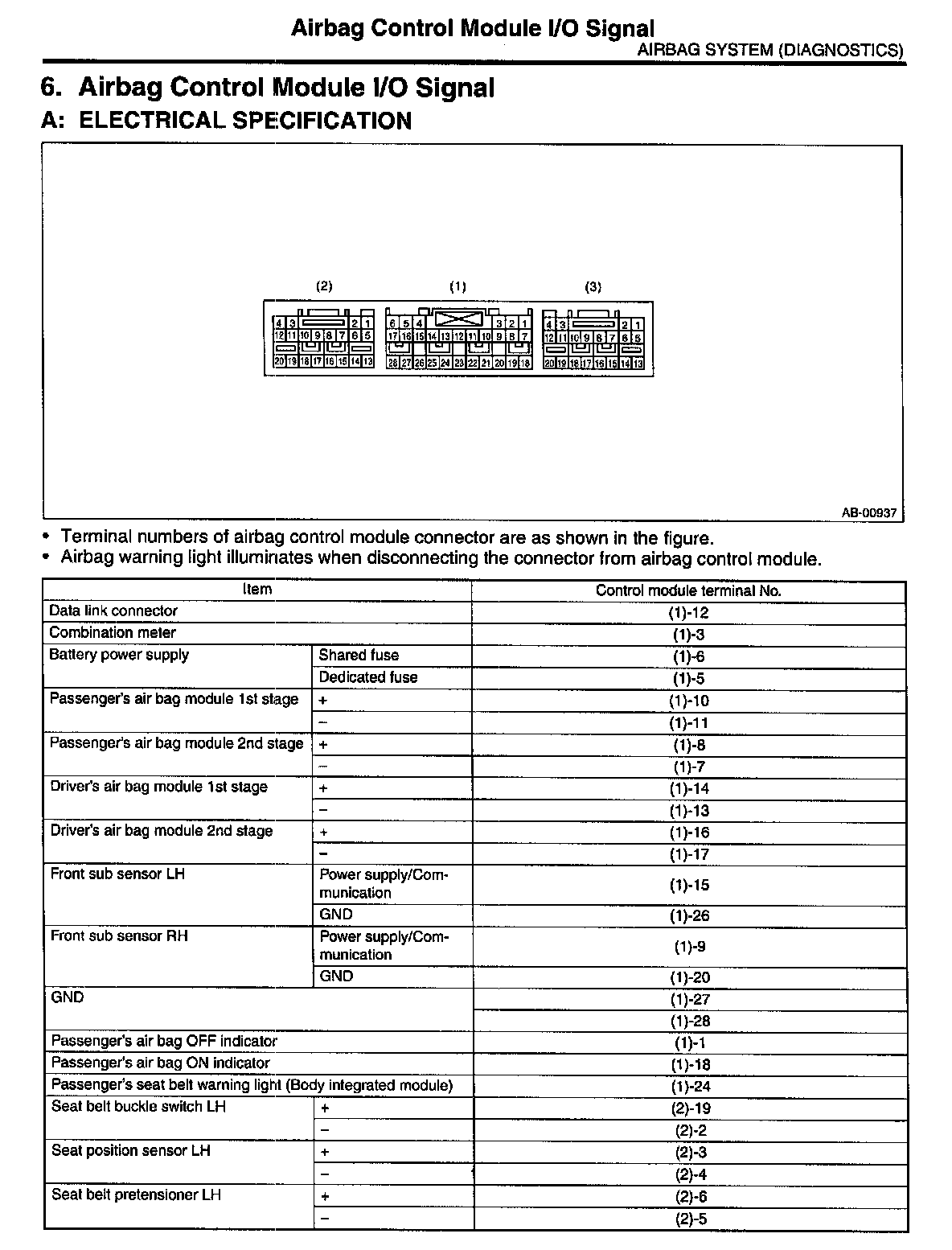

Airbag Control Module I/O Signal

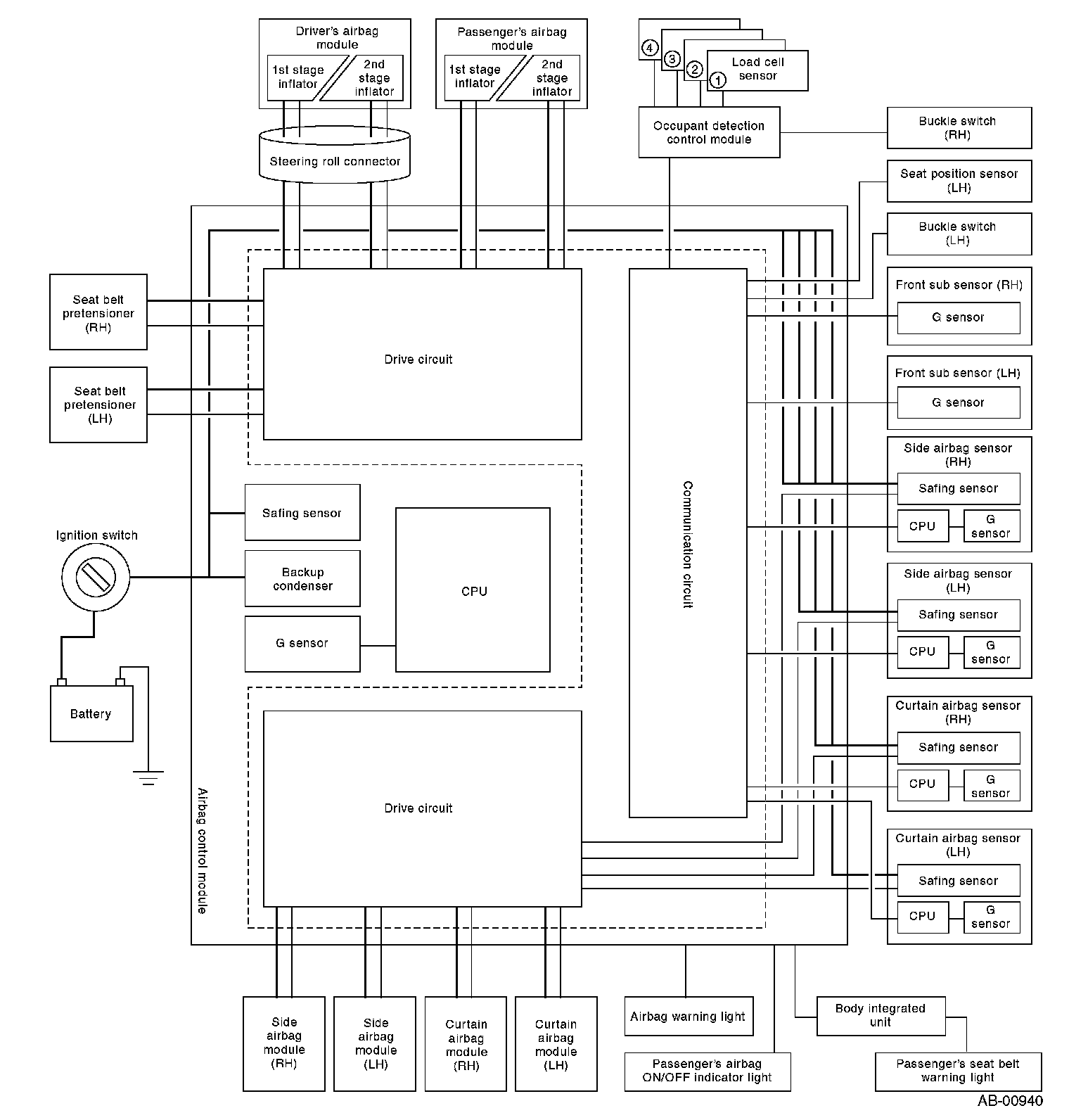

Wiring Diagram:
Wiring Diagram
TSB # 18-97-06
as of 01/04/06
and applies to 2005 Legacy and Baja models
Airbag Control Module I/O Signal
Wiring Diagram
