R15-R213 & AB31-AB33
R15-R213 & AB31-AB33
Rear Wiring Harness and Trunk Lid Cord

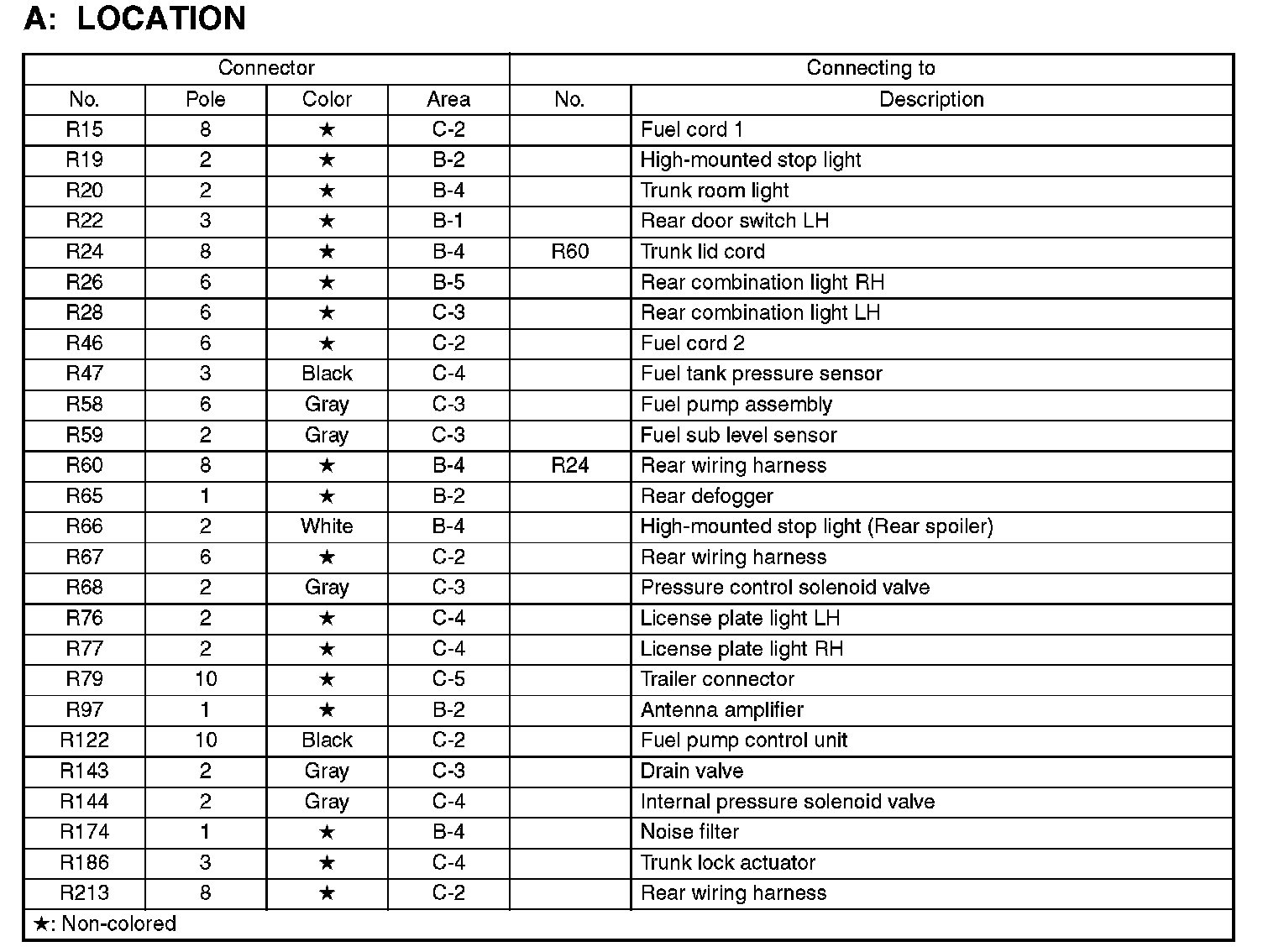

R15-R213:

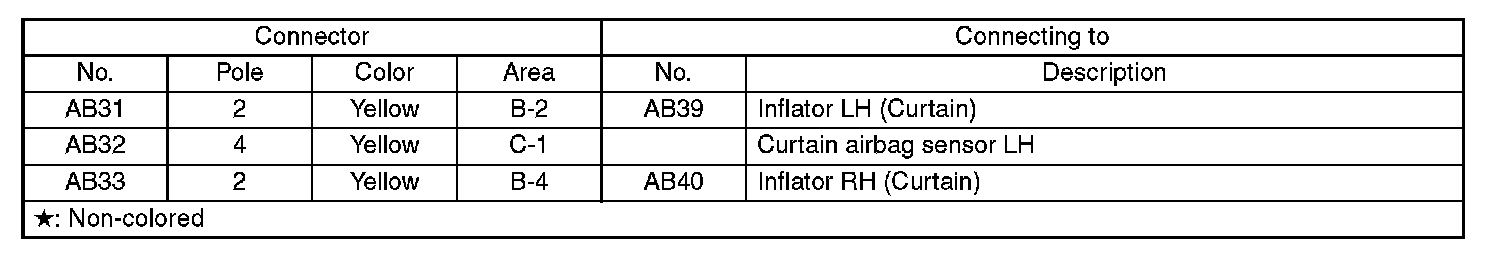

AB31-AB33:
Area View:
