Locations
>>
Connector Locations
>>
R1-R212 & AB17-AB53
R1-R212 & AB17-AB53
Rear Wiring Harness

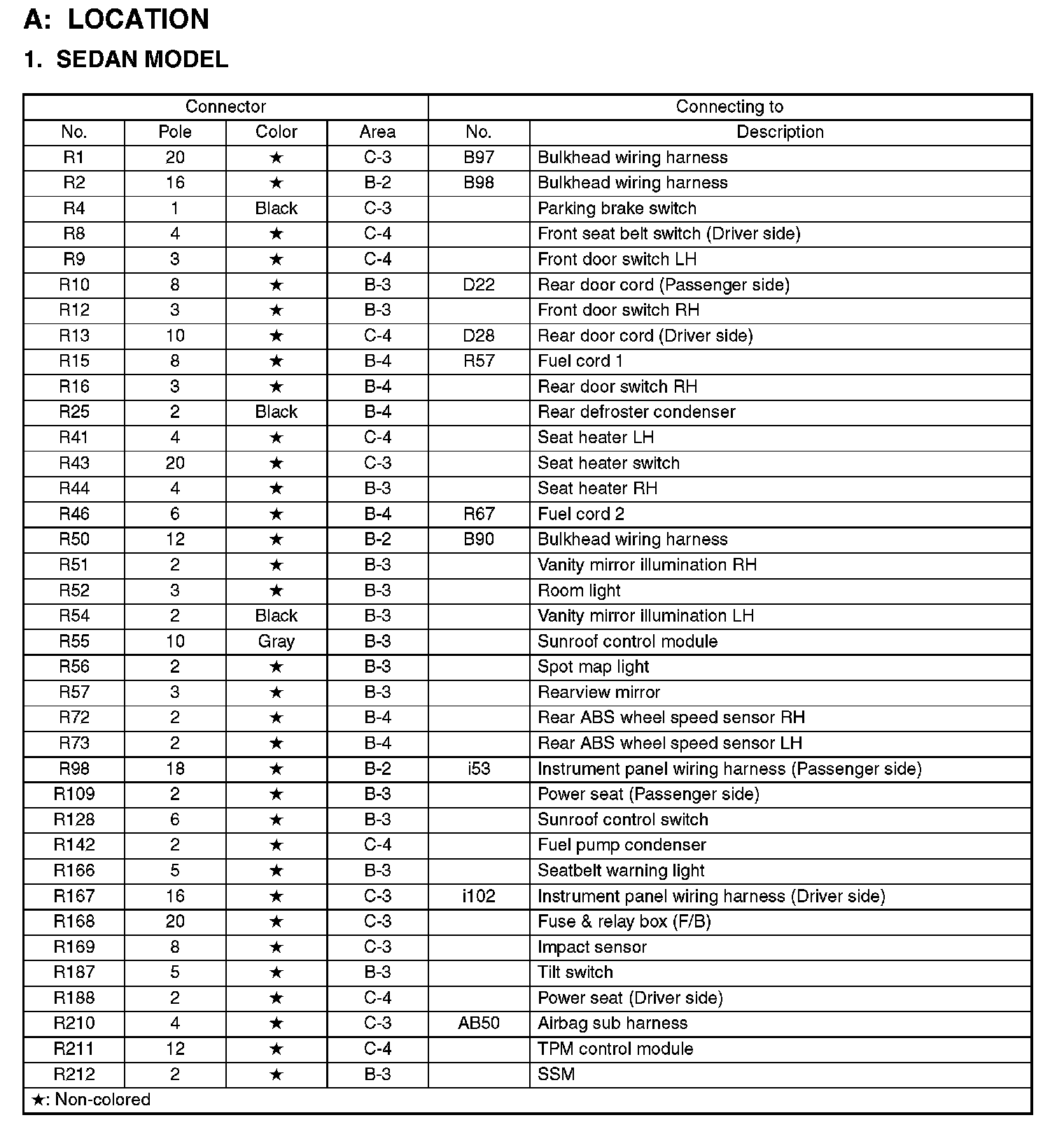

R1-R212:

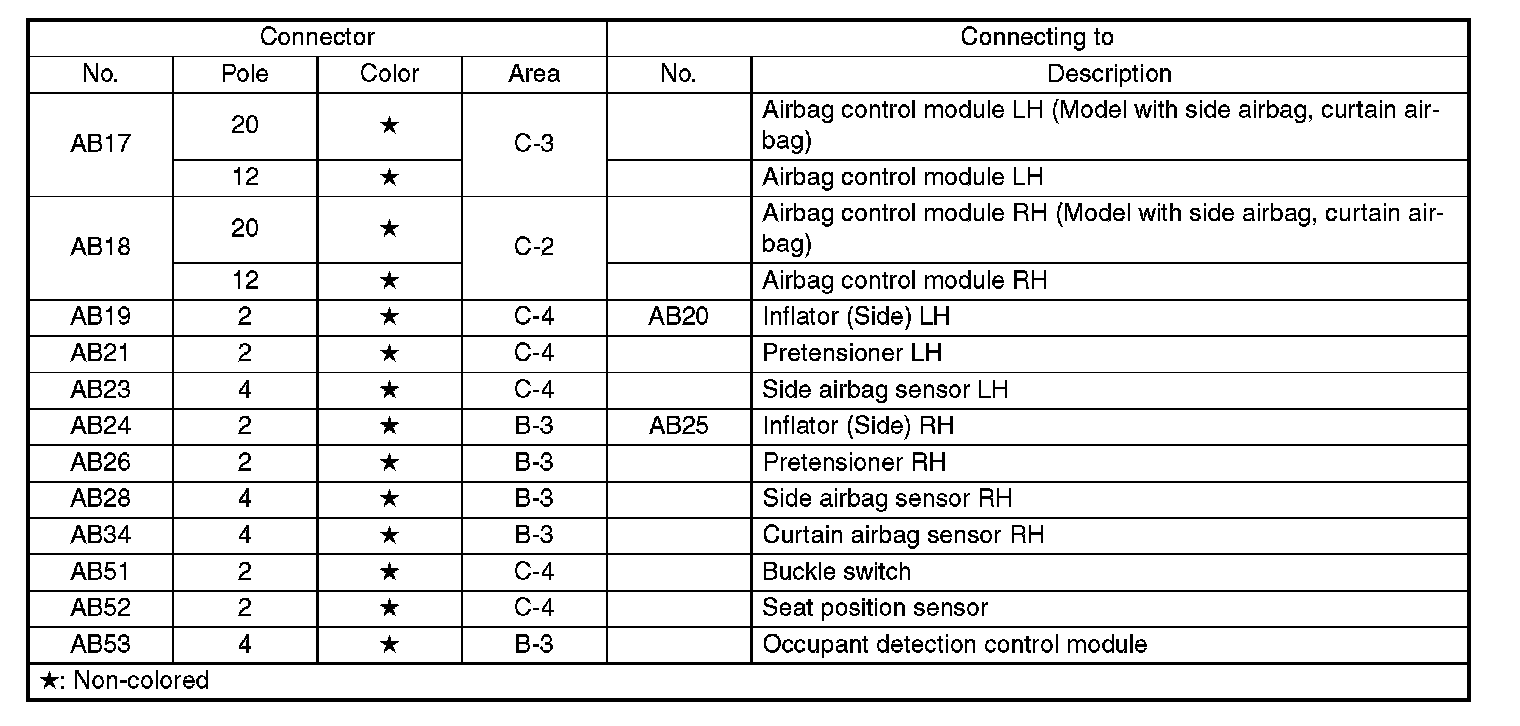

AB17-AB53:

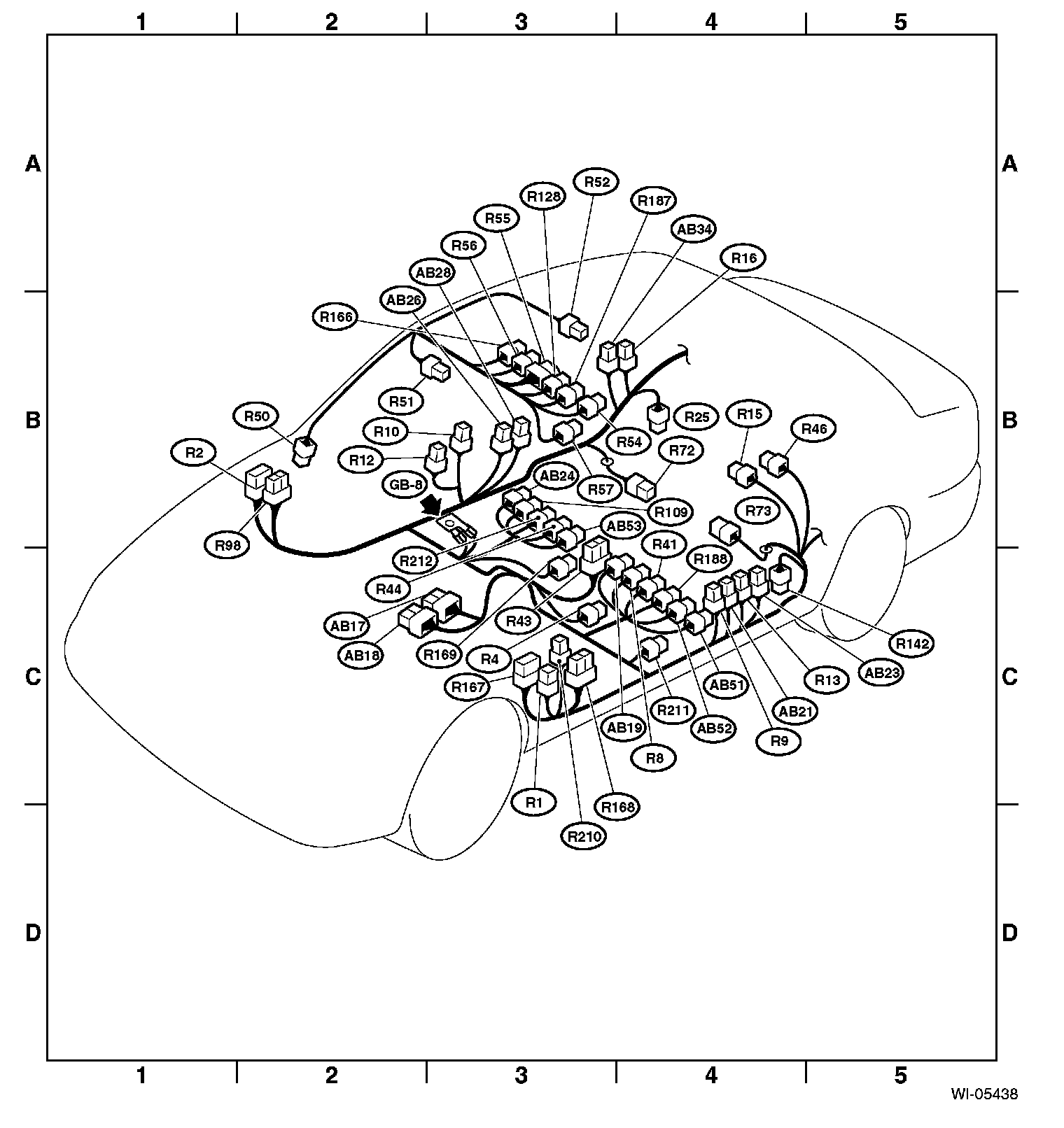

Area View:
