Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R1-R211 & AB17-AB53
R1-R211 & AB17-AB53
Rear Wiring Harness

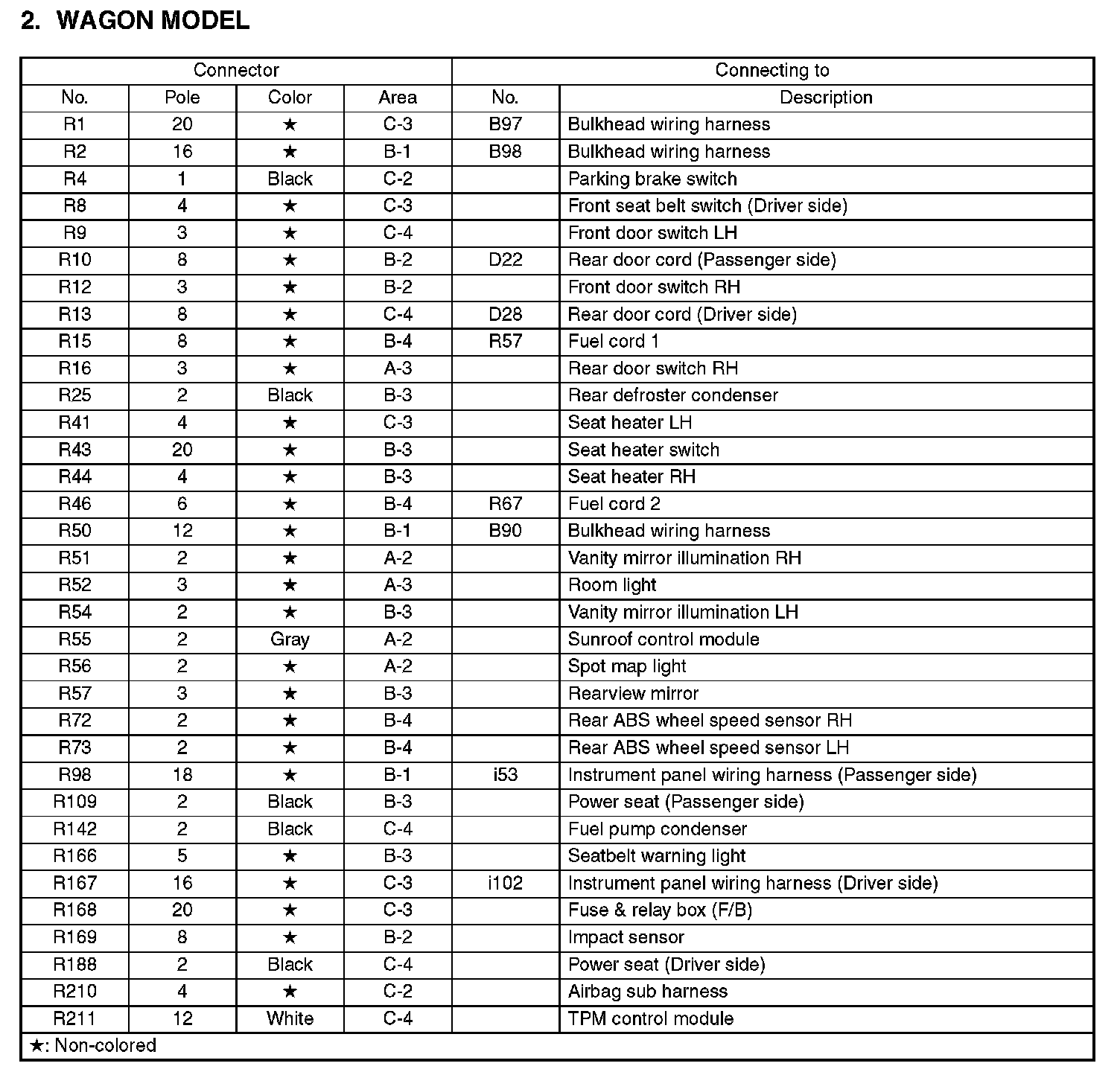

R1-R211:

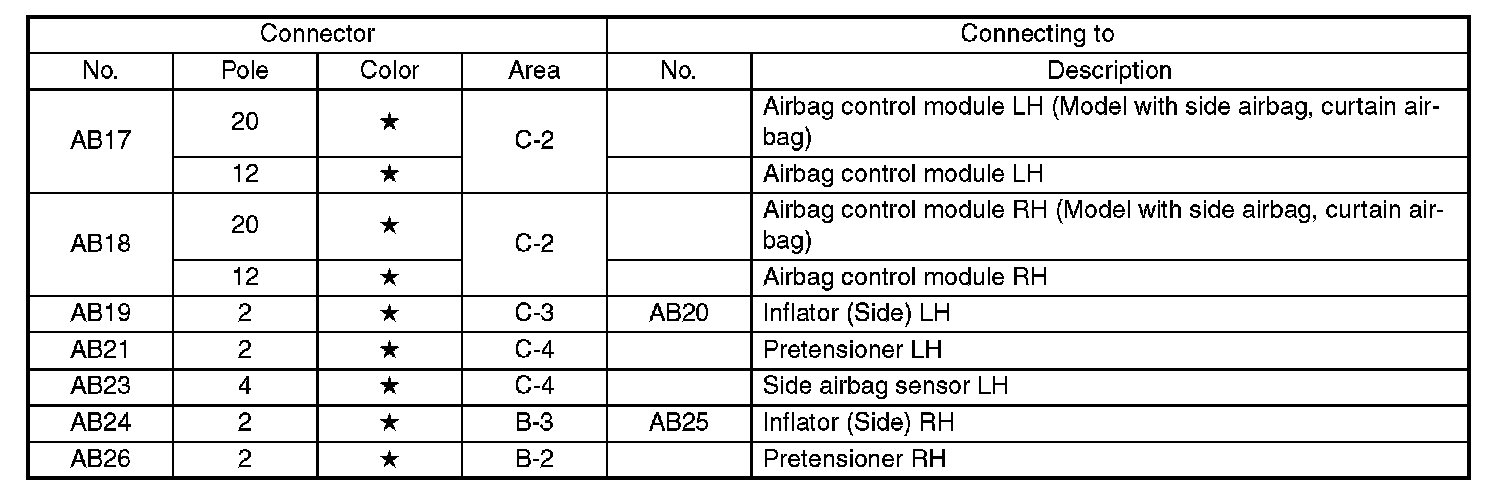

AB17-AB25:

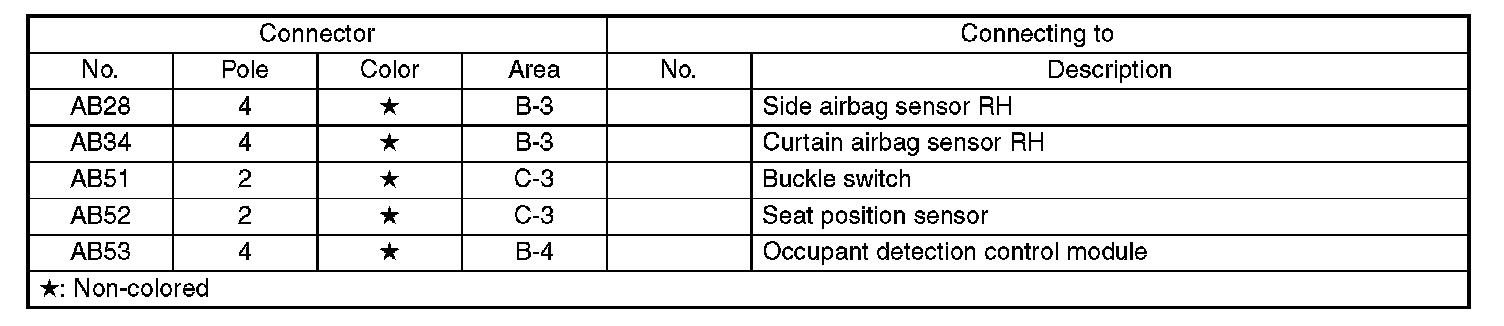

AB28-AB53:

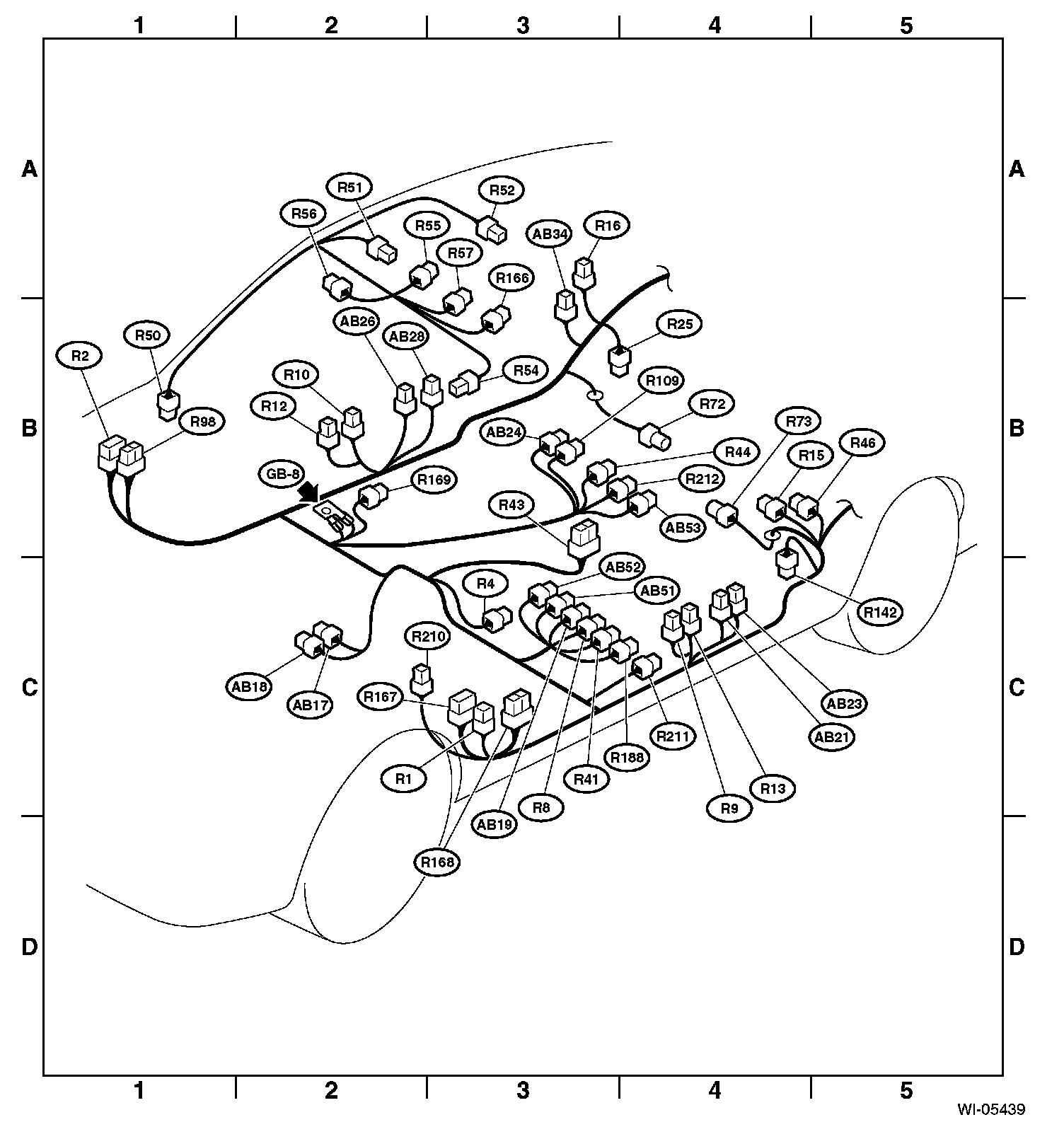

Area View:
