Home >> Subaru >> 2005 >> Outback F6-3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

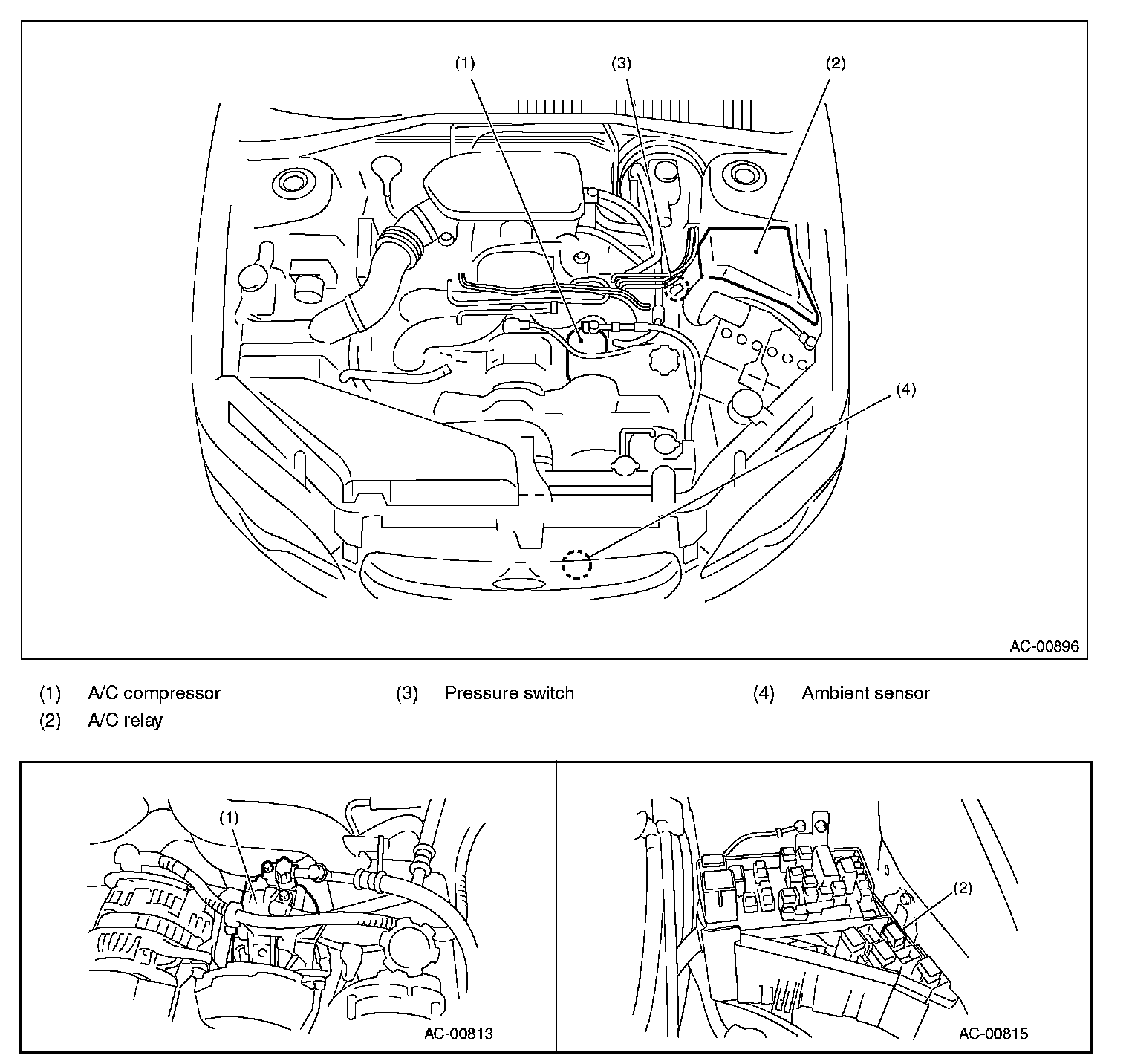

Electrical Component Location - Engine Compartment Part 1:

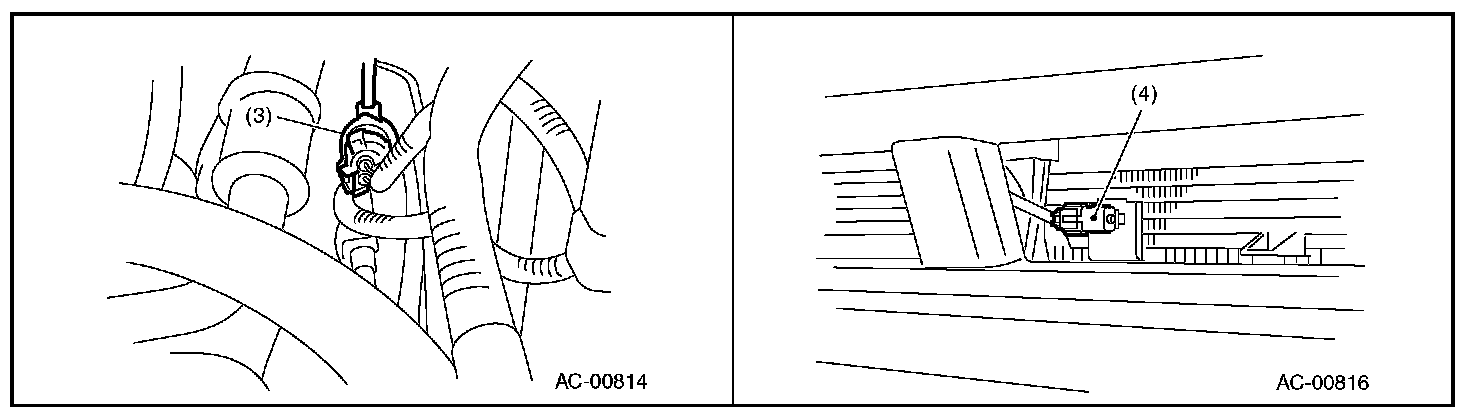

Electrical Component Location - Engine Compartment Part 2:

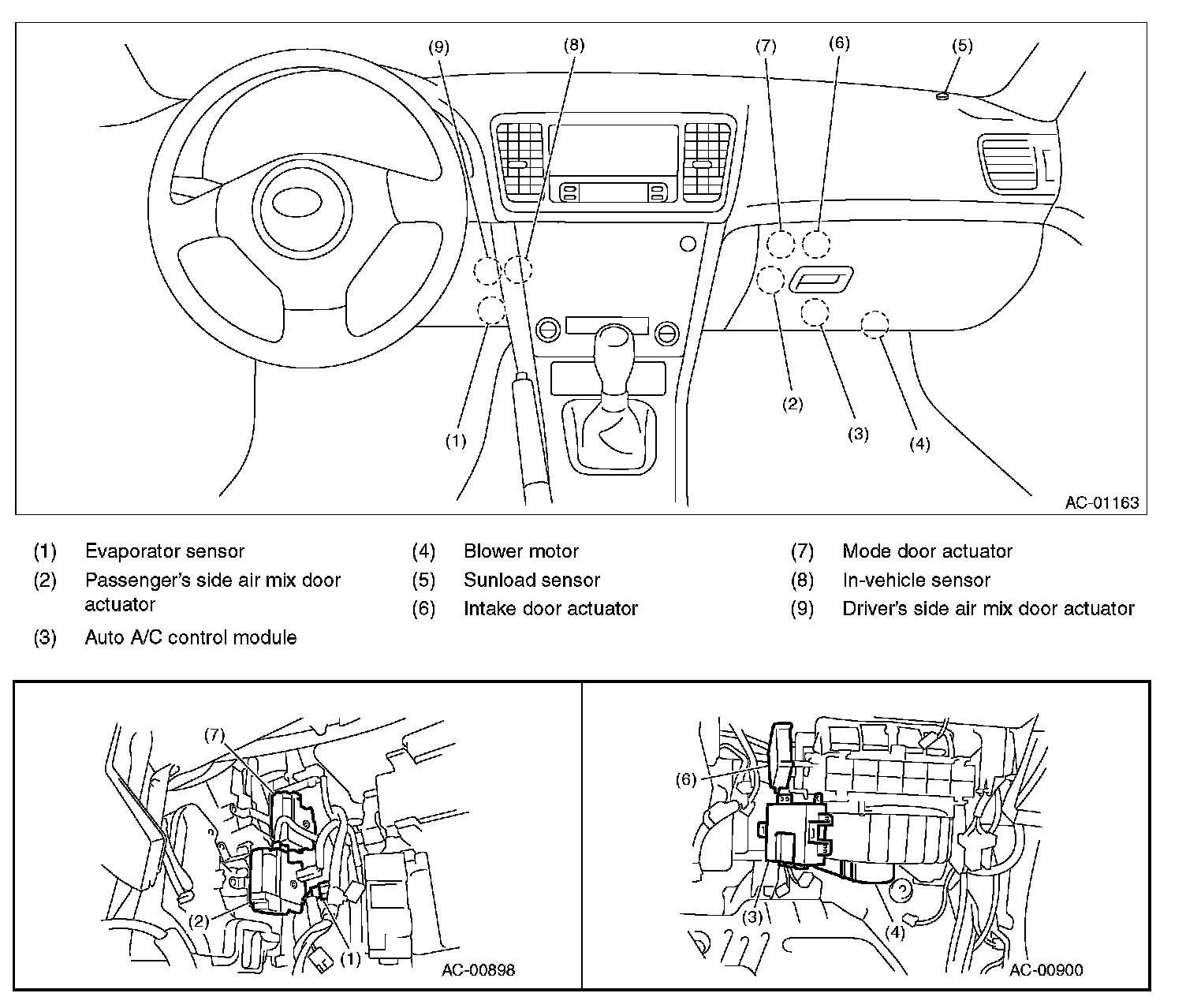

Electrical Component Location - Passenger Compartment Part 1:

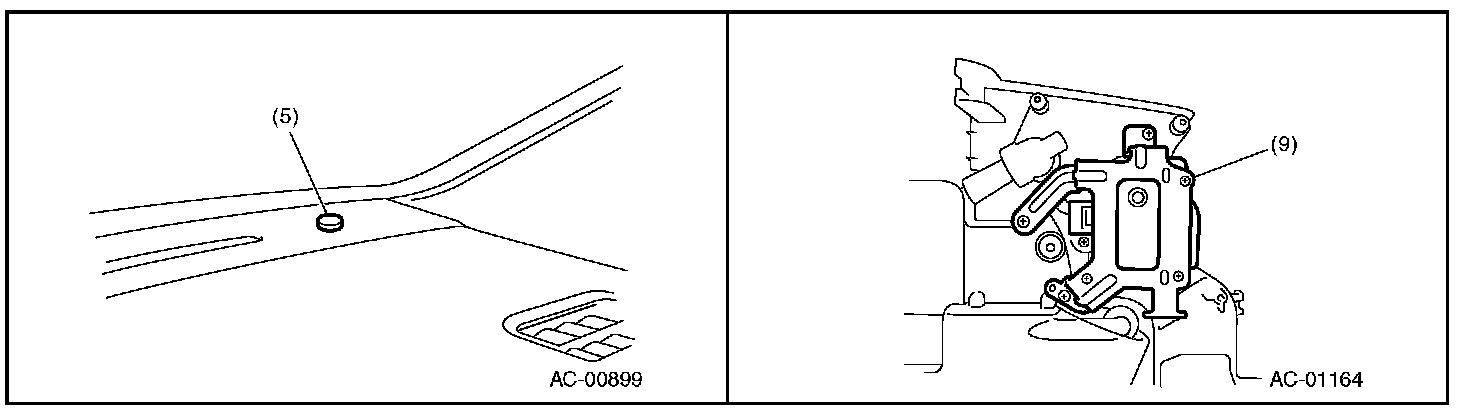

Electrical Component Location - Passenger Compartment Part 2:
