Outer Mirror Assembly

Outer Mirror Assembly

INSPECTION
Check that the rearview mirror moves properly when the battery voltage is applied to terminals.

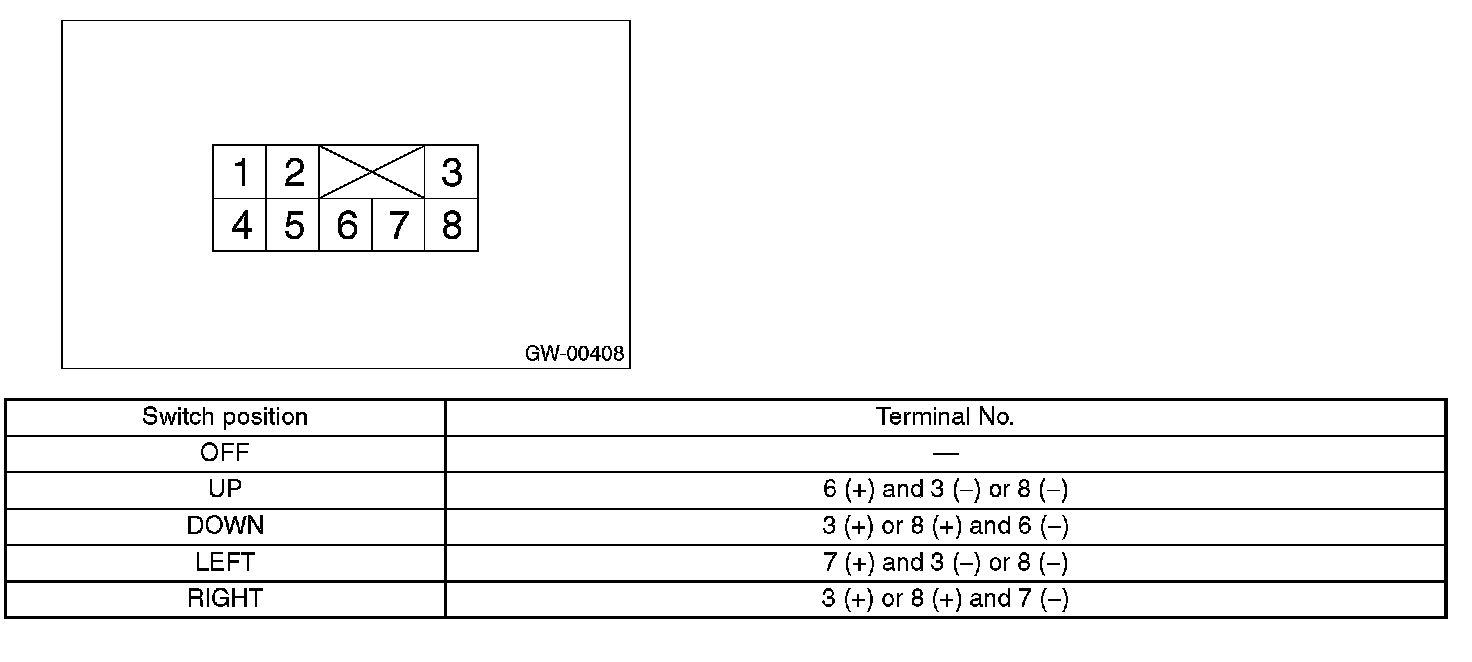

- Model with side turn signal light

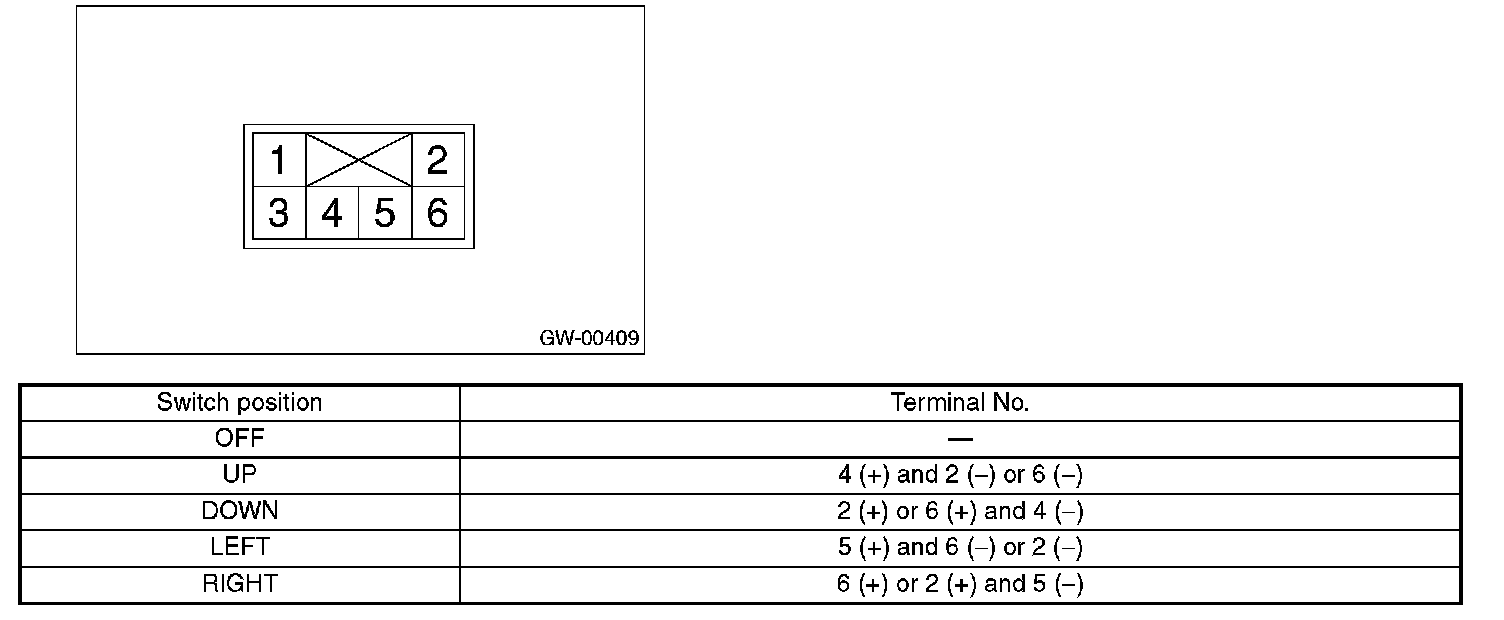

- Model without side turn signal light
Replace the outer mirror assembly if defective.
