Home >> Subaru >> 2005 >> Legacy F6-3.0L >> Repair and Diagnosis >> Body and Frame >> Diagrams >> Exploded Views

Exploded Views

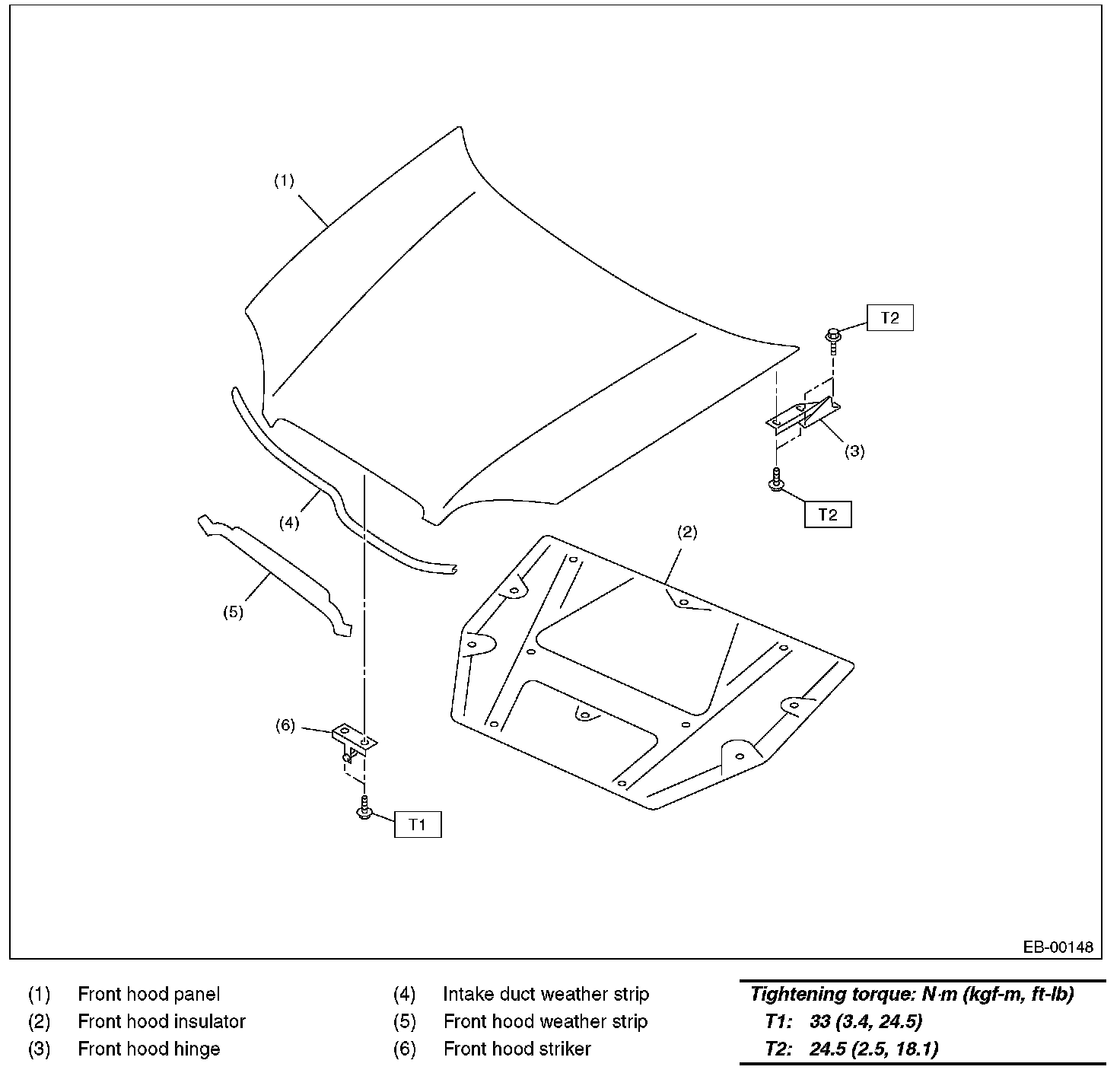

Front Hood:

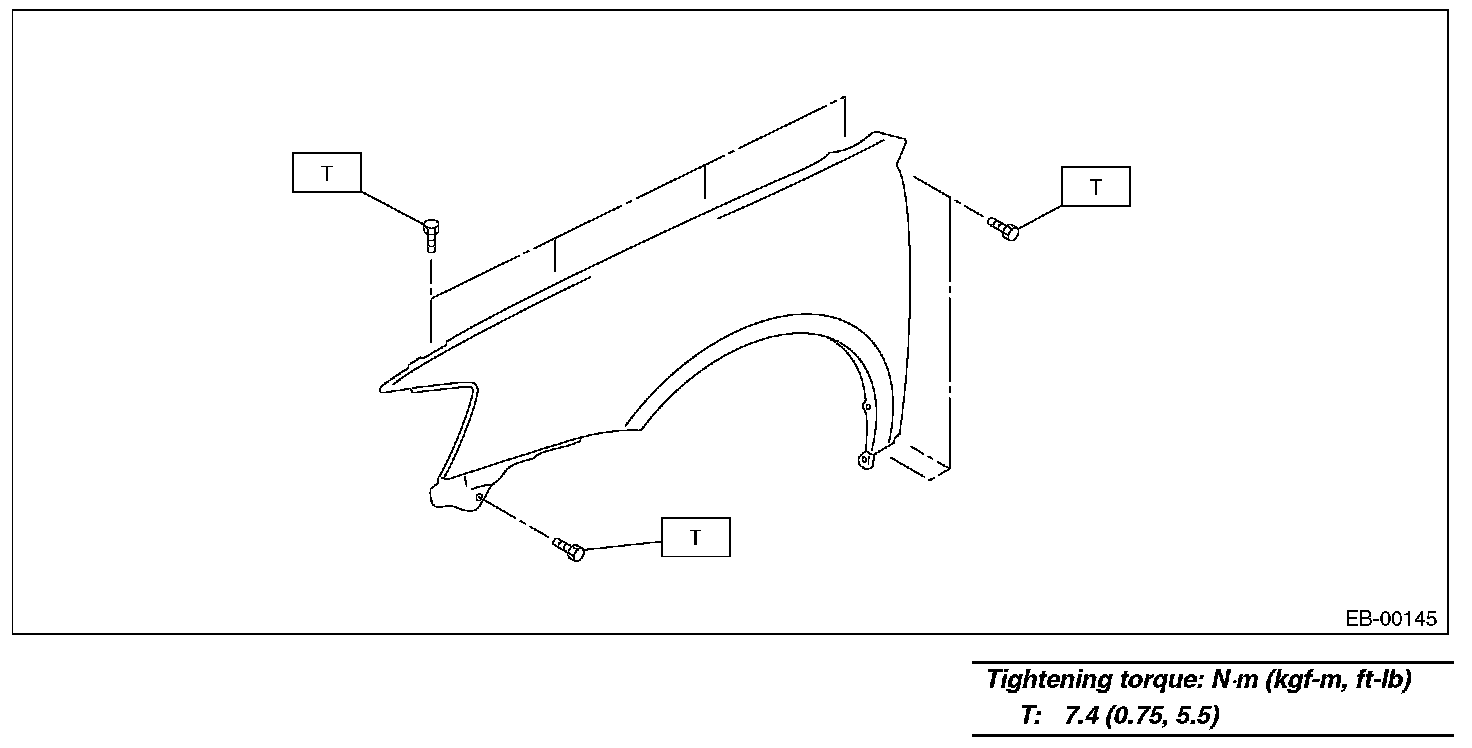

Front Fender Panel:

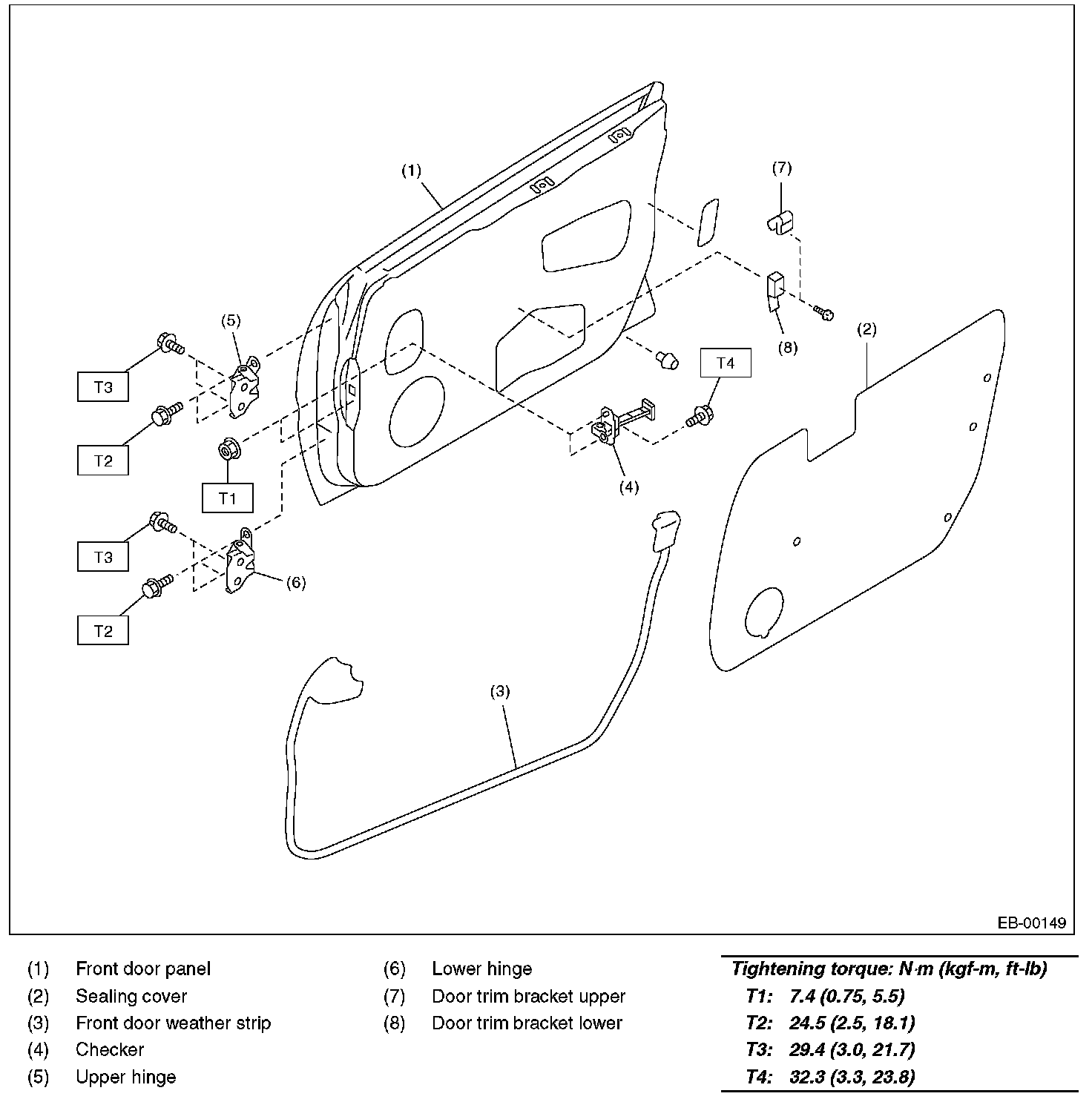

Front Door Panel:

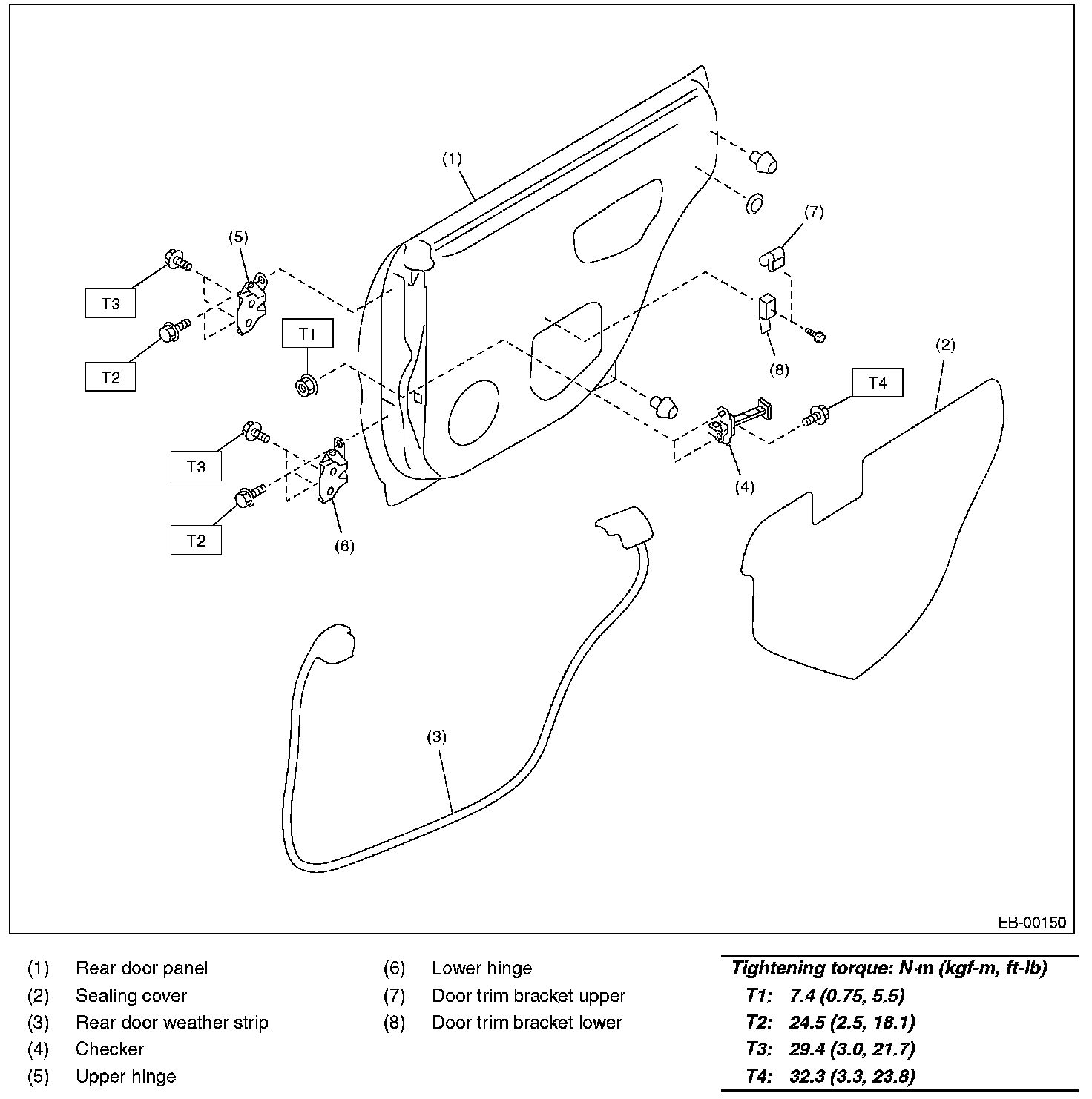

Rear Door Panel:

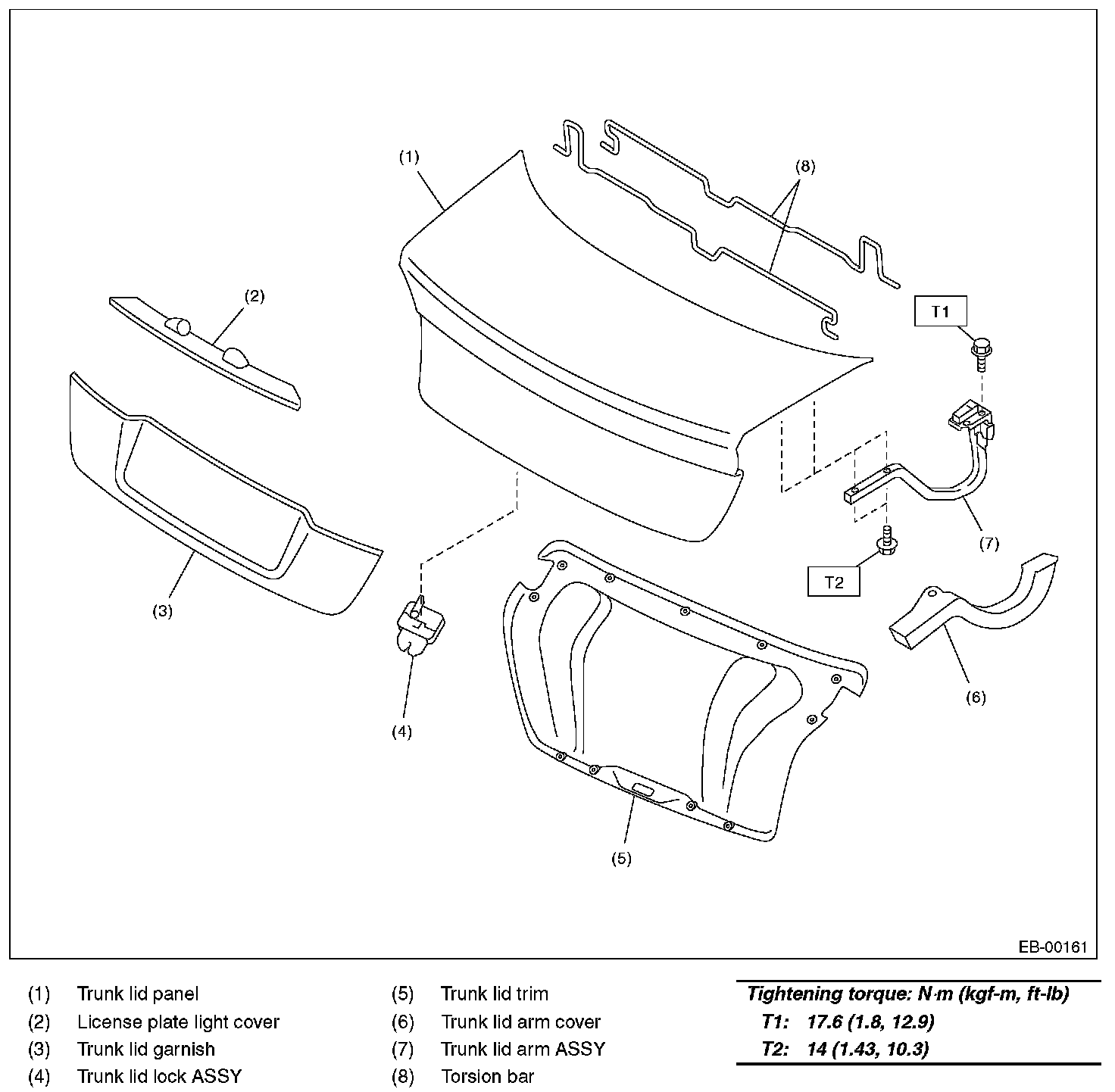

Trunk Lid Panel:

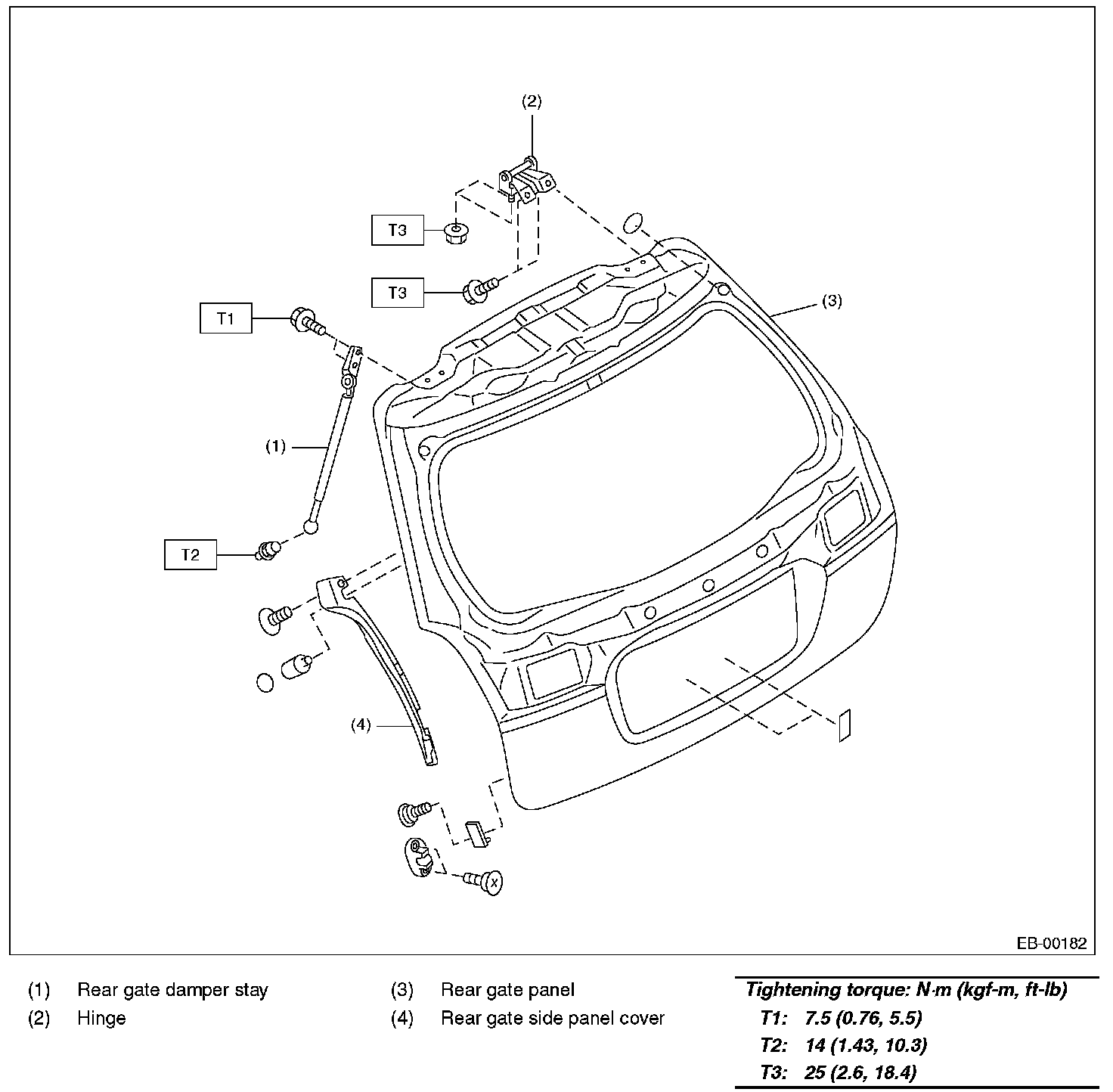

Rear Gate Panel:
