Technical Data

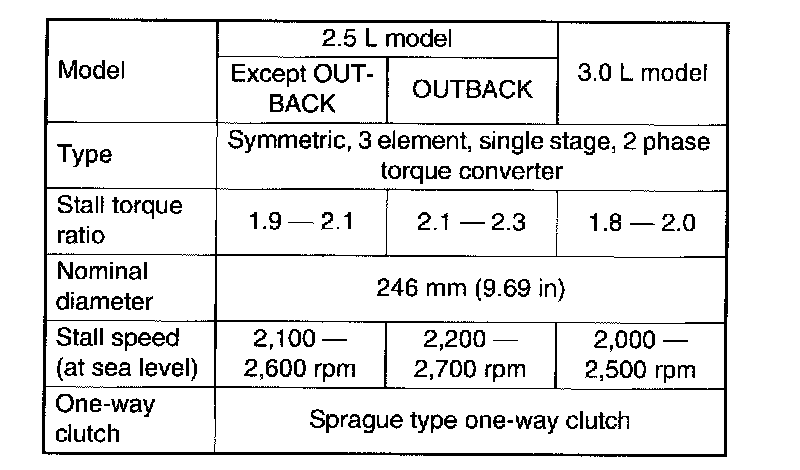

TORQUE CONVERTER CLUTCH

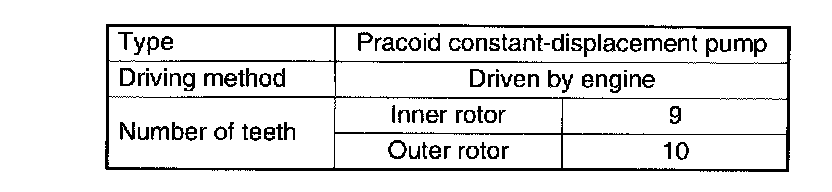

OIL PUMP

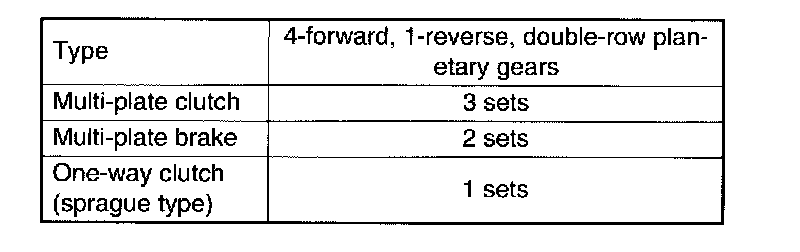

TRANSMISSION CONTROL ELEMENT

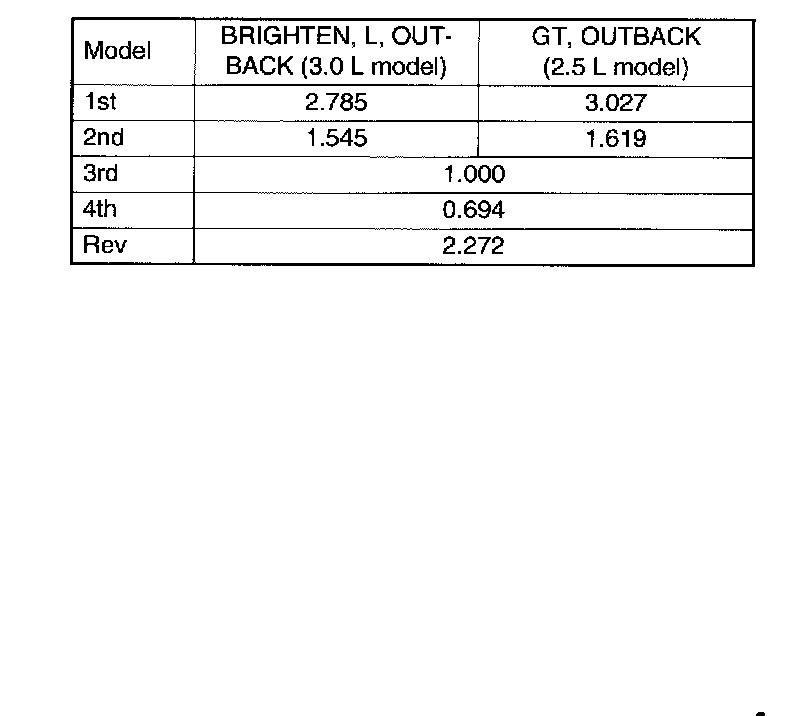

TRANSMISSION GEAR RATIO

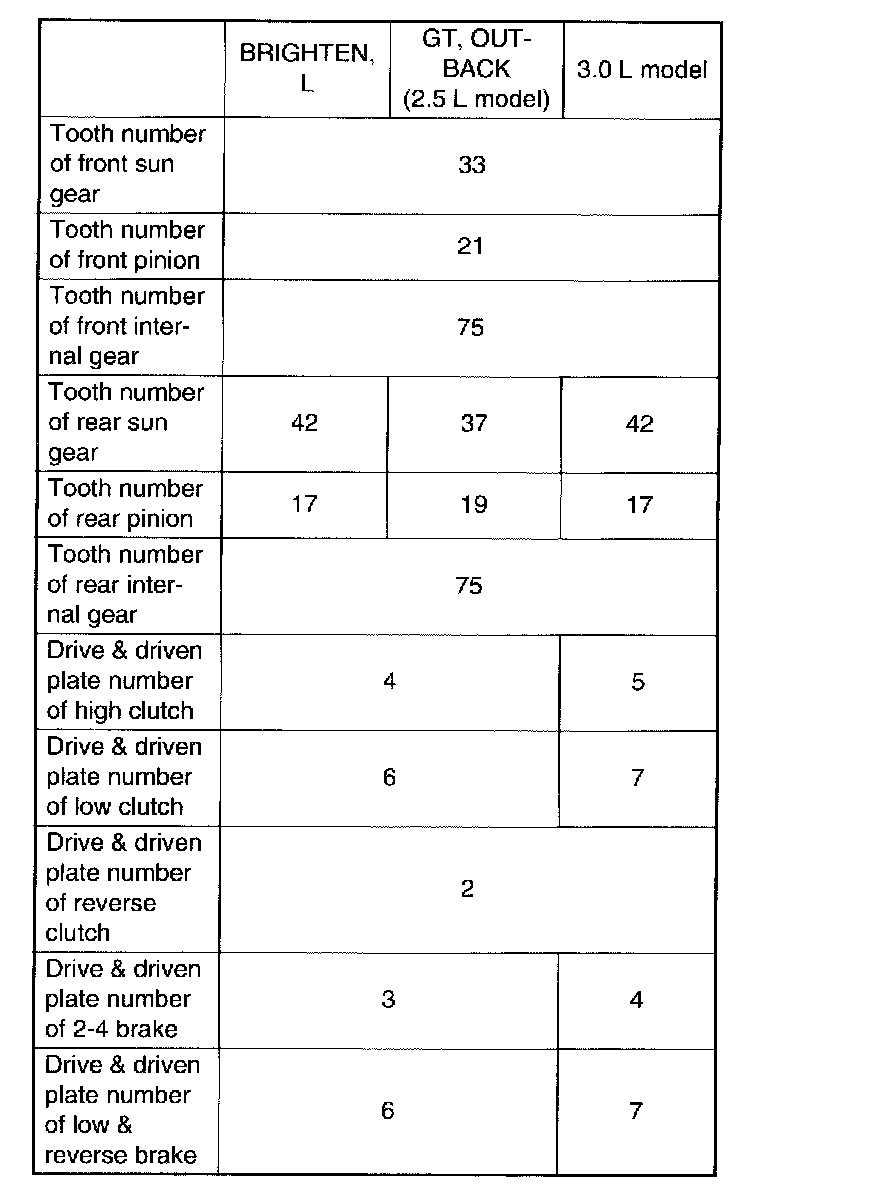

PLANETARY GEAR AND PLATE

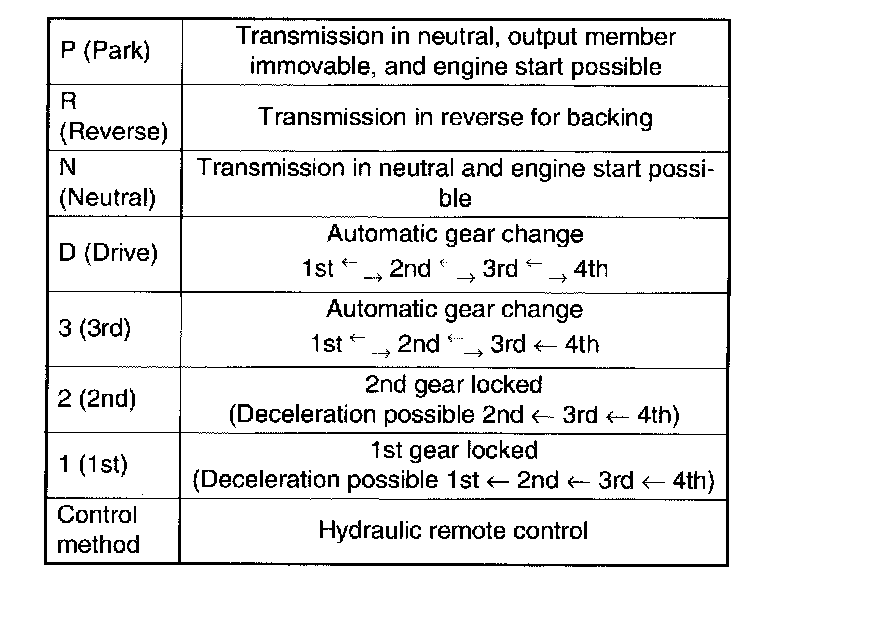

SELECTOR POSITION

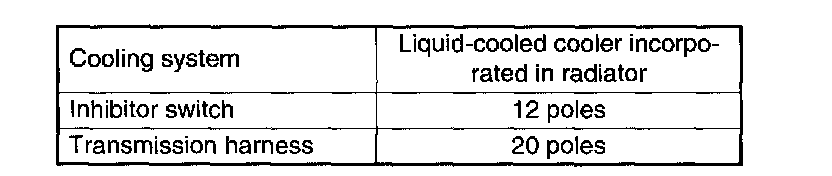

COOLING AND HARNESS

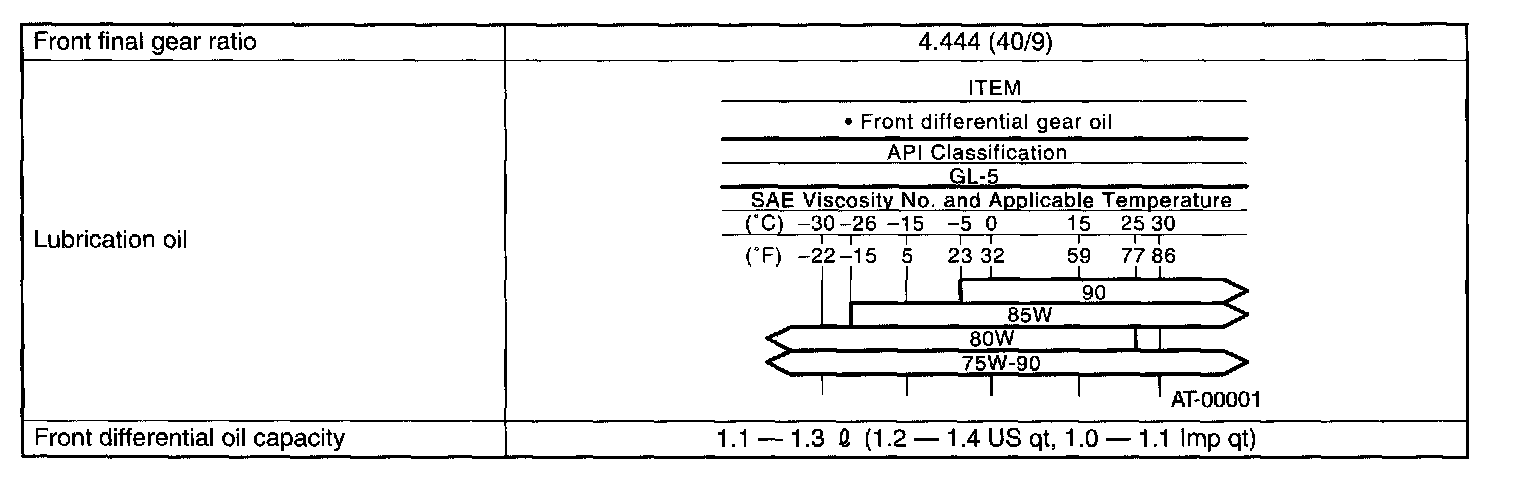

TRANSFER
