Check Buzzer

CHECK BUZZER

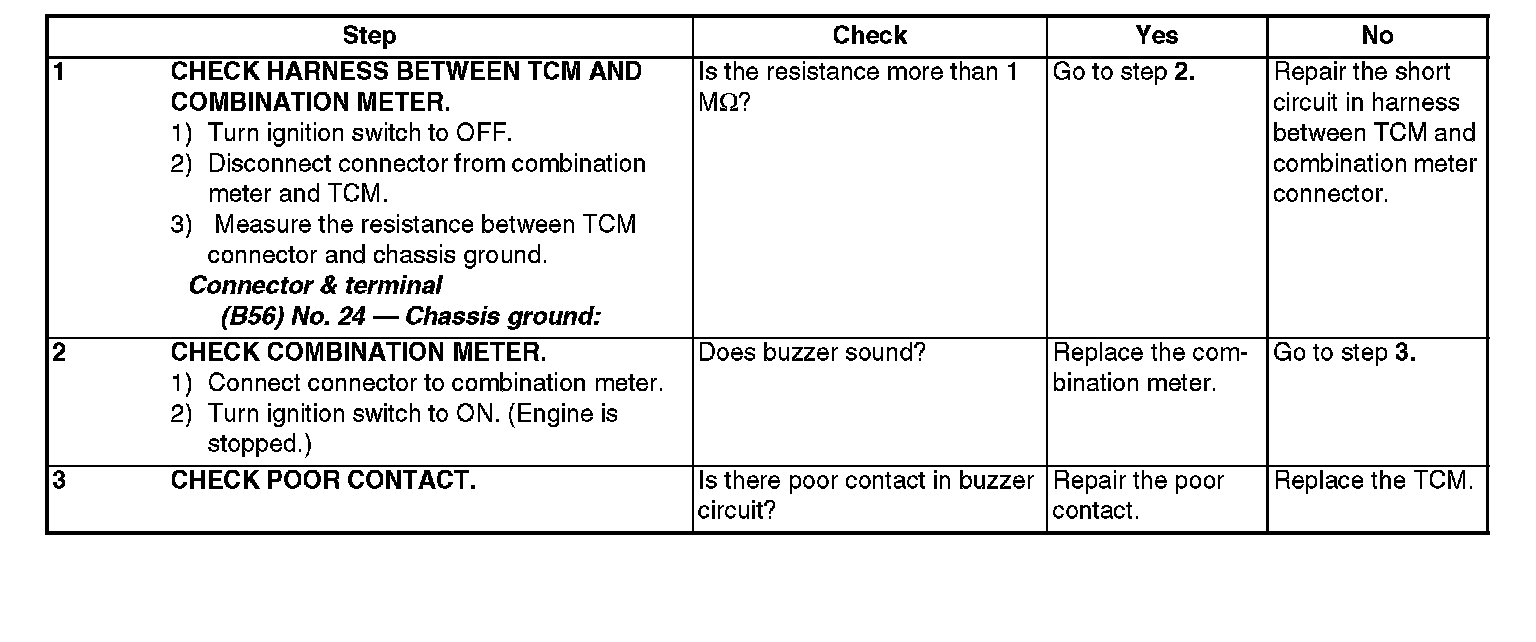

Steps 1-3:






DIAGNOSIS:
Buzzer output signal circuit is open or shorted.

TROUBLE SYMPTOM:
Buzzer remains sounded.

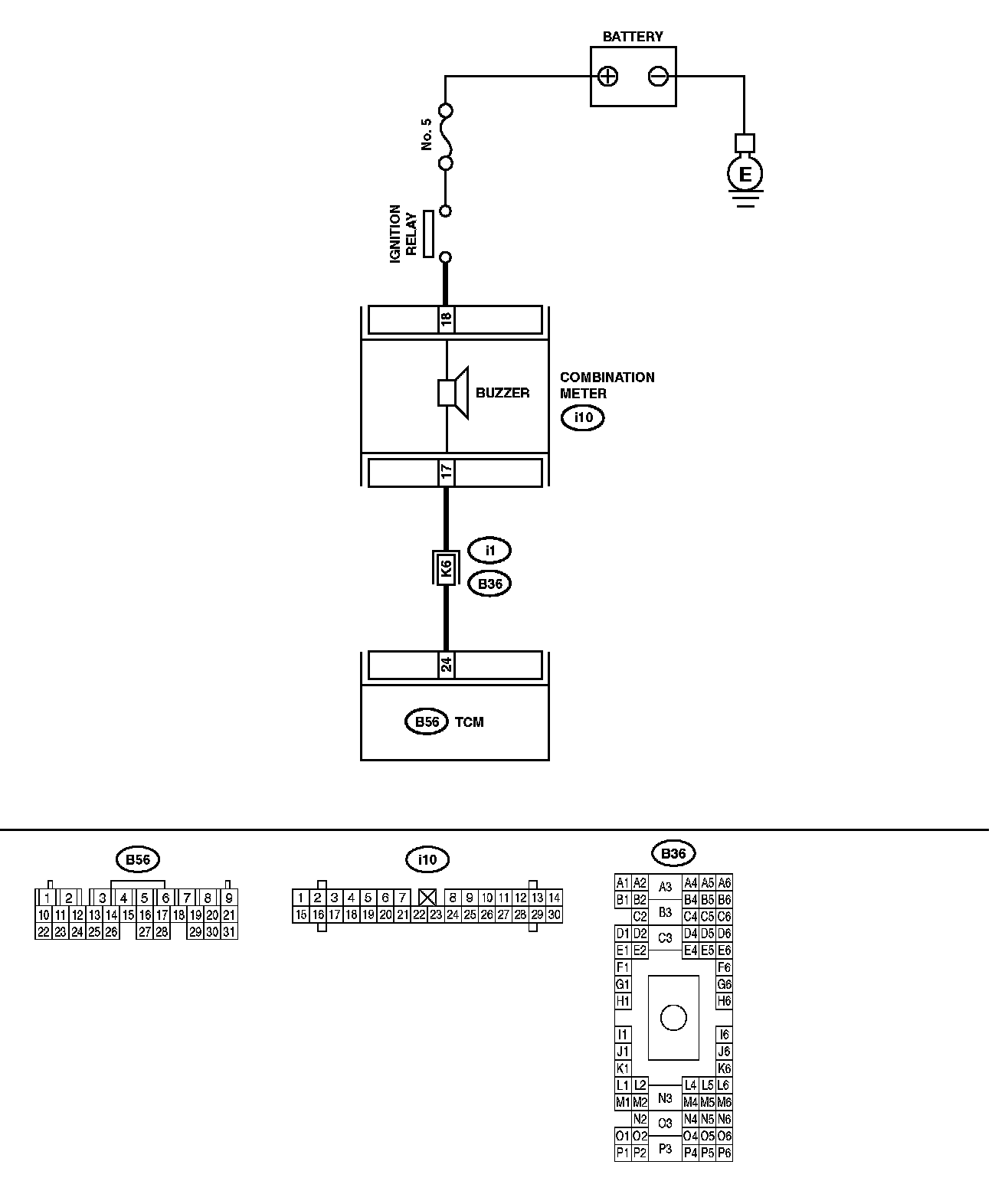

WIRING DIAGRAM
