Computers and Control Systems: Locations

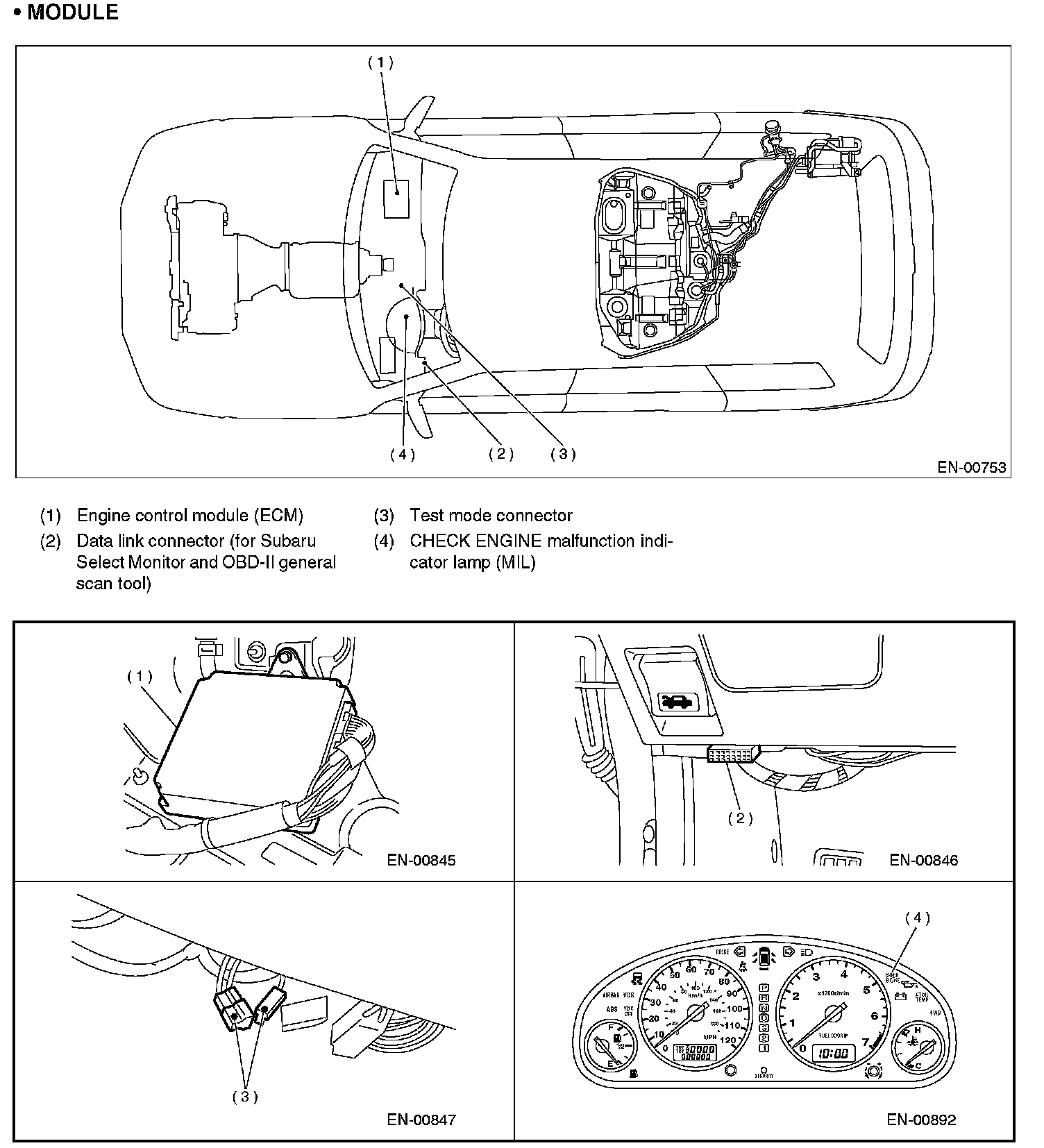

Electrical Components Location - Module:

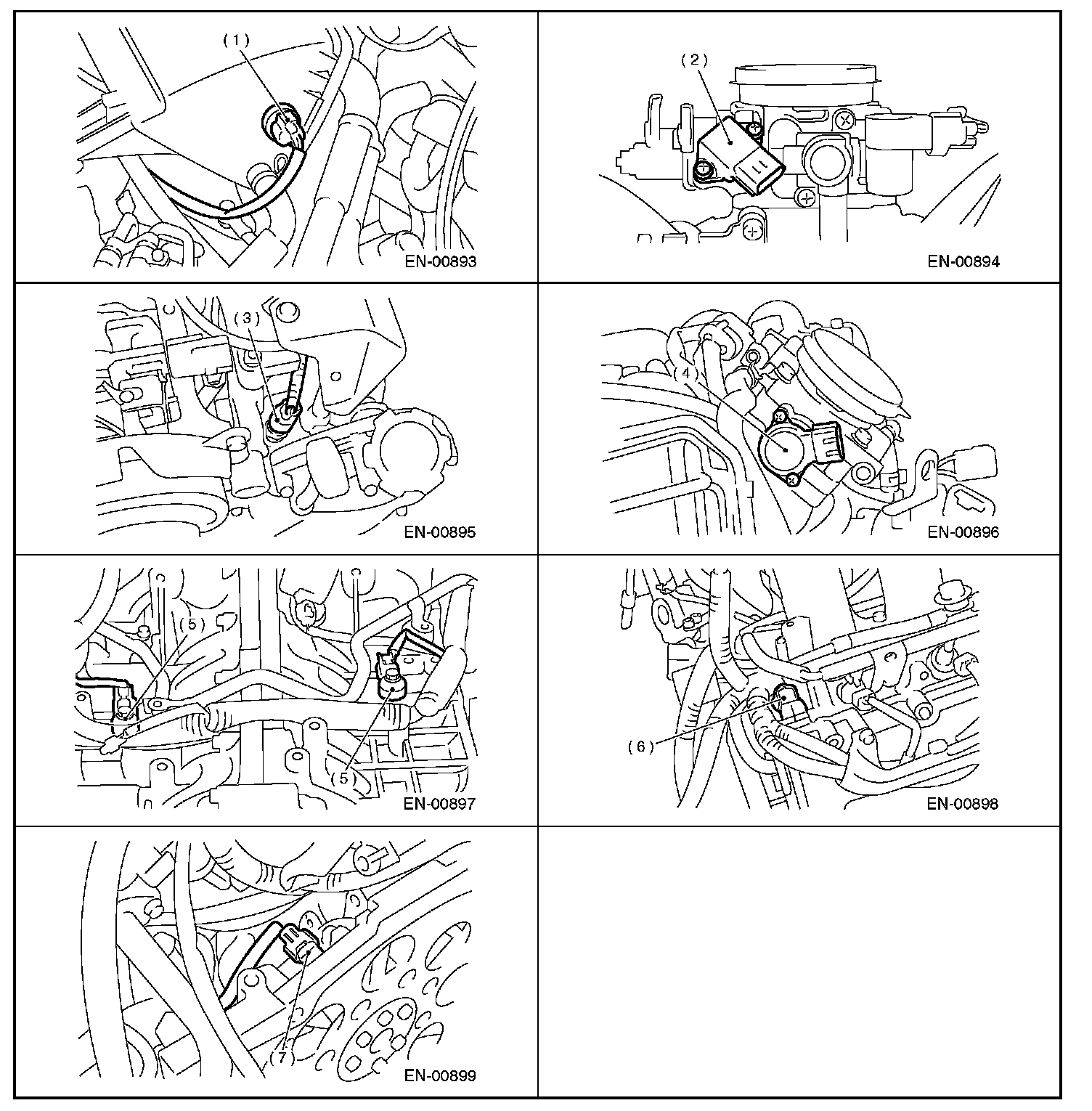

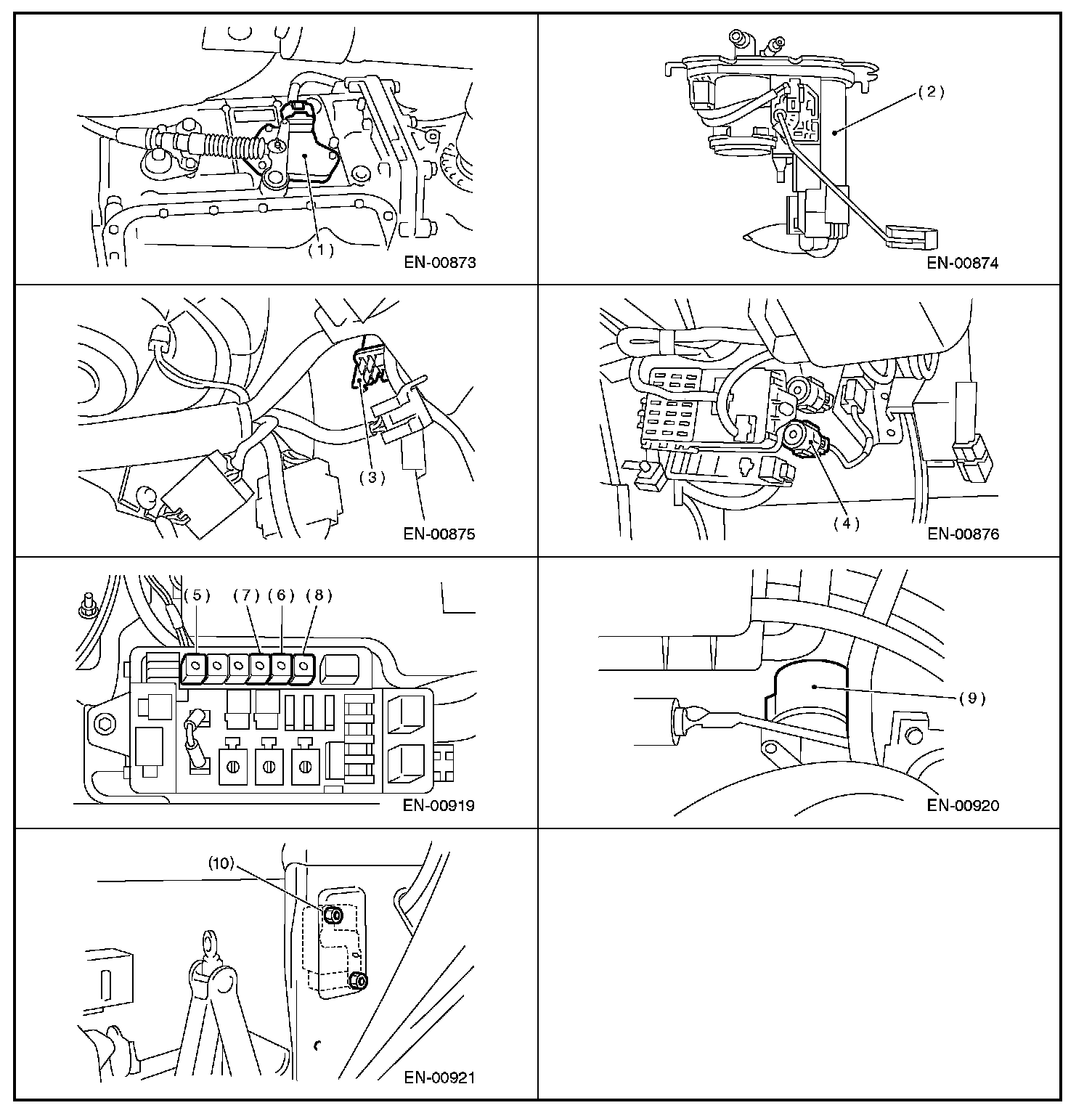

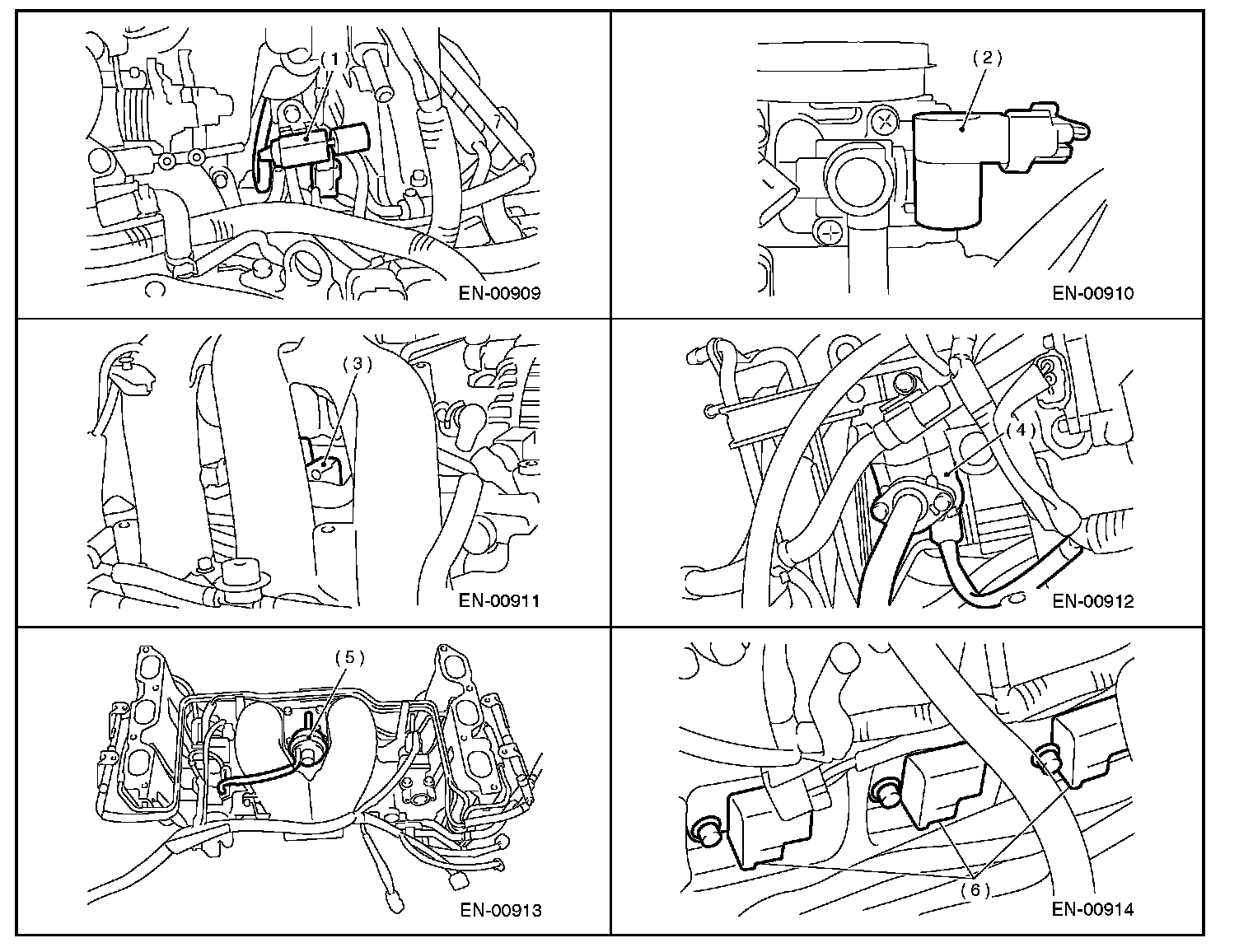

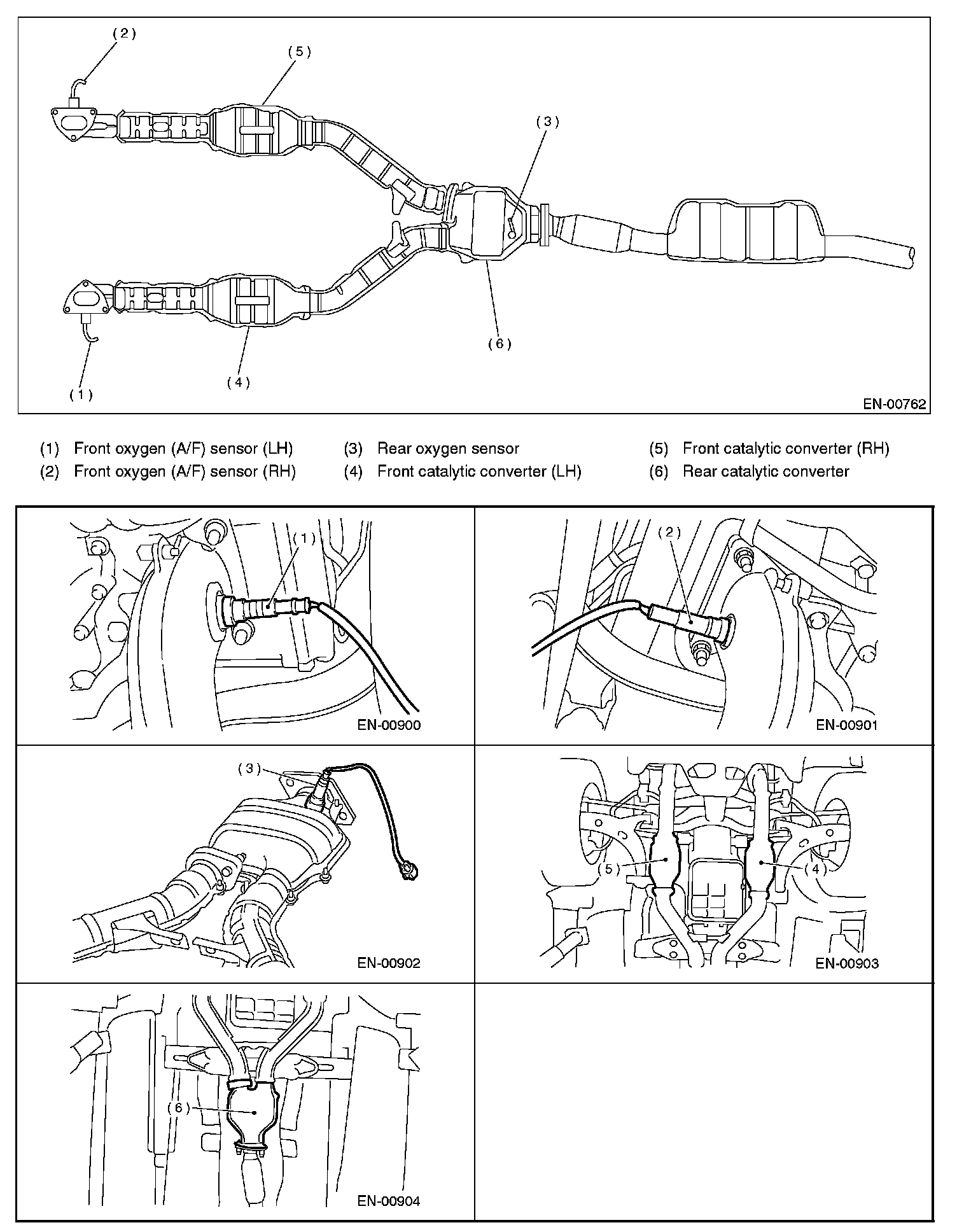

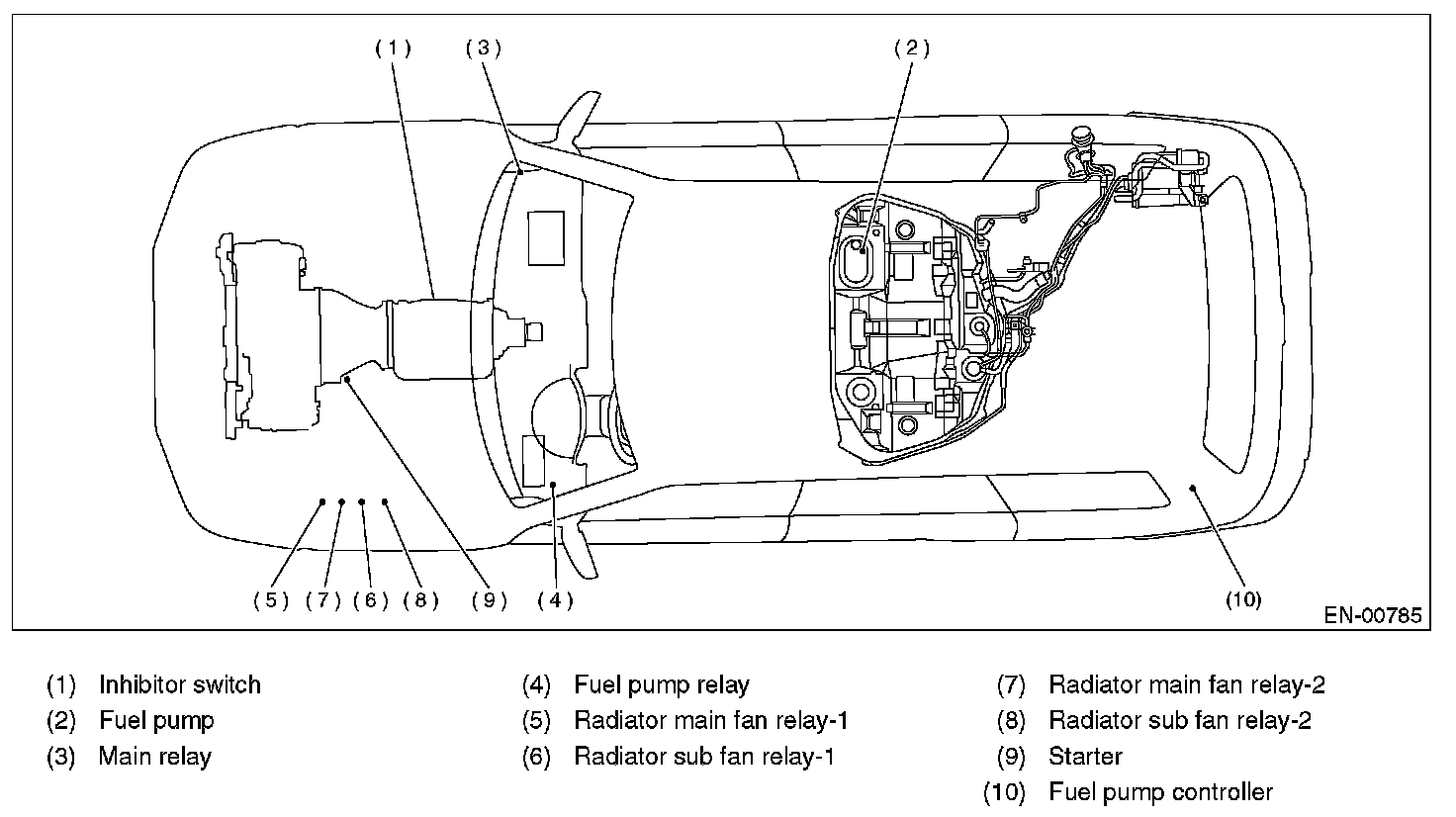

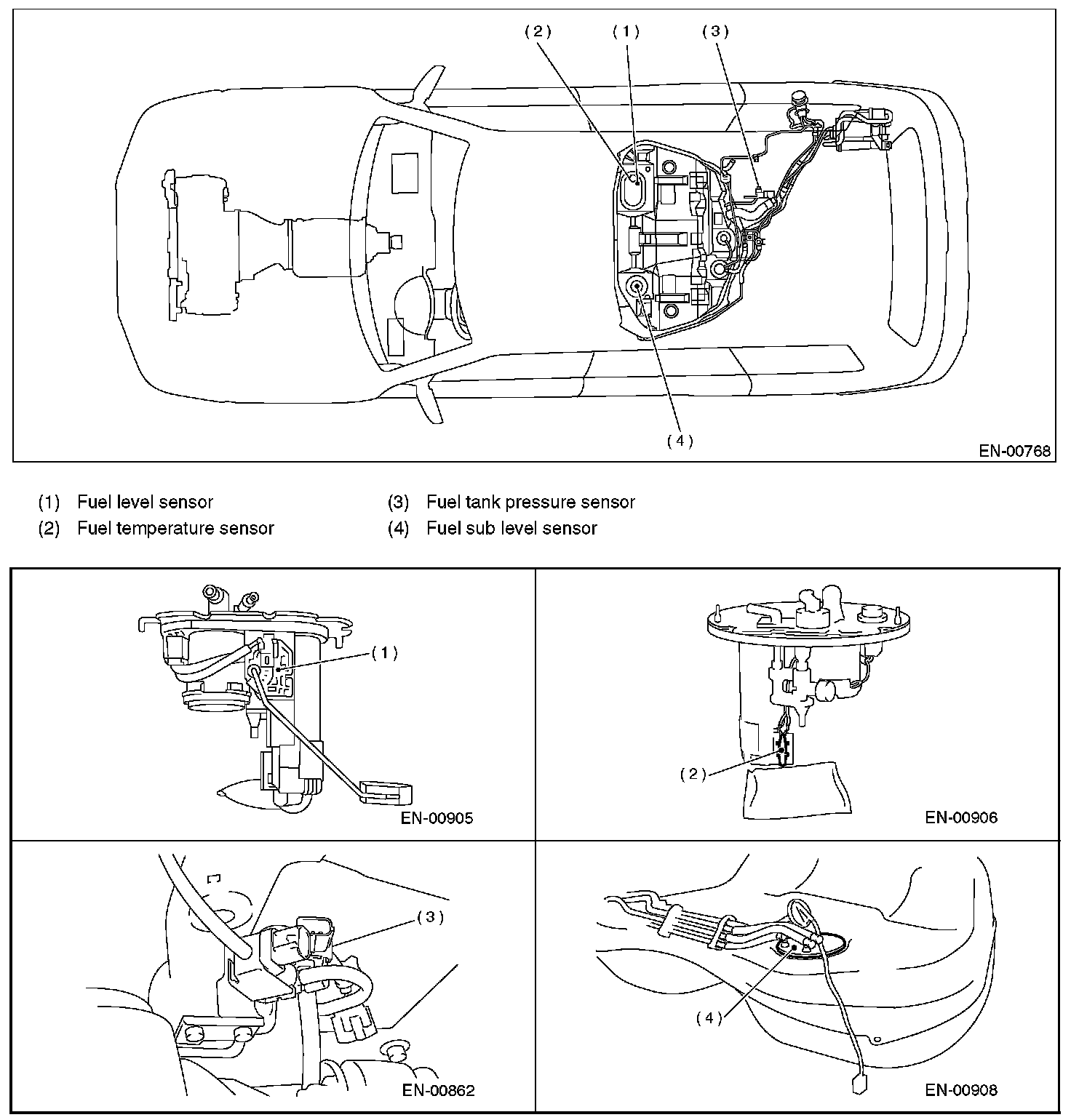

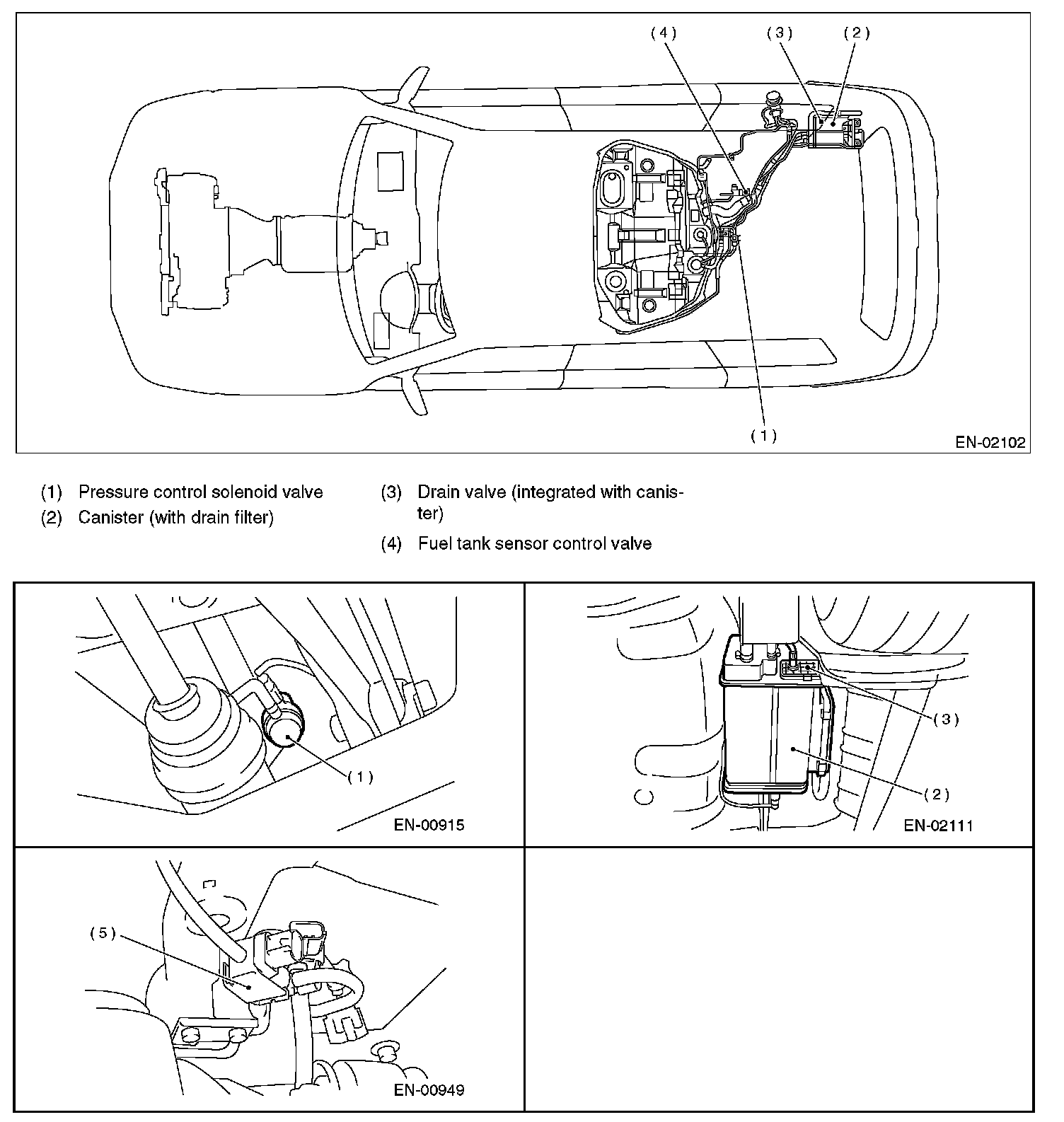

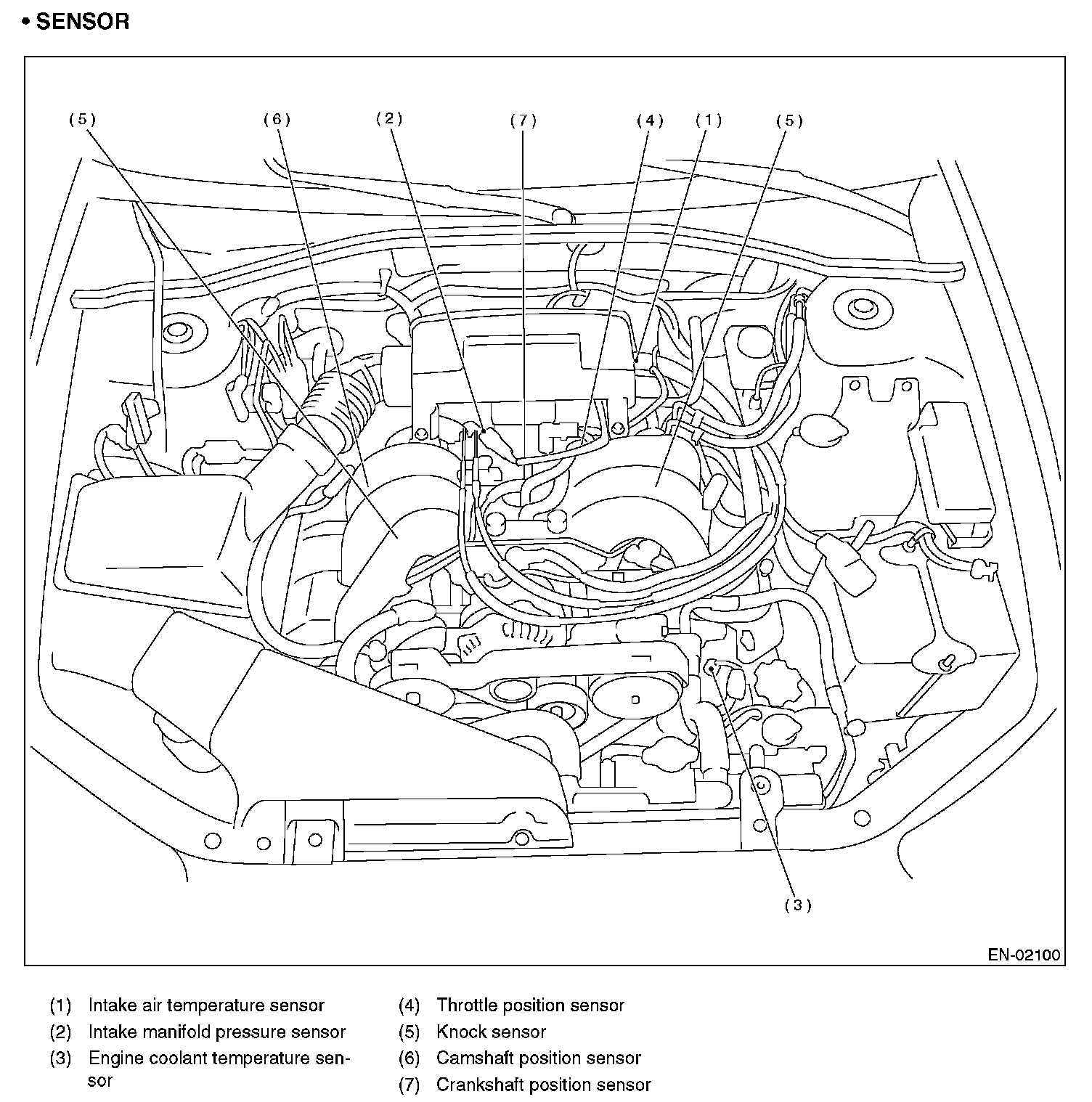

Electrical Components Location - Sensor:
