Locations
>>
Connector Locations
>>
R15-R144 & D33-D67
R15-R144 & D33-D67

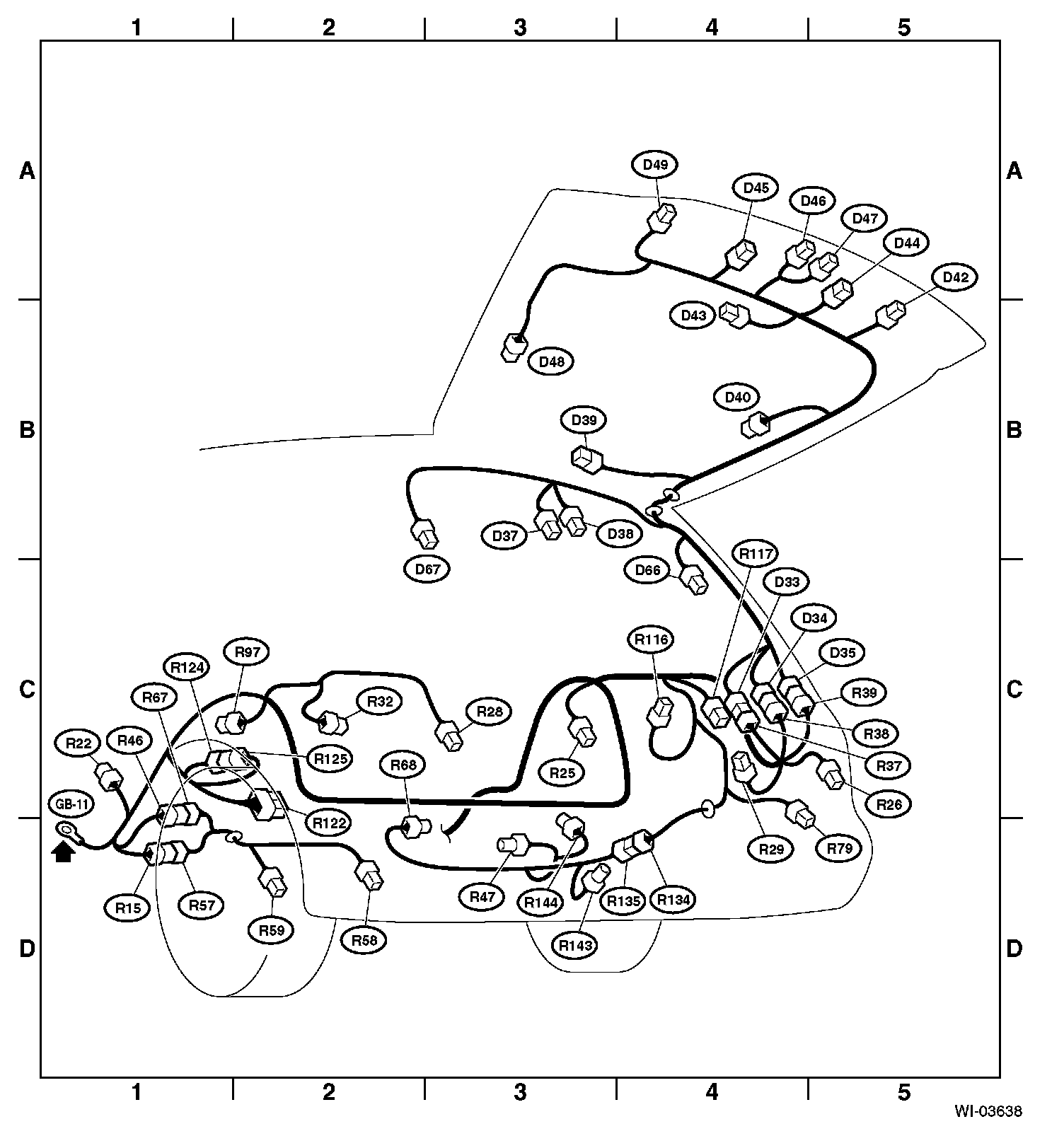

REAR WIRING HARNESS AND REAR GATE CORD

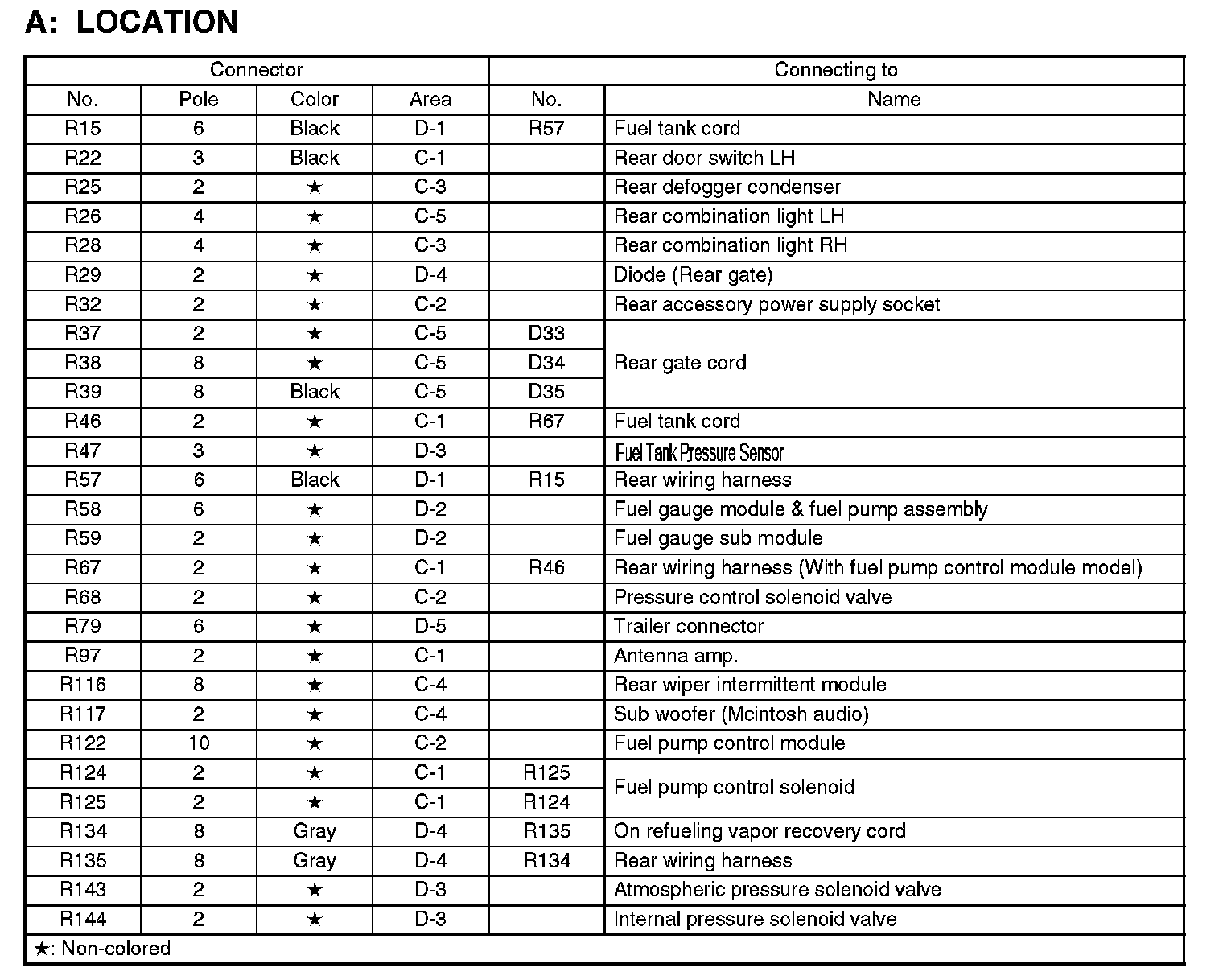

R15-R144:
D33-D67:
Area View:
