Home >> Subaru >> 2004 >> Outback F6-3.0L >> Repair and Diagnosis >> Locations >> Connector Locations >> B4-B253

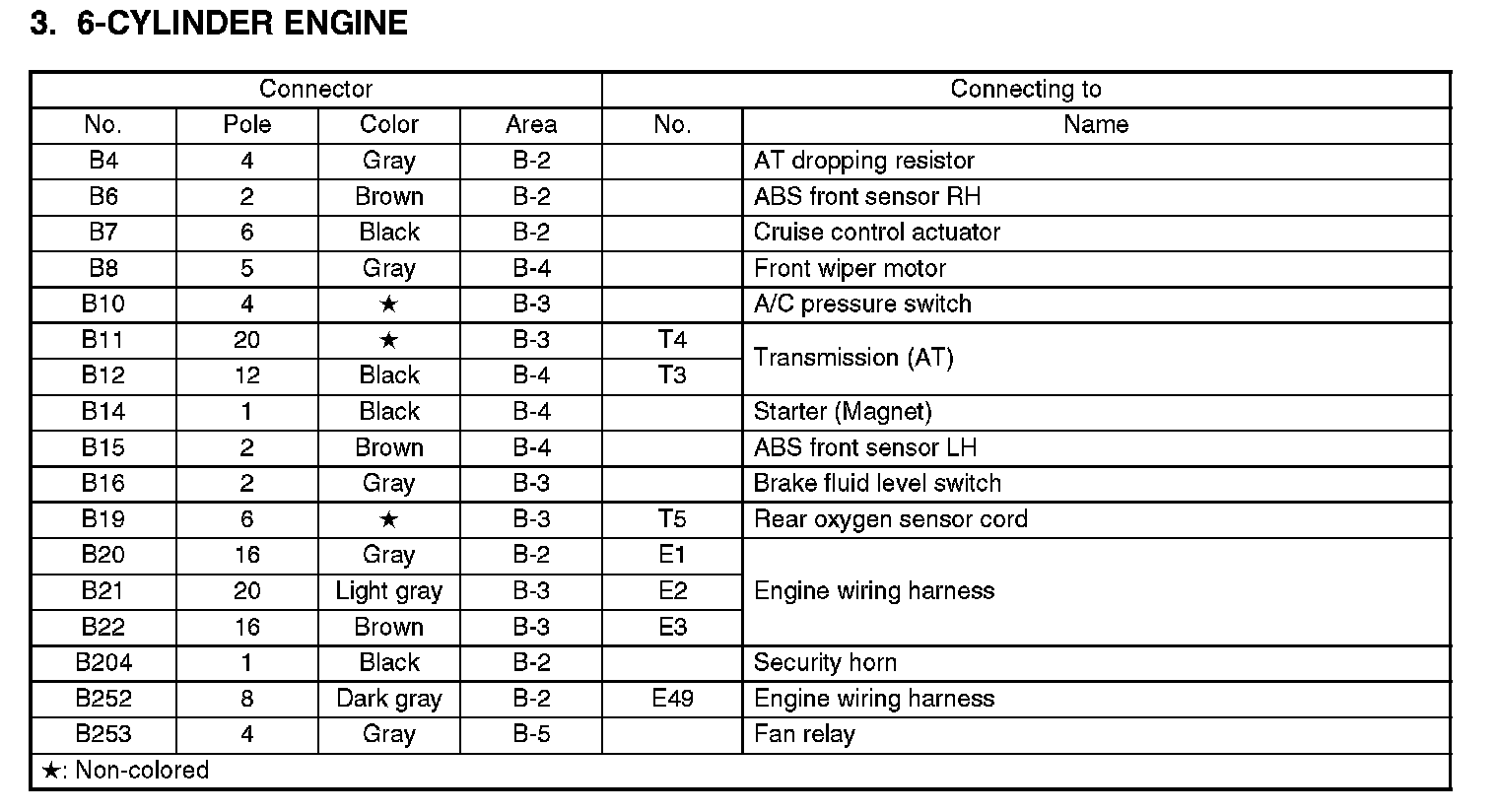

B4-B253

BULKHEAD WIRING HARNESS (IN ENGINE ROOM)

B4-B253:

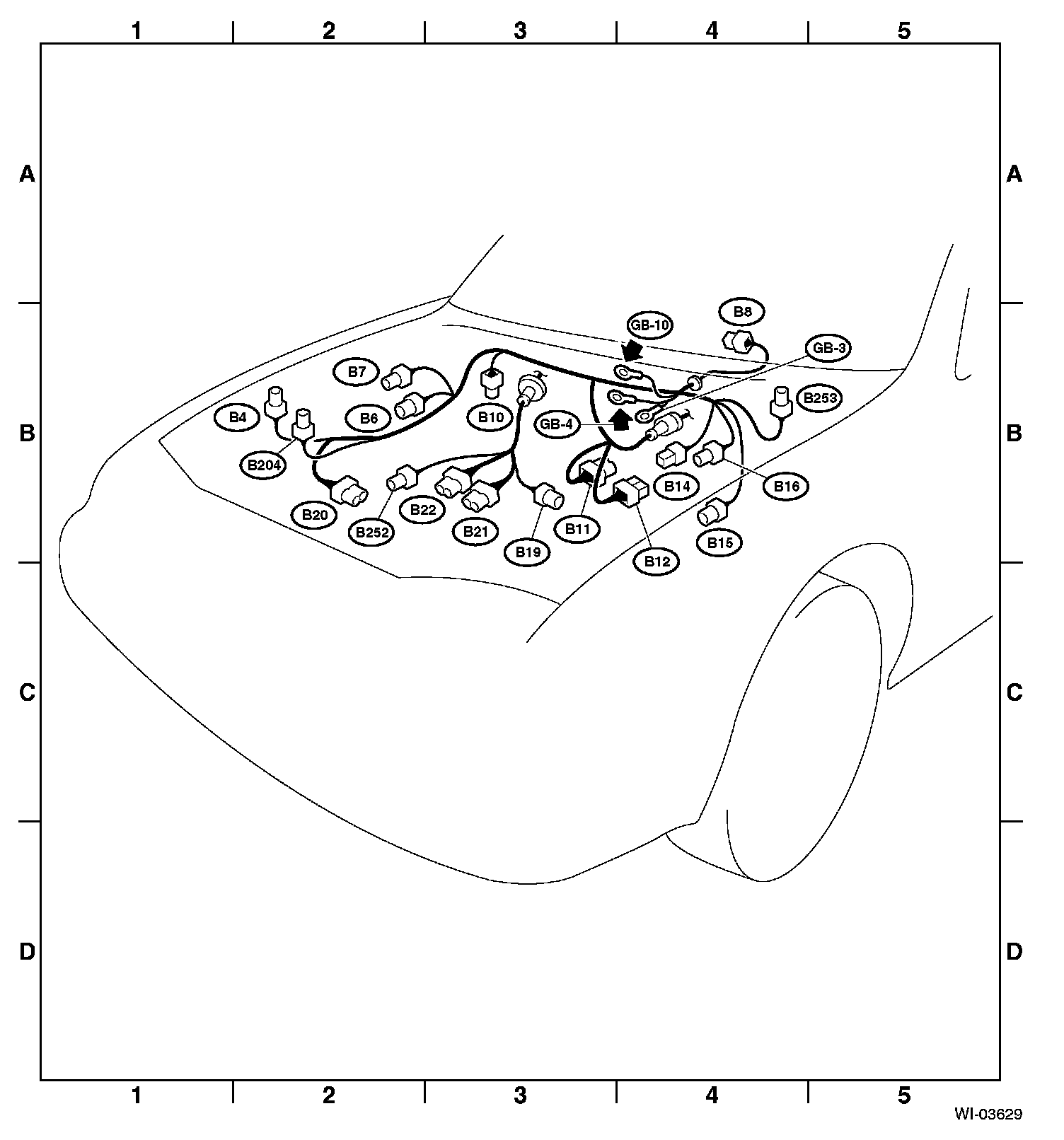

Area View:
