Subaru
>>
2004
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
B30-B300
B30-B300
BULKHEAD WIRING HARNESS (IN COMPARTMENT)

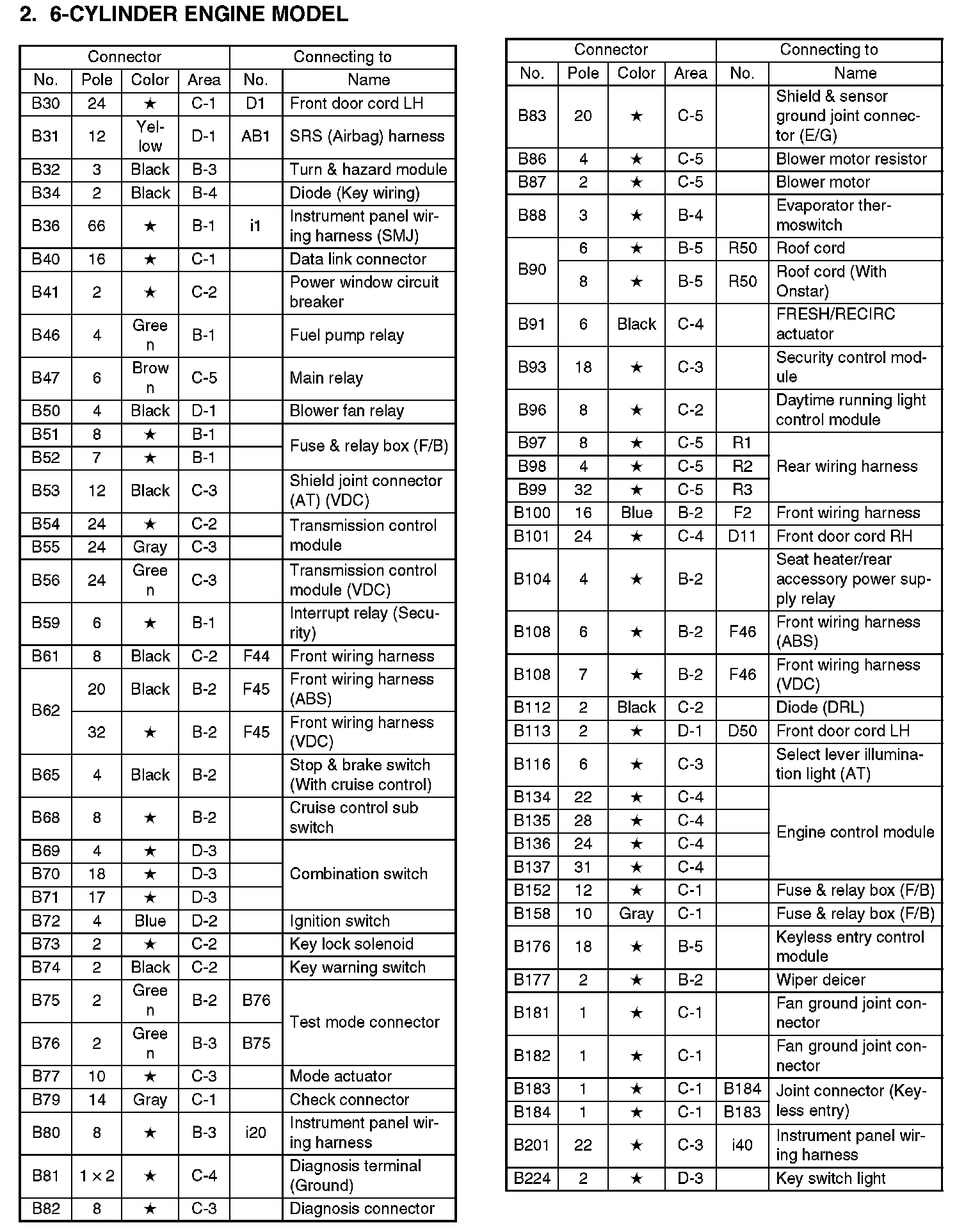

B30-B224:

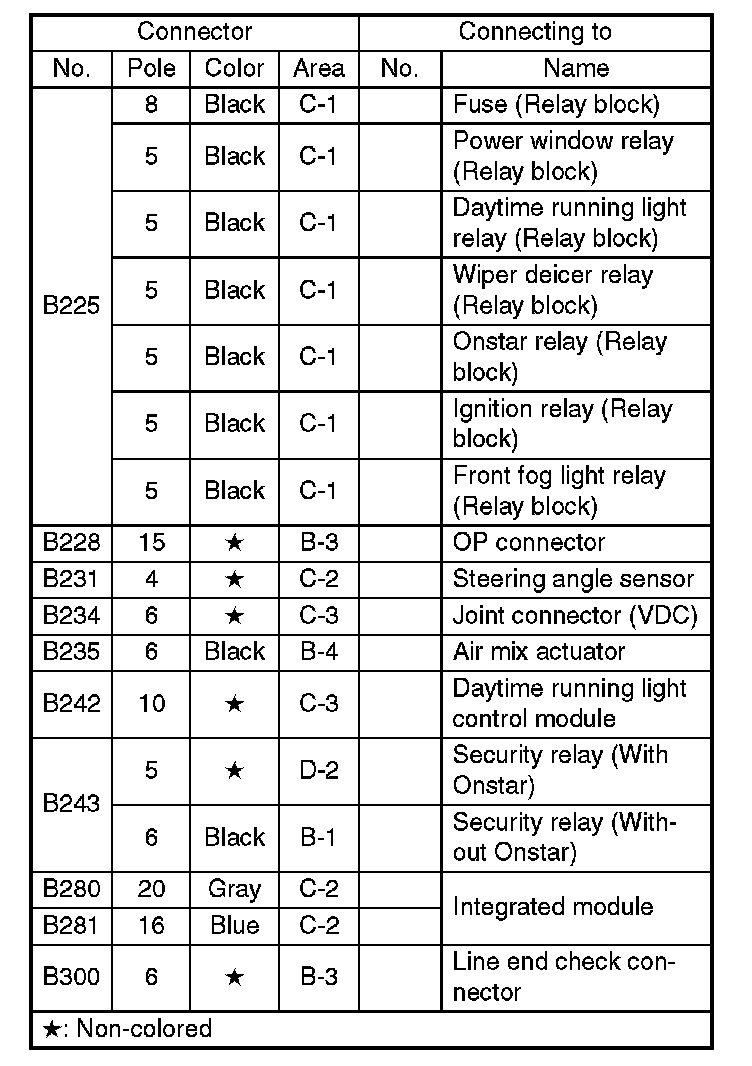

B225-B300:

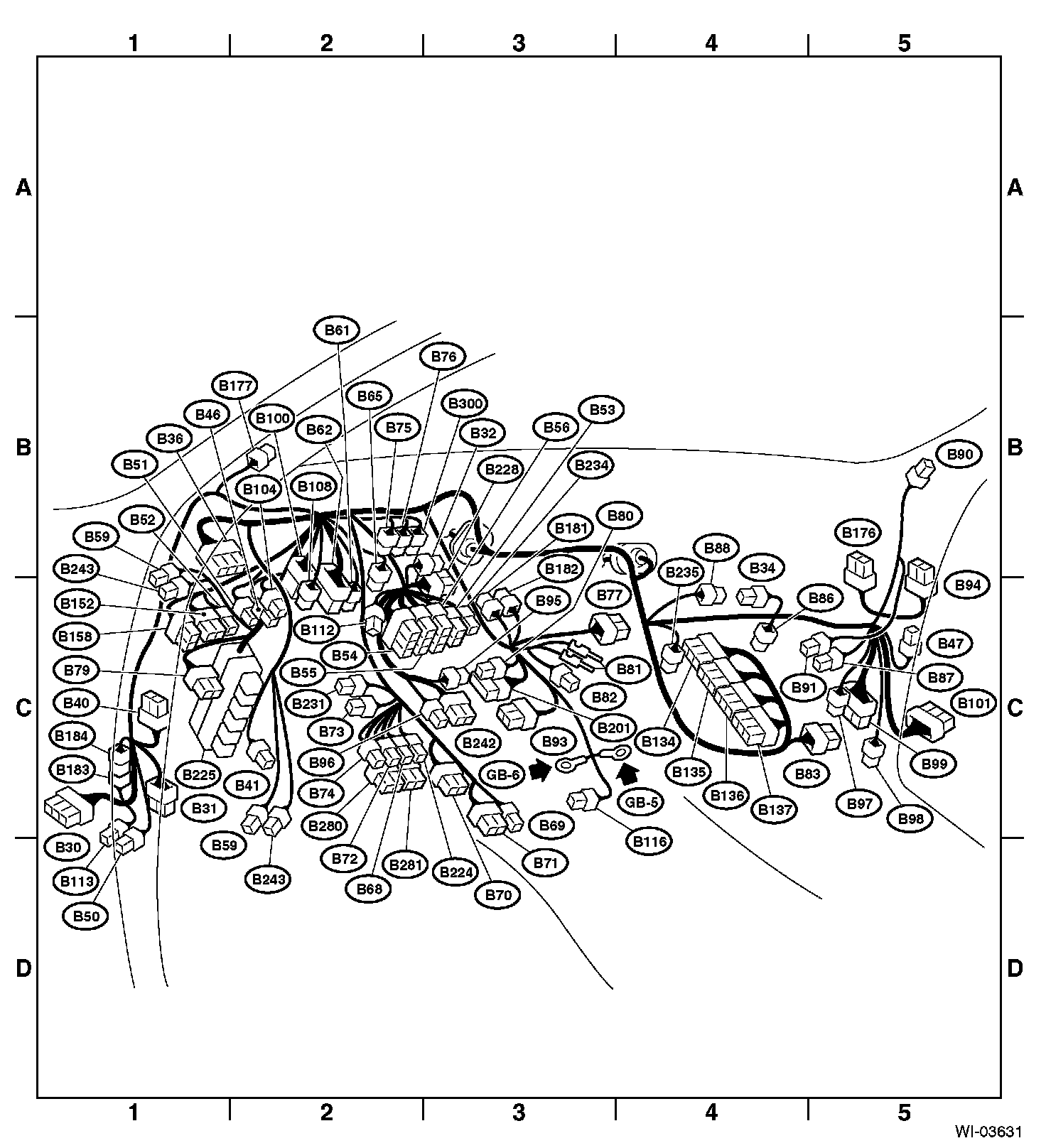

Area View:
